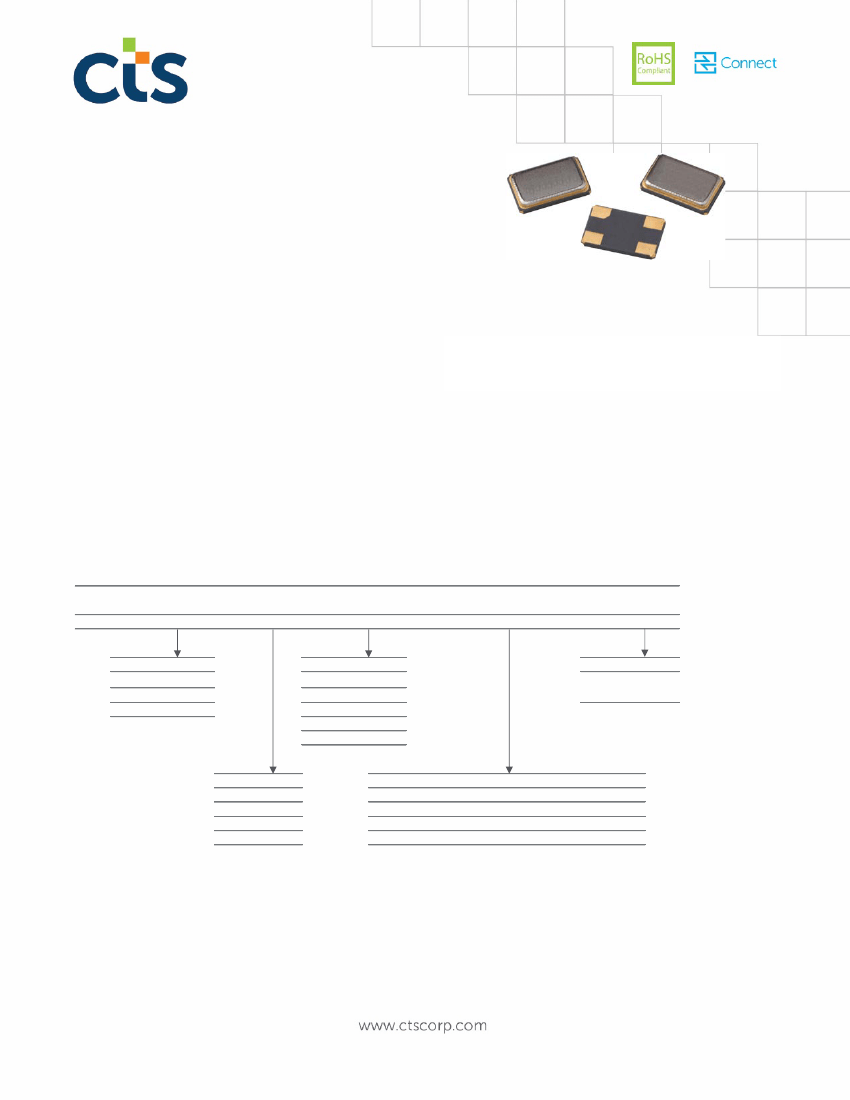

Model 406
Features
Surface Mount Quartz Crystal
Hermetic Ceramic Surface Mount Package
Fundamental Crystal Design
Frequency Range 7.0 – 54MHz
Frequency Tolerance, ±30ppm Standard
Frequency Stability, ±50ppm Standard
Operating Temperature Range to -40°C to +85°C
Tape and Reel Packaging, EIA-418
Part Dimensions:
6.0 × 3.5 × 1.2mm
•
68mg
Standard Frequencies – see Page 5 for common frequencies.
* Check with factory for availability of frequencies not listed.
Applications
IoT and IIoT Applications
Wireless Communications
FPGA/Microcontrollers
USB Interfaces
Computer Peripherals
Portable Equipment
Test and Measurement
M2M Communications
Broadband Access
Description
CTS Model 406 incorporates a high Q quartz resonator and is ideal for supporting a wide range of commercial and
industrial applications.
Ordering Information
Model
406
Temperature
Range
C
Tolerance
@ +25°C
3
Temperature
Stability
5
Load
Capacitance
D
Frequency
[MHz]
XXMXXXXX
Code Temp. Range
C
-20°C to +70°C
-30°C to +85°C
D
-40°C to +85°C
I
Code
1
X
2
3
5
Stability
±10ppm
±15ppm
±20ppm
±30ppm
±50ppm
1
Code
Frequency
Frequency
2
Code
1
X
2
3
Tolerance
±10ppm
±15ppm
±20ppm
±30ppm
Code
K
J
A
L
Capacitance Code Capacitance Code Capacitance
8pF
13pF
24pF
B
F
9pF
16pF
30pF
C
G
10pF
18pF
32pF
D
H
12pF
20pF
Series
E
S
Notes:
1] Check factory availability when combined with -40°C to +85°C temperature range.
2] Frequency is recorded with 2 leading digits before the "M" and 5 significant digits after the "M" [including zeroes].
(Ex. XXMXXXXX [16M38400], XXMXXXXX [22M11840], XXMXXXXX [14M31818])
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
DOC# 008-0260-0 Rev. I
Page 1 of 5
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Surface Mount Quartz Crystal
Model 406
Electrical Specifications
Operating Conditions
P AR AMETER
SYMB OL
C OND I TI ONS
MI N
-20
Op er at in g Tem p er at u r e
T
A
-
-30
-40
-40
St o r age Tem p er at u r e
T
STG
-
-55
-
+25
TYP
MAX
+70
+85
+85
+105
+125
°C
°C
UNI T
Frequency Stability
P AR AMETER
Fr eq u en c y R an ge
Fr eq u en c y To ler an c e
Fr eq u en c y St ab ilit y
Agin g
SYMB OL
f
O
Δf/f
O
Δf/f
25
Δf/f
0
C OND I TI ONS
Fundamental Mode
@ +25°C
Referenced to +25°C reading
Typical per year @ +25°C
-3
MI N
TYP
7 - 54
10, 15, 20, 25 or 30
10, 15, 20, 25, 30 or 50
-
3
MAX
UNI T
MHz
±ppm
±ppm
ppm
Crystal Parameters
P AR AMETER
Op er at in g Mo d e
C r y st al C u t
L o ad C ap ac it an c e
Sh u n t C ap ac it an c e
Ser ies R esist an c e
7MHz - <12MHz
Fu n d am en t al
R
1
12MHz - <14MHz
14MHz - <20MHz
20MHz - 54MHz
D r iv e L ev el
I n su lat io n R esist an c e
DL
R
i
-
+100Vdc ±15Vdc
-
-
-
-
-
500
-
-
-
-
10
-
100
60
50
40
300
-
µW
MΩ
Ω
SYMB OL
-
-
C
L
C
0
C OND I TI ONS
-
-
-
-
-
MI N
TYP
Fundamental
AT-Cut Strip
See Ordering Information
5.0
7.0
MAX
UNI T
-
-
pF
pF
Δf/f
0
- Frequency deviation referenced to nominal frequency.
Δf/f
25
- Frequency deviation over operating temperature range, referenced to +25°C frequency.
DOC# 008-0260-0 Rev. I
Page 2 of 5
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Surface Mount Quartz Crystal
Model 406
Mechanical Specifications

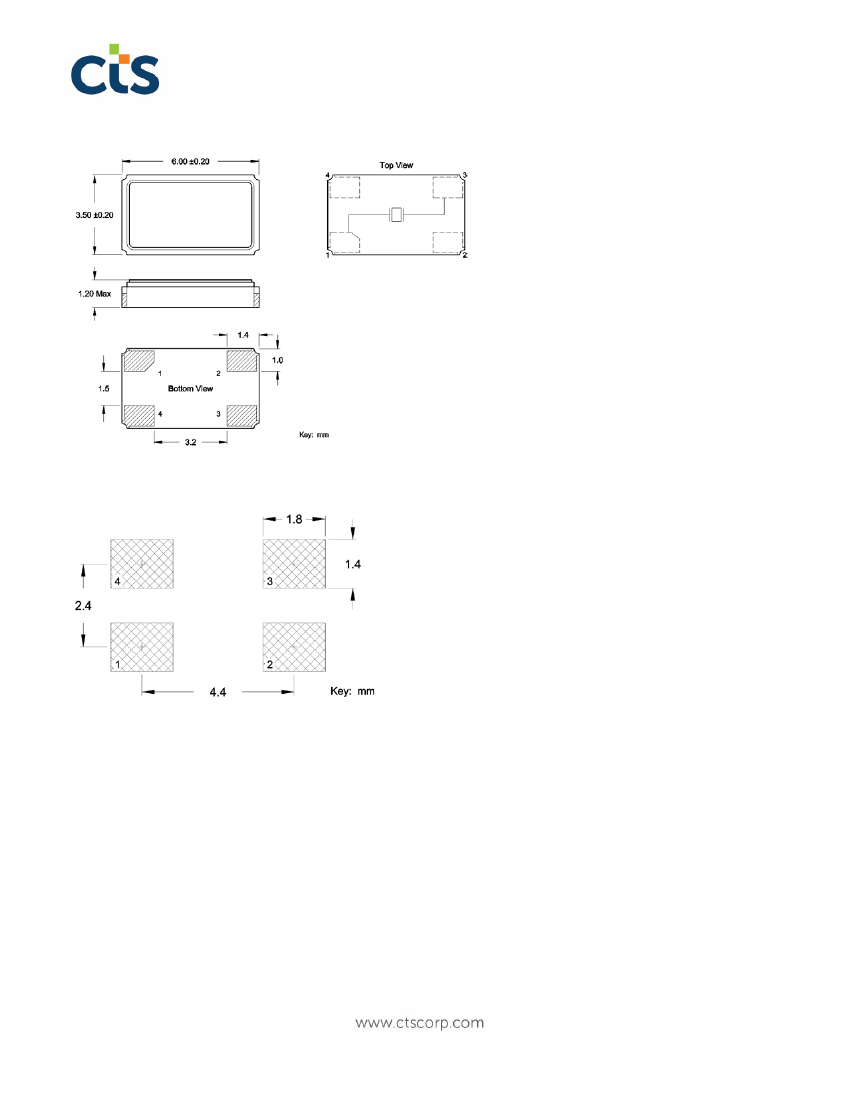

Package Drawing
Marking Information
1. XX.XXX – Frequency marked with 3 significant digits
after the decimal.
2. C – CTS.
3. ** – Manufacturing Site code.
4. YWW – Date Code. Y = Lst Digit of Year, WW = Week.
XX.XXX
●
C**YWW
Recommended Pad Layout
Notes
1. JEDEC termination code (e4). Barrier-plating is
nickel [Ni] with gold [Au] flash plate.
2. Terminations #2, #4 and the metal lid are
connected internally. End user may connect these
pins to circuit ground for EMI suppression.
3. Due to package variability, the pad chamfer on the
bottom could be located on Pin 1 or 4 in a given lot.
Layout orientation should be based on the top view
[marking side], as indicated in package drawing.
The chamfer location does not affect the electrical
performance of the device.
4. Reflow conditions per JEDEC J-STD-020; +260°C
maximum, 20 seconds.
5. MSL = 1.
DOC# 008-0260-0 Rev. I
Page 3 of 5
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Surface Mount Quartz Crystal
Model 406
Packaging
–
Tape and Reel
Tape Drawing
Reel Drawing
Notes
1. Device quantity is 1k pieces maximum per 180mm reel.
2. Complete CTS part number, frequency value, date code and manufacturing site code information must appear
on reel and carton labels.
DOC# 008-0260-0 Rev. I
Page 4 of 5
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Surface Mount Quartz Crystal
Model 406
Addendum
Common Frequencies and Frequency Codes – MHz
C o m m o n W ir eless Fr eq u en c ies
FR EQUENC Y
12.000000
13.560000
16.000000
19.200000
20.000000
24.000000
25.000000
26.000000
27.120000
30.000000
32.000000
37.400000
38.400000
40.000000
48.000000
52.000000
P AR T NUMB ER
C OD E
12M00000
13M56000
16M00000
19M20000
20M00000
24M00000
25M00000
26M00000
27M12000
30M00000
32M00000
37M40000
38M40000
40M00000
48M00000
52M00000
MAR K I NG
C OD E
12.000
13.560
16.000
19.200
20.000
24.000
25.000
26.000
27.120
30.000
32.000
37.400
38.400
40.000
48.000
52.000
Ad d it io n al Fr eq u en c ies
FR EQUENC Y
8.000000
10.000000
11.059200
12.288000
12.500000
12.688000
12.800000
13.000000
13.500000
13.553750
13.824000
13.934400
14.000000
14.318180
14.400000
14.745600
15.360000
16.367600
16.368000
16.384000
16.666700
16.800000
16.934400
18.000000
18.432000
19.440000
19.660800
19.680000
20.480000
20.736000
22.118400
22.579200
24.305000
24.545400
24.545454
P AR T NUMB ER
C OD E
08M00000
10M00000
11M05920
12M28800
12M50000
12M68800
12M80000
13M00000
13M50000
13M55375
13M82400
13M93440
14M00000
14M31818
14M40000
14M74560
15M36000
16M36760
16M36800
16M38400
16M66670
16M80000
16M93440
18M00000
18M43200
19M44000
19M66080
19M68000
20M48000
20M73600
22M11840
22M57920
24M30500
24M54540
24M54545
MAR K I NG
C OD E
8.000
10.000
11.059
12.288
12.500
12.688
12.800
13.000
13.500
13.553
13.824
13.934
14.000
14.318
14.400
14.745
15.360
16.367
16.368
16.384
16.666
16.800
16.934
18.000
18.432
19.440
19.660
19.680
20.480
20.736
22.118
22.579
24.305
24.545
24.546
FR EQUENC Y
24.553500
24.576000
25.000625
26.041660
26.800000
27.000000
27.600000
28.224000
28.322000
28.375000
28.636360
29.491200
30.400000
30.720000
31.250000
32.768000
33.000000
33.330000
33.333000
33.333300
33.868800
35.328000
36.000000
37.500000
38.000000
38.880000
39.062500
41.600000
44.000000
45.000000
49.152000
50.000000
54.000000
P AR T NUMB ER
C OD E
24M55350
24M57600
25M00062
26M04166
26M80000
27M00000
27M60000
28M22400
28M32200
28M37500
28M63636
29M49120
30M40000
30M72000
31M25000
32M76800
33M00000
33M33000
33M33300
33M33330
33M86880
35M32800
36M00000
37M50000
38M00000
38M88000
39M06250
41M60000
44M00000
45M00000
49M15200
50M00000
54M00000
MAR K I NG
C OD E
24.553
24.576
25.001
26.041
26.800
27.000
27.600
28.224
28.322
28.375
28.636
29.491
30.400
30.720
31.250
32.768
33.000
33.330
33.333
33.334
33.868
35.328
36.000
37.500
38.000
38.880
39.062
41.600
44.000
45.000
49.152
50.000
54.000
