BE40C-92SP-2-02-0457 Overview

Wire And Cable,

BE40C-92SP-2-02-0457 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSAMTEC
Reach Compliance Codeunknown

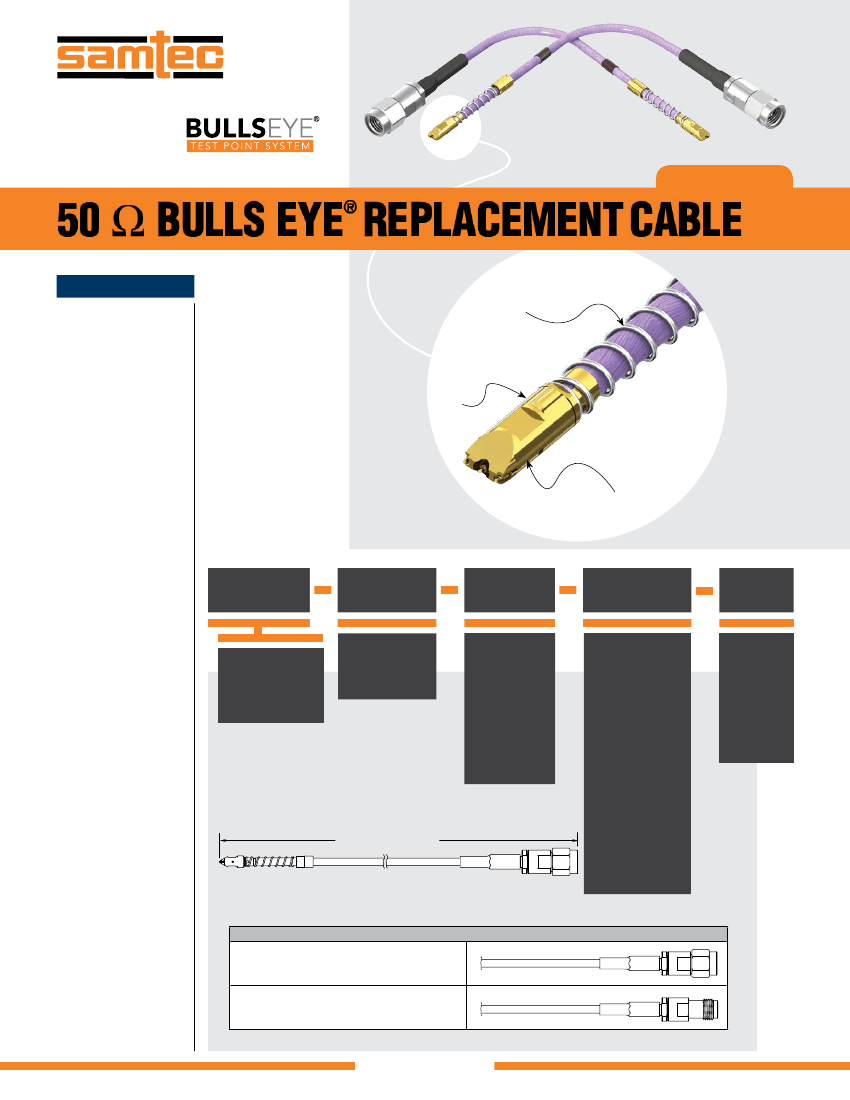

BE40C-92SP-2-02-0457 Preview

RF-18 (Rev 03FEB20)
BE40C–92SP–5–02–0152
BE40C SERIES
50
W
BULLS EYE REPLACEMENT CABLE
®
SPECIFICATIONS
For complete specifications
see www.samtec.com?BE40C
Available with:
BE40A
Compression spring
for tolerance variations
End 2 Connector:
Shell Material:
Stainless Steel
Contact Material:
Brass
Cable Body:
Stainless Steel
Socket:
BeCu
Insulator Material:
PCTFE
Operating Temperature:
-55 °C to +85 °C
Insulator Resistance:
>10,000 mW
Impedance:
50
W
Frequency Range:
40 GHz
V.S.W.R:
Testing Now!
RoHS Compliant:
Yes
Replacement
cable for Bulls Eye
®
assembly BE40A
Pogo-pin design with
Ground/Signal/Ground
MWC-2350CU-01
Cable:
Type:
Low Loss Microwave Coax
Gauge:
23 AWG Silver plated Copper
Dielectric:
Rugged solid FEP
Jacket Material:
FEP
Bend Radius:
12 mm
Impedance:
50
W
±1
W
Propagation Delay:
4.76 nsec/meter
Capacitance:
95.45 pF/meter
CABLE
TYPE
END 2
OPTION
Specify
END 2
OPTION
from chart
PHASE
MATCHING
NUMBER OF
CABLES
OVERALL
LENGTH
= MWC-2350CU-01
Microwave Cable
with copper
foil shield
BE40C
= 2.0 Pico-second
–2
–5
= 1 cable assembly
(only available
with –N)
–01
–02
–04
–06
–08
–“XXXX”
= Overall
Length
in millimeters
–0152
(0152 mm)
5.984" to
–9999
(9999 mm)
393.7"
= 5.0 Pico-second
= No Phase
Matching
(only available
with –01)
–N
= 2 phase matched
cable assemblies
= 4 phase matched
cable assemblies
XXXX = OAL (millimeters)
= 6 phase matched
cable assemblies
–BE40C–92SPP–2–02–XXXX SHOWN
= 8 phase matched
cable assemblies
END 2 OPTIONS
–92SP = 2.92 mm
Straight Plug
(30 µ" (0.76 µm) Gold on Center Contact,
Stainless Steel on Shell)
–92SJ = 2.92 mm
Straight Jack
(30 µ" (0.76 µm) Gold on Center Contact,
Stainless Steel on Shell)
Notes:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Some lengths, styles and
options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
