30DC476M050FK2A datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 30DC476M050FK2A

30DC476M050FK2A: DescriptionAluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size134KB，5 Pages; ManufacturerBarker Microfarads (BMI)

Download Datasheet Parametric Compare View All

30DC476M050FK2A Overview

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, AXIAL LEADED

30DC476M050FK2A Parametric

Parameter Name	Attribute value
Maker	Barker Microfarads (BMI)
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	86 mΩ
leakage current	0.0124 mA
Manufacturer's serial number	30DC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
polarity	NON-POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	1040.5 mA
surface mount	NO
Terminal shape	WIRE

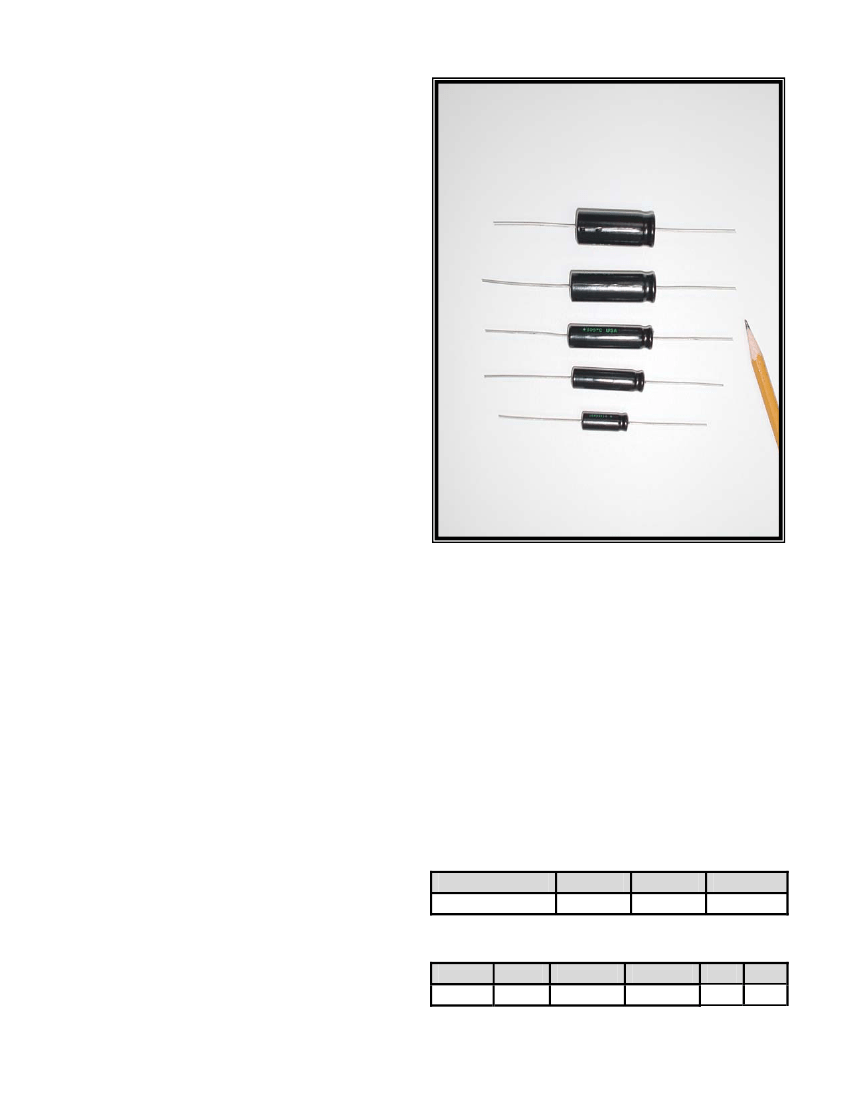

30DC476M050FK2A Preview

+105°C

Crossover Network for

General Audio Grade

Applications. Miniature

Axial Lead, Aluminum

Electrolytic Capacitors

Features-

•

+105°C Long Life

Low DF at Crossover Frequencies

For General Audio Applications

General Specifications-

Operating Temperature:

-40 to +105°C

Voltage Rating:

50 VNP (Non-Polar)

Capacitance Range:

1.5µF to 100µF

Capacitance Tolerance:

±20% (Std.)

Case Size Range:

6.3 X 13.0mm – 18.0 X 40.0mm

Termination:

20 ga. Axial leads.

Life Validation Test: 4,000hrs @ +105°C

CAP

≤

20% From initial measurement.

ESR

≤

1.5X Initial specified limit.

DCL

≤

Initial specified limit.

Shelf Test: 1,000hrs @ +105°C

CAP

≤

20% From initial measurement.

ESR

≤

1.5X Initial specified limit.

DCL

≤

2X Initial specified limit.

DC Leakage Current:

0.004CV

Where:

I is in µA

C is in µF

V is in Volts

Ripple Current Multipliers:

Temperature:

Ambient Temp.

Multiplier

Frequency (Hz):

VDC

50-60 100-120

0.9

1.0

300-400

1.2

1.4

10k

1.6

+105°C

0.5

+85°C

1.0

±45°C

1.4

PART NUMBER BREAK-DOWN:

30DC 476 M 050 FK 2 A

PACKAGING:

A = BULK PACK (STD.)

T = TAPE AND REEL. (NOT AVAILABLE IN

DIAMETERS)

CASE STYLE:

2 = BLACK P.V.C. SLEEVE (STD.)

3 = MYLAR SLEEVE

5 = BLACK P.V.C. SLEEVE W/EPOXY END SEAL

(Required for exposure to halogenated cleaning solvents.)

6 = MYLAR SLEEVE

/ EPOXY END SEAL

CASE CODE:

(SEE TABLE 1.)

DC VOLTAGE RATING:

EXPRESSED IN VOLTS. THE LETTER “R” SIGNIFIES A DECIMAL POINT.

(ie. 6R3 = 6.3 VOLTS.)

CAPACITANCE TOLERANCE:

M = ±20% (STD.)

CAPACITANCE:

EXPRESSED IN PICOFARADS. THE FIRST TWO DIGITS ARE SIGNIFICANT

FIGURES, THE THIRD IS THE NUMBER OF ZEROS.

BMI TYPE #:

IDENTIFIES THE BASIC CAPACITOR DESIGN.

Axial-Leaded Capacitor Dimensions

CASE STYLES 2 & 3

CASE STYLES 5 & 6

Table 1. Case Dimensions mm(in.)

CASE

CODE

NOMINAL

‘D’

‘L’

6.3 (0.248)

13.0 (0.512)

6.3 (0.248)

17.5 (0.689)

8.0 (0.315)

9.5

(0.374)

17.5 (0.689)

20.5 (0.807)

17.5

20.5

24.0

32.0

38.0

(0.689)

(0.807)

(0.945)

(1.260)

(1.496)

STYLES 2 & 3

‘D’ MAX.

‘L’ MAX.

7.0 (0.276)

14.4 (0.567)

7.0 (0.276)

19.2 (0.756)

8.6 (0.339)

10.2

(0.402)

19.2 (0.756)

22.3 (0.878)

19.2

22.3

25.5

33.5

39.8

(0.756)

(0.878)

(1.004)

(1.319)

(1.567)

STYLES 5 & 6 (w/EPOXY)

‘D’ MAX.

‘L’ MAX.

7.0 (0.276)

15.9 (0.626)

7.0 (0.276)

20.7 (0.815)

8.6 (0.339)

10.2

(0.402)

20.7 (0.815)

23.8 (0.937)

20.7

23.8

27.0

35.0

41.3

(0.815)

(0.937)

(1.063)

(1.378)

(1.626)

WIRE GAUGE

‘W’

No. 20 AWG (0.032)

11.0 (0.433)

12.5 (0.492)

16.0 (0.630)

18.0 (0.709)

32.0 (1.260)

38.0 (1.496)

32.0 (1.260)

38.0 (1.496)

44.5 (1.752)

38.0 (1.496)

44.5 (1.752)

36.0 (1.417)

40.0 (1.575)

11.8 (0.465)

13.1 (0.516)

16.6 (0.654)

18.7 (0.736)

33.5 (1.319)

39.8 (1.567)

33.5 (1.319)

39.8 (1.567)

46.5 (1.831)

39.8 (1.567)

46.5 (1.831)

37.8 (1.488)

42.5 (1.673)

11.8 (0.465)

13.1 (0.516)

16.6 (0.654)

18.7 (0.736)

35.0 (1.378)

41.3 (1.626)

35.0 (1.378)

41.3 (1.626)

48.0 (1.890)

41.3 (1.626)

48.0 (1.890)

39.0 (1.535)

43.0 (1.693)

STANDARD RATINGS FOR TYPE 30DC

Max. ESR

Nominal

+25°C

Case Size

Catalog Number

1kHz

DxL

(mm)

(Ω)

50 VOLTS DC WORKING; 63 VOLTS DC SURGE

Rated

Capacitance

(µF)

1.5

2.7

3.3

4.7

8.2

100

30DC155M050BA2A

30DC275M050BB2A

30DC335M050CB2A

30DC475M050CC2A

30DC825M050DC2A

30DC106M050DD2A

30DC156M050DF2A

30DC226M050DH2A

30DC276M050EF2A

30DC396M050EH2A

30DC396M050FH2A

30DC476M050FK2A

30DC686M050GH2A

30DC826M050GK2A

30DC107M050LS2A

6.3 x 13.0

6.3 x 17.5

8.0 x 17.5

8.0 x 20.5

9.5 x 20.5

9.5 x 24.0

9.5 x 32.0

9.5 x 38.0

11.0 x 32.0

11.0 x 38.0

12.5 x 38.0

12.5 x 44.5

16.0 x 38.0

16.0 x 44.5

18.0 x 40.0

5.504

2.877

2.295

1.456

0.778

0.555

0.337

0.224

0.160

0.119

0.102

0.086

0.061

0.047

0.036

Max. Ripple

Current

+85°C 1kHz

rms

)

0.104

0.163

0.209

0.280

0.424

0.536

0.778

1.030

1.228

1.530

1.776

2.081

2.662

3.242

3.792

Max. ESR

+25°C

10kHz

(Ω)

5.366

2.877

2.365

1.484

0.830

0.623

0.402

0.287

0.260

0.216

0.206

0.163

0.121

0.094

0.073

Max. Ripple

Current

+85°C 10kHz

rms

)

0.105

0.163

0.206

0.278

0.411

0.506

0.712

0.909

0.963

1.138

1.253

1.510

1.882

2.280

2.653

30DC TYPICAL PERFORMANCE PROFILES

TEMPERATURE CHARACTERISTICS

30DC Series: Capacitance Change (%) vs Temperature

125%

120%

115%

Capacitance Change (%) @ 120Hz

110%

105%

100%

95%

90%

85%

80%

75%

70%

65%

60%

-40

-30

-20

-10

100

15µF @ 50VDC

22µF @ 50VDC

82µF @ 50VDC

Temperature (°C)

30DC Series: ESR Ratio vs Temperature

100

15µF @ 50VDC

22µF @ 50VDC

82µF @ 50VDC

ESR Ratio @ 120Hz

0.1

-40

-30

-20

-10

100

Temperature (°C)

30DC Series: Impedance Ratio vs Temperature

1.4

1.2

Impedance Ratio @ 120Hz

1.0

0.8

15µF @ 50VDC

22µF @ 50VDC

82µF @ 50VDC

0.6

0.4

0.2

0.0

-40

-30

-20

-10

100

Temperature (°C)

30DC TYPICAL PERFORMANCE PROFILES

FREQUENCY CHARACTERISTICS

30DC Series: Typical ESR vs Frequency at 25°C

10.0

15µF @ 50VDC

22µF @ 50VDC

82µF @ 50VDC

1.0

ESR (

Ω)

0.1

0.0

100

1000

10000

100000

Frequency (Hz)

30DC Series: Typical Impedance vs Frequency at 25°C

1000

15µF @ 50VDC

22µF @ 50VDC

100

82µF @ 50VDC

Impedance (

Ω)

0.1

0.01

100

1000

Frequency (Hz)

10000

100000

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
