18401 Series- RADIAL LEADS INDUCTORS (CHOKE COILS)
A. Electrical Specifications:
Part Number
184011R0MH
184011R5MH
184012R2MH
184013R3MH
184014R7MH
184016R8MH
18401100KH
18401120KH
18401150KH
18401180KH
18401220KH
18401270KH
18401330KH
18401390KH
18401470KH
18401560KH
18401680KH
18401820KH
18401101KH
18401121KH
18401151KH
18401181KH
18401221KH
18401271KH
18401331KH
18401391KH
18401471KH
18401561KH
18401681KH
18401821KH
18401102KH
Rev. A
L (uH)
@ 1KHz
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Q Min.
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
50
Test Freq.
(MHz)
7.9
7.9
7.9
7.9
7.9
7.9
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.25
SRF Min.
(MHz)
70
60
45
35
30
25
20
17
15
13
12
10
9.2
8.5
7.5
7.0
6.5
5.5
5.0
4.5
4.0
3.5
3.2
2.8
2.5
2.2
2.0
1.8
1.7
1.5
1.3
DCR
(Ω) Max.
0.007
0.010
0.015
0.020
0.025
0.030
0.045
0.050
0.065
0.080
0.10
0.12
0.14
0.17
0.21
0.24
0.28
0.31
0.35
0.45
0.56
0.65
0.72
0.86
1.10
1.50
1.70
2.0
2.5
3.0
4.5
Rated Current
(A) Max.
6.60
5.40
4.50
3.60
3.10
2.50
2.10
1.90
1.70
1.50
1.40
1.20
1.10
1.00
0.95
0.80
0.75
0.70
0.65
0.60
0.53
0.48
0.44
0.40
0.36
0.33
0.30
0.27
0.25
0.22
0.20
Type
I
I
I
I
I
I
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II
II

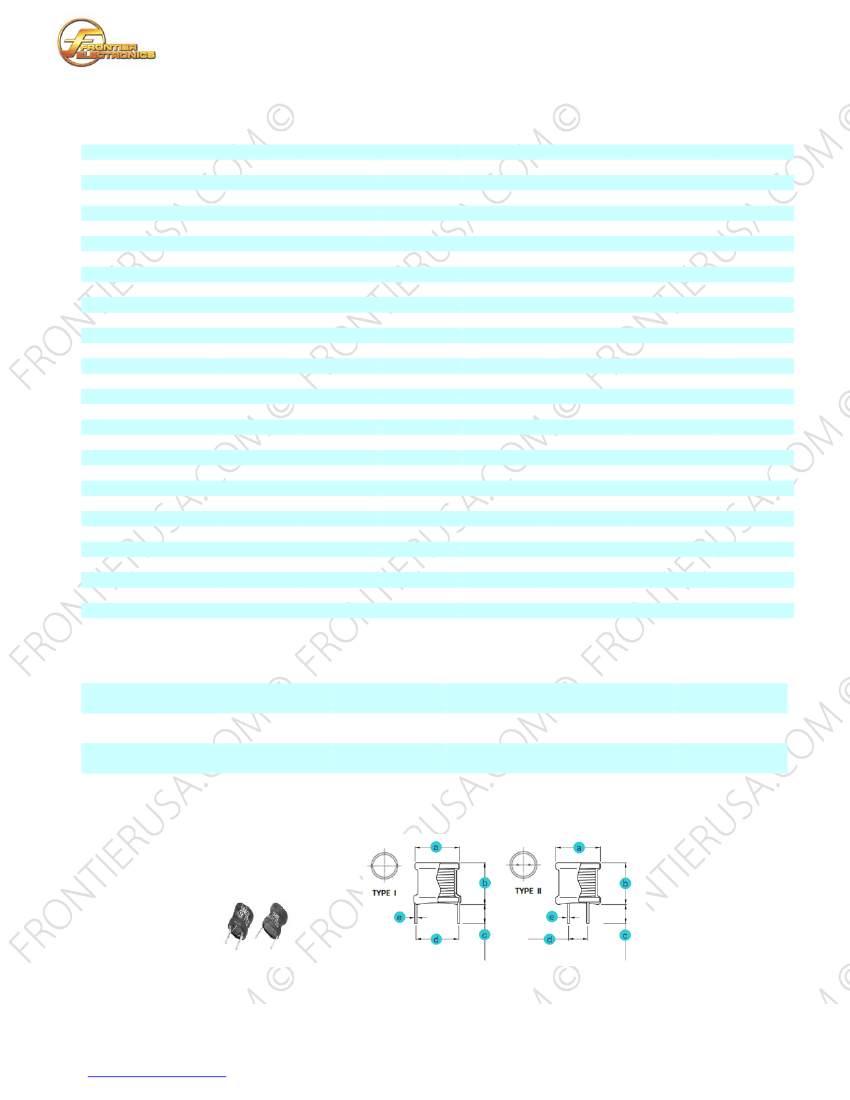

B. Dimensions: mm (Inch)
Series
18401
TYPE I
Tol.
18401
TYPE II
Tol.
a
Ø7.5
(0.295)
Max.
Ø7.5
(0.295)
Max.
b
8.0
(0.315)
Max.
8.0
(0.315)
Max.
c
5.0
(0.197)
±1.0
(0.039)
5.0
(0.197)
±1.0
(0.039)
d
7.0
(0.276)
±1.5
(0.059)
5.0
(0.197)
±0.5
(0.020)
e
Ø0.5~0.7
(0.020~0.028)
Typ.
Ø0.65
(0.026)
Typ.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
18401 Series- RADIAL LEADS INDUCTORS (CHOKE COILS)
C. General Information:
1.
2.
3.
4.
5.
Rev. A
18401xxx_H, “18401” = P/N, “xxx” = Inductance, “_”: Tolerance K=±10%, L = 15%, M = ±20%, “H”=Internal control code.
Operating temperature: -40°C to +85°C. (Including self-temperature rise)
Temperature rise: 25°C Max.
Ambient temperature: 60°C Max.
Test equipment:
L: HP4285A LCR Meter or equivalent.
Q: HP4285A at specified frequency or equivalent.
DCR: CHROMA-16502 or equivalent.
SRF: HP4291B or equivalent.
6. MSL: Level 1.
7. Inductance and Current range: From 1.0uH (6.6A) - 1000uH (200mA)
8. DCR: From 0.007 - 4.5 Ohms.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Radios, etc.)
LCD, DVD, BRP
