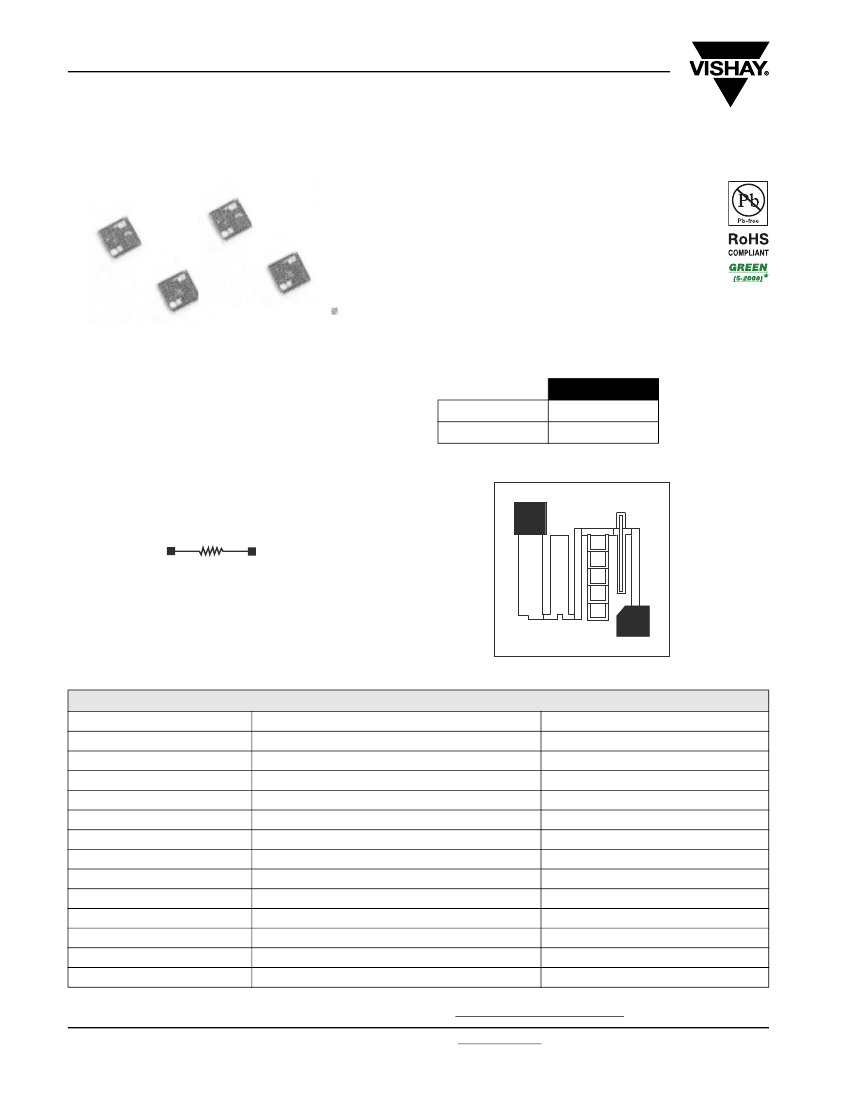

TA 22
Vishay Sfernice
Single Value Chip Resistor
FEATURES
•
Small size 20 mil square
•
Resistance range 10
Ω
to 1 MΩ
•
Resistor material: self-passivating
Tantalum Nitride
•
Silicon substrate for good power dissipation
Actual Size
•
Low cost
•
Wirebondable
Thin film resistors are often an excellent solution for analog
design problems where space is limited and high packing
density is required. Due to their Tantalum Nitride resistive
layer these resistors are stable 0.07 % (2000 h, rated power
at + 70
°C)
and moisture resistant.
TYPICAL PERFORMANCE
ABS
TCR
TOL.
100 ppm/°C
0.5 %
SCHEMATIC AND PATTERN
R
STANDARD ELECTRICAL SPECIFICATIONS
TEST
MATERIAL
Resistance range
Absolute TCR
Absolute tolerance
Power dissipation
Stability
Voltage coefficient
Working voltage
Operating temperature range
Storage temperature range
Noise
Thermal EMF
Shelf life stability
SPECIFICATIONS
TANTALUM NITRIDE
10
Ω
to 1 MΩ
± 100 ppm/°C (± 50 ppm/°C on request)
± 0.5 %, ± 1 %, ± 2 %
100 mW at 25 °C, 50 mW at + 70 °C, 25 mW at + 125 °C
± 0.07 % typical, ± 0.1 maximum
< 0.1 ppm/V
50 V
DC
- 55 °C to + 155 °C
- 55 °C to + 155 °C
< - 35 dB typical
< 0.01 µV/°C
100 ppm
1 year at + 25 °C
MIL-STD-202 Method 308
2000 h at + 70 °C at Pn
- 55 °C to + 155 °C
CONDITIONS
* Please see document “Vishay Green and Halogen-Free Definitions (5-2008)” http://www.vishay.com/doc?99902
www.vishay.com
40
For technical questions, contact: sfer@vishay.com
Document Number: 60062
Revision: 06-Oct-08
TA 22
Single Value Chip Resistor
Vishay Sfernice
DIMENSIONS
B
DIMENSION
A
INCHES
0.021 ± 0.002
0.021 ± 0.002
0.004
0.004
0.015
MILLIMETERS
0.55 ± 0.10
0.55 ± 0.10
0.10
0.10
0.40 maximum
A
C
E
D
B
C
D
E
MECHANICAL SPECIFICATIONS
Resistive element
Passivation
Substrate material
Bonding pads
Tantalum Nitride
Tantalum Pentoxide (Autopassivation)
Standard Silicon
Aluminum
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: TA22-100KD0016 (preferred part number format)
T
A
2
2
-
1
0
0
K
D
0
0
1
6
GLOBAL MODEL
VALUE
Decimal
R, K or M
TOLERANCE
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
OPTION
leave blank
if no option
Historical Part Number example: TA22 10K 0.5 % R0016 (will continue to be accepted)
TA22
HISTORICAL MODEL
10K
VALUE
0.5 %
TOLERANCE
R0016
OPTION
Document Number: 60062
Revision: 06-Oct-08
For technical questions, contact: sfer@vishay.com
www.vishay.com
41
