Printview: 1-Conductor female plug; With strain relief plate and locking levers; for insertion into carrier
terminal blocks; codable; 14-pole - Item No.: 2022-114/146-000
.
1-Conductor female plug; With strain relief plate and locking
levers; for insertion into carrier terminal blocks; codable; 14-pole
Item No.: 2022-114/146-000
.
1-Conductor female plug; With strain relief plate and locking levers; for insertion into carrier terminal blocks; codable;
14-pole
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2022-114/146-000
4050821090816
1
15
Item description:According to EN 61984, pluggable connectors without current interrupting capacity shall not be
mated and unmated when live or under load.
Technical data
Miscellaneous
No. of poles
Total number of connection points
Total number of potentials
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
14
14
14
gray
IEC/EN 61984
690 [V]
6 [kV]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: 1-Conductor female plug; With strain relief plate and locking levers; for insertion into carrier
terminal blocks; codable; 14-pole - Item No.: 2022-114/146-000
Technical data
Nominal current [A]
Nominal current (2) [A]
Connection technology
Number of connection points
Actuation type
Connectable conductor materials
Nominal cross section
Solid sizes
solid, directly pluggable
Fine-stranded wires
24 [A]
32 [A]
Push-in CAGE CLAMP®
1
Betätigungswerkzeug
Kupfer
2.5 mm²
0.25 … 4 mm² / 22 … 12 AWG
0.75 … 4 mm² / 18 … 12 AWG
0.25 … 4 mm² / 22 … 12 AWG
min. fine-stranded with insulated ferrule, push-in terminati 0.75 mm² / 18 AWG
Strip length
Type of wiring
Marking level
Insulating material
Fire load [MJ]
Weight [g]
Width
Height
Length
Module width [mm]
Module width [inch] [inch]
10 … 12 mm / 0.39 … 0.47 in
Front-entry wiring
Side marking
Polyamide 66 (PA 66)
0.877 [MJ]
50.49 [g]
72.8 mm / 2.866 in
74 mm / 2.913 in
27.2 mm / 1.071 in
5.2 [mm]
0.205 [inch]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: 1-Conductor female plug; With strain relief plate and locking levers; for insertion into carrier
terminal blocks; codable; 14-pole - Item No.: 2022-114/146-000

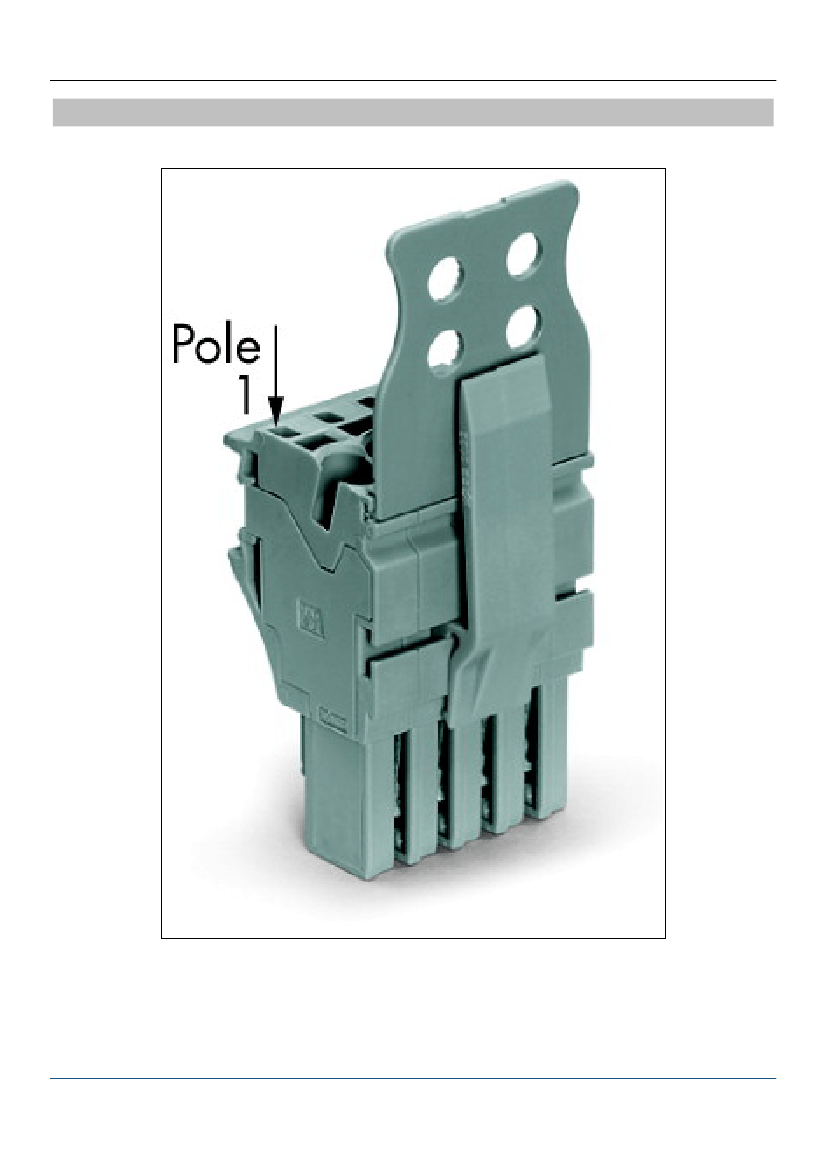

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: 1-Conductor female plug; With strain relief plate and locking levers; for insertion into carrier
terminal blocks; codable; 14-pole - Item No.: 2022-114/146-000
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
