FB2012209 (0805) Series – SMD MULTILAYER FERRITE CHIP BEADS
(HIGH IMPEDANCE)
Rev. A
A. Electrical Specifications:
P/N
FB201209Z100
FB201209Z300
FB201209Z600
FB201209Z800
FB201209Z121
FB201209Z221
FB201209Z301
FB201209Z601
FB201209Z102
FB201209U100
FB201209U110
FB201209U300
FB201209U600
FB201209U800
FB201209U121
FB201209U221
FB201209U301
FB201209U601
FB201209U102
FB201209G070
FB201209G310
FB201209G600
FB201209G800
FB201209G121
FB201209G221
FB201209G301
FB201209G601
FB201209G102
FB201209G152
FB201209G202
FB201209G222
FB201209G252
FB201209G272
FB201209B070
FB201209B300
FB201209B600
FB201209B121
FB201209B221
FB201209B301
FB201209B601
FB201209B102
Impedance (Ω) ±25% @100MHz
10
30
60
80
120
220
300
600
1000
10
11
30
60
80
120
220
300
600
1000
7
31
60
80
120
220
300
600
1000
1500
2000
2200
2500
2700
7
30
60
120
220
300
600
1000
DCR Max.(Ω)
0.10
0.10
0.10
0.15
0.15
0.20
0.25
0.35
0.50
0.10
0.10
0.10
0.10
0.10
0.10
0.20
0.20
0.30
0.45
0.10
0.10
0.15
0.20
0.20
0.20
0.25
0.45
0.45
0.45
0.60
0.60
0.60
0.65
0.15
0.15
0.20
0.25
0.35
0.40
0.50
0.60
I rms. Max. (mA)
800
800
900
600
600
700
700
500
500
800
900
600
800
800
800
500
500
500
500
800
800
700
500
600
500
500
300
300
400
300
300
300
300
600
600
300
300
300
300
300
300

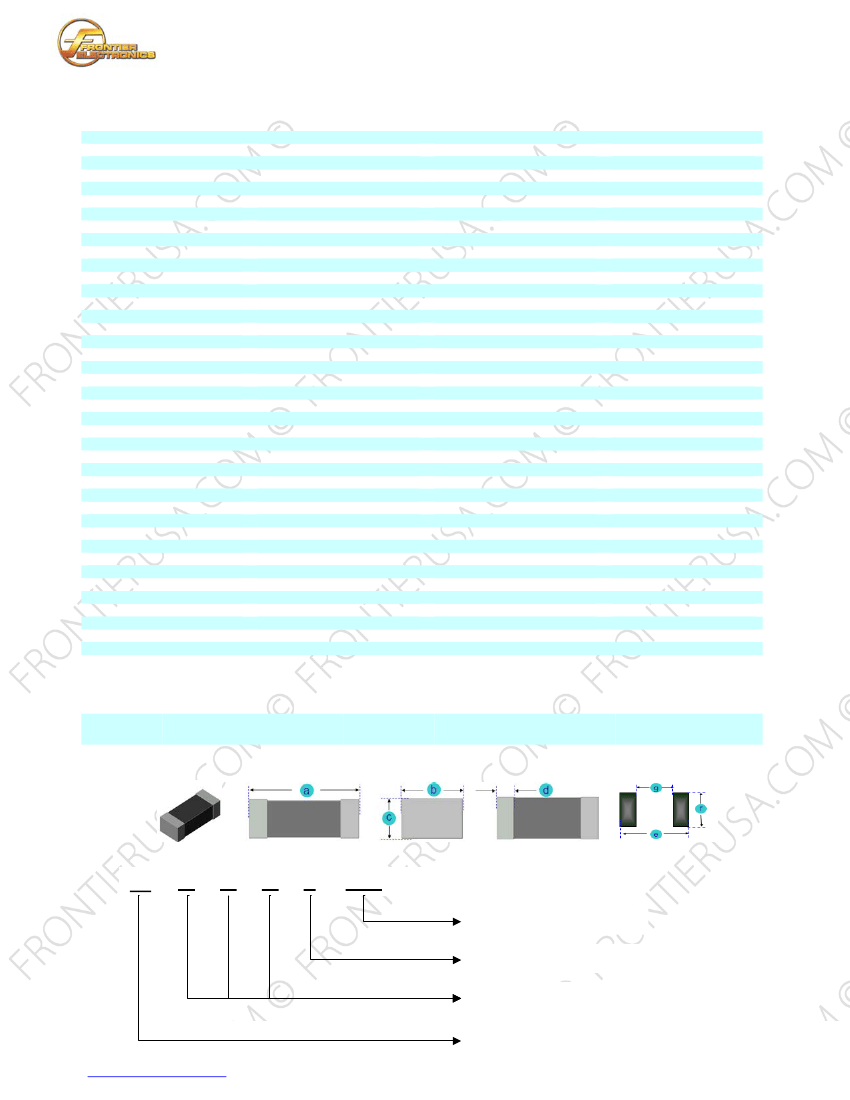

B. Dimensions: mm (Inch)
Series
FB201209
Tol.
a
2.0
( 0.079)
± 0.2
(0.008 )
b
1.2
( 0.047)
± 0.2
(0.008 )
c
0.9
(0.035)
± 0.2
(0.008 )
d
0.5
( 0.020)
± 0.3
(0.012 )
e
3.20
(0.126)
Typ.
f
1.50
(0.059)
Typ.
g
0.60
(0.024)
Typ.
C. Part Number Key:
FB
20
12
09
Y
XXX
IMPEDANCE VALUE
MATERIAL CODE: L, U, Z, B or G
DIMENSIONS:
LENGTH (a) x WIDTH (b) x THICKNESS (c)
Frontier Electronics Corp.
http://www.frontierusa.com
®
FAMILY: FB
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
FB2012209 (0805) Series – SMD MULTILAYER FERRITE CHIP BEADS
(HIGH IMPEDANCE)
Rev. A
D. Materials:
ITEM
Initial Permeability (µiac):
Maximum Permeability (µm):
Saturation Flux Density at 10 Oe:
Curie Temperature(Tc):
Volume Resistivity (ρ):
Temperature Coefficient:
Density:
a.
b.
c.
d.
e.
f.
UNIT
----
----
Gauss
°C
Ω-m
1/10000°C
g/cm³
L
25
125
2000
>200
100000
10
4.8
B
45
125
2000
>200
100000
10
4.8
Material Code
G
110
250
1700
>130
100000
13
4.8
U
200
450
1400
>100
100000
5
4.8
Z
500
900
1500
>130
100000
12
4.8

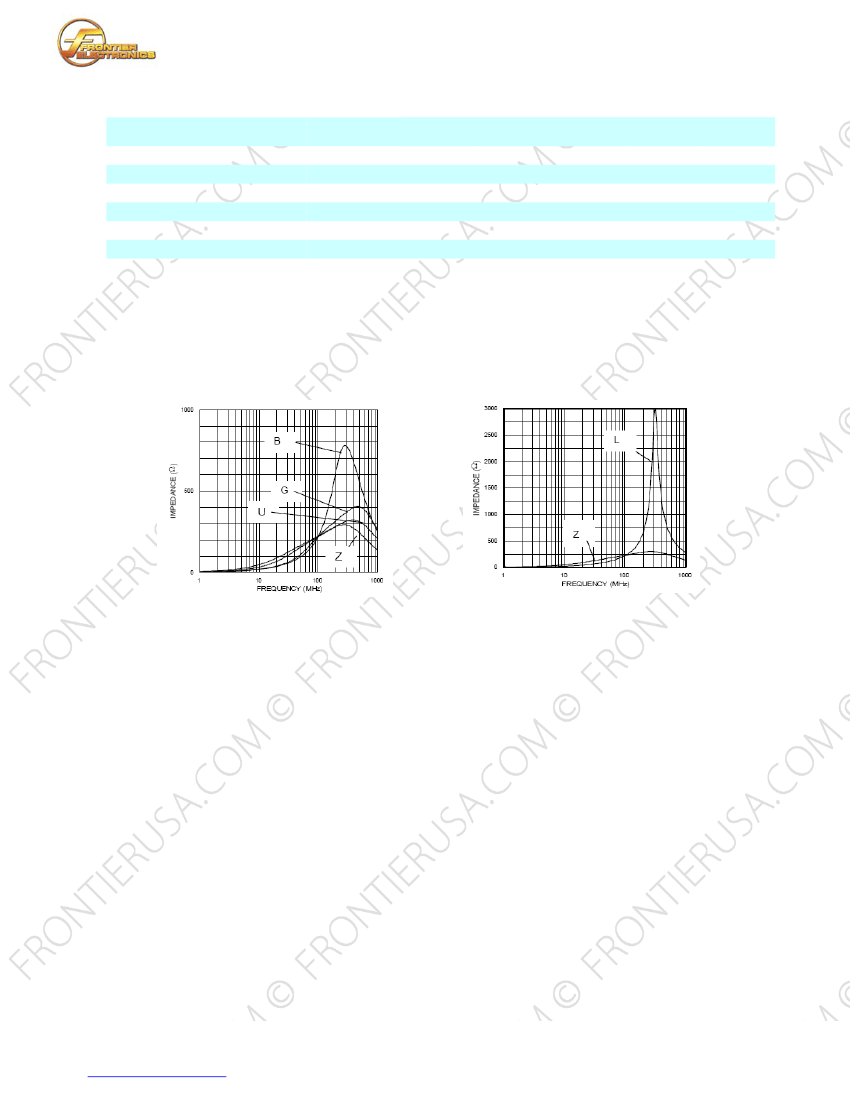

E. Impedance Characteristics of Materials:
Z Material is for applications whose blocking regions are near 100 MHz.
L Material, an improvement of B Material has sharp impedance characteristic at high frequency.
G Material is for application whose signal frequency is far from the cut off region. Suitable for application requires low
insertion loss at high frequency.
Different materials are available for different application range.
With one material, higher impedance has sharper characteristics.
Please confirm the signal wave form to choose suitable products.
C. General Information
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
FB201209-yxxx, “FB201209” = P/N, “y” = Material, “xxx” = Impedance.
Tolerance: ±25%
Small and lightweight surface mounting type.
Dimensions are suitable for automatic mounting
High-density packaging with a pitch of 2.54 mm (0.1 inch) max.is possible. This series requires less space and have greater EMI
suppression effects.
Different types with the same shape are available.
Excellent in physical properties, such as terminal strength, flexure strength, soldering resistance and solder-ability.
Applicable to both flow and IR reflow soldering.
High impedance covers wide frequency ranges.
TI series can be used in high current circuits due to its low DC resistance.
Operating temperature: -40°C to +125ºC.
Impedance and Current Range: From 7
Ω
(800 mA) to 2700
Ω
(300 mA)
Unspecified values available on request.
MSL: Level 1.
D. Applications
1.
2.
3.
4.
5.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
