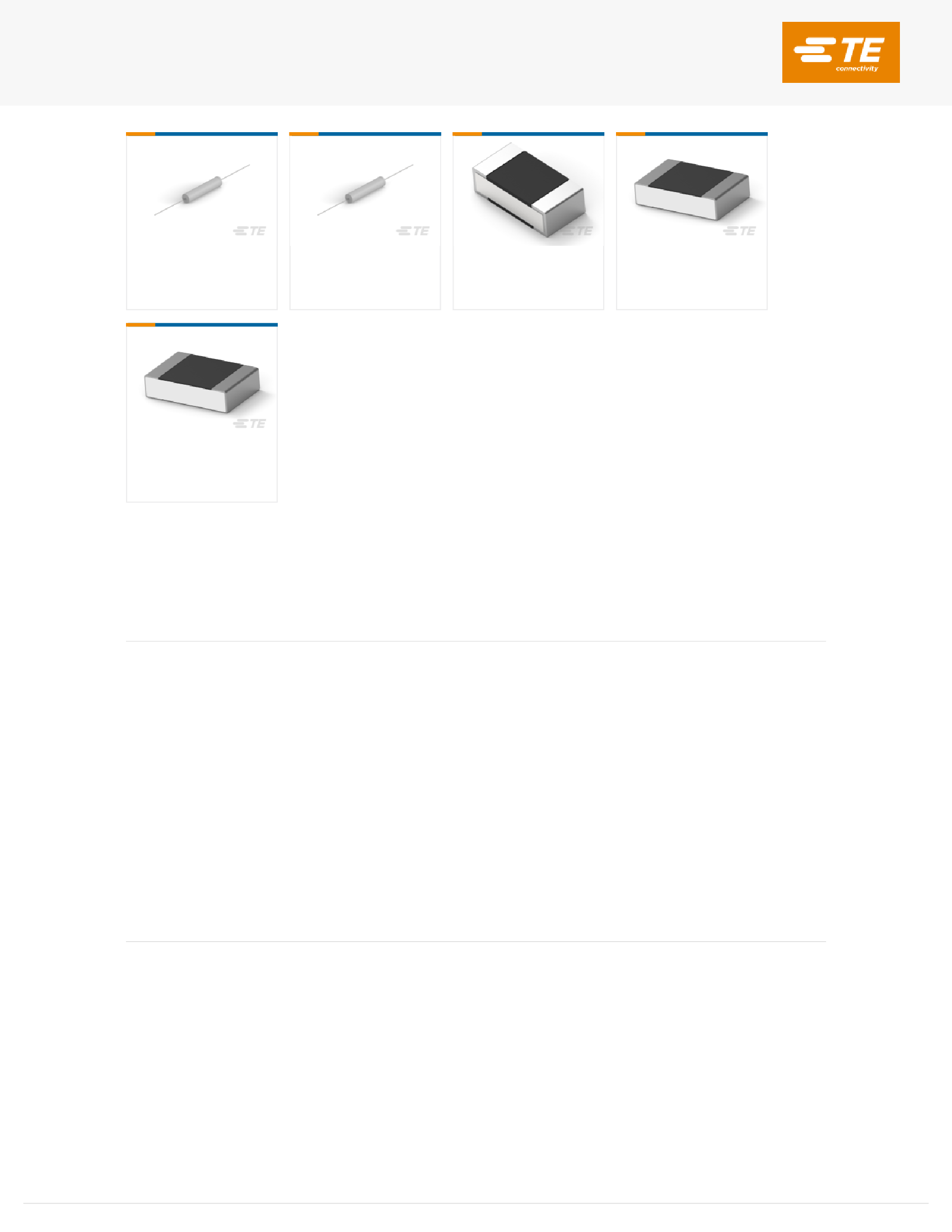

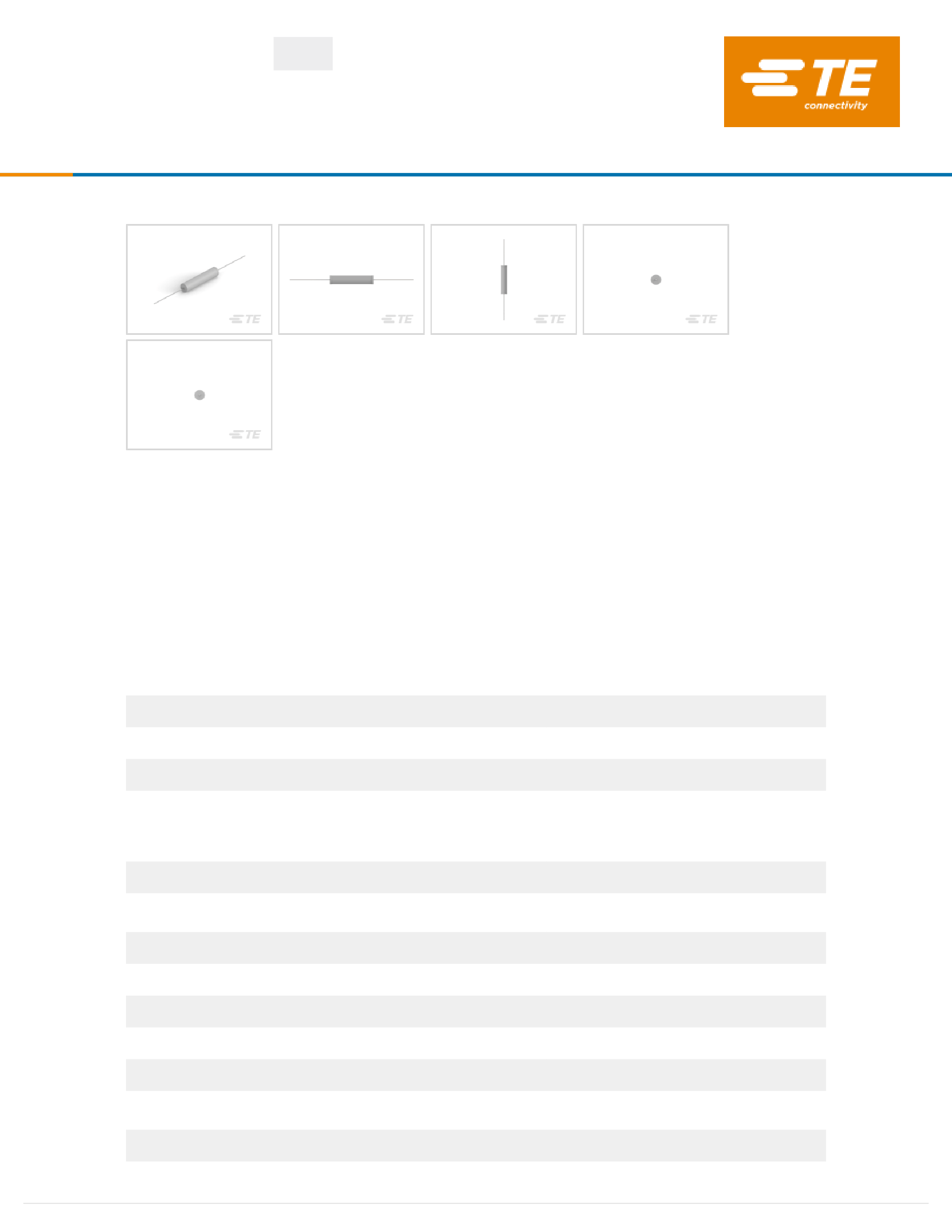

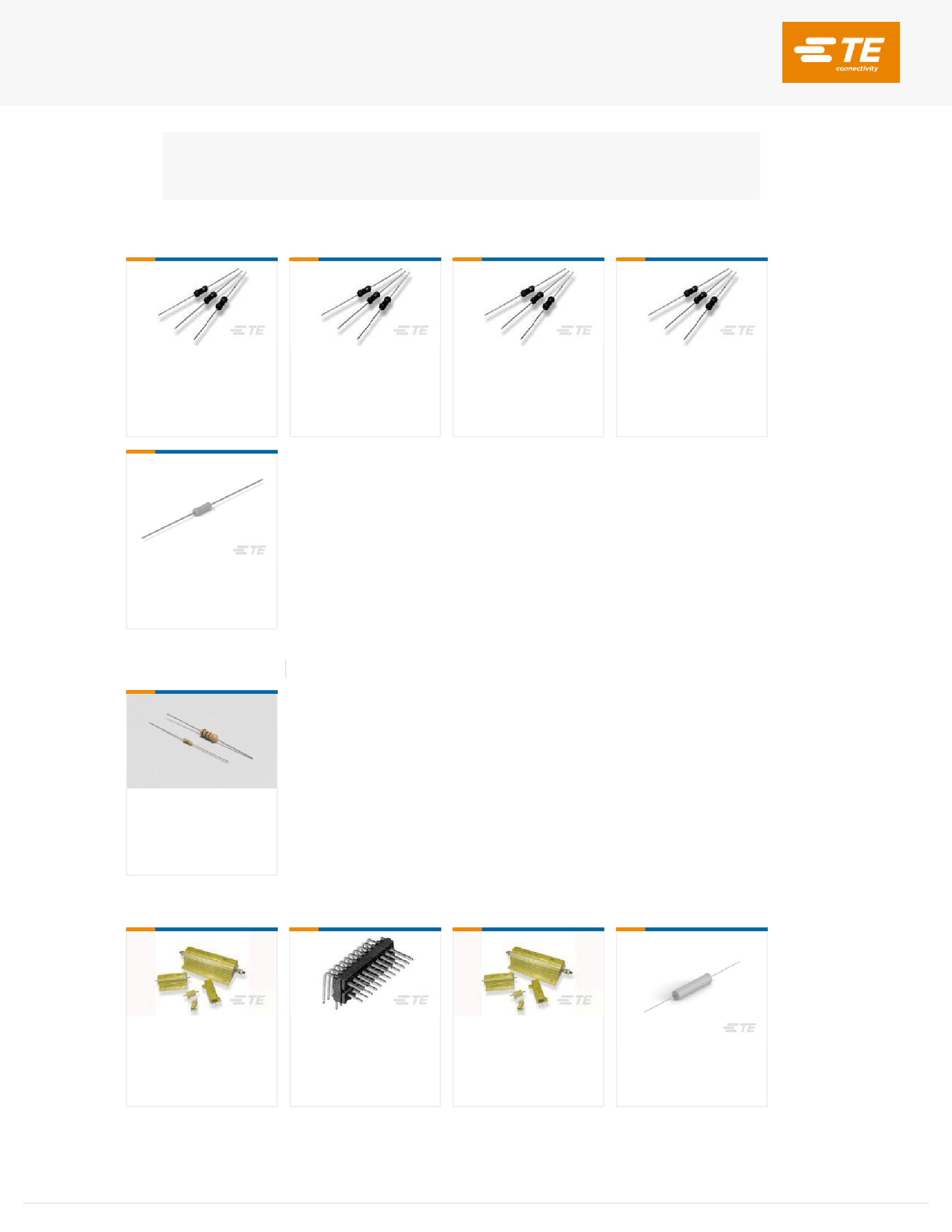

8W STD M/OX 5% 200R
TE Part # 2-2176415-1
TE Internal #: ROX8J200R
8W STD M/OX 5% 200R
Neohm
|
Neohm ROX
ACTIVE
TE Part # 2-2176415-1
TE Internal #: ROX8J200R
View on TE.com >
Passive Components
>
Resistors
>
Fixed Resistors
>
Through-Hole Resistors
Resistor Type:
General Purpose Resistor
Dimensions:
41 x 8.5 mm
Number of Terminations:
2
Packaging Method:
Box
Tolerance:
5%
Features
Product Type Features
Product Type
Element Material
Resistor Type
Element Type
Configuration Features
Number of Resistors
Electrical Characteristics
Voltage Rating
Tolerance
Resistance Class
Resistance
Power Rating
Body Features
Lead Type
Termination Features
Fixed Resistor
Metal Oxide
General Purpose Resistor
Metal Oxide Film
1
750 V
5%
Up to 1kΩ
200 Ω
8W
Axial Leaded
Number
6752
For support call+1 800 522
of Terminations
2
08/27/2019 12:59AM | Page 1
8W STD M/OX 5% 200R
TE Part # 2-2176415-1
TE Internal #: ROX8J200R
Termination Features
Number of Terminations
Termination Type
Mechanical Attachment
Mount Style
Dimensions
Dimensions
Usage Conditions
Operating Temperature Range
Temperature Coefficient
Packaging Features
Packaging Method
Box
-55 – 155 °C
±350 ppm/°C
41 x 8.5 mm
Axial Leaded
2
Tinned Copper Leads
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
欧洲化学品管理局最新发布的SvHCs候选清
单:
2019年1月（197）
SvHCs候选清单的声明更新至: 2019年1月
（197）
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Wave solder capable to 265°C
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
For support call+1 800 522 6752
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
08/27/2019 12:59AM | Page 2
8W STD M/OX 5% 200R
TE Part # 2-2176415-1
TE Internal #: ROX8J200R
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.
Compatible Parts
TE Part # 2-1625892-1
3W SM M/OX 5% 1K0
TE Part # 4-1625886-1
1W SM M/OX 5% 820K
TE Part # 1625881-2
1W STD M/OX 2% 220R
TE Part # 1625893-5
5W SM M/OX 5% 47K
TE Part # 6-1676123-7
1/2W SM M/OX 5% 470R
Also in the Series
Neohm ROX
Through-Hole Resistors
(786)
Customers Also Bought
TE Part #1-1625999-9
HSC100 22K 5%
TE Part #6-104118-6
80 SYS 50 HDR DRRA
UNSHRD SN
TE Part #4-1630012-0
HSC150 200R 5%
TE Part #9-2176415-0
8W STD M/OX 5% 150K
For support call+1 800 522 6752
08/27/2019 12:59AM | Page 3
8W STD M/OX 5% 200R
TE Part # 2-2176415-1
TE Internal #: ROX8J200R
TE Part #9-2176415-1
8W STD M/OX 5% 160K
TE Part #9-2176415-2
8W STD M/OX 5% 180K
TE Part #8-2176307-5
RP 1E 0.1W 93K1 0.1%
25PPM 5K RL
TE Part #6-2176378-1
RQ 0805 42R2 0.1% 10PPM
5K RL
TE Part #9-2176378-0
RQ 0805 84R5 0.1% 10PPM
5K RL
Documents
Product Drawings
8W STD M/OX 5% 200R
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_2-2176415-1_BA.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_2-2176415-1_BA.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_2-2176415-1_BA.3d_stp.zip
English
Datasheets & Catalog Pages
Flame Proof Power Metal Oxide Film Resistors - Type ROX Series - Tyco Electronics Passives
English
For support call+1 800 522 6752
08/27/2019 12:59AM | Page 4
