FDS6898AZ_F085 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> FDS6898AZ_F085

FDS6898AZ_F085: Description9.4 A, 20 V, 0.014 ohm, 2 CHANNEL, N-CHANNEL, Si, POWER, MOSFET; CategoryDiscrete semiconductor The transistor; File Size312KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric View All

FDS6898AZ_F085 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FDS6898AZ_F085	-	-	View	Buy Now

FDS6898AZ_F085 Overview

9.4 A, 20 V, 0.014 ohm, 2 CHANNEL, N-CHANNEL, Si, POWER, MOSFET

FDS6898AZ_F085 Parametric

Parameter Name	Attribute value
Brand Name	Fairchild Semiconduc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SMALL OUTLINE, R-PDSO-G8
Contacts	8
Manufacturer packaging code	8LD, SOIC,JEDEC MS-012, .150\" NARROW BODY, DUAL DAP
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V
Maximum drain current (Abs) (ID)	9.4 A
Maximum drain current (ID)	9.4 A
Maximum drain-source on-resistance	0.014 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G8
JESD-609 code	e4
Humidity sensitivity level	1
Number of components	2
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	2 W
Maximum pulsed drain current (IDM)	38 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

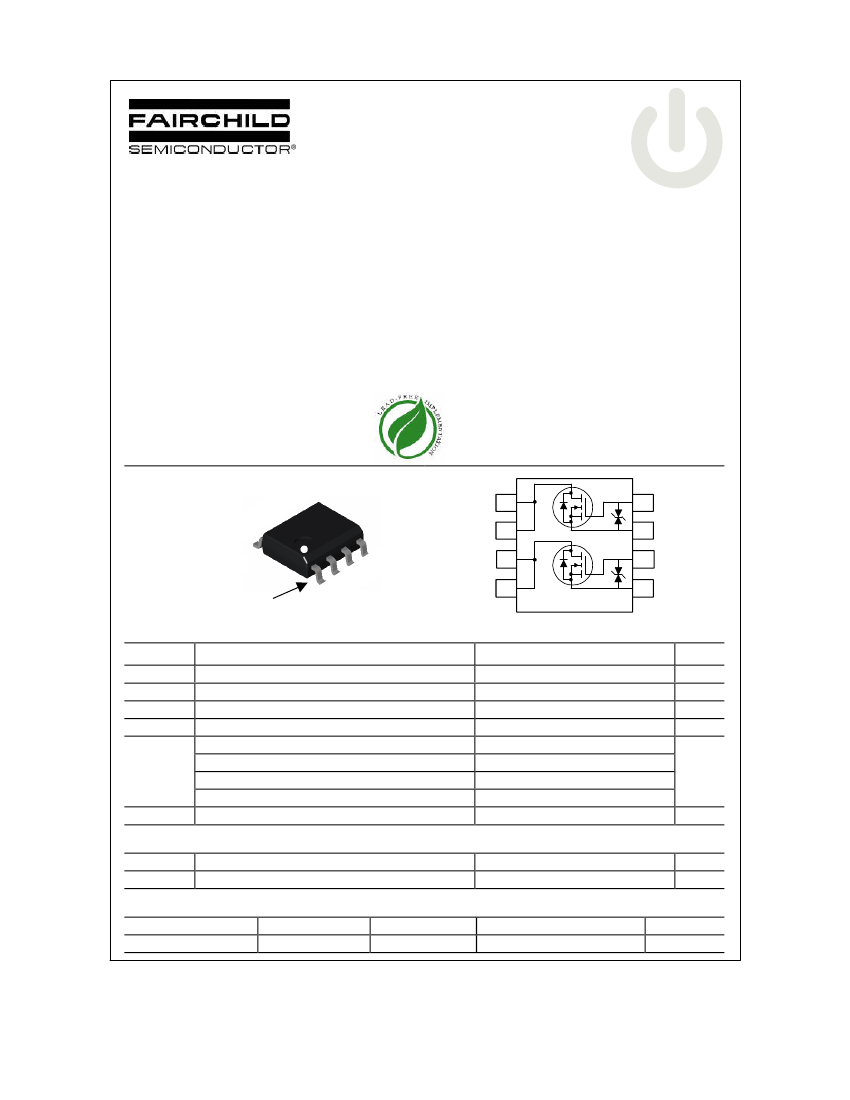

FDS6898AZ_F085

Dual N-Channel Logic Level PWM Optimized PowerTrench

MOSFET

February

2010

FDS6898AZ_F085

Dual N-Channel Logic Level PWM Optimized PowerTrench

MOSFET

General Description

These N-Channel Logic Level MOSFETs are produced

using

Fairchild

Semiconductor’s

advanced

PowerTrench process that has been especially tailored

to minimize the on-state resistance and yet maintain

superior switching performance.

These devices are well suited for low voltage and

battery powered applications where low in-line power

loss and fast switching are required.

Features

•

9.4 A, 20 V

DS(ON)

= 14 mΩ @ V

= 4.5 V

DS(ON)

= 18 mΩ @ V

= 2.5 V

•

Low gate charge (16 nC typical)

•

ESD protection diode (note 3)

•

High performance trench technology for extremely

low R

DS(ON)

•

High power and current handling capability

•

Qualified to AEC Q101

•

RoHS Compliant

SO-8

Pin 1

SO-8

Absolute Maximum Ratings

Symbol

DSS

GSS

Drain-Source Voltage

Gate-Source Voltage

Drain Current

– Continuous

– Pulsed

=25 C unless otherwise noted

Parameter

Ratings

(Note 1a)

Units

9.4

Power Dissipation for Dual Operation

Power Dissipation for Single Operation

(Note 1a)

(Note 1b)

(Note 1c)

1.6

0.9

–55 to +150

°C

, T

STG

Operating and Storage Junction Temperature Range

Thermal Characteristics

θJA

θJC

Thermal Resistance, Junction-to-Ambient

Thermal Resistance, Junction-to-Case

(Note 1a)

(Note 1)

°C/W

Package Marking and Ordering Information

Device Marking

FDS6898AZ

Device

Reel Size

13’’

Tape width

12mm

Quantity

2500 units

www.fairchildsemi.com

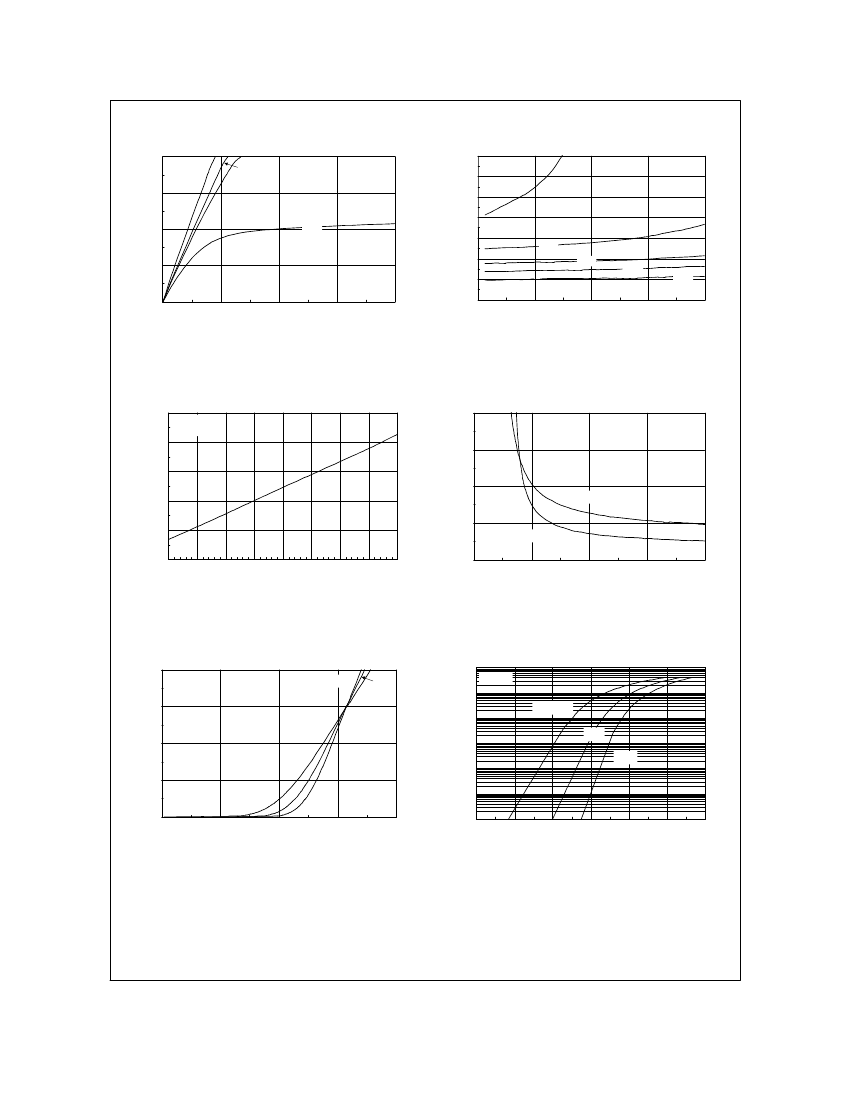

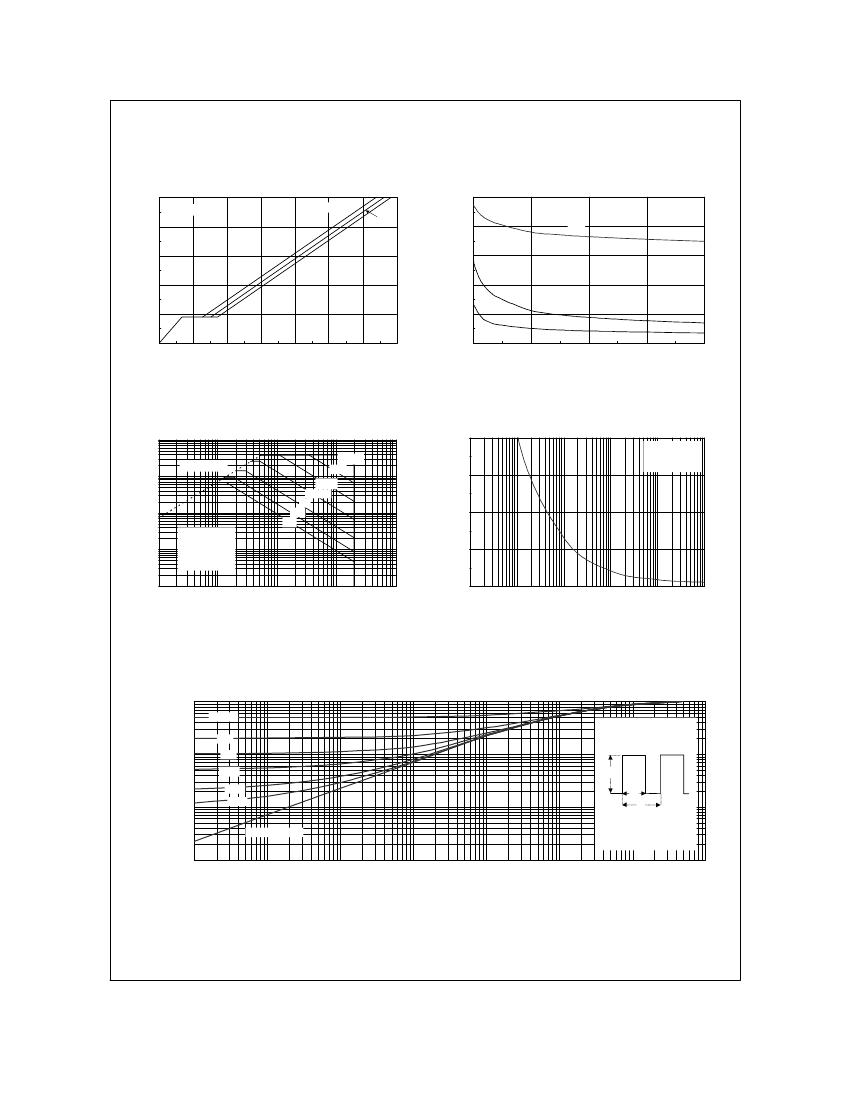

FDS6898AZ_F085

FDS6898AZ_F085 Rev.
