Multilayer Ceramic Capacitors (Temperature compensating type) for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
UMK063CG300JTHF
Features
Item Summary
30pF±5%, 50V,
C0G/CG, 0201/0603 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
30 pF ± 5 %
0201/0603
50 V
1000 at 1MHz
C0G
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

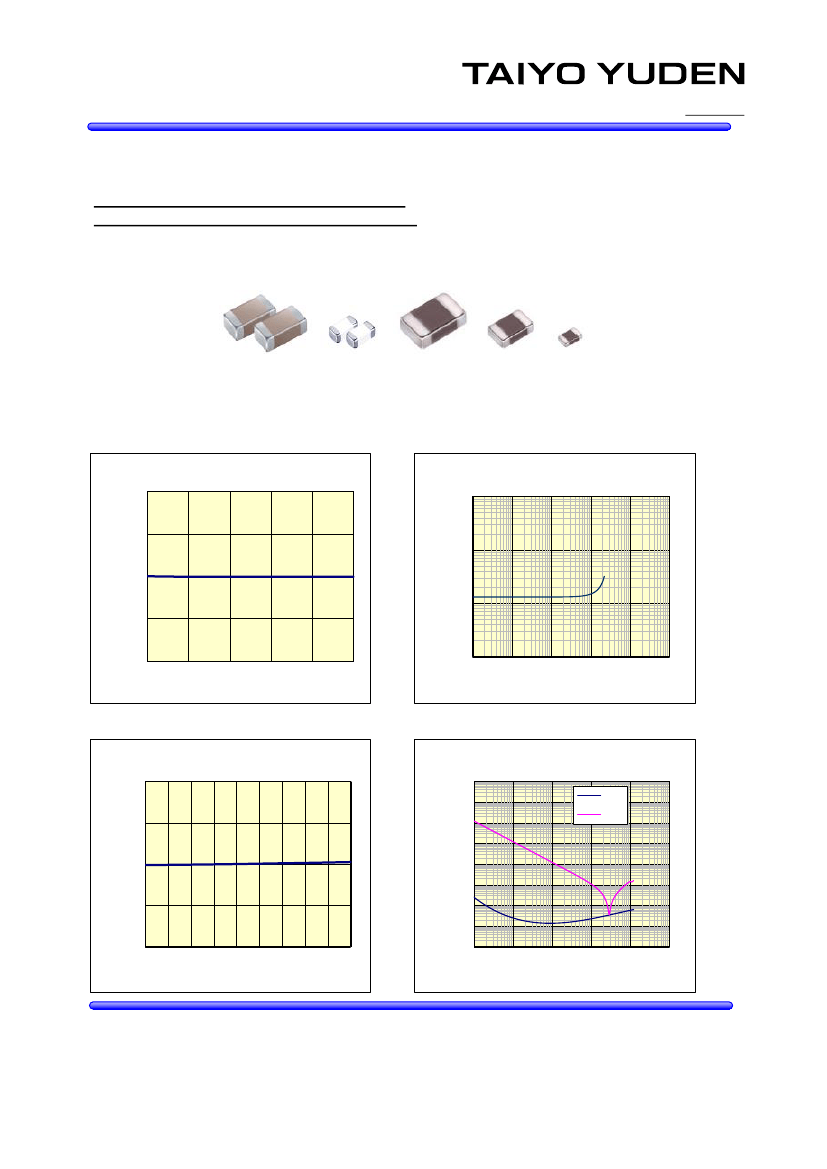

Multi Layer Ceramic Capacitor
○UMK063CG300JTHF
50V 0603 CG/C0G 30pF +/- 5% t=0.33mmMAX
50V 0201 CG/C0G 30pF +/- 5% t=0.013inchMAX
-Electrical Characteristics Data-
17CDD07
RoHS compliance product
10
UMK063CG300JTHF
DC Bias Char.
1000
UMK063CG300JTHF
Capacitance Freq.
5
Capacitance[pF]
100
dC/C[%]
0
10
-5
-10
0
10
20
30
40
DC Bias Voltage[V]
50
1
1
10
100
1000
10000 100000
Frequency[MHz]
UMK063CG300JTHF
Capacitance Temp.
10
1000000
100000
5
10000
UMK063CG300JTHF
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
-5
0.1
-10
0.01
1
10
100
1000 10000 100000
Frequency[MHz]
