Wide Terminal Thick Film Chip Resistor
CR Series
0.5% TO 5%, TCR ±100 TO ±200(≥1Ω)
1% TO 5%, TCR ±250 TO ±2000(<1Ω)
SIZE: 46W
RoHs Compliant
Product Specification – November 02, 2018 V.2
WIDE TERMINAL THICK FILM CHIP RESISTOR
CR Series
DS-ENG-003
1.
SCOPE
1.1
This specification is applicable to lead free and halogen free of RoHS directive for
CR46W series wide terminal thick film chip resistors.
The product is for general electronic purpose.
Page:
2 of 13
1.2
2.

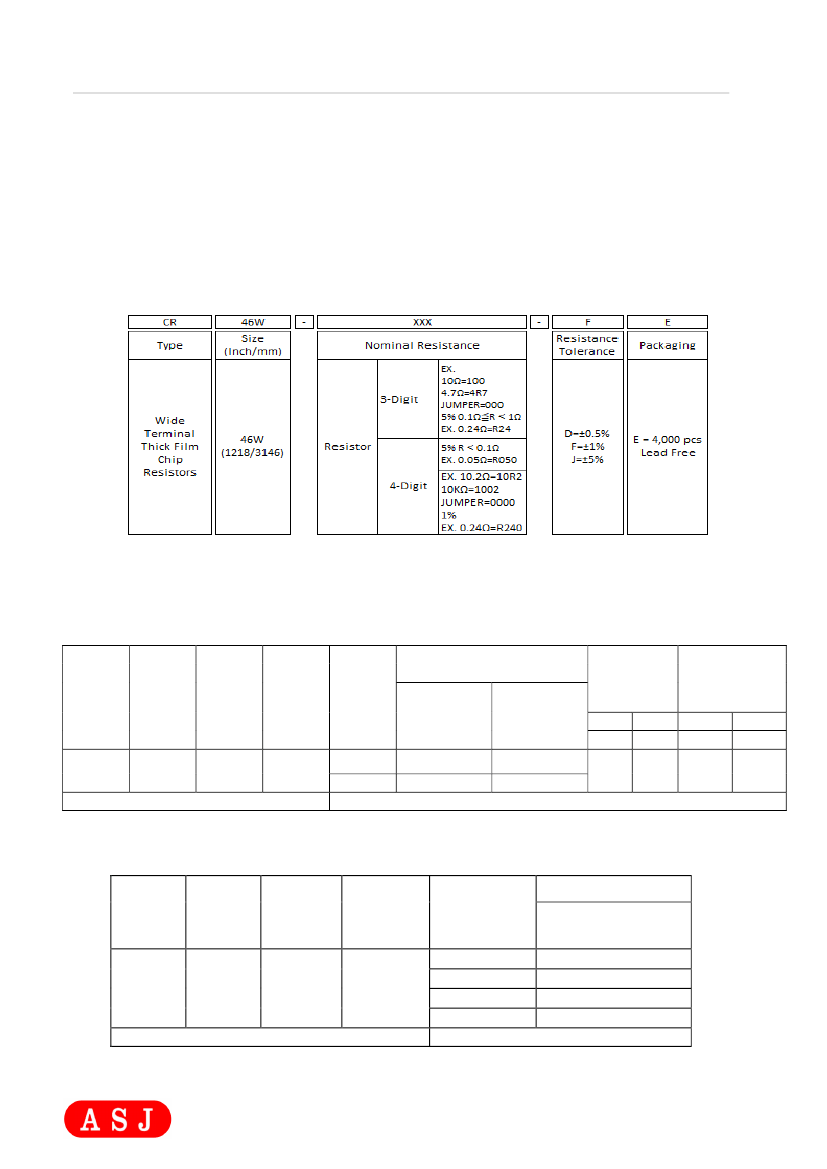

PART NUMBERING SYSTEM
Part Numbering is made in accordance with the following system:
3.
RATING
3.1
Rated Power
3.1.1. Resistor Rated Power: ≥ 1Ω & 0Ω
Resistance Range
JUMPER Rated
Current
J
(±5%)
2A
F
(±1%)
7A
JUMPER
Resistance Value
J
(±5%)
50mΩ
Max.
F
(±1%)
20mΩ
Max.
Type
Rated
Power at
70⁰C
Maximum
Working
Voltage
Maximum
Overload
Voltage
T.C.R
(ppm/˚C)
D(±0.5%)
F(±1%)
E-24, E-96
1Ω≦R＜10Ω
10Ω≦R≦1MΩ
J(±5%)
(E-24)
CR46W
1W
250V
500V
±200
±100
1Ω≦R＜10Ω
10Ω≦R≦1MΩ
-55⁰C ~ +155⁰C
Operating Temperature Range
3.1.2
Resistor Rated Power: < 1Ω
Maximum
Rated
Current
Maximum
Overload
Current
Resistance Tolerance
T.C.R
(ppm / ⁰C)
±2000
F(±1%), J(±5%)
E-24 , E-96
10mΩ≦R＜30mΩ
30mΩ≦R＜56mΩ
56mΩ≦R＜180mΩ
180mΩ≦R＜1Ω
-55⁰C ~ +155⁰C
Type
Rated
Power at
70⁰C
CR46W
(1218)
1W
10A
25A
±1000
±700
±250
Operating Temperature Range
Product Specification
Towards Excellence in
Quality,
Service &
Innovation
WIDE TERMINAL THICK FILM CHIP RESISTOR
CR Series
DS-ENG-003
3.2
Power Derating Characteristics
Rated Power shall be the load power corresponding to nominal wattage suitable
for continuous use at 70C ambient temperature. In case the ambient
temperature exceeds 70C, reduce the load power in accordance with Derating
curve in Fig. 1.
Page:
3 of 13

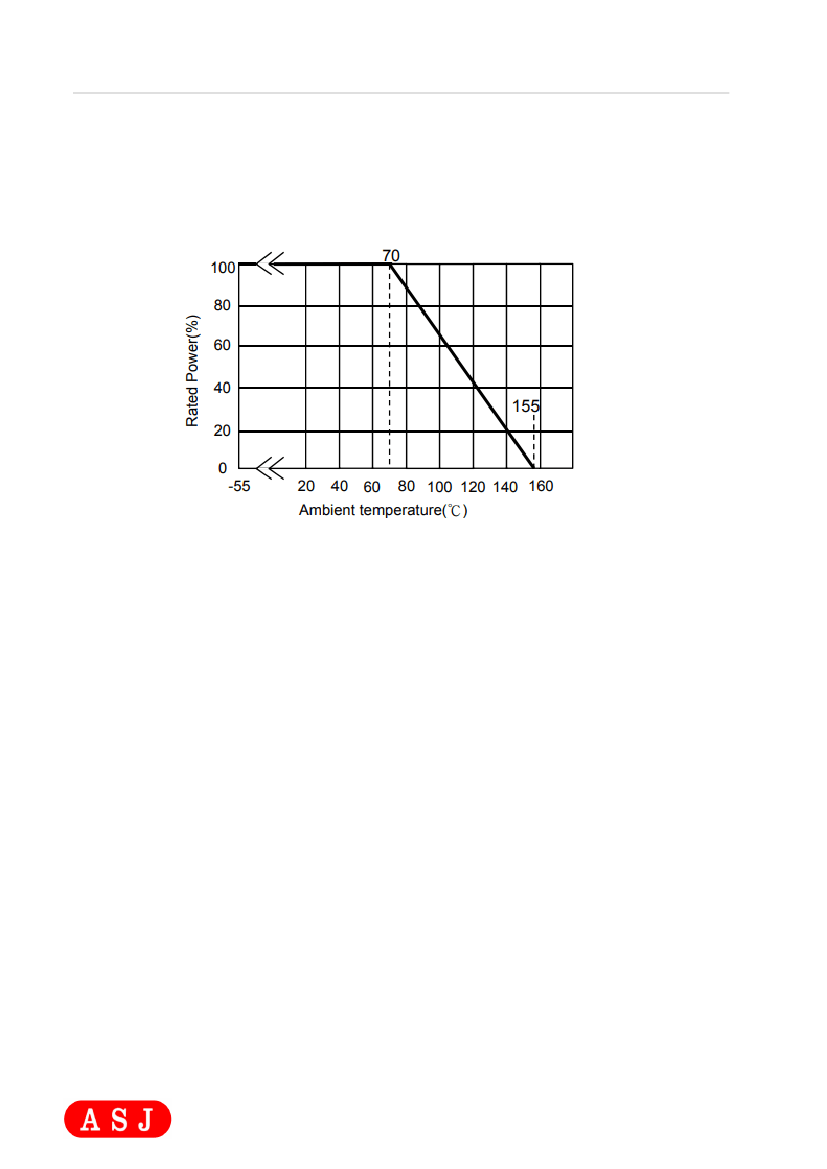

Fig.1 Power Derating Characteristics
3.3
Standard Atmospheric Condition
Unless otherwise specified, the standard range of atmospheric conditions for
making measurements and tests is as follows:
Ambient Temperature = + 5C to +35C
Relative Humidity
Air Pressure
= < 85% RH
= 86 kPa to 106kPa
If there may be any doubt about the results, measurement shall be made within the
following limits:
Ambient Temperature = 20
2C
Relative Humidity
Air Pressure
3.4
3.5
3.6
3.7
= 60 to 70% RH
= 86 kPa to 106kPa
Operating Temperature Range
-55C to +155C
Storage Temperature Range
Flammability Rating
-5C to + 40C
Tested in accordance to UL-94, V-0
Level 1
Moisture Sensitivity Level Rating:
Product Specification
Towards Excellence in
Quality,
Service &
Innovation
WIDE TERMINAL THICK FILM CHIP RESISTOR
CR Series
DS-ENG-003
3.8
3.9
3.10
Page:
4 of 13
Product Assurance ASJ resistor shall warranty 24 months from the date of shipment.
ASJ resistors are RoHS compliance in accordance to RoHS Directive 2011/65/EU.
Rated Voltage: Rated voltage: DC current or AC voltage (rms) base on the rated power.
The voltage can be calculated by the following formula. If the calculated value exceeds
the Max. voltaget specified in the table 3.1.1, the Max. voltage rating is set as the
voltage rating.
E = √P. R
Where E : Rated Voltage (V)
P : Rated Power (W)
R : Nominal Resistance ()
3.10.1 Current Rating
Rated current: DC current or AC current (rms) base on the rated power.
The current can be calculated by the following formula. If the calculated value
exceeds the Max. current specified in the table 3.1.2, the Max. current rating is
set as the current rating.
= √/
I=Rated current(A)
P=Power rating
R=Nominal resistance
3.11
All product, product specifications and data are subject to change without notice to
improve reliability, function or design or otherwise.
Product Specification
Towards Excellence in
Quality,
Service &
Innovation
WIDE TERMINAL THICK FILM CHIP RESISTOR
CR Series
DS-ENG-003
4.
MARKING ON PRODUCT
The nominal resistance shall be marked on the surface of each resistor
Part
Number
CR46W
(1218)
Color
Light Yellow
Marking on Product
1) Tolerance :
1.0% (F)
°
Four Numerals Marking (E96 Series)
2) Tolerance;
±5.0%
(J)
Three Numerals Marking
Page:
5 of 13
4.1
Numeric Numbering
4.1.1
5% Tolerance:
Three Numerals Marking
First 2 digits are significant figures, third digit is number of zeros. Letter R is
decimal point.
Example
Nominal Resistance
1
10
100
4.7K
47K
470K
4.7M
Marking
1R0
100
101
472
473
474
475
Remarks
1 X 10
0
= 1
10 X 10
0
= 1 0
10 X 10
1
= 1 00
47 X 10
2
= 47 00
47 X 10
3
= 47 000
47 X 10
4
= 47 0000
47 X 10
5
= 47 00000
4.1.2
1% Tolerance :
Four Numerals Marking
First 3 digits are significant figures, fourth digit is number of zeros
.
Examples:
Nominal Resistance
1
10
100
4.7K
47K
470K
1M
Marking
1R00
10R0
1000
4701
4702
4703
1004
Remarks
1 X 10
0
= 1
10 X 10
0
= 10
100 X 10
0
= 100
470 X 10
1
= 470 0
470 X 10
2
= 470 00
470 X 10
3
= 470 000
100 X 10
4
= 100 0000
Product Specification
Towards Excellence in
Quality,
Service &
Innovation
