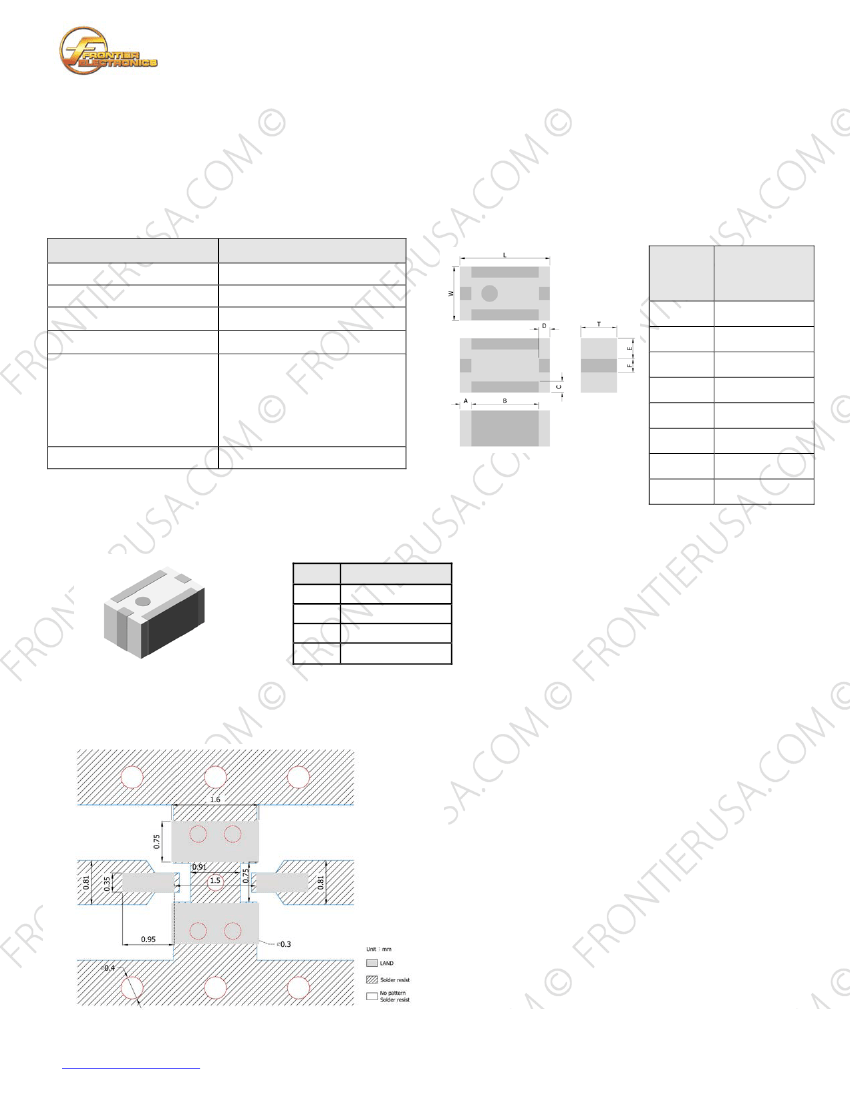

BP2500B0805AT BAND PASS FILTER SPECIFICATION
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 2.0 X 1.2 X 0.9 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.
Rev. A
RF CHARACTERISTICS
P/N BP2500B0805AT
Frequency range
Insertion Loss (max)
VSWR
Impedance
Specification
2400 - 2500 MHz
2.6 dB max.
2.0 max
50 Ω
40 dB @ 880 - 960MHz
38 dB @ 1710 -1910 MHz
16 dB @ 2170 MHz
30 dB @ 4800 - 5000MHz
25 dB @ 7200 - 7500MHz
-40°C to +85°C
PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C, D
E
F
Dimension
(mm)
2.00 ± 0.15
1.20 ± 0.15
0.90 ± 0.10
0.20 ± 0.15
1.60 ± 0.15
0.25 ± 0.15
0.45 ± 0.15
0.30 ± 0.15
Attenuation (min.)
Operating temperature range
TERMINAL CONFIGURATION
P2
P3
PIN
P1
P2
P3
Definition
Input
GND
Output
GND
P1
P4
P4
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500B0805AT BAND PASS FILTER SPECIFICATION
Rev. A

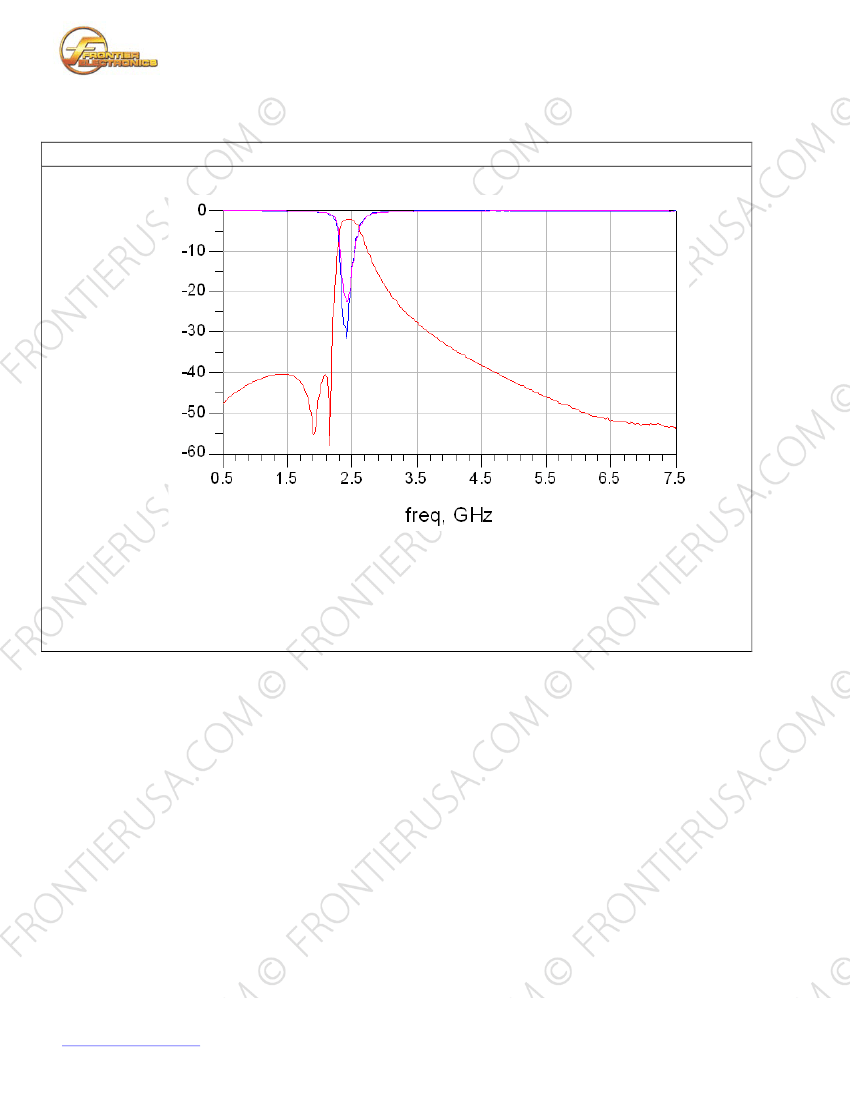

Typical RF Performance
Frontier Electronics Corp.
®
http://www.frontierusa.com
S11 and S12 in dB
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
