BP2500D0805GT BAND PASS FILTER SPECIFICATION
Rev. A
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 2.0 X 1.2 X 0.45 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.
RF CHARACTERISTICS
P/N BP2500D0805GT
Frequency range
Insertion Loss (max)
VSWR
Impedance
Specification
2400 - 2500 MHz
2.0 dB max at +25°C
2.2 dB max at -40° C t o +85°C
2.0 max
50 Ω
25@ 746-764MHz
30@ 824-849MHz
26@ 869-960MHz
28@ 1570-1580MHz
28@ 1710-1785MHz
Attenuation (min.)
30@ 1850-1910MHz
30@ 1930-1990MHz
25@ 2110-2170MHz
15@ 3300-3800MHz
35@ 4800-5000MHz
20@ 7200-7450MHz
-40°C to +85°C

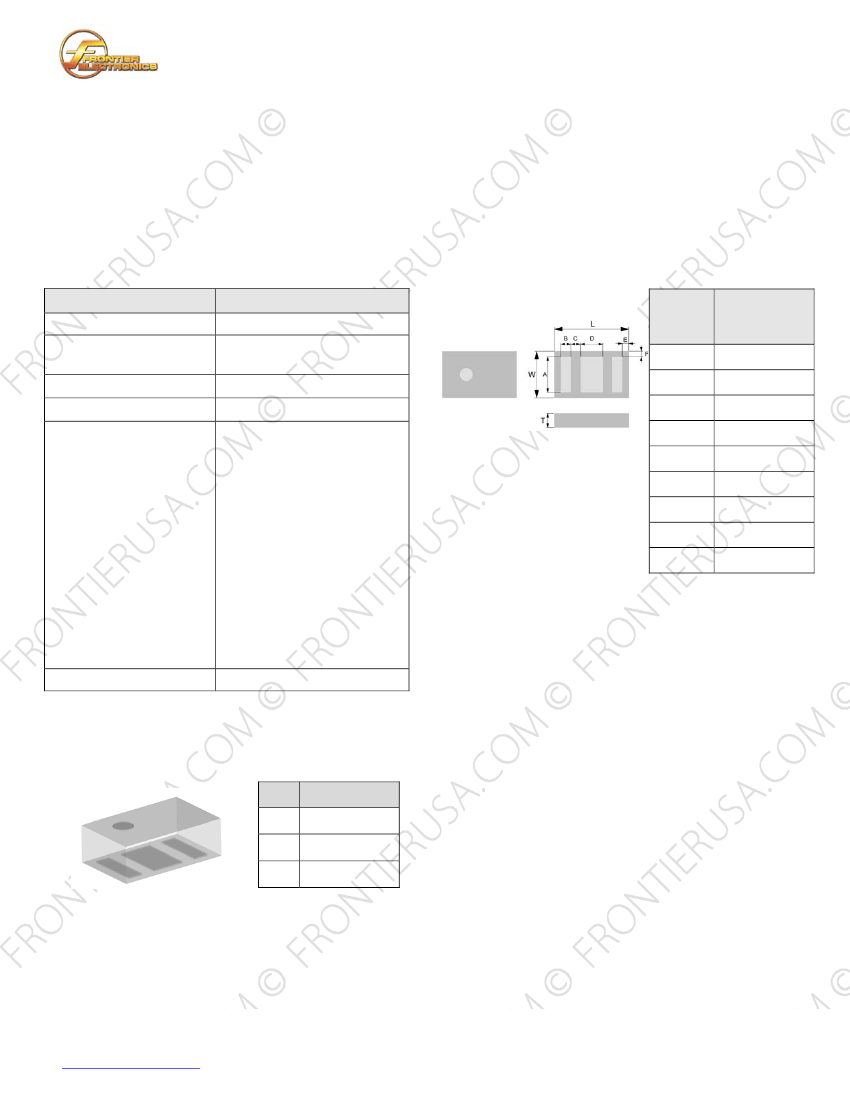

PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C
D
E
F
Dimension
(mm)
2.00 ± 0.15
1.25 ± 0.10
0.45 ± 0.10
0.95 ± 0.10
0.275 ± 0.10
0.25 ± 0.10
0.60 ± 0.10
0.175 ± 0.10
0.15 ± 0.10
Operating temperature range
TERMINAL CONFIGURATION
PIN
P1
P2
Definition
INPUT
GND
OUTPUT
P2
P1
P3
P3
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500D0805GT BAND PASS FILTER SPECIFICATION
Rev. A
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Unit in mm
- Design trace width to be 50Ω impedance.

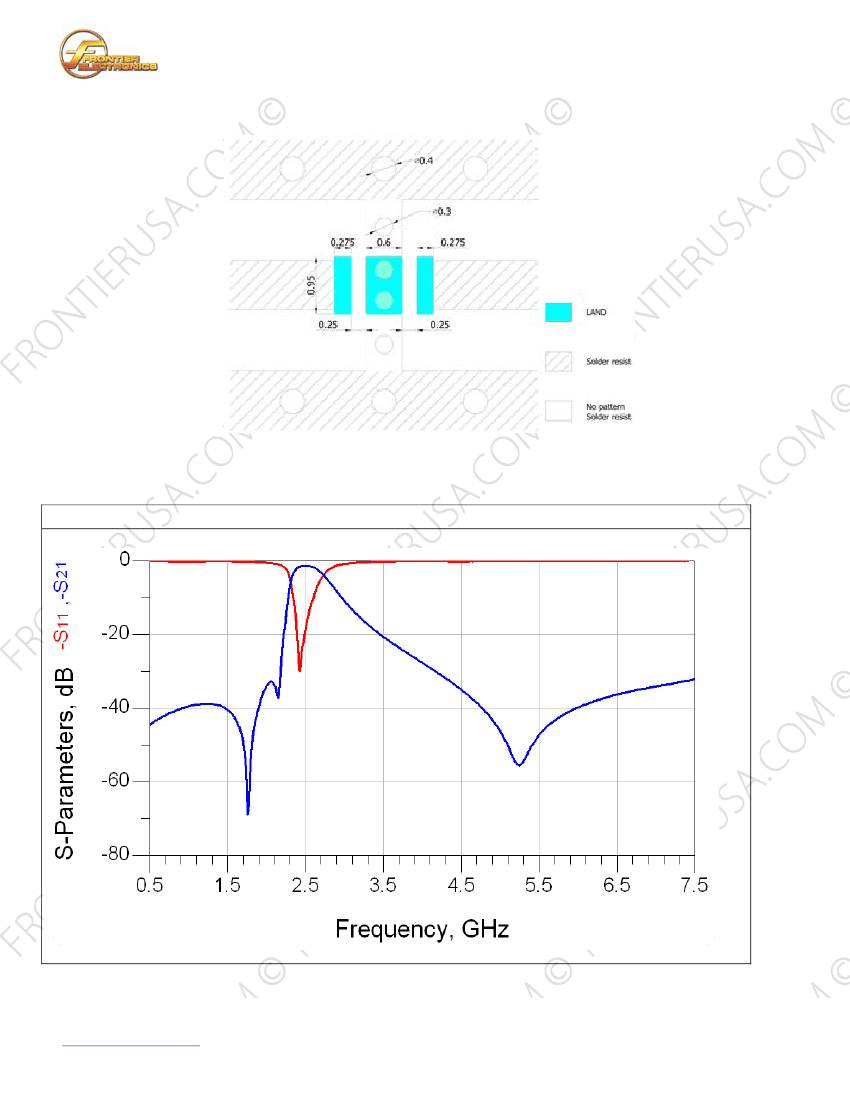

Typical RF Performance
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
