TAZG476J015LSLC9HGC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TAZG476J015LSLC9HGC

TAZG476J015LSLC9HGC: DescriptionTantalum Capacitor, Tantalum (dry/solid),; CategoryPassive components capacitor; File Size2MB，14 Pages; ManufacturerAVX

Download Datasheet Parametric View All

TAZG476J015LSLC9HGC Overview

Tantalum Capacitor, Tantalum (dry/solid),

TAZG476J015LSLC9HGC Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	, 2611
Reach Compliance Code	unknown
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	47 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	275 mΩ
high	2.79 mm
leakage current	0.01 mA
length	6.73 mm
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 13 Inch
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	15 V
ripple current	270 mA
size code	2611
surface mount	YES
Delta tangent	0.08
Terminal shape	J BEND
width	2.79 mm

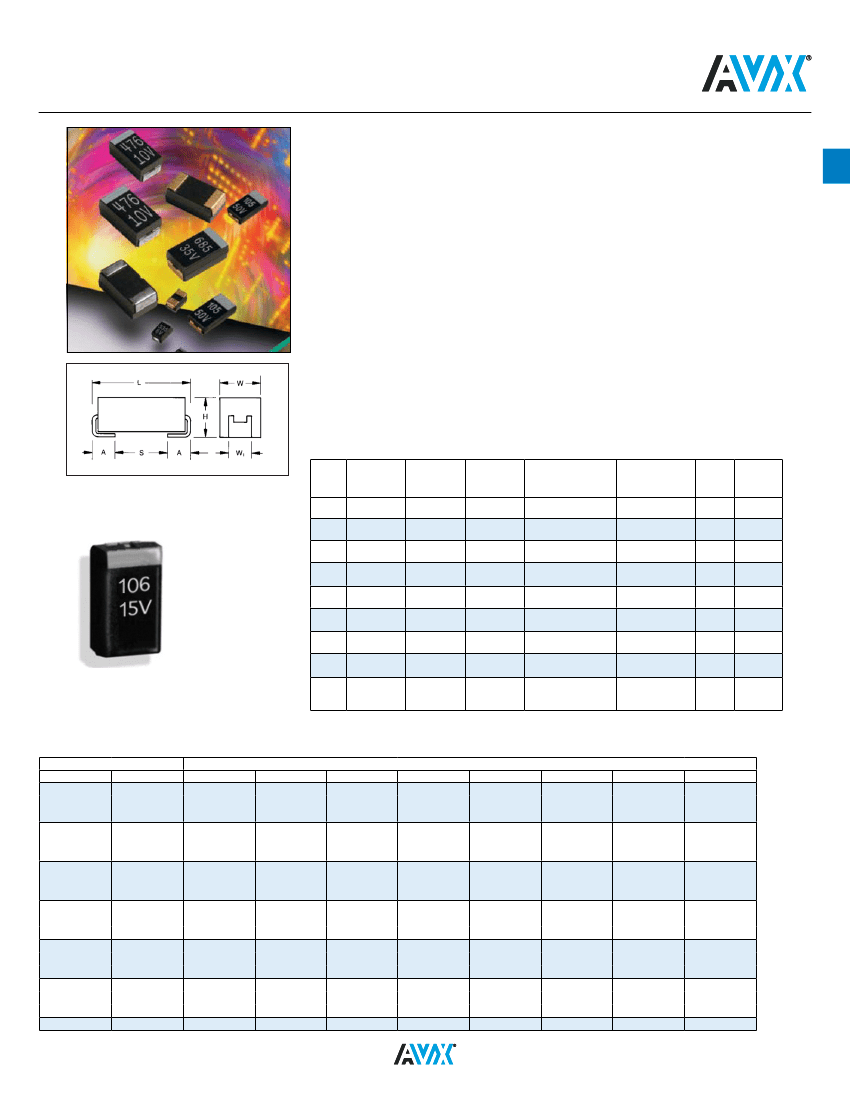

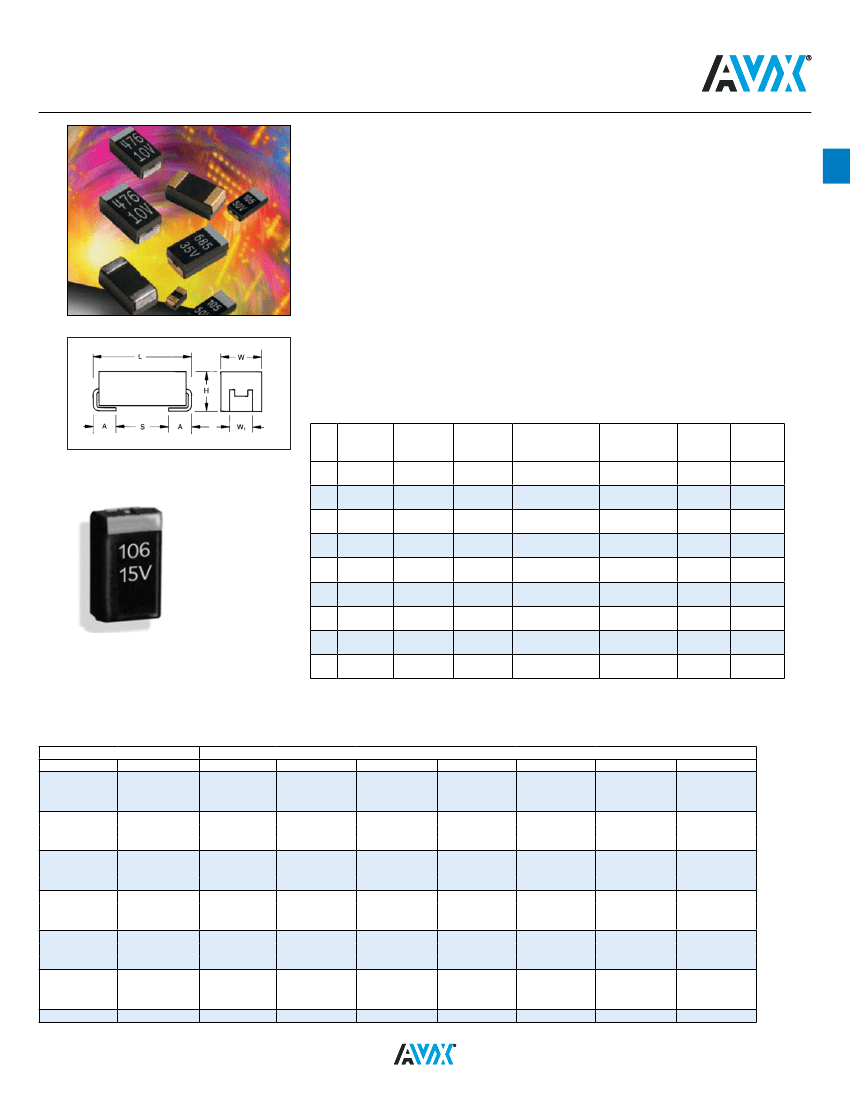

TAZG476J015LSLC9HGC Preview

TAZ Series

CWR09 - MIL-PRF-55365/4 Established Reliability, COTS-

Plus & Space Level

This is the original high reliability molded

tantalum chip series and the case sizes

still represent the most flexible of surface

mount form factors. TAZ offers nine case

sizes, eight of which (A through H) are fully

qualified to MILPRF-55365/4, and also

includes the original sub-miniature R case

(non-QPL).

This series is fully interchangeable with CWR06

conformal types, while offering the advantages

of molded body/compliant termination

construction (ensuring no TCE mismatch with

any substrate). This construction is compatible

with a wide range of SMT board assembly

processes including convection reflow solder,

conductive epoxy or compression bonding

techniques.

The parts also carry full polarity and

capacitance / voltage marking. The five

smaller cases are characterized by their low

profile construction, with the A case being the

world’s smallest molded military tantalum

chip.

All 4V to 50V ratings are qualified to MIL-

PRF-55365 Weibull “B”, “C”, “D” and “T”

levels, with all surge options (“A”, “B” & “C”)

available.

For Space Level applications, AVX SRC 9000

qualification is recommended (see ratings

table for part number availability).

There are four termination finishes available:

solder plated, fused solder plated, hot solder

dipped and gold plated (these are “H”, “K”, “C”

and “B” termination, respectively, per MIL-

PRF-55365).Inaddition,themoldingcompound

has been selected to meet the requirements of

UL94V-0 (Flame Retardancy) and outgassing

requirementsofASTME-595.

For moisture sensitivity levels please refer to the

High Reliability Tantalum MSL section located in

the back of the High Reliability Tantalum Catalog.

CASE DIMENSIONS:

Case

Code

Length (L)

Width (W)

Height (H)

±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)

2.54 (0.100)

3.81 (0.150)

5.08 (0.200)

3.81 (0.150)

5.08 (0.200)

5.59 (0.220)

6.73 (0.265)

7.24 (0.285)

1.27 (0.050)

2.54 (0.100)

3.43 (0.135)

2.79 (0.110)

3.81 (0.150)

1.27 (0.050)

1.78 (0.070)

2.79 (0.110)

1.20 (0.047)

max

Term. Width (W

)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

3.30±0.13

(0.130±0.005)

2.67±0.13

(0.105±0.005)

3.68+0.13/-0.51

(0.145+0.005/-0.020)

1.0±0.10

(0.039±0.004)

millimeters (inches)

Term. Length (A)

+0.25/-0.13

(+0.010/-0.005)

0.76 (0.030)

1.27 (0.050)

0.50 (0.020)

+0.30 (0.012)

-0.20 (0.008)

S min

0.38

(0.015)

1.65

(0.065)

2.92

(0.115)

1.65

(0.065)

2.92

(0.115)

3.43

(0.135)

3.56

(0.140)

4.06

(0.160)

0.71

(0.028)

Typical

Weight (g)

0.016

0.025

0.035

0.045

0.065

0.125

0.205

0.335

0.010

MARKING

(White marking on black body)

Polarity Stripe (+)

Capacitance Code

Rated Voltage

CWR09 MIL-PRF-55365/4

Capacitance

µF

Code

0.10

104

0.15

154

0.22

224

0.33

334

0.47

474

0.68

684

1.0

105

1.5

155

2.2

225

3.3

335

4.7

475

6.8

685

106

156

226

336

476

686

100

107

1.30 (0.051)

2.05 (0.081)

+0.20 (0.008)

±0.20 (0.008)

-0.10 (0.004)

CAPACITANCE AND RATED VOLTAGE, V

(VOLTAGE CODE) RANGE (LETTER DENOTES CASE SIZE)

4V (C)

6V (D)

10V (F)

Rated Voltage DC (V

) at 85ºC

15V (H)

20V (J)

25V (K)

35V (M)

50V (N)

A/R

012918

TAZ Series

CWR09 - MIL-PRF-55365/4 Established Reliability, COTS-

Plus & Space Level

HOW TO ORDER

COTS-PLUS & MIL QPL (CWR09):

TAZ

Type

Case

Size

686

006



Termination Finish

H = Solder Plated

0 = Fused Solder

Plated

8 = Hot Solder

Dipped

9 = Gold Plated

7 = Matte Sn

(COTS-Plus

only)

Surge Test

Option

00 = None

23 = 10 Cycles,+25ºC

24 = 10 Cycles,

-55ºC & +85ºC

45 = 10 cycles,

-55ºC & +85ºC

before Weibull

Voltage

Standard or

Capacitance Capacitance

Code

Tolerance

Code

Low ESR

M = ±20% 004 = 4Vdc

pF code:

Range

1st two digits K = ±10% 006 = 6Vdc C = Std ESR

J = ±5% 010 = 10Vdc L = Low ESR

represent

significant

015 = 15Vdc

figures 3rd

020 = 20Vdc

digit represents

025 = 25Vdc

multiplier

035 = 35Vdc

(number of

zeros to follow)

050 = 50Vdc

Packaging Inspection Level

S = Std.

B = Bulk

Conformance

R = 7” T&R

S = 13” T&R L = Group A

W = Waffle

M = MIL (JAN)

CWR09

See page 8

for additional

packaging

options.

Reliability Grade Qualification

Weibull:

Level

B = 0.1%/1000 hrs.

0 = N/A

90% conf.

T = T Level

C = 0.01%/1000 hrs. 9 = SRC9000

90% conf.

D = 0.001%/1000 hrs.

90% conf.

Z = Non-ER

LEAD-FREE COMPATIBLE

COMPONENT

CWR09 P/N CROSS REFERENCE:

CWR09

Type

For RoHS compliant products,

please select correct termination style.

Voltage

Code

C = 4Vdc

D = 6Vdc

F = 10Vdc

H = 15Vdc

J = 20Vdc

K = 25Vdc

M = 35Vdc

N = 50Vdc

Termination

Finish

H = Solder Plated

K = Solder Fused

C = Hot Solder

Dipped

B = Gold Plated

686

Capacitance

Code

pF code:

1st two digits

represent

significant

figures 3rd digit

represents

multiplier

(number of zeros

to follow)

Capacitance

Tolerance

M = ±20%

K = ±10%

J = ±5%

Reliability

Grade

Weibull:

B = 0.1%/1000 hrs.

90% conf.

C = 0.01%/1000 hrs.

90% conf.

D = 0.001%/1000

hrs. 90% conf.

T = T Level

A = Non-ER

Surge Test

Option

A = 10 cycles, +25°C

B = 10 cycles,

-55°C & +85°C

C = 10 cycles,

-55°C & +85°C

before Weibull

If blank,

None required



Packaging

Bulk = Standard

\TR = 7” T&R

\TR13 = 13” T&R

\W = Waffle

See page 8

for additional

packaging

options.

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

SPACE LEVEL OPTIONS TO SRC9000*:

TAZ

Type

Case

Size

686

006



Voltage

Standard or

Capacitance Capacitance

Code

Tolerance

Low ESR

Code

M = ±20% 004 = 4Vdc

Range

pF code:

1st two digits K = ±10% 006 = 6Vdc C = Std ESR

J = ±5% 010 = 10Vdc L = Low ESR

represent

significant

015 = 15Vdc

figures 3rd

020 = 20Vdc

digit represents

025 = 25Vdc

multiplier

035 = 35Vdc

(number of

zeros to follow)

050 = 50Vdc

Reliability Grade Qualification

Surge Test

Packaging Inspection Level

Termination Finish

L = Group A

Option

Level

B = Bulk

Weibull:

H = Solder Plated

45 = 10 cycles,

R = 7” T&R

B = 0.1%/1000 hrs. 9 = SRC9000 0 = Fused Solder Plated

-55ºC & +85ºC

S = 13” T&R

90% conf.

8 = Hot Solder Dipped

before Weibull

W = Waffle

C = 0.01%/1000 hrs.

9 = Gold Plated

GC = Group C Testing

90% conf.

and Data

D = 0.001%/1000 hrs.

See page 8

OR = TOR compliant

90% conf.

for additional

testing and data

packaging

options.

LEAD-FREE COMPATIBLE

COMPONENT

*Contact factory for AVX SRC9000 Space Level SCD details.

For RoHS compliant products,

please select correct termination style.

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Unless otherwise specified, all technical data relate to an ambient temperature of 25°C

0.10 μF to 100 μF

±5%; ±10%; ±20%

2.7

6.7

13.3

16.7

23.3

33.3

5.3

13.3

26.7

33.3

46.7

66.7

3.5

5.3

8.7

13.3

17.8

22.2

31.1

44.5

-55°C to +125°C

≤ 85°C:

≤125°C:

≤ 85°C:

≤125°C:

012819

TAZ Series

CWR09 - MIL-PRF-55365/4 Established Reliability, COTS-

Plus & Space Level

RATING & PART NUMBER REFERENCE

CWR09 P/N

Parametric Specifications by Rating per MIL-PRF-55365/4

ESR

DCL max

DF Max

Cap

DC Rated

120Hz Voltage

+25ºC

+85ºC

+125ºC

+25ºC

+(85/125)ºC

100kHz

μF

Ohms

AVX MIL & COTS-Plus P/N

AVX SRC9000 P/N

Case

(μA)

(%)

25ºC

+85ºC

+25ºC

0.33

TAZ R 334 * 004 C



0 ^ ++

2.2

TAZ R 225 * 004 C



0 ^ ++

2.2

TAZ A 225 * 004 C



0 ^ ++ TAZ A 225 * 004 C



9 ^ ++

4.7

TAZ B 475 * 004 C



0 ^ ++ TAZ B 475 * 004 C



9 ^ ++

6.8

5.5

TAZ C 685 * 004 C



0 ^ ++ TAZ C 685 * 004 C



9 ^ ++

TAZ D 106 * 004 C



0 ^ ++ TAZ D 106 * 004 C



9 ^ ++

3.5

TAZ E 156 * 004 C



0 ^ ++ TAZ E 156 * 004 C



9 ^ ++

2.2

TAZ F 336 * 004 C



0 ^ ++ TAZ F 336 * 004 C



9 ^ ++

1.1

TAZ G 686 * 004 C



0 ^ ++ TAZ G 686 * 004 C



9 ^ ++

100

0.9

TAZ H 107 * 004 C



0 ^ ++ TAZ H 107 * 004 C



9 ^ ++

1.5

TAZ A 155 * 006 C



0 ^ ++ TAZ A 155 * 006 C



9 ^ ++

3.3

TAZ B 335 * 006 C



0 ^ ++ TAZ B 335 * 006 C



9 ^ ++

4.7

5.5

TAZ C 475 * 006 C



0 ^ ++ TAZ C 475 * 006 C



9 ^ ++

6.8

4.5

TAZ D 685 * 006 C



0 ^ ++ TAZ D 685 * 006 C



9 ^ ++

3.5

TAZ E 106 * 006 C



0 ^ ++ TAZ E 106 * 006 C



9 ^ ++

2.2

TAZ F 226 * 006 C



0 ^ ++ TAZ F 226 * 006 C



9 ^ ++

1.1

TAZ G 476 * 006 C



0 ^ ++ TAZ G 476 * 006 C



9 ^ ++

0.9

TAZ H 686 * 006 C



0 ^ ++ TAZ H 686 * 006 C



9 ^ ++

0.33

TAZ R 334 * 010 C



0 ^ ++

0.47

TAZ R 474 * 010 C



0 ^ ++

TAZ R 105 * 010 C



0 ^ ++

TAZ A 105 * 010 C



0 ^ ++ TAZ A 105 * 010 C



9 ^ ++

2.2

TAZ B 225 * 010 C



0 ^ ++ TAZ B 225 * 010 C



9 ^ ++

3.3

5.5

TAZ C 335 * 010 C



0 ^ ++ TAZ C 335 * 010 C



9 ^ ++

4.7

4.5

TAZ D 475 * 010 C



0 ^ ++ TAZ D 475 * 010 C



9 ^ ++

6.8

3.5

TAZ E 685 * 010 C



0 ^ ++ TAZ E 685 * 010 C



9 ^ ++

2.5

TAZ F 156 * 010 C



0 ^ ++ TAZ F 156 * 010 C



9 ^ ++

1.1

TAZ G 336 * 010 C



0 ^ ++ TAZ G 336 * 010 C



9 ^ ++

0.9

TAZ H 476 * 010 C



0 ^ ++ TAZ H 476 * 010 C



9 ^ ++

0.68

TAZ A 684 * 015 C



0 ^ ++ TAZ A 684 * 015 C



9 ^ ++

1.5

TAZ B 155 * 015 C



0 ^ ++ TAZ B 155 * 015 C



9 ^ ++

2.2

5.5

TAZ C 225 * 015 C



0 ^ ++ TAZ C 225 * 015 C



9 ^ ++

3.3

TAZ D 335 * 015 C



0 ^ ++ TAZ D 335 * 015 C



9 ^ ++

4.7

TAZ E 475 * 015 C



0 ^ ++ TAZ E 475 * 015 C



9 ^ ++

2.5

TAZ F 106 * 015 C



0 ^ ++ TAZ F 106 * 015 C



9 ^ ++

1.1

TAZ G 226 * 015 C



0 ^ ++ TAZ G 226 * 015 C



9 ^ ++

0.9

TAZ H 336 * 015 C



0 ^ ++ TAZ H 336 * 015 C



9 ^ ++

0.47

TAZ A 474 * 020 C



0 ^ ++ TAZ A 474 * 020 C



9 ^ ++

0.68

TAZ B 684 * 020 C



0 ^ ++ TAZ B 684 * 020 C



9 ^ ++

TAZ B 105 * 020 C



0 ^ ++ TAZ B 105 * 020 C



9 ^ ++

1.5

TAZ C 155 * 020 C



0 ^ ++ TAZ C 155 * 020 C



9 ^ ++

2.2

TAZ D 225 * 020 C



0 ^ ++ TAZ D 225 * 020 C



9 ^ ++

3.3

TAZ E 335 * 020 C



0 ^ ++ TAZ E 335 * 020 C



9 ^ ++

6.8

2.4

TAZ F 685 * 020 C



0 ^ ++ TAZ F 685 * 020 C



9 ^ ++

1.1

TAZ G 156 * 020 C



0 ^ ++ TAZ G 156 * 020 C



9 ^ ++

0.9

TAZ H 226 * 020 C



0 ^ ++ TAZ H 226 * 020 C



9 ^ ++

0.33

TAZ A 334 * 025 C



0 ^ ++ TAZ A 334 * 025 C



9 ^ ++

0.68

7.5

TAZ B 684 * 025 C



0 ^ ++ TAZ B 684 * 025 C



9 ^ ++

6.5

TAZ C 105 * 025 C



0 ^ ++ TAZ C 105 * 025 C



9 ^ ++

1.5

6.5

TAZ D 155 * 025 C



0 ^ ++ TAZ D 155 * 025 C



9 ^ ++

2.2

3.5

TAZ E 225 * 025 C



0 ^ ++ TAZ E 225 * 025 C



9 ^ ++

4.7

2.5

TAZ F 475 * 025 C



0 ^ ++ TAZ F 475 * 025 C



9 ^ ++

6.8

1.2

TAZ G 685 * 025 C



0 ^ ++ TAZ G 685 * 025 C



9 ^ ++

1.4

TAZ G 106 * 025 C



0 ^ ++ TAZ G 106 * 025 C



9 ^ ++

Typical RMS Ripple Data by Rating

-55ºC

(%)

Power

Dissipation

0.030

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.030

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

25ºC

Ripple

85ºC

Ripple

125ºC

Ripple

25ºC

Ripple

85ºC

Ripple

125ºC

Ripple

CWR09C^225*@+

CWR09C^475*@+

CWR09C^685*@+

CWR09C^106*@+

CWR09C^156*@+

CWR09C^336*@+

CWR09C^686*@+

CWR09C^107*@+

CWR09D^155*@+

CWR09D^335*@+

CWR09D^475*@+

CWR09D^685*@+

CWR09D^106*@+

CWR09D^226*@+

CWR09D^476*@+

CWR09D^686*@+

CWR09F^105*@+

CWR09F^225*@+

CWR09F^335*@+

CWR09F^475*@+

CWR09F^685*@+

CWR09F^156*@+

CWR09F^336*@+

CWR09F^476*@+

CWR09H^684*@+

CWR09H^155*@+

CWR09H^225*@+

CWR09H^335*@+

CWR09H^475*@+

CWR09H^106*@+

CWR09H^226*@+

CWR09H^336*@+

CWR09J^474*@+

CWR09J^684*@+

CWR09J^105*@+

CWR09J^155*@+

CWR09J^225*@+

CWR09J^335*@+

CWR09J^685*@+

CWR09J^156*@+

CWR09J^226*@+

CWR09K^334*@+

CWR09K^684*@+

CWR09K^105*@+

CWR09K^155*@+

CWR09K^225*@+

CWR09K^475*@+

CWR09K^685*@+

CWR09K^106*@+

(100kHz) (100kHz) (100kHz) (100kHz) (100kHz) (100kHz)

0.03

0.02

0.01

1.16

1.05

0.46

0.05

0.02

0.60

0.54

0.24

0.08

0.07

0.03

0.63

0.57

0.25

0.09

0.08

0.04

0.75

0.67

0.30

0.12

0.11

0.05

0.64

0.58

0.26

0.14

0.13

0.06

0.57

0.51

0.23

0.16

0.14

0.06

0.56

0.51

0.22

0.21

0.19

0.09

0.47

0.42

0.19

0.34

0.30

0.13

0.37

0.33

0.15

0.41

0.37

0.16

0.37

0.33

0.15

0.08

0.07

0.03

0.63

0.57

0.25

0.09

0.08

0.04

0.75

0.67

0.30

0.12

0.11

0.05

0.64

0.58

0.26

0.13

0.12

0.05

0.60

0.54

0.24

0.16

0.14

0.06

0.56

0.51

0.22

0.21

0.19

0.09

0.47

0.42

0.19

0.34

0.30

0.13

0.37

0.33

0.15

0.41

0.37

0.16

0.37

0.33

0.15

0.02

0.01

1.22

1.10

0.49

0.02

0.01

1.22

1.10

0.49

0.05

0.02

0.55

0.49

0.22

0.07

0.06

0.03

0.71

0.64

0.28

0.09

0.08

0.04

0.75

0.67

0.30

0.12

0.11

0.05

0.64

0.58

0.26

0.13

0.12

0.05

0.60

0.54

0.24

0.16

0.14

0.06

0.56

0.51

0.22

0.20

0.18

0.08

0.50

0.45

0.20

0.34

0.30

0.13

0.37

0.33

0.15

0.41

0.37

0.16

0.37

0.33

0.15

0.06

0.03

0.77

0.70

0.31

0.09

0.08

0.04

0.75

0.67

0.30

0.12

0.11

0.05

0.64

0.58

0.26

0.13

0.11

0.05

0.63

0.57

0.25

0.15

0.14

0.06

0.60

0.54

0.24

0.20

0.18

0.08

0.50

0.45

0.20

0.34

0.30

0.13

0.37

0.33

0.15

0.41

0.37

0.16

0.37

0.33

0.15

0.06

0.05

0.02

0.84

0.75

0.33

0.08

0.03

0.84

0.75

0.33

0.08

0.07

0.03

0.92

0.82

0.37

0.11

0.10

0.04

0.67

0.60

0.27

0.13

0.11

0.05

0.63

0.57

0.25

0.15

0.14

0.06

0.60

0.54

0.24

0.20

0.18

0.08

0.49

0.44

0.20

0.34

0.30

0.13

0.37

0.33

0.15

0.41

0.37

0.16

0.37

0.33

0.15

0.06

0.05

0.02

0.87

0.78

0.35

0.10

0.09

0.04

0.72

0.65

0.29

0.11

0.10

0.04

0.70

0.63

0.28

0.11

0.10

0.04

0.72

0.65

0.29

0.16

0.14

0.06

0.56

0.51

0.22

0.20

0.18

0.08

0.50

0.45

0.20

0.32

0.29

0.13

0.39

0.35

0.15

0.30

0.27

0.12

0.42

0.38

0.17

All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes.

NOTE: AVX reserves the right to supply a higher voltage rating or tighter tolerance part in the same case size, to the same reliability standards.

012819

TAZ Series

CWR09 - MIL-PRF-55365/4 Established Reliability, COTS-

Plus & Space Level

RATING & PART NUMBER REFERENCE

CWR09 P/N

CWR09K^156*@+

CWR09M^224*@+

CWR09M^474*@+

CWR09M^684*@+

CWR09M^105*@+

CWR09M^155*@+

CWR09M^335*@+

CWR09M^475*@+

CWR09M^685*@+

CWR09N^104*@+

CWR09N^154*@+

CWR09N^224*@+

CWR09N^334*@+

CWR09N^474*@+

CWR09N^684*@+

CWR09N^105*@+

CWR09N^155*@+

CWR09N^225*@+

CWR09N^335*@+

CWR09N^475*@+

Parametric Specifications by Rating per MIL-PRF-55365/4

ESR

DCL max

DF Max

Cap

DC Rated

120Hz Voltage

+25ºC

+85ºC

+125ºC

+25ºC

+(85/125)ºC

100kHz

μF

Ohms

AVX MIL & COTS-Plus P/N

AVX SRC9000 P/N

Case

(μA)

(%)

25ºC

+85ºC

+25ºC

TAZ H 156 * 025 C



0 ^ ++ TAZ H 156 * 025 C



9 ^ ++

0.22

TAZ A 224 * 035 C #

0 ^ ++

TAZ A 224 * 035 C L

9 ^ ++

0.47

TAZ B 474 * 035 C #

0 ^ ++

TAZ B 474 * 035 C L

9 ^ ++

0.68

TAZ C 684 * 035 C #

0 ^ ++

TAZ C 684 * 035 C L

9 ^ ++

6.5

TAZ D 105 * 035 C #

0 ^ ++

TAZ D 105 * 035 C L

9 ^ ++

1.5

4.5

TAZ E 155 * 035 C #

0 ^ ++

TAZ E 155 * 035 C L

9 ^ ++

3.3

2.5

TAZ F 335 * 035 C #

0 ^ ++

TAZ F 335 * 035 C L

9 ^ ++

4.7

1.5

TAZ G 475 * 035 C #

0 ^ ++

TAZ G 475 * 035 C L

9 ^ ++

6.8

1.3

TAZ H 685 * 035 C #

0 ^ ++

TAZ H 685 * 035 C L

9 ^ ++

0.1

TAZ A 104 * 050 C #

0 ^ ++

TAZ A 104 * 050 C L

9 ^ ++

0.15

TAZ A 154 * 050 C #

0 ^ ++

TAZ A 154 * 050 C L

9 ^ ++

0.22

TAZ B 224 * 050 C #

0 ^ ++

TAZ B 224 * 050 C L

9 ^ ++

0.33

TAZ B 334 * 050 C #

0 ^ ++

TAZ B 334 * 050 C L

9 ^ ++

0.47

TAZ C 474 * 050 C #

0 ^ ++

TAZ C 474 * 050 C L

9 ^ ++

0.68

TAZ D 684 * 050 C #

0 ^ ++

TAZ D 684 * 050 C L

9 ^ ++

TAZ E 105 * 050 C #

0 ^ ++

TAZ E 105 * 050 C L

9 ^ ++

1.5

TAZ F 155 * 050 C #

0 ^ ++

TAZ F 155 * 050 C L

9 ^ ++

2.2

2.5

TAZ F 225 * 050 C #

0 ^ ++

TAZ F 225 * 050 C L

9 ^ ++

3.3

TAZ G 335 * 050 C #

0 ^ ++

TAZ G 335 * 050 C L

9 ^ ++

4.7

1.5

TAZ H 475 * 050 C #

0 ^ ++

TAZ H 475 * 050 C L

9 ^ ++

Typical RMS Ripple Data by Rating

-55ºC

(%)

Power

Dissipation

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

0.050

0.070

0.075

0.080

0.090

0.100

0.125

0.150

25ºC

Ripple

85ºC

Ripple

125ºC

Ripple

25ºC

Ripple

85ºC

Ripple

125ºC

Ripple

(100kHz) (100kHz) (100kHz) (100kHz) (100kHz) (100kHz)

0.39

0.35

0.15

0.39

0.35

0.15

0.05

0.02

0.95

0.85

0.38

0.08

0.03

0.84

0.75

0.33

0.10

0.09

0.04

0.77

0.70

0.31

0.11

0.10

0.04

0.72

0.65

0.29

0.14

0.13

0.06

0.64

0.57

0.25

0.20

0.18

0.08

0.50

0.45

0.20

0.29

0.26

0.12

0.43

0.39

0.17

0.34

0.31

0.14

0.44

0.40

0.18

0.05

0.04

0.02

1.05

0.94

0.42

0.05

0.02

0.92

0.83

0.37

0.07

0.06

0.03

0.99

0.89

0.40

0.08

0.07

0.03

0.92

0.82

0.37

0.10

0.09

0.04

0.77

0.70

0.31

0.11

0.10

0.04

0.75

0.67

0.30

0.12

0.11

0.05

0.73

0.66

0.29

0.16

0.14

0.06

0.63

0.57

0.25

0.20

0.18

0.08

0.50

0.45

0.20

0.25

0.23

0.10

0.50

0.45

0.20

0.32

0.28

0.13

0.47

0.43

0.19

NOTE: AVX reserves the right to supply a higher voltage rating or tighter tolerance part in the same case size, to the same reliability standards.

012819

TAZ Series

CWR19 - MIL-PRF-55365/11 Established Reliability, COTS-

Plus & Space Level

An extended range of capacitor ratings

beyond CWR09 that is fully qualified to

MIL-PRF-55365/11, this series represents

the most flexible of surface mount form

factors, offering nine case sizes (the original

A through H of CWR09) and adds the new X

case size.

The molded body / compliant termination

construction ensures no TCE mismatch with

any substrate. This construction is compatible

with a wide range of SMT board assembly

processes including convection reflow solder,

conductive epoxy or compression bonding

techniques. The parts also carry full polarity and

capacitance / voltage marking.

The four smaller cases are characterized by their

low profile construction, with the A case being

the world’s smallest molded military tantalum

chip.

The series is qualified to MIL-PRF-55365

Weibull “B”, “C”, “D” and “T” levels, with all

surge options (“A”, “B” & “C”) available.

For Space Level applications, AVX SRC

9000 qualification is recommended (see

ratings table for part number availability).

There are four termination finishes available:

solder plated, fused solder plated, hot solder

dipped and gold plated (these are “H”, “K”,

“C” and “B” termination, respectively, per

MIL-PRF-55365). In addition, the molding

compound has been selected to meet the

requirements of UL94V-0 (Flame Retardancy)

and outgassing requirements of ASTM E-595.

For moisture sensitivity levels please refer to the

High Reliability Tantalum MSL section located in

the back of the High Reliability Tantalum Catalog.

CASE DIMENSIONS:

Case Length (L)

Width (W)

Height (H)

Code ±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)

Term. Width (W1)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

3.30±0.13

(0.130±0.005)

2.67±0.13

(0.105±0.005)

3.68+0.13/-0.51

(0.145+0.005/-0.020)

3.05±0.13

(0.120±0.005)

millimeters (inches)

Term. Length (A)

+0.25/-0.13

(+0.010/-0.005)

0.76 (0.030)

1.27 (0.050)

1.19 (0.047)

S min

0.38 (0.015)

1.65 (0.065)

2.92 (0.115)

1.65 (0.065)

2.92 (0.115)

3.43 (0.135)

3.56 (0.140)

4.06 (0.160)

3.67 (0.144)

Typical

Weight (g)

0.016

0.025

0.035

0.045

0.065

0.125

0.205

0.335

0.420

MARKING

(White marking on black body)

Polarity Stripe (+)

Capacitance Code

Rated Voltage

2.54 (0.100)

3.81 (0.150)

5.08 (0.200)

3.81 (0.150)

5.08 (0.200)

5.59 (0.220)

6.73 (0.265)

7.24 (0.285)

6.93 (0.273)

1.27 (0.050)

2.54 (0.100)

3.43 (0.135)

2.79 (0.110)

3.81 (0.150)

5.41 (0.213)

1.27 (0.050)

1.78 (0.070)

2.79 (0.110)

2.74 (0.108)

CWR19-MIL-PRF 55365/11

CAPACITANCE AND RATED VOLTAGE, V

(VOLTAGE CODE) RANGE (LETTER DENOTES CASE SIZE)

µF

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

Capacitance

Code

334

474

684

105

155

225

335

475

685

106

156

226

336

476

686

107

157

227

337

4V (C)

6V (D)

Rated Voltage DC (V

) at 85ºC

10V (F)

15V (H)

20V (J)

25V (K)

G/H

H/X

35V (M)

B/D

D/E

B/D/E

D/E

F/G

B/C

B/C/D

B/C/D/E

D/E

F/G

G/H

H/X

B/C/D

D/E

E/F

F/G

G/H

E/F

H/X

071119

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

The single-phase energy meter is directly connected to the circuit b

Ultrasonic transmitter circuit diagram

Use a wire to transmit communication signals

MN6011 (video recorder) infrared remote control transmitter circuit

Infrared modulation detection circuit

Computer microphone circuit diagram

Ask for the direction positioning principle of Bluetooth 5.1: Regarding the directional positioning of Bluetooth 5.1, I have looked online and found that there are basically no in-depth articles. Most of them are just superficial introductions. I feel that this ...; freebsder RF/Wirelessly

RAM core board PCB HD picture: https://home.eeworld.com.cn/my/space.php?uid=257400do=albumid=1232A few days ago, some friends asked me for my contact information. My QQ is: 1211406057. It’s a pleasure to have friends coming from af...; 毛承玲 Embedded System

Is this cic correct? I changed it according to the program given in the forum: Is this cic correct? I modified it according to the program given in the forum! //************************************************************ //cic filter 5th order 8 times extraction, delay 1, R=8,M...; 骑士番茄 FPGA/CPLD

WLAN Controller SOS!!!SOS!!!SOS!!! 100 points plus RMB100: Please make a briefing on your understanding of the purpose and principle of WLAN Controller. It is preferred to include the following content: System implementation method Functional test method Brie...; jghru Embedded System

A 36-year-old IT man in Shenzhen died suddenly. Tell me how you rest after working overtime?: [font=微软雅黑][size=3] 36-year-old Zhang Bin holds a bachelor's degree in computer science from Tsinghua University and a master's degree in computer application engineering from Tsinghua University. He ...; eric_wang Talking

Bluetooth module & AT commands: How do AT commands sent from the application layer reach the bottom layer? How does the module receive it? Is it that the AT commands of the application layer are transmitted from the MCU on the mainb...; wzyllgx Embedded System

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
