UL96BN0658K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UL96BN0658K

UL96BN0658K: DescriptionFilm Capacitor, Polypropylene, 1200V, 10% +Tol, 10% -Tol, 6500uF, Chassis Mount; CategoryPassive components capacitor; File Size14MB，6 Pages; ManufacturerElectronic Concepts Inc

Download Datasheet Parametric View All

UL96BN0658K Overview

Film Capacitor, Polypropylene, 1200V, 10% +Tol, 10% -Tol, 6500uF, Chassis Mount

UL96BN0658K Parametric

Parameter Name	Attribute value
Maker	Electronic Concepts Inc
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6500 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Manufacturer's serial number	UL9
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	1200 V
surface mount	NO
Terminal shape	LUG

Preview

Download Datasheet

View All

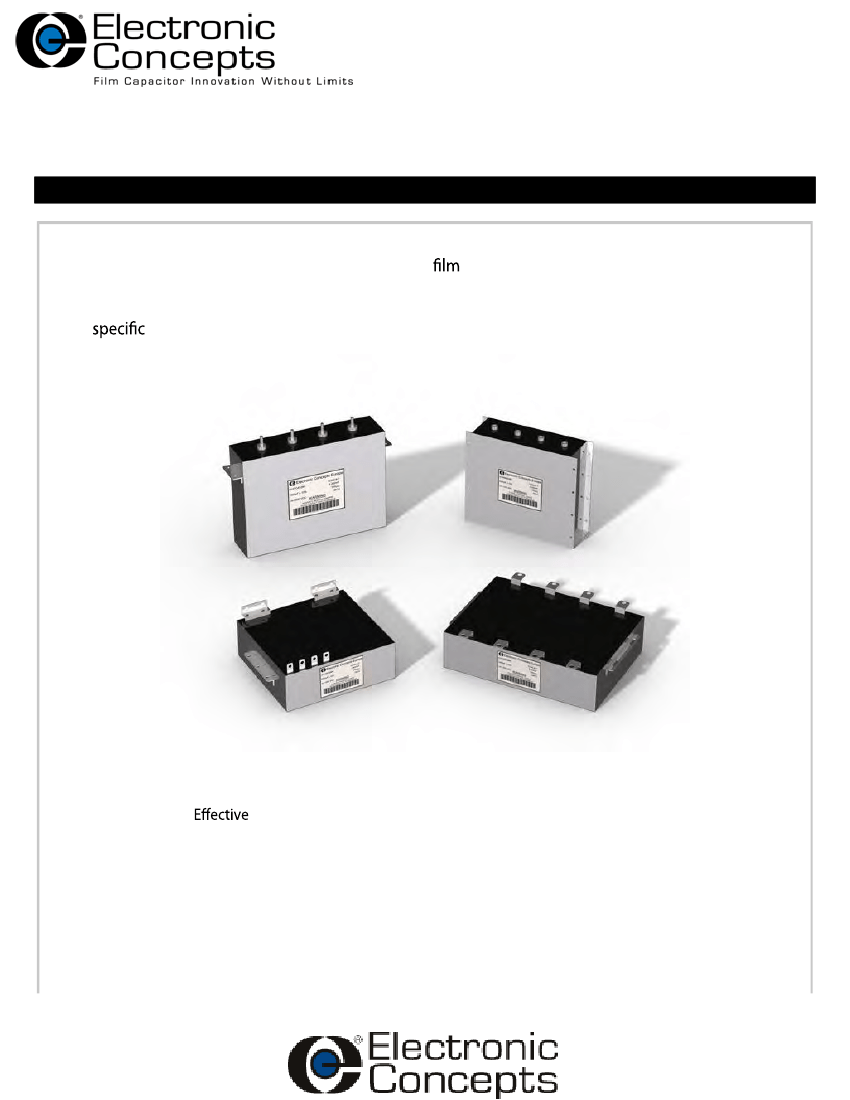

SERIES

Medium Power Film

DC “ Link ” Filter Capacitor

The UL9 is a metallized polypropylene

capacitor designed to handle the

heavy load of power applications, typical in DC Link applications . The packaging

incorporates mounting used in typi cal design, but can be customized to meet

customer needs.

UL9

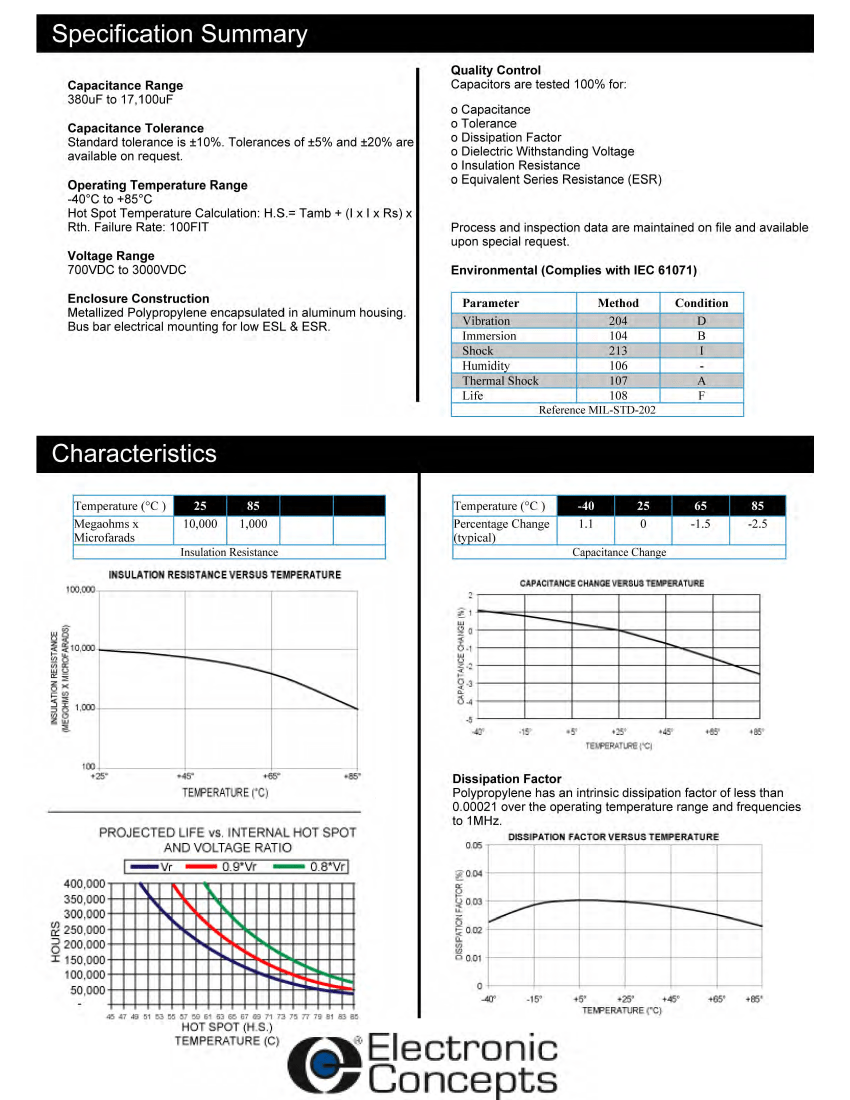

FEATURE S

Long Life > 100,000 Hours

Cost

Low ESL & ESR

High RMS C urrent Capability

High Surge Voltage

Capability, 1.5 X VDC 10s

Surge Current 1.5 x Ipk

Ground Test: 5 kVDC for 10s

Referen ce Mil -Std 202 & IEC

61071

Flexible Construction

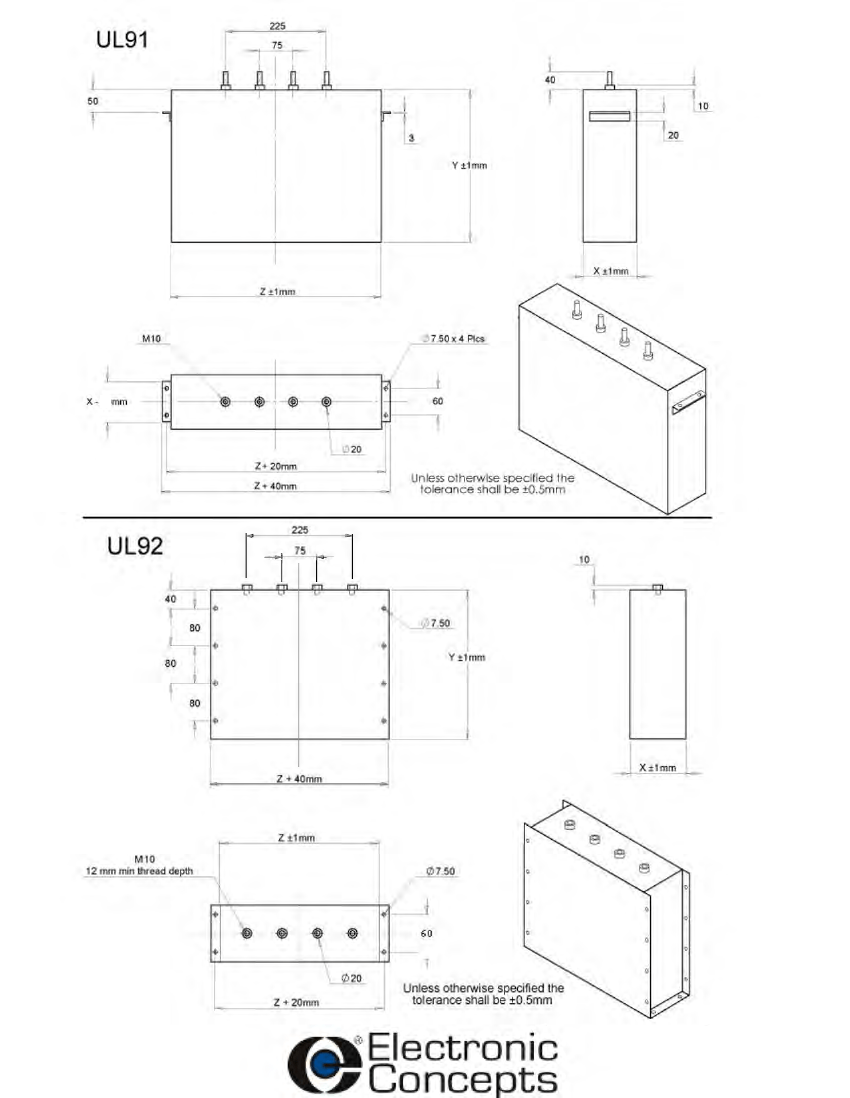

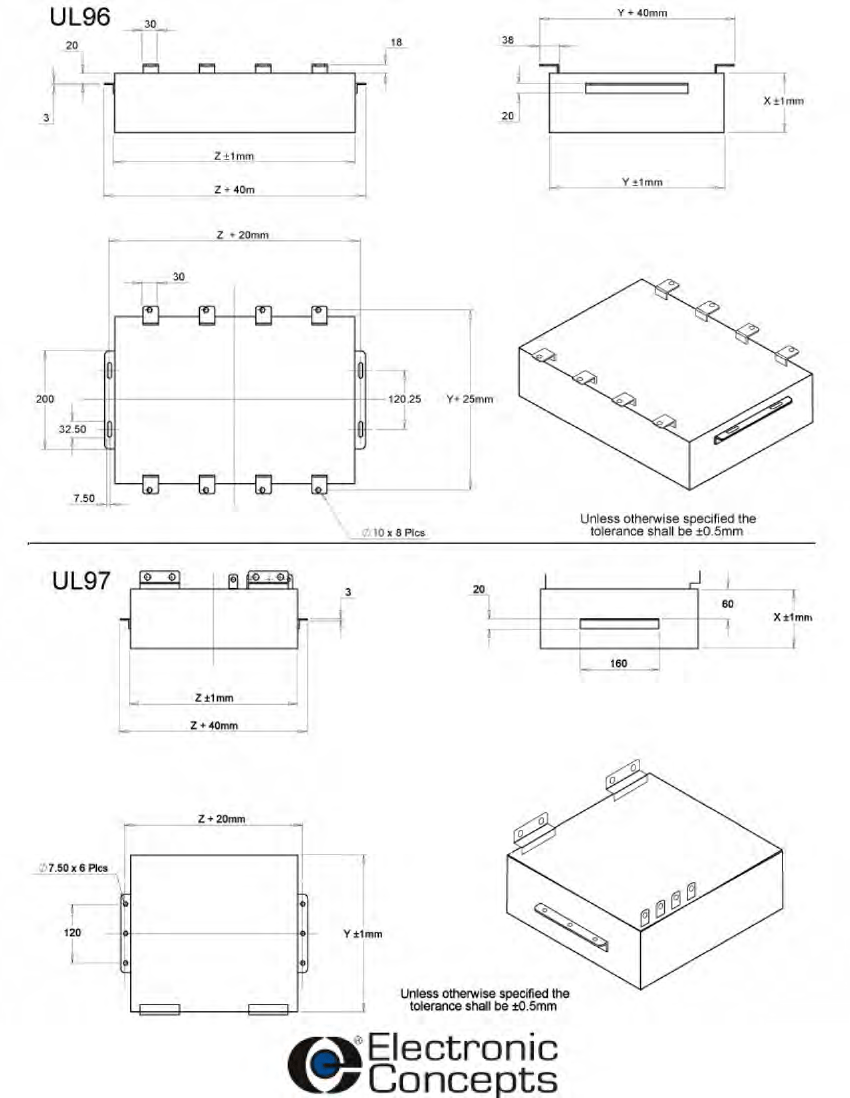

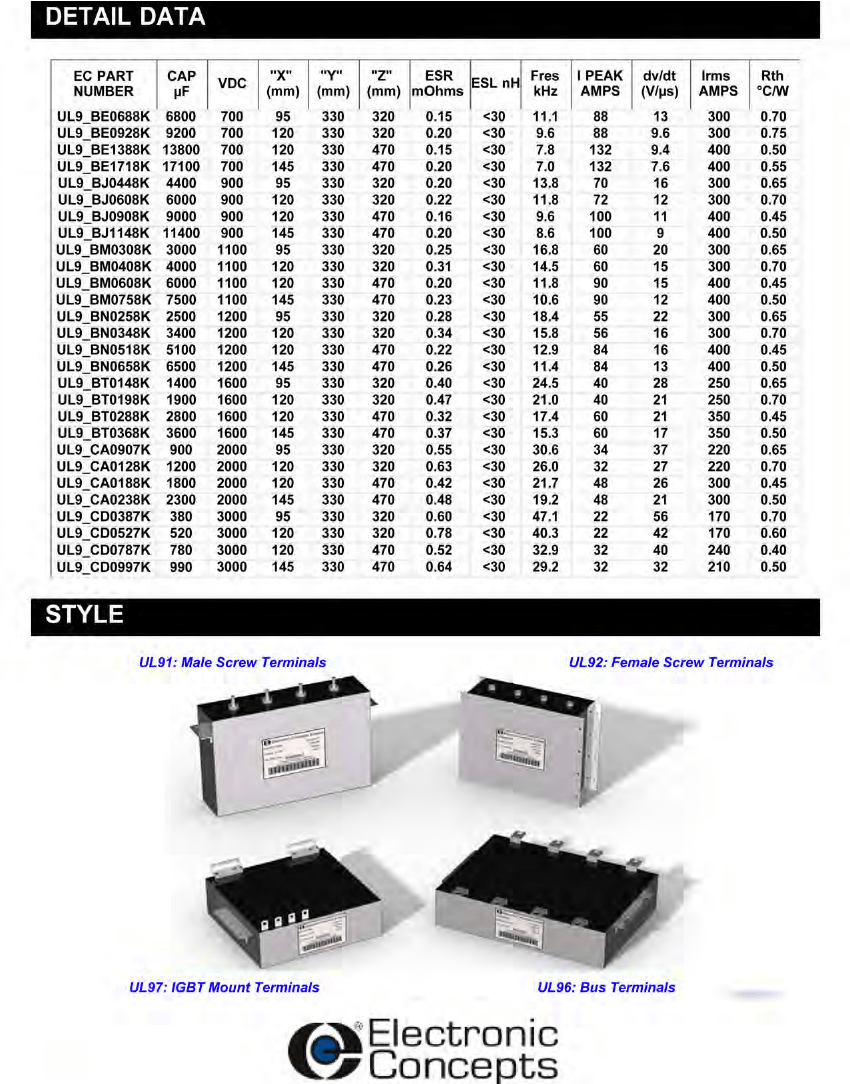

CONFIGURATION

Male Screw Terminal

Female Screw Terminal

Low ESL Bus Mount Terminal

IGBT Direct Mount Terminal

Rev. 3
