500637-3214 datasheet, PDF - EEWORLD Datasheet

500637-3214: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

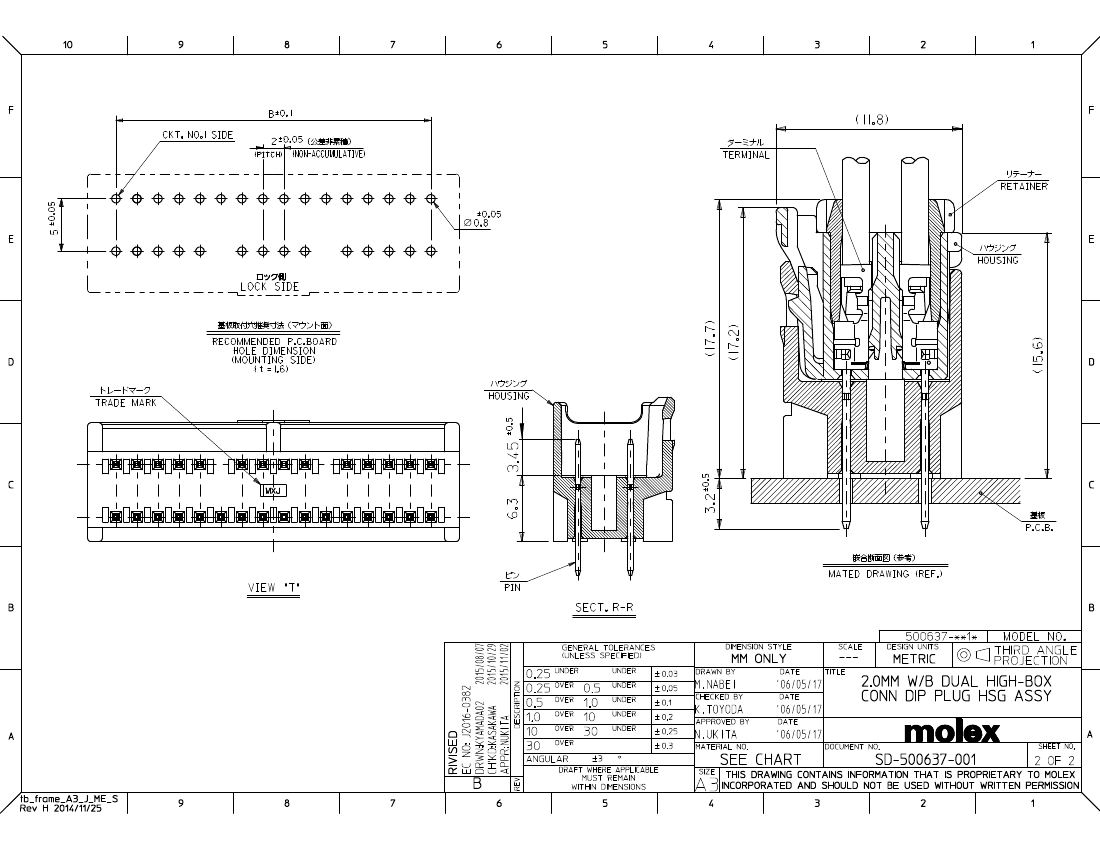

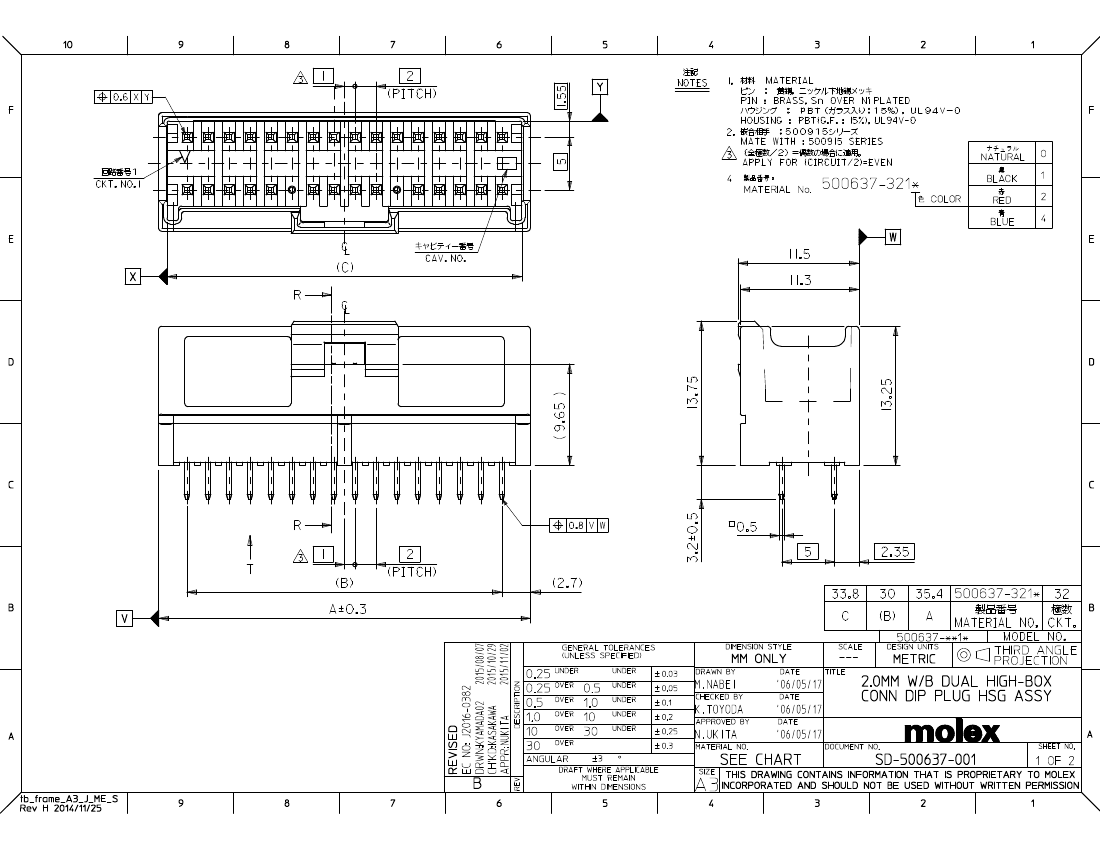

500637-3214 Overview

Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.453 inch
subject depth	0.541 inch
body length	1.394 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	500637
Plug contact pitch	0.079 inch
Match contact row spacing	0.197 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	32

	500637-3214	500637-3211
Description	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.453 inch	0.453 inch
subject depth	0.541 inch	0.541 inch
body length	1.394 inch	1.394 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	500637	500637
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.197 inch	0.197 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.0038 mm	5.0038 mm
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch
Terminal pitch	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER
Total number of contacts	32	32
