CERAMIC CAPACITORS
Multilayer Ceramic Capacitors (High dielectric type) for Automotive / Industrial Applications
UMK107BJ224MAHT
Features
Item Summary
50V, X5R, 0.22μF, ±20%, 0603
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0603/1608
50V
0.22μF
±20%
500 MΩ・μF min.
10%MAX
X5R/-
-55 to +85℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
1.6mm ±0.10
0.8mm ±0.10
0.8mm ±0.10
0.35mm ±0.25
2015.01.19
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK107BJ224MAHT
50V 1608 X5R 0.22uF +/- 20% t=0.9mmMAX
50V 0603 X5R 0.22uF +/- 20% t=0.035inchMAX
100

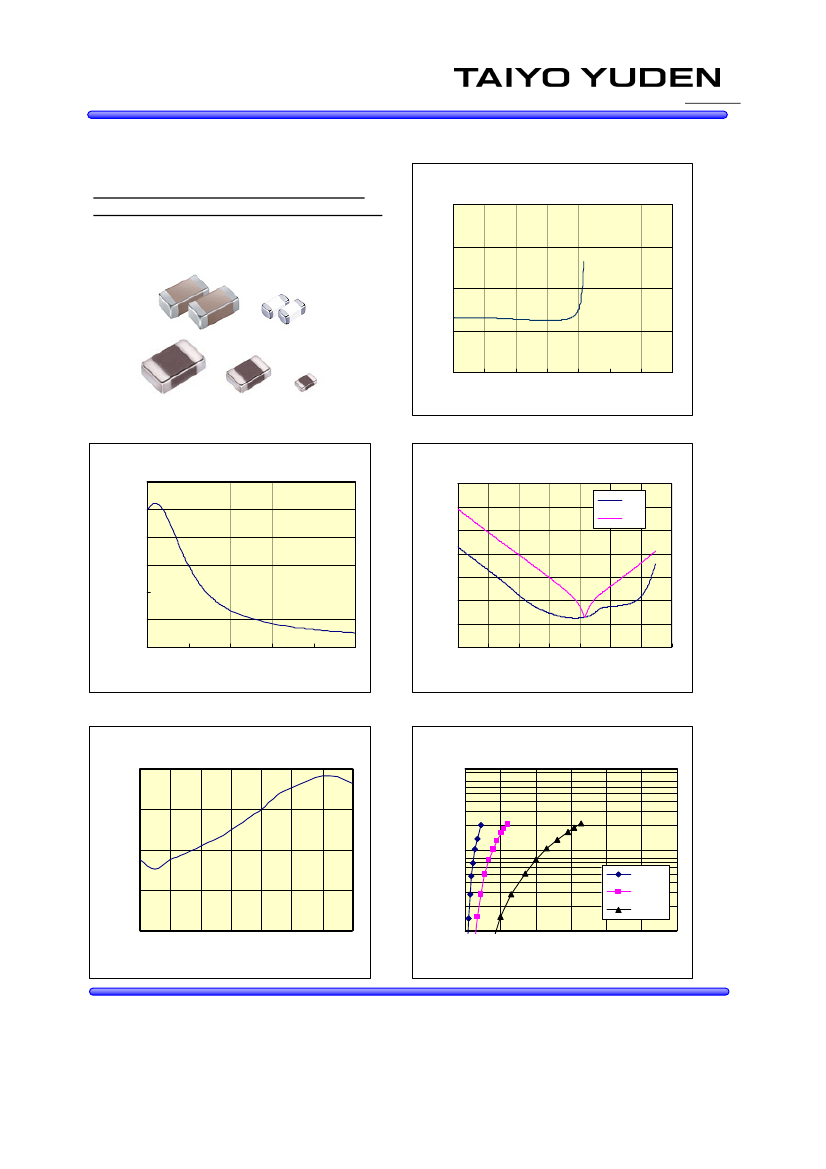

-Electrical Characteristics Data-
12R2A10
RoHS compliance product
UMK107BJ224MAHT
Capacitance Freq.
Capacitance[uF]
10
1
0.1
0.01
0.001 0.01
0.1
1
10
100
Frequency[MHz]
1000 10000
20
0
-20
dC/C[%]
-40
-60
-80
-100
0
10
UMK107BJ224MAHT
DC Bias Char.
10000
1000
100
Z,ESR[OHM]
10
1
0.1
UMK107BJ224MAHT
Impedance,ESR Freq.
ESR
Z
0.01
20
30
40
DC Bias Voltage[V]
50
0.001
0.001 0.01
0.1
1
10 100
Frequency[MHz]
1000 10000
UMK107BJ224MAHT
Capacitance Temp.
10
100
UMK107BJ224MAHT
Ripple Current
-10
-20
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1M Hz
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5
2
2.5
Ripple Current[Arms]
3
