25.325.3253.0: DescriptionModular Terminal Block, 12A, 2.5mm2, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size47KB，1 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/; Environmental Compliance

Download Datasheet Parametric View All

25.325.3253.0 Overview

Modular Terminal Block, 12A, 2.5mm2, 1 Row(s), 1 Deck(s)

25.325.3253.0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SCREW
Manufacturer's serial number	8113B
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
Rated current	12 A
safety certificate	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

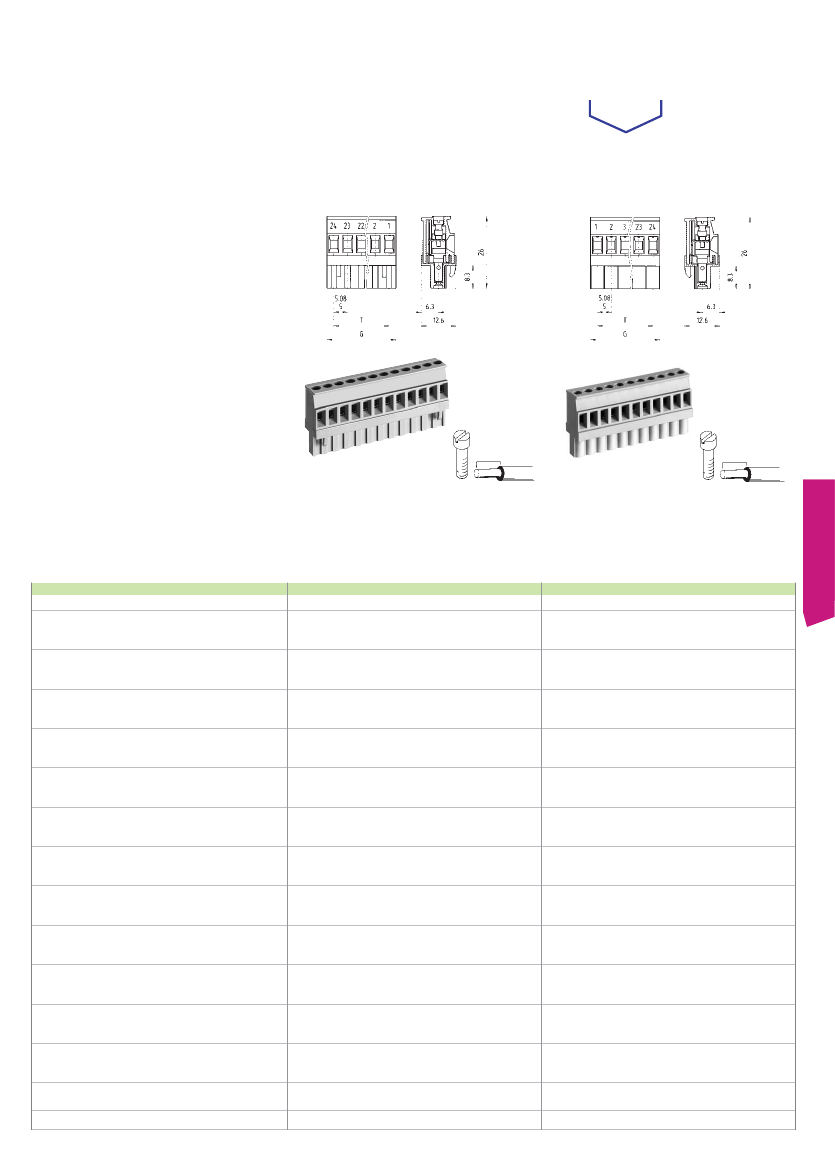

wiecon

PC board connectors, pluggable,

rising cage connection, spacings 5.00/5.08 mm

Rated cross section:

2.5 mm

Rated current:

12 A

Connection range:

0.14 – 2.5 mm

solid / fine standed

250 V/4 kV/3 – Overvoltage category III

400 V/4 kV/2 – Overvoltage category II

1000 V/4 kV/1 – Overvoltage category I

codable

2.5 mm

Type 8113 B/... VR, 8213 B/... VR

vertical right plug, 90° to wire entry

Rated voltages: VDE 0110

UL ratings

CSA ratings

Approvals

Std. pack

Poles

Type 8113 B/... VL, 8213 B/... VL

vertical left plug, 90° to wire entry

No. 22 – 12 AWG

Part no.

No. 22 – 12 AWG

Part no.

300 V

Part no.

15 A

300 V

Part no.

15 A

üiqwd

Spacing: 5.00 mm

100

Type 8113

unmarked

25.325.3253.0

25.325.3353.0

25.325.3453.0

25.325.3553.0

25.325.3653.0

25.325.3753.0

25.325.3853.0

25.325.3953.0

25.325.4053.0

25.325.4153.0

25.325.4253.0

25.325.4353.0

25.325.4453.0

25.325.4553.0

25.325.4653.0

marked

25.325.0253.0

25.325.0353.0

25.325.0453.0

25.325.0553.0

25.325.0653.0

25.325.0753.0

25.325.0853.0

25.325.0953.0

25.325.1053.0

25.325.1153.0

25.325.1253.0

25.325.1353.0

25.325.1453.0

25.325.1553.0

25.325.1653.0

unmarked

25.326.3253.0

25.326.3353.0

25.326.3453.0

25.326.3553.0

25.326.3653.0

25.326.3753.0

25.326.3853.0

25.326.3953.0

25.326.4053.0

25.326.4153.0

25.326.4253.0

25.326.4353.0

25.326.4453.0

25.326.4553.0

25.326.4653.0

marked

25.326.0253.0

25.326.0353.0

25.326.0453.0

25.326.0553.0

25.326.0653.0

25.326.0753.0

25.326.0853.0

25.326.0953.0

25.326.1053.0

25.326.1153.0

25.326.1253.0

25.326.1353.0

25.326.1453.0

25.326.1553.0

25.326.1653.0

17 to 24pole upon request

Spacing: 5.08 mm

100

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

71.12

76.20

81.28

Type 8213

5.08

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

71.12

76.20

unmarked

25.345.3253.0

25.345.3353.0

25.345.3453.0

25.345.3553.0

25.345.3653.0

25.345.3753.0

25.345.3853.0

25.345.3953.0

25.345.4053.0

25.345.4153.0

25.345.4253.0

25.345.4353.0

25.345.4453.0

25.345.4553.0

25.345.4653.0

marked

25.345.0253.0

25.345.0353.0

25.345.0453.0

25.345.0553.0

25.345.0653.0

25.345.0753.0

25.345.0853.0

25.345.0953.0

25.345.1053.0

25.345.1153.0

25.345.1253.0

25.345.1353.0

25.345.1453.0

25.345.1553.0

25.345.1653.0

unmarked

25.346.3253.0

25.346.3353.0

25.346.3453.0

25.346.3553.0

25.346.3653.0

25.346.3753.0

25.346.3853.0

25.346.3953.0

25.346.4053.0

25.346.4153.0

25.346.4253.0

25.346.4353.0

25.346.4453.0

25.346.4553.0

25.346.4653.0

marked

25.346.0253.0

25.346.0353.0

25.346.0453.0

25.346.0553.0

25.346.0653.0

25.346.0753.0

25.346.0853.0

25.346.0953.0

25.346.1053.0

25.346.1153.0

25.346.1253.0

25.346.1353.0

25.346.1453.0

25.346.1553.0

25.346.1653.0

17 to 24pole upon request

Accessories:

Coding piece

(strip)

100

05.561.9153.0

289
