SPS-9130VW-2TG
FEATURES
l
SMPTE 297-2006 Compatible
l
Speed from 50 Mbps to 3Gbps with up to 30 km
Single-mode Fiber
l
Distance up to 30 km for 3G-SDI
l
Support Video Pathological Patterns for SD-SDI,
HD-SDI and 3G-SDI
l
Dual Transmitter with Duplex LC
l
Based on Industry Standard SFP
l
SFF-8472 Digital Diagnostic Function
l
Two Independent TTL Laser Disable Input
l
Single +3.3 V Power Supply
l
RoHS-6 Compliant
l
0 to 70
o
C Operation
l
Hot Pluggable
l
Class 1 Laser International Safety Standard IEC-60825
Compliant
SPS-9130VW-2TG
1
***********************************************************************************************************************************************************************
(RoHS Compliant)
DESCRIPTION
The SPS-9130VW-2TG is a dual channel optical single
mode transmitter module designed to transmit optical serial
digital signals as defined in SMPTE 297-2006. It supports
from 50 Mbps to 3 Gbps and is specifically designed for
transmitted the SMPTE 259M, SMPTE 344M, SMPTE
292M and SMPTE 424M SDI pathological patterns. It is
with the SFP 20-pin connector to allow hot plug capability.
Digital diagnostic functions are available via an I
2
C. It is
with two independent 1310 nm laser transmitters. Each
transmitter can transmit signal from 50 Mbps to 3 Gbps
with up to 30 km of single-mode fiber when using the
SPS-9110VW-2RG as the receiver. A maximum distance of
30 km is achievable with 3Gbps pathological signals.
1310 nm /
3 Gb/s
Medium Power
Dual Optical SM Digital Diagnostic Transmitter
**********************************************************************************************************************************************************************
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
APPLICATIONS
l
SMPTE 297-2006 Compliant Electrical-to-Optical
Interfaces
l
High-density Video Routers
ORDER INFORMATION
P/No.
Type
Bit Rate
(Mb/s)
TX
λ
(nm)
Power
(dBm)
0 to -5
RX
Power
(dBm)
0 to -5
0 to -5
1260/1620 0 to -20
1260/1620 0 to -20
λ
(nm)
Sen.
(dBm)
LC SFP with DMI
LC SFP with DMI
LC SFP with DMI
LC SFP with DMI
λ
(nm)
RX
Sen.
(dBm)
LC SFP with DMI
Package
Package
Temp
(
o
C)
0 to 70
Temp
(
o
C)
0 to 70
0 to 70
0 to 70
0 to 70
RoHS
Compliant
Yes
RoHS
Compliant
Yes
Yes
Yes
Yes
SPS-9130VW-2TG
P/No.
2-TX
Type
50 to 3000 1310 DFB
Bit Rate
(Mb/s)
TX
λ
(nm)
RELATED PRODUCTS
SPS-9110VW-2RG
2-RX
SPS-9130VW-1TG
1-TX
SPS-9110VW-1RG
1-RX
SPS-9130VW-1T1RG 1-TX+1-RX
50 to 3000
50 to 3000 1310 DFB
50 to 3000
50 to 3000 1310 DFB
1260/1620 0 to -20
LINK DISTANCE
Transmitter
SPS-9130VW-2TG or
SPS-9130VW-1TG or
SPS-9130VW-1T1RG
Receiver
SPS-9110VW-2RG or
SPS-9110VW-1RG or
SPS-9130VW-1T1RG
SDI
3G-SDI
HD-SDI
SD-SDI
Bit Rate
2.97Gbps
1.485Gbps
270Mbps
Max. Link Distance (km)
30
30
30
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
1/1/2009 V1.0
Optoway
Absolute Maximum Ratings
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
Power Supply Voltage
ESD Tolerance on all pins
Relative Humidity
Symbol
Tstg
Tc
Vcc
---
Min
-40
-20
0
5
Max
85
85
4
1
95
Units
o
C
o
C
V
KV HBM
% RH
SPS-9130VW-2TG
2
***********************************************************************************************************************************************************************
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Notes
non-condensing
Recommended Operating Conditions
Parameter
Symbol
Power Supply Voltage
Vcc
Operating Case Temperature
Tc
Baud Rate
Power Supply Current
Icc
Min
3.13
0
50
Typ
3.3
200
Max
3.47
70
3000
300
Units / Notes
V
o
C
Mb/s
mA
Transmitter Specifications (0
o
C < Tc < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Relative Intensity Noise
Symbol
Po
λ
∆λ
SMSR
ER
RIN
Min
-5
1260
---
30
5
Typ
-2
1310
Max
0
1360
1
Units
dBm
nm
nm
dB
dB
dB/Hz
ps
ps
ps
ns
mVp-p
V
V
V
V
Notes
1
-20 dB width
7.5
-120
135
270
800
1.5
Optical Rise Time / Fall Time
tr / tf
2, SMPTE 424M
2, SMPTE 292M
2, SMPTE 344M
2, SMPTE 259M
AC coupled input
TX Output Enabled
TX Ouput Disabled
Electrical
Differential Input Voltage
Disable Input Voltage -- Low
Disable Input Voltage -- High
SCL, SDA
1.
2.
V
IH
- V
IL
V
TDIS,L
V
TDIS,H
V
OH
V
OL
200
0
2.0
2.5
0
1200
0.8
Vcc+0.3
Vcc+0.3
0.5
Output power is power coupled into a 9/125
µm
single mode fiber.
20% to 80%, unfiltered.
MODULE DEFINITION
Module Definition
4
PIN 5
SCL
PIN 6
SDA
Interpretation by Host
Serial module definition protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, SCL and SDA appear as no connector
(NC). When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire serial CMOS E
2
PROM
protocol of the ATMEL AT24C01A/02/04 family of components.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009 V1.0
Optoway
CONNECTION DIAGRAM
TX1_DIS
TX1-
TX1+
Vee
Vcc TX1
Vcc TX2
Vee
NC
NC
Vee
Vee
NC
NC
Vee
SCL
SDA
Vee
TX2+
TX2-
TX2_DIS
SPS-9130VW-2TG
3
***********************************************************************************************************************************************************************
PIN
1
2
3
4
5
6
7
8
9
10
Name
Vee
NC
NC
Vee
SCL
SDA
Vee
TX2+
TX2-
TX2_DIS
Function
Signal Ground
No Connection
No Connection
Signal Ground
Serial I
2
C Clock
Serial I
2
C Data
Signal Ground
Positive Transmitter Data In (2)
Negative Transmitter Data In (2)
Transmitter Disable (2)
Notes
AC coupled differential lines with 100 ohm
differential termination inside the module
Internal 4.7 kΩ pull-up. The bias current and
modulation current are turned off if TX2_DIS =
HIGH.
11
12
13
14
15
16
17
18
19
20
Vee
NC
NC
Vee
Vcc TX2
Vcc TX1
Vee
TX1+
TX1-
TX1_DIS
Signal Ground
No Connection
No Connection
Signal Ground
Power Supply (2)
Power Supply (1)
Signal Ground
Positive Transmitter Data In (1)
Negative Transmitter Data In (1)
Transmitter Disable (1)
+3.3V±5%
+3.3V±5%
AC coupled differential lines with 100 ohm
differential termination inside the module
Internal 4.7 kΩ pull-up. The bias current and
modulation current are turned off if TX1_DIS =
HIGH.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009 V1.0
Optoway

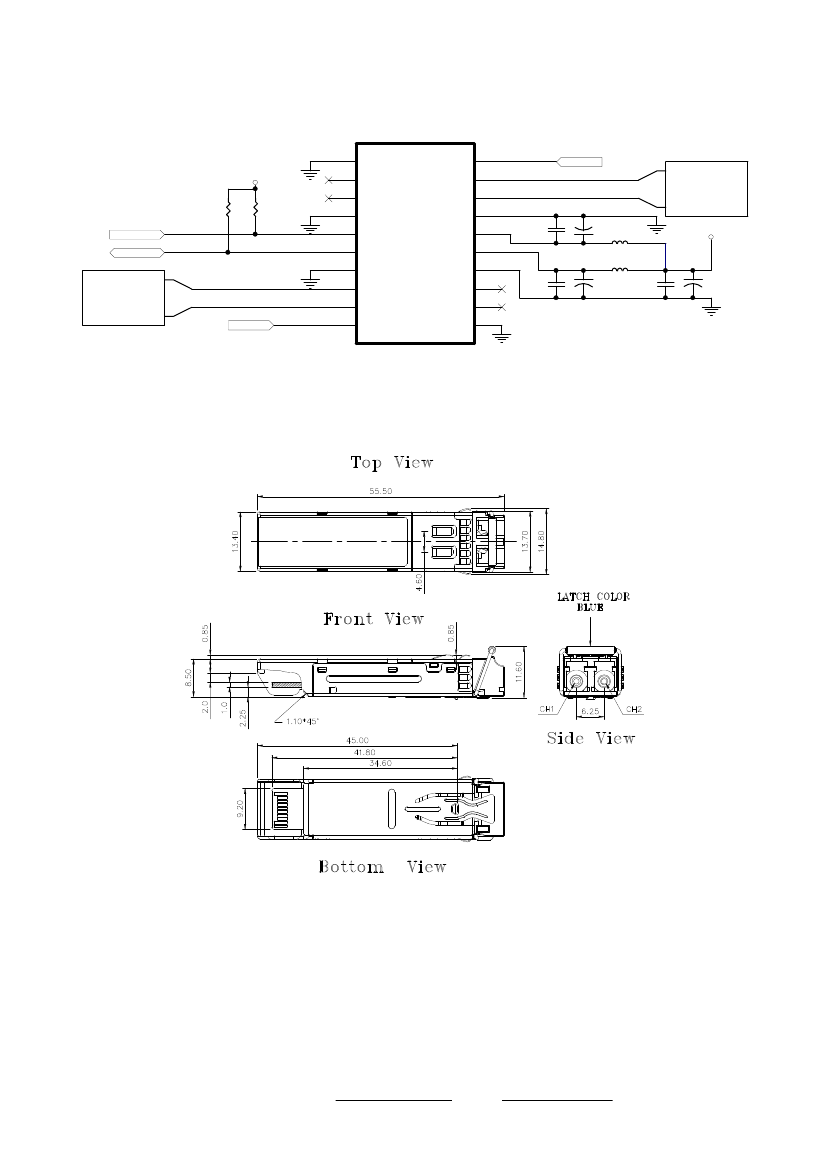

RECOMMENDED CIRCUIT SCHEMATIC
1
VCC 3.3V
2
3
10K
I2C CLK
I2C DA
TA
TD +
Re-Clocker
TD -
TX2_DIS
100Ω Differential
10K
4
5
6
7
8
9
10
Vee
NC
NC
Vee
SCL
SDA
Vee
TX2 +
TX2 -
TX2_DIS
TX1_DIS
TX1 -
TX1 +
Vee
Vcc_TX1
Vcc_TX2
Vee
NC
NC
Vee
20
19
18
17
16
15
14
13
12
11
100nF
10uF
100nF
10uF
TX1_DIS
SPS-9130VW-2TG
4
***********************************************************************************************************************************************************************
TD -
100Ω Differential
TD +
1uH
1uH
100nF
10uF
VCC 3.3V
Re-Clocker
1. Consult the Chipset manufacturer’s applications information for biasing required for TX outputs. Some chipset outputs
are internally biased and may not need external bias resistor.
PACKAGE DIAGRAM (
Units in mm)
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009 V1.0
Optoway
REVISION HISTORY
Version
1.0
Initial datasheet
SPS-9130VW-2TG
5
***********************************************************************************************************************************************************************
Subject
Release Date
2009/1/1
***********************************************************************************************************************************************************************
