Spec Sheet
CERAMIC CAPACITORS
Multilayer Ceramic Capacitors (High dielectric type) for Automotive / Industrial Applications
TMK212BBJ475KGHT
Features
Item Summary
25V, X5R, 4.7μF, ±10%, 0805
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0805/2012
25V
4.7μF
±10%
100 MΩ・μF min.
10%MAX
X5R/-
-55 to +85℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
2.0mm +0.20:-0.00
1.25mm +0.20:-0.00
1.25mm +0.20:-0.00
0.5mm ±0.25
2015.01.21
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○TMK212BBJ475KGHT
25V 2012 X5R 4.7uF +/- 10% t=1.45mmMAX
25V 0805 X5R 4.7uF +/- 10% t=0.057inchMAX
1000

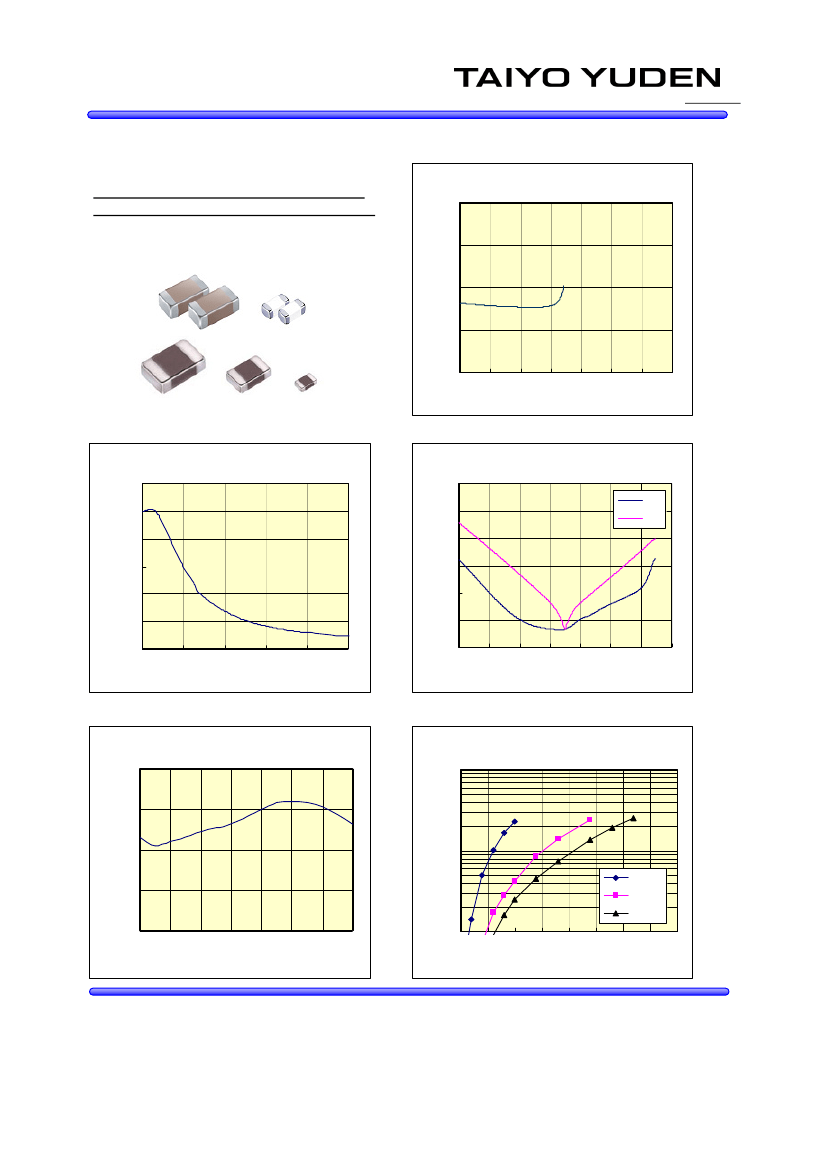

-Electrical Characteristics Data-
13R2A05
RoHS compliance product
TMK212BBJ475KGHT
Capacitance Freq.
Capacitance[uF]
100
10
1
0.1
0.001 0.01
0.1
1
10 100
Frequency[MHz]
1000 10000
20
0
TMK212BBJ475KGHT
DC Bias Char.
1000
100
Z,ESR[OHM]
10
1
0.1
TMK212BBJ475KGHT
Impedance,ESR Freq.
ESR
Z
-20
dC/C[%]
-40
-60
-80
-100
0
5
10
15
20
DC Bias Voltage[V]
25
0.01
0.001
0.001 0.01
0.1
1
10 100
Frequency[MHz]
1000 10000
TMK212BBJ475KGHT
Capacitance Temp.
10
100
TMK212BBJ475KGHT
Ripple Current
-10
-20
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1M Hz
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2
2.5 3
Ripple Current[Arms]
3.5
4
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
