Spec Sheet
CERAMIC CAPACITORS
Multilayer Ceramic Capacitors (High dielectric type) for Automotive / Industrial Applications
UMK107B7682MAHT
Features
Item Summary
50V, X7R, 0.0068μF, ±20%, 0603
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0603/1608
50V
0.0068μF
±20%
10,000 MΩ min.
3.5%MAX
X7R/-
-55 to +125℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
1.6mm ±0.10
0.8mm ±0.10
0.8mm ±0.10
0.35mm ±0.25
2015.01.19
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK107B7682MAHT
50V 1608 X7R 6800pF +/-20% t=0.9mmMAX
50V 0603 X7R 6800pF +/-20% t=0.035inchMAX

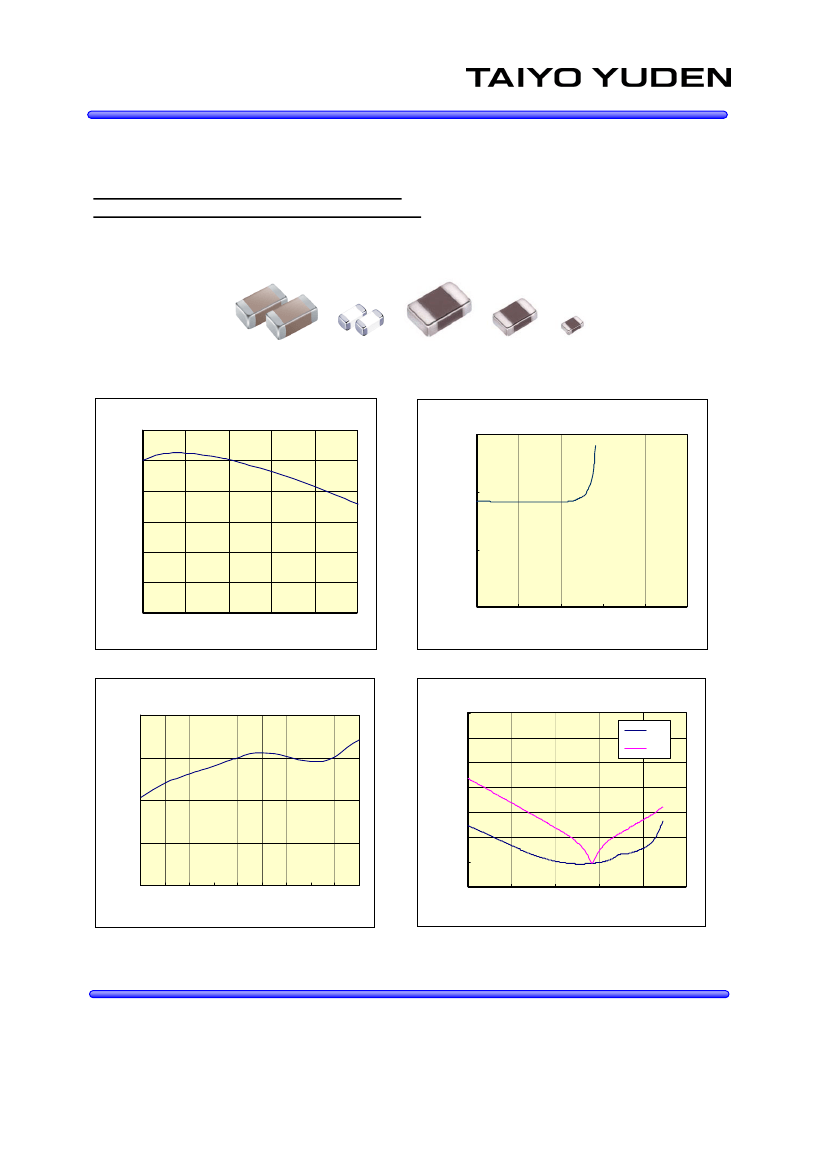

-Electrical Characteristics Data-
12QA10
RoHS compliance product
10
0
-10
UMK107B7682MAHT
DC Bias Char.
100000
UMK107B7682MAHT
Capacitance Freq.
Capacitance[pF] .
10000
dC/C[%]
-20
-30
-40
-50
0
10
20
30
40
50
1000
100
0.1
1
10
100
1000
10000
DC Bias Voltage[V]
Frequency[MHz]
UMK107B7682MAHT
Capacitance Temp.
10
100000
10000
UMK107B7682MAHT
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM] .
-55
-35
-15
5
25
45
65
85
105 125
1000
100
10
1
0.1
dC/C[%]
-10
-20
-30
0.01
0.1
1
10
100
1000
10000
Temperature[degreeC]
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
