D2 - SERIES
1" DIAMETER 0.55 AMP @ 28 VDC
SPECIFICATIONS AND ORDERING INFORMATION
The D2 Series switch is used where space is at a premium. This dual-ball
side thrust index offers exceptional torque control and is available in 30°, 36°,
45°, and 60° angles. Standard designs utilize diallyl phthalate or ceramic
insulation, solder lug terminals, and 30° adjustable stop indexing.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
0.55 amp @ 28 VDC; 0.25 amp @ 115 VAC.
Current Carrying Capacity:
7 amps.
Dielectric Strength:
750 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 5 milliohms.
Insulation Resistance:
Diallyl in excess of 900,000 megohms.
Glass in excess of 750,000 megohms.
Ceramic in excess of 1,000,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Clips and Rotors:
Brass with silver plate as standard.
Insulation:
Diallyl phthalate, glass, or ceramic.
Index:
Dual-ball, side thrust design.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30° standard, 36°, 45°, and 60° available.
Index Stops:
Adjustable standard, fixed or continuous.
Stop Strength:
10 in. lbs. minimum.
D
STANDARD PART NUMBER
DIALLYL PHTHALATE INSULATION - ADJUSTABLE STOPS
SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - SET @ 2 POS.
CERAMIC INSULATION - ADJUSTABLE STOPS
SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - SET @ 2 POS. - 1/8 DIA. SHAFT
ACTIVE
POLES/
POLES POSITIONS SECTION
01
02
02
03
03
04
06
06
02-12
02-06
02-12
02-05
02-12
02-06
02-05
02-06
1
2
1
3
1
2
3
2
NO. OF SHORTING
NON-
SECTIONS
SHORTING
1
1
2
1
3
2
2
3
D2D0112S
D2D0206S
D2D0212S
D2D0305S
D2D0312S
D2D0406S
D2D0605S
D2D0606S
D2D0112N
D2D0206N
D2D0212N
D2D0305N
D2D0312N
D2D0406N
D2D0605N
D2D0606N
FIG.
*
ACTIVE
POLES/
POLES POSITIONS SECTION
01
02
02
03
03
04
06
06
02-11
02-05
02-11
02-03
02-11
02-05
02-05
02-03
1
2
1
3
1
2
2
3
NO. OF SHORTING
NON-
SECTIONS
SHORTING
1
1
2
1
3
2
3
2
D2C0111S
D2C0205S
D2C0211S
D2C0303S
D2C0311S
D2C0405S
D2C0605S
D2C0603S
D2C0111N
D2C0205N
D2C0211N
D2C0303N
D2C0311N
D2C0405N
D2C0605N
D2C0603N
FIG.
DE
DL
DE
DO
DE
DL
DO
DL
*
DB
DG
DB
DN
DB
DG
DG
DN
* FIGURES ARE SHOWN ON PAGES 55 AND 56.

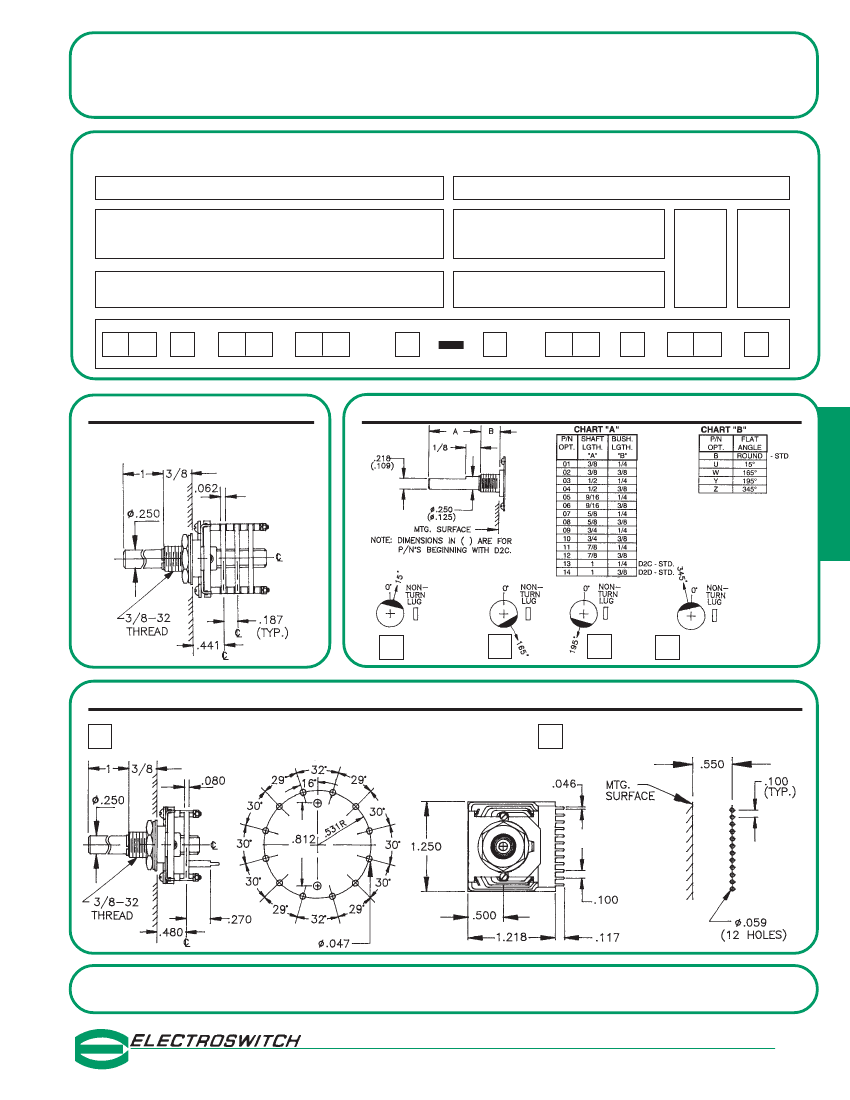

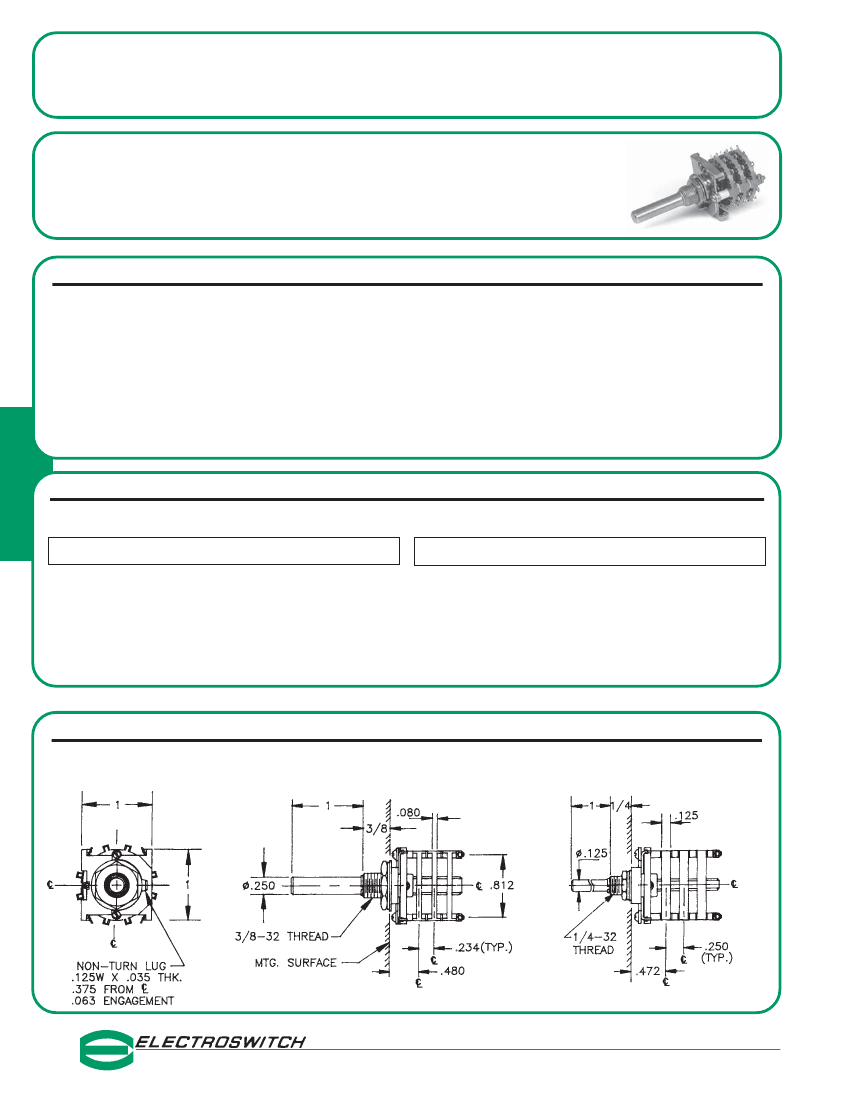

DIMENSIONS
STANDARD CONSTRUCTION
D2D
DIALLYL PHTHALATE INSULATION
D2C
CERAMIC INSULATION
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
20
ADDITIONAL OPTIONS AND ORDERING INFORMATION
D2 - SERIES
INDEX
ANGLE
30°
36°
45°
60°
30°
60°
STOP
TYPE
A - ADJ.
F - FIXED
C - CONT.
SEE
CHART
“A”
SEE
CHART
“B”
SHAFT/
BUSHING
SHAFT
FLAT
How to Order Additional Options:
2 DIGIT
SERIES
D2
INSULATION
TYPE
D - DIALLYL
(30°,45°,60°)
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
12 - MAX @ 30°
10 - MAX @ 36°
08 - MAX @ 45°
06 - MAX @ 60°
11 - MAX @ 30°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
TERMINAL
TYPE
L - SOLDER LUG
V - VERT. P.C. 30°
R - (REAR P.C.
NOT CERAMIC)
L - SOLDER LUG
G - GLASS
(30°,36°,45°,60°)
D2
C - CERAMIC
(30°,60°)
01 - MIN.
1/8 SHAFT
S - SHORTING
N - NON
SHORTING
A - ADJ.
F - FIXED
C - CONT.
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
D
2
(SPECIFY)
(SPECIFY)
(SPECIFY)
INSULATION OPTION
D2G
GLASS EPOXY INSULATION
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
D
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 3 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
U
W
Y
Z
PRINTED CIRCUIT BOARD TERMINAL OPTIONS
R
REAR P.C. DIALLYL ONLY
V
VERTICALP.C.
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
