Multilayer Ceramic Capacitors (High dielectric type) for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
LMK105BJ105MVHF
Features
Item Summary
1uF±20%, 10V,
X5R, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
1 uF ± 20 %
0402/1005
10 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

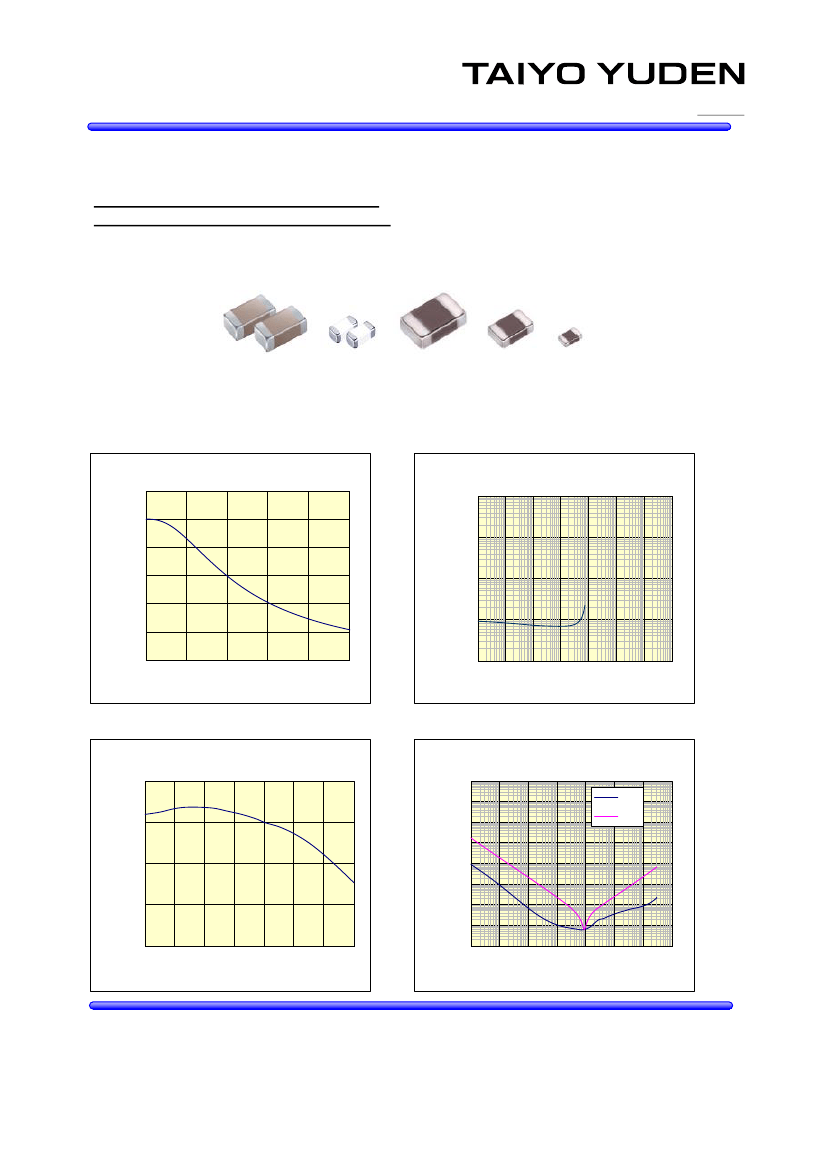

Multi Layer Ceramic Capacitor
○LMK105BJ105MVHF
10V 1005 X5R 1uF +/- 20% t=0.55mmMAX
10V 0402 X5R 1uF +/- 20% t=0.022inchMAX
-Electrical Characteristics Data-
18SA06
RoHS compliance product
20
0
LMK105BJ105M VHF
DC Bias Char.
1000
LMK105BJ105M VHF
Capacitance Freq.
-40
-60
-80
-100
0
2
4
6
8
DC Bias Voltage[V]
10
Capacitance[uF]
LMK105BJ105M VHF
Capacitance Temp.
-20
100
dC/C[%]
10
1
0.1
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
LMK105BJ105M VHF
Impedance,ESR Freq.
10
100000
10000
ESR
Z
0
1000
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
100
10
1
0.1
0.01
-20
-30
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
