FPC Series
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:

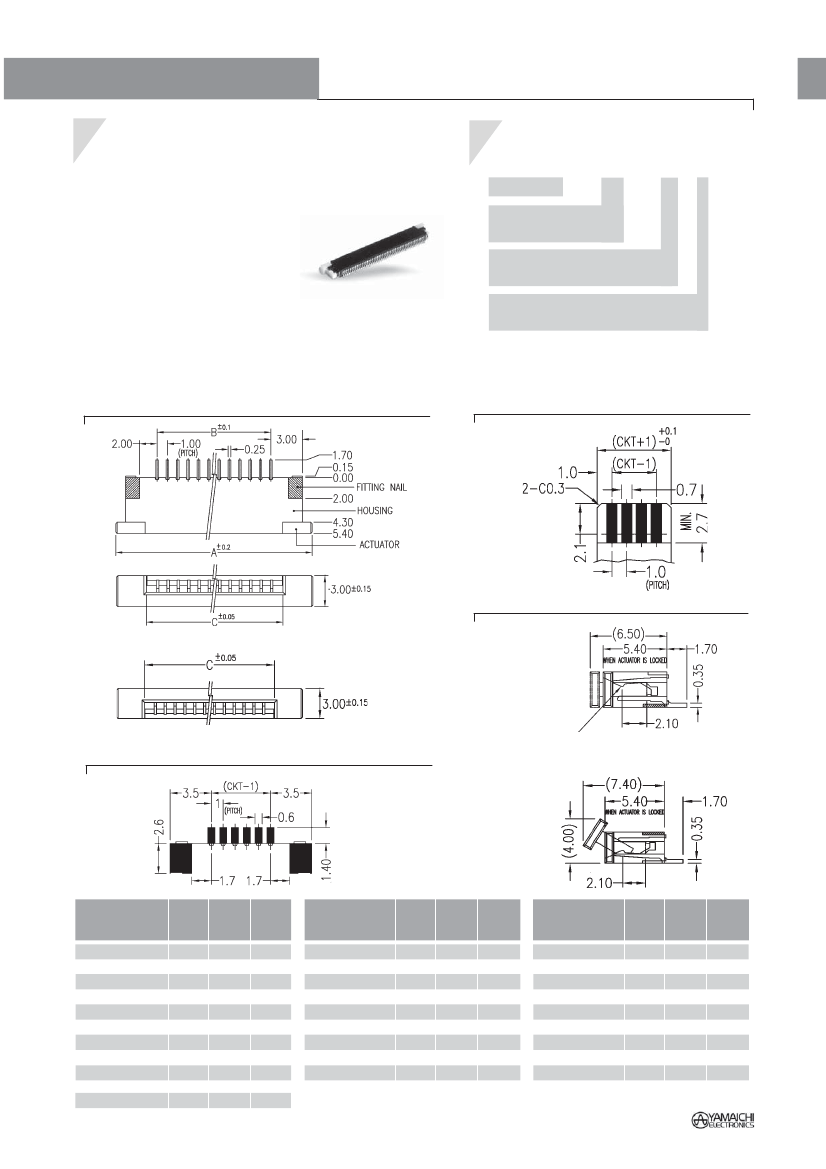

ZIF for FFC / FPC Connector 1.00mm Pitch 90° SMT
Part Number
(Details)
100MΩ minimum
20mΩ maximum
500V AC rms for 1 minute
125V DC
1A
-25°C to +85°C
FPC-96212-
Series No.
No. of Contacts:
4 to 34 pins
**
*1 - *
Materials and Finish
Housing: PPS (UL94V-0)
Actuator: PPS (UL94V-0)
Contacts: Phosphor Bronze / Tin Plated
1 = Top Contact
2 = Bottom Contact
No Mark: Tube Packaging
T&R: Tape and Reel 1,500pcs/reel
Features
➭
90° SMT Zero Insertion Force connector for1.00mm
pitch
Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) appliances
➭
Top or bottom contact type
Outline Dimensions for Top Contact (reference only)
Recommended FPC Cable
(thickness 0.3±0.03mm)
Contacts (side view)
Top Contact
Bottom Contact
Contact point
Recommended PCB Layouts
Bottom Contact
Part
Number
FPC-96212-04*1
FPC-96212-05*1
FPC-96212-06*1
FPC-96212-07*1
FPC-96212-08*1
FPC-96212-0911
FPC-96212-10*1
FPC-96212-11*1
FPC-96212-12*1
FPC-96212-13*1
FPC-96212-14*1
Dim. Dim. Dim.
A
B
C
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
5.15
6.15
7.15
8.15
9.15
10.15
11.15
12.15
13.15
14.15
15.15
Part
Number
FPC-96212-15*1
FPC-96212-16*1
FPC-96212-17*1
FPC-96212-18*1
FPC-96212-19*1
FPC-96212-20*1
FPC-96212-21*1
FPC-96212-22*1
FPC-96212-23*1
FPC-96212-24*1
Dim. Dim. Dim.
A
B
C
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
16.15
17.15
18.15
19.15
20.15
21.15
22.15
23.15
24.15
25.15
Part
Number
FPC-96212-25*1
FPC-96212-26*1
FPC-96212-27*1
FPC-96212-28*1
FPC-96212-29*1
FPC-96212-30*1
FPC-96212-31*1
FPC-96212-32*1
FPC-96212-33*1
FPC-96212-34*1
Dim. Dim. Dim.
A
B
C
32.00
33.00
34.00
35.00
36 .00
37.00
38.00
39.00
40.00
41.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.0
26.15
27.15
28.15
29.15
30.15
31.15
32.15
33.15
34.15
35.15
B- 72
Sockets and Connectors
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Trading Division
FPC Series
Specifications
nsulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:

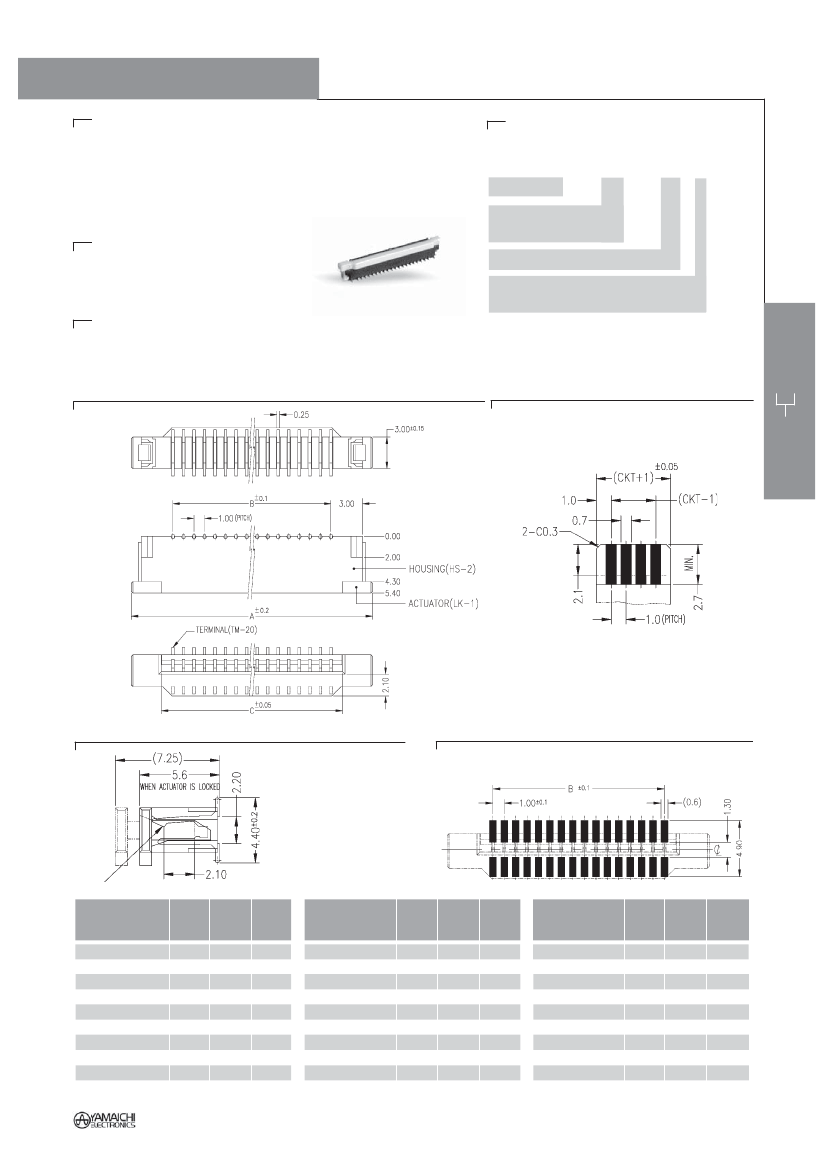

ZIF for FFC / FPC Connector 1.00mm Pitch 180° SMT
Part Number
(Details)
100MΩ minimum
20mΩ maximum
500V AC rms for 1 minute
125V DC
1A
-25°C to +85°C
FPC-96212-
Series No.
No. of Contacts:
4 to 32 pins
**
01 - *
Materials and Finish
Housing: PPS (UL94V-0)
Actuator: PPS (UL94V-0)
Contacts: Phosphor Bronze / Tin Plated
Vertical Type (180° SMT)
No Mark: Tube Packaging
T&R: Tape and Reel 1,000pcs/reel
Features
➭
180° SMT Zero Insertion Force connector for 1.00mm
Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) appliances
Outline Dimensions for Top Contact
Recommended FPC Cable
Contact (side view)
Recommended PCB Layouts
Contact point
Part
Number
FPC-96212-04-01
FPC-96212-05-01
FPC-96212-06-01
FPC-96212-07-01
FPC-96212-08-01
FPC-96212-09-01
FPC-96212-10-10
FPC-96212-11-01
FPC-96212-12-01
FPC-96212-13-01
Dim. Dim. Dim.
A
B
C
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
5.15
6.15
7.15
8.15
9.15
10.15
11.15
12.15
13.15
14.15
Part
Number
FPC-96212-14-01
FPC-96212-15-01
FPC-96212-16-01
FPC-96212-17-01
FPC-96212-18-01
FPC-96212-19-01
FPC-96212-20-01
FPC-96212-21-01
FPC-96212-22-01
FPC-96212-23-01
Dim. Dim. Dim.
A
B
C
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
15.15
16.15
17.15
18.15
19.15
20.15
21.15
22.15
23.15
24.15
Part
Number
FPC-96212-24-01
FPC-96212-25-01
FPC-96212-26-01
FPC-96212-27-01
FPC-96212-28-01
FPC-96212-29-01
FPC-96212-30-01
FPC-96212-31-01
FPC-96212-32-01
Dim. Dim. Dim.
A
B
C
31.00
32.00
33.00
34.00
35.00
36 .00
37.00
38.00
39.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
25.15
26.15
27.15
28.15
29.15
30.15
31.15
32.15
33.15
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Trading Division
Sockets and Connectors
B- 69
