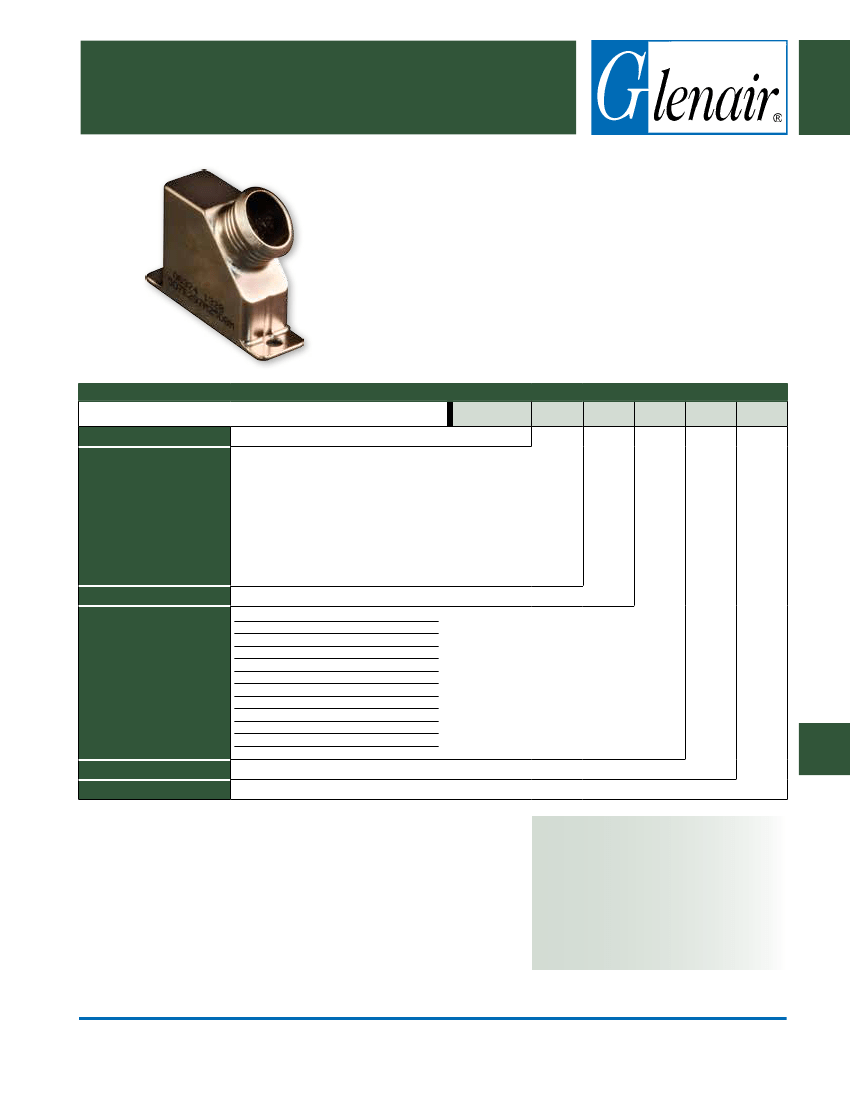

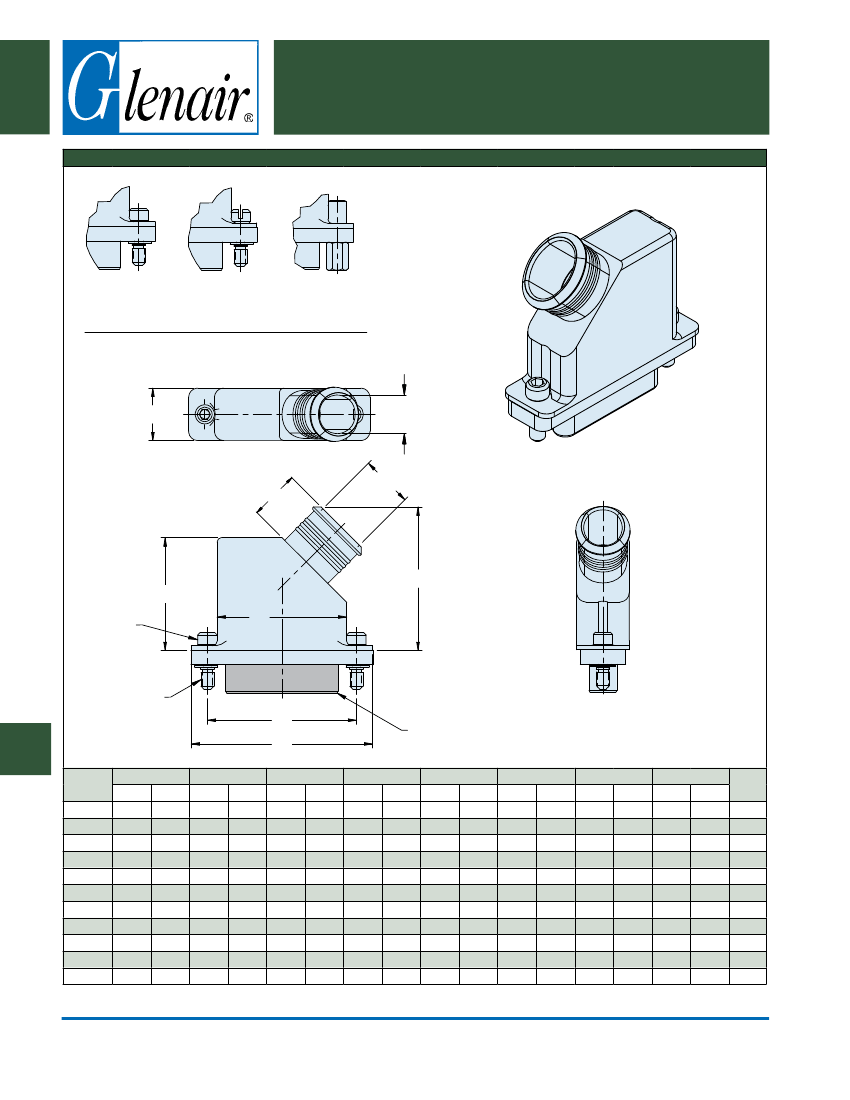

Side Entry EMI/RFI Lightweight Metal Backshell
MIL-DTL-83513
EMI/RFI Lightweigth Metal Shell Connectors
provide rugged
aluminum housing with stainless steel hardware, available in
standard nickel plating, or choose optional finishes. Terminate
cable shields with BandMaster™ ATS micro bands. This backshell
features floating male screwlocks which allow full mating of the
connector before the screws are fastened.
A
B
C
D
How To Order EMI/RFI Lightweight Backshells
Sample Part Number
Series
E
25
D
h
l
507E297
M
Finish Code
Shell Size
507E297
- End Entry Style (45)
A
- Cadmium Plate/Bright Dip
B
- Cadmium Plate/Olive Drab
B1
- Cadmium Plate/Olive Drab Type II Class 1
J
- Gold Iridite Over Cadmium Plate Over Nickel
M
- Electroless Nickel
N
- Cadmium Plate/Olive Drab Over Nickel
NF
- Cad/O.D. Over Electroless Nickel (1000 Hour Salt Spray)
T
- Cadmium Plate/Bright Dip Over Nickel
Z2
- Gold Plate
09, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100
(See Table I)
Max Entry Code
A
B
C
D
E
F
G
H
J
K
L
HØ
.188
.230
.265
.335
.360
.410
.520
.585
.665
.720
.760
Available Sizes
09 Thru 100
15 Thru 100
21 Thru 100
25 Thru 100
31 Thru 100
37 Thru 100
51 Thru 100
51-2 Thru 100
67 Thru 100
67 and 100
67
H
-
Socket Head Jackscrew
M
-
Uncoiled .125" Wide Band
F
-
Female Jackpost
L
-
Coiled .125" Wide Band
F
G
H
J
K
L
M
N
P
Q
INDEX
Max Entry Code
Hardware Option
EMI Band Strap Option
B
-
Fillister Head Jackscrew
Omit
(Blank) -
No Band
Notes
1. Assembly Identified With Manufacturer's
2. Name and P/N, Space Permitting.
Material/Finish
• Backshell - al alloy / see Table 2
• Hardware - cres / passivated.
• See 507-296 for straight & 90°
configurations.
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
M-17
E-Mail: sales@glenair.com
Micro-D Backshells
