LB25WKW01-00-JC datasheet, PDF

LB25WKW01-00-JC: DescriptionPushbutton Switch, DPDT, On-(on), Momentary, Quick Connect Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size897KB，6 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

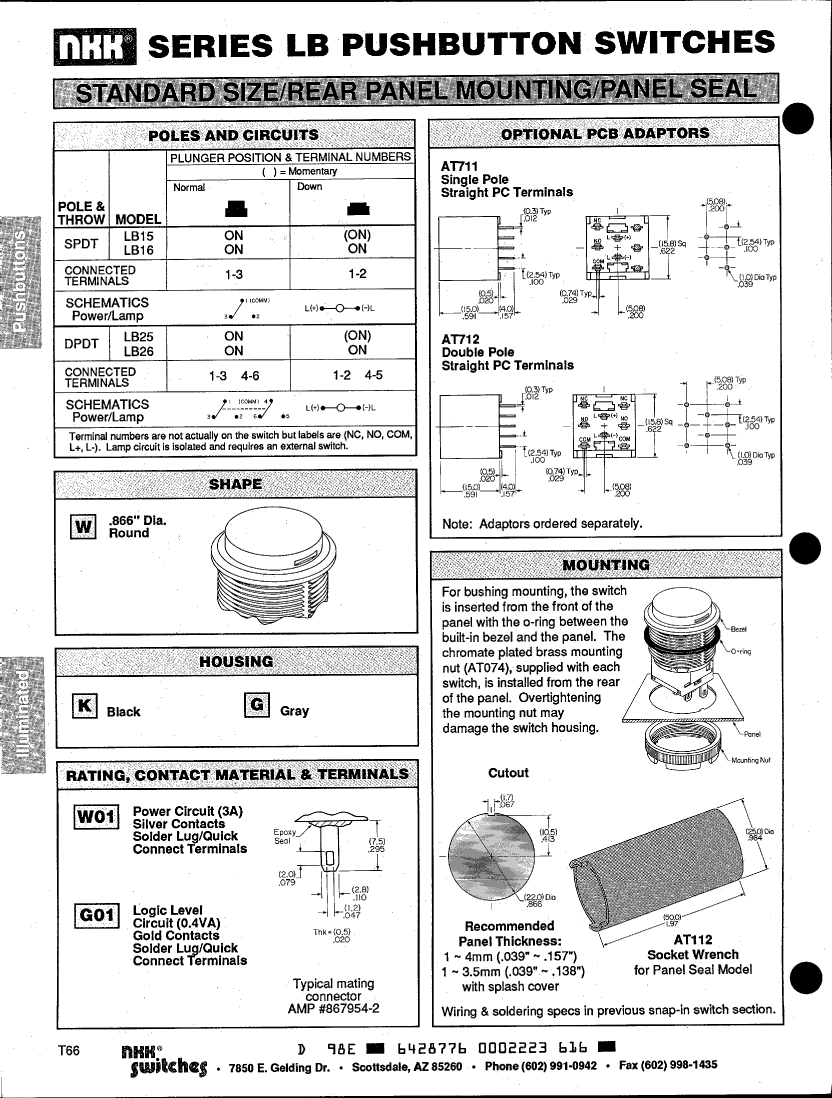

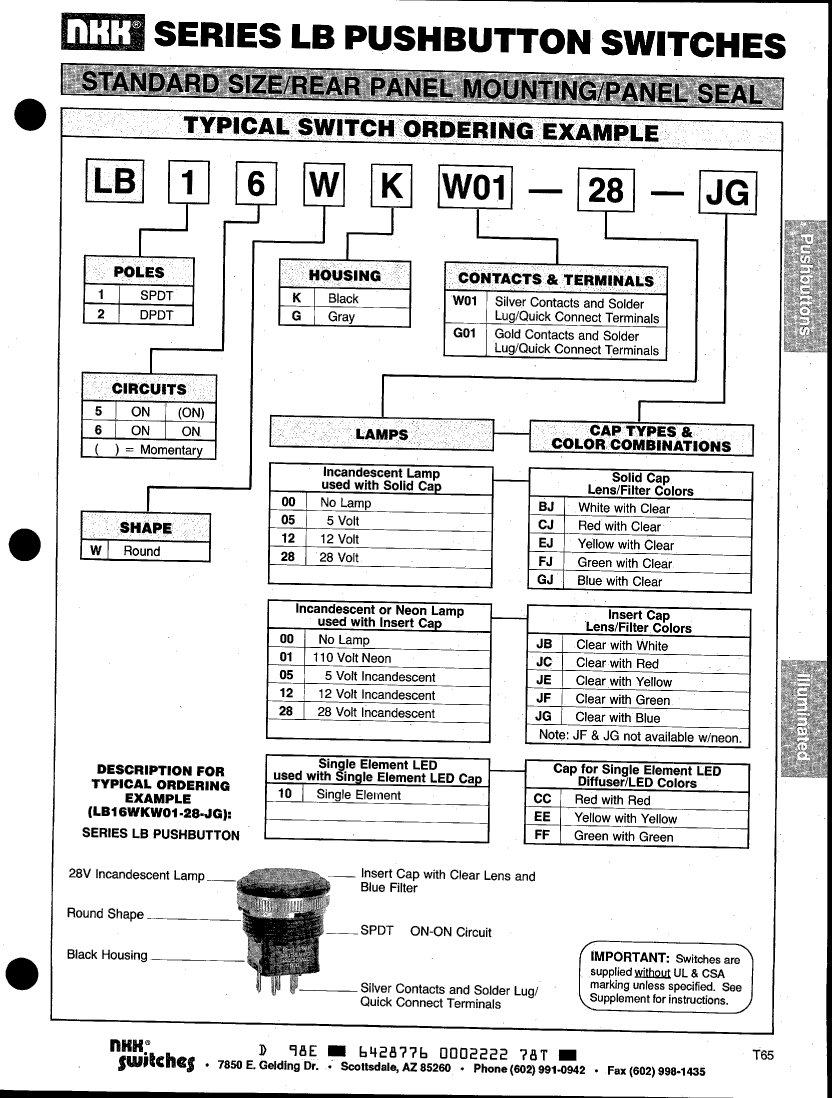

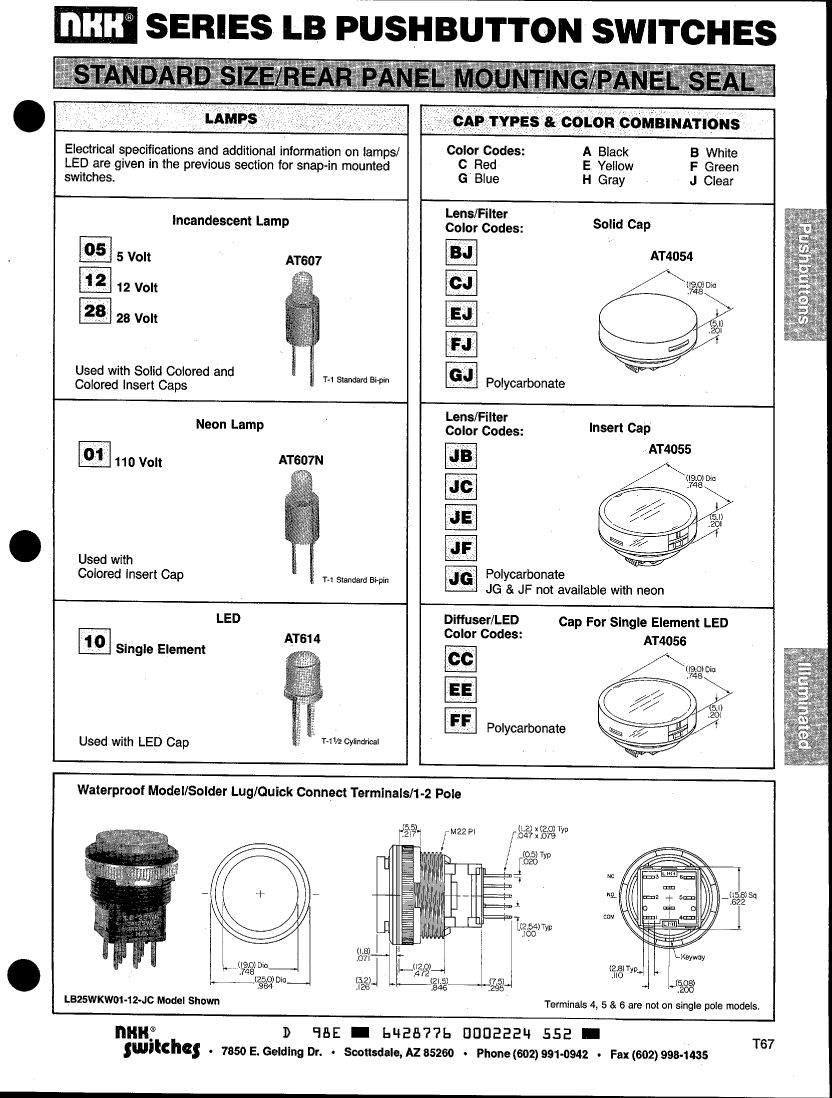

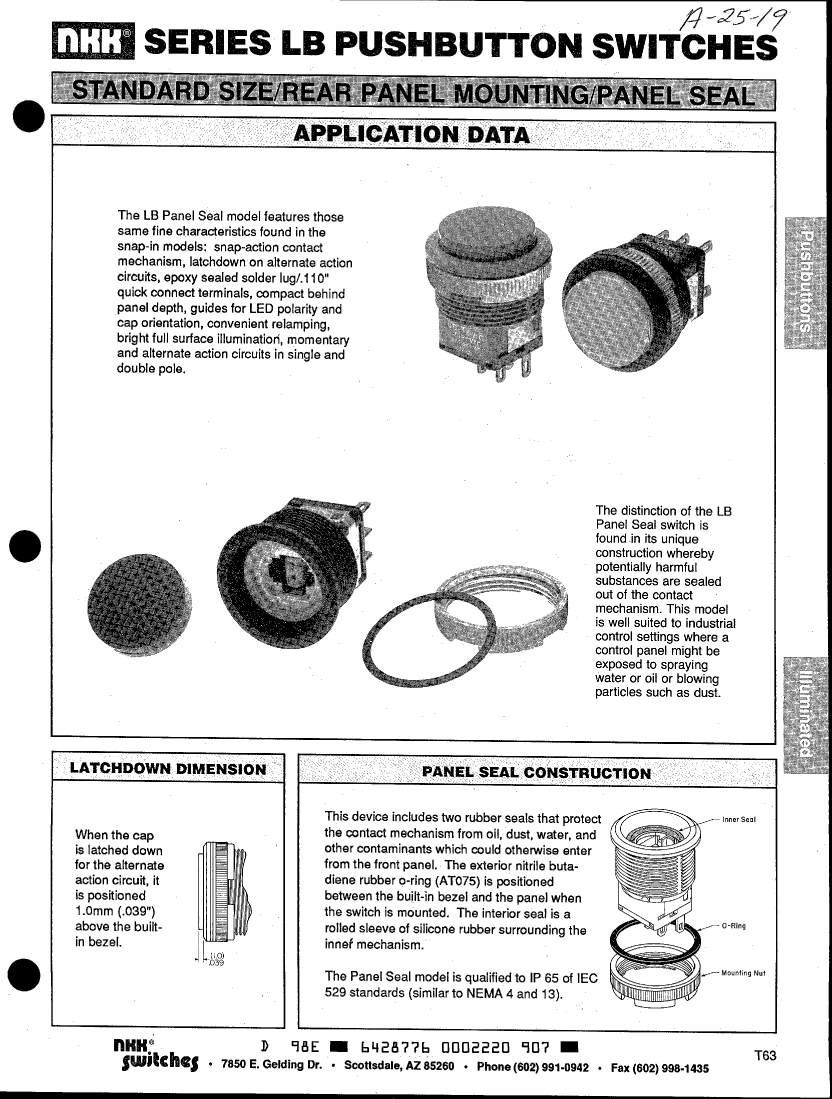

LB25WKW01-00-JC Overview

Pushbutton Switch, DPDT, On-(on), Momentary, Quick Connect Terminal, Panel Mount

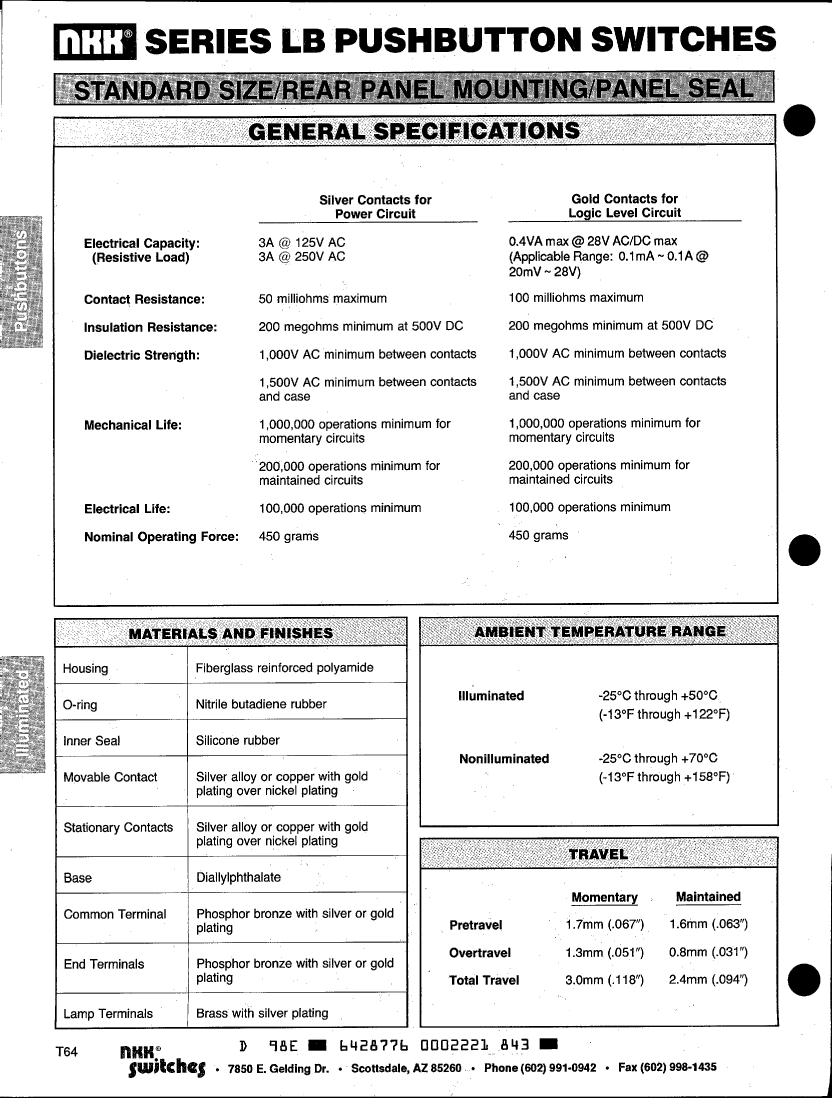

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator length	0.201 inch
Actuator stroke	2.9972 mm
Actuator type	PUSHBUTTON
Other features	TWO RUBBER SEALS
body width	15.7988 mm
Body length or diameter	15.7988 mm
Casing diameter	0.866 inch
Casing type	M22P1
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact function	ON-(ON)
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	100000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED REINFORCED NYLON
Insulation resistance	200000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Terminal material	PHOSPHOR BRONZE
Termination type	QUICK CONNECT
