Qormino QT1040
Qormino Integrated Multicore
Communications Processor with DDR3L
Datasheet Preliminary DS1168
FEATURES
•
e5500 cores built on Power Architecture
®
technology,
– QT1040 has four cores and T1020 has two cores
– Each core with a private 256KB L2 cache
– 1GB DDR3L with ECC
256 KB shared L3 CoreNet platform cache (CPC)
Hierarchical interconnect fabric
– CoreNet Coherency manager supporting coherent and non‐
coherent transactions with prioritization and bandwidth
allocation amongst CoreNet end‐points
– 150Gbps coherent read bandwidth
Data Path Acceleration Architecture (DPAA) incorporating acceleration
for the following functions:
– Packet parsing, classification, and distribution
– Queue management for scheduling, packet sequencing, and
congestion management
– Hardware buffer management for buffer allocation and de‐
allocation
– Cryptography Acceleration
– RegEx Pattern Matching Acceleration
– IEEE Std 1588
™
support
Integrated 8‐port Gigabit Ethernet switch
– 8K MAC addresses, 4K VLANs
– Static Address provisioning
– Dynamic learning of MAC addresses and aging
– Policing with storm control and MC/BC protection
– Link aggregation (IEEE Std 802.3ad)
– Spanning Tree Protocol (STP, RSTP and MSTP)
– Access Control List
– VLAN editing, translation and remarking
– Hierarchical QoS with DWRR scheduling
Parallel Ethernet interfaces
– Up to two RGMII interface
– One MII interface
Eight SerDes lanes for high‐speed peripheral interfaces
– Four PCI Express 2.0 controllers
– Two Serial ATA (SATA 3Gb/s) controllers
– Up to two QSGMII interface
– Up to six SGMII interface supporting 1000 Mbps
– Supports 1000Base‐KX
•
Additional peripheral interfaces
– Two high‐speed USB 2.0 controllers with integrated PHY
– Enhanced secure digital host controller with support for
high capacity memory card (SD/eSDHC/eMMC)
– Enhanced Serial peripheral interface (eSPI)
– Four I2C controllers
– Two DUARTs
– Integrated flash controller supporting NAND and NOR flash
– Display interface unit (DIU) with 12‐bit dual data rate
– TDM Interface
– Four GPIO controllers supporting up to 109 general purpose
I/O signals
– Two 8‐channel DMA engines
– Multicore programmable interrupt controller (MPIC)
•
QUICC Engine block
– 32‐bit RISC controller for flexible support of the
communications peripherals
– Serial DMA channel for receive and transmit on all serial
channels
– Two universal communication controllers, supporting TDM,
HDLC and UART
•
878 FC‐PBGA package, 25 mm × 38 mm
•
•
•
•
OVERVIEW
The QT1040 Qormino advanced multicore processor combines four
64‐bit ISA Power Architecture
™
processor cores with high‐perfor‐
mance data path acceleration and network and peripheral bus
interfaces required for networking, telecom/datacom, wireless
infrastructure, and military/aerospace applications.
This chip can be used for combined control, data path, and applica‐
tion layer processing in routers, switches, gateways, and general‐
purpose embedded computing systems. Its high level of integration
offers significant performance benefits compared to multiple dis‐
crete devices, while also simplifying board design.

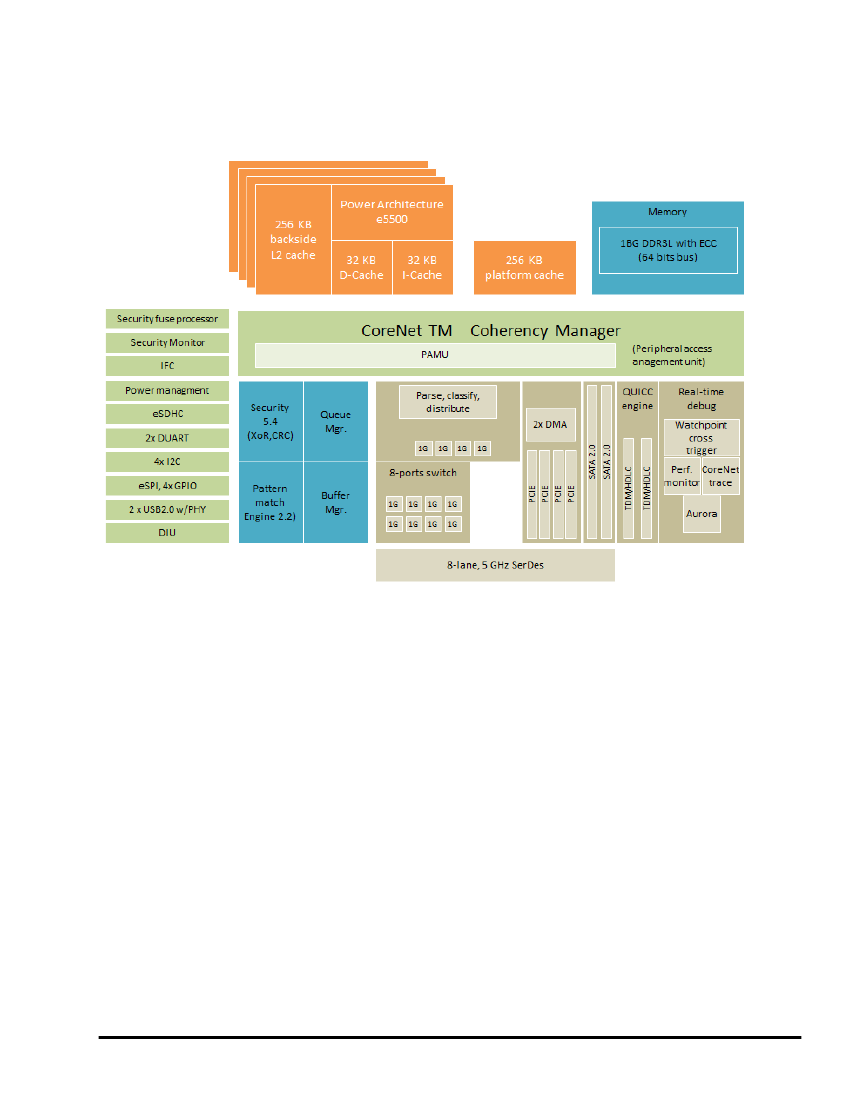

This figure shows the block diagram of the chip.
•
•
Whilst e2v technologies has taken care to ensure the accuracy of the information contained herein it accepts no responsibility for the consequences of any
use thereof and also reserves the right to change the specification of goods without notice. e2v technologies accepts no liability beyond the set out in its
standard conditions of sale in respect of infringement of third party patents arising from the use of the devices in accordance with information contained
herein.
e2v technologies (uk) limited, Waterhouse Lane, Chelmsford, Essex CM1 2QU United Kingdom Holding Company: e2v technologies plc
Telephone: +44 (0)1245 493493 Facsimile: +44 (0)1245 492492
Contact e2v by e‐mail: enquiries@e2v.com or visit www.e2v.com for global sales and operations centres.
© e2v technologies (uk) limited 2016
1168A–HIREL–07/16
QT1040 ‐ [Preliminary]
1.
BLOCK DIAGRAM
QT1040 Block diagram
Figure 1‐1.
2
1168A–HIREL–07/16
© e2v technologies (uk) limited 2016
QT1040 ‐ [Preliminary]
2.
2.1
PIN ASSIGNMENTS
780 ball layout diagrams
This figure shows the complete view of the QT1040 ball map diagram. Figure 2‐2, Figure 2‐3, Figure 2‐4, and Fig‐
ure 2‐5 show quadrant views.
Figure 2‐1.
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
1
GND
Complete BGA Map for the QT1040
