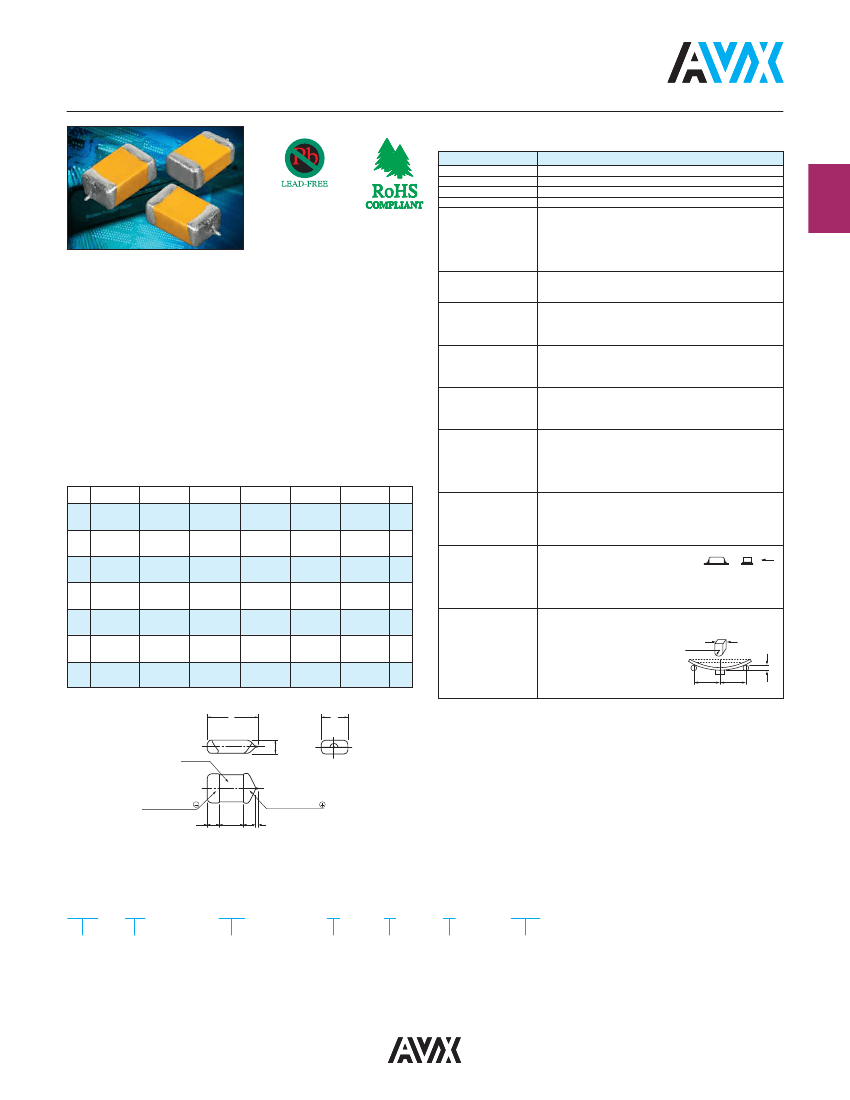

F95 Series
Standard Conformal Coated Chip
TECHNICAL SPECIFICATIONS
Item
Category Temperature Range
Capacitance Tolerance
Dissipation Factor at (120Hz)
ESR (100kHz)
Performance Characteristics
-55 to +125°C (Rated temperature: +85°C)
±20%, ±10% (at 120Hz) (However R • P Case ±20%)
Refer to next page
Refer to next page
Refer to next page
Provided that
• After 1 minute’s application of rated voltage, leakage current at 85°C
10 times or less than 20ºC specified value.
• After 1 minute’s application of rated voltage, leakage current at 125°C
12.5 times or less than 20ºC specified value.
+15% Max. (at +125°C)
+10% Max. (at +85°C)
-10% Max. (at -55°C)
At 40°C, 90 to 95% R.H., 500 hours (No voltage applied)
Capacitance Change ........... Refer to next page (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
At -55ºC / +125ºC, 30 minutes each, For 5 cycles,
Capacitance Change ........... Refer to next page (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
10 seconds reflow at 260°C, 10 seconds immersion at 260°C.
Capacitance Change ........... Refer to next page (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After application of surge in series with a 33Ω resistor at the rate of 30
seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85°C,
capacitors shall meet the characteristic requirements table below.
Capacitance Change ........... Refer to next page (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After 2000 hours' application of rated voltage at 85˚C, capacitors shall
meet the characteristic requirements table below.
Capacitance Change ........... Refer to next page (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After applying the pressure load of 5N for 10± 1
seconds horizontally to the center of capacitor side
5N (0.51kg
•
f)
body which has no electrode and has been
soldered beforehand on a substrate, there shall be
For 10
±
1 seconds
found neither exfoliation nor its sign at the terminal
electrode.
Keeping a capacitor surface-mounted on a substrate upside down and
supporting the substrate at both of the opposite bottom points 45mm apart
from the center of capacitor, the pressure
20
strength is applied with a specified jig at the
R230
center of substrate so that the substrate may
bend by 1mm as illustrated. Then, there shall
45
45
be found no remarkable abnormality on the
capacitor terminals.
LEAD-FREE COMPATIBLE
COMPONENT
Leakage Current
FEATURES
• Compliant to the RoHS2 directive 2011/65/EU
• For high frequency
• SMD Conformal
• Small and high CV
Capacitance Change
by Temperature
Damp Heat
(Steady State)
APPLICATIONS
• Smartphone
• Tablet PC
• Wireless module
• e-book
Temperature Cycles
Resistance to
Soldering Heat
Surge
CASE DIMENSIONS:
millimeters (inches)
Code
A
B
P
Q
R
S
T
L
W
H
A
B
C
D*
Endurance
3.20±0.30
1.70±0.30
1.40±0.20
0.80±0.30
1.20±0.30
0.80±0.30 0.20
(0.126±0.012) (0.067±0.008) (0.055±0.008) (0.031±0.012) (0.047±0.012) (0.031±0.012) (0.008)
3.50±0.20
2.80±0.20
1.80±0.20
0.80±0.30
1.20±0.30
1.10±0.30 0.20
(0.138±0.012) (0.110±0.012) (0.031±0.008) (0.031±0.012) (0.047±0.012) (0.043±0.012) (0.008)
2.20±0.30
1.25±0.30
1.00±0.20
0.60±0.30
0.80±0.30
0.80±0.30 0.20
(0.087±0.012) (0.049±0.012) (0.039±0.008) (0.024±0.012) (0.031±0.012) (0.031±0.012) (0.008)
3.20±0.20
1.60±0.20
0.80±0.20
0.80±0.20
1.20±0.20
0.80±0.20 0.20
(0.126±0.008) (0.063±0.008) (0.031±0.008) (0.031±0.008) (0.047±0.008) (0.031±0.008) (0.008)
2.20±0.30
1.25±0.30
0.65 max.
(0.087±0.012) (0.049±0.012) (0.026 max.)
0.60±0.30
0.80±0.30
(0.024±0.012) (0.031±0.012)
0.50 min.
0.20
(0.020 min.) (0.008)
Shear Test
3.20±0.30
1.60±0.30
1.00±0.20
0.80±0.30
1.20±0.30
0.80±0.30 0.20
(0.126±0.012) (0.063±0.008) (0.039±0.008) (0.031±0.012) (0.047±0.012) (0.031±0.012) (0.008)
3.50±0.20
2.70±0.20
1.00±0.20
0.80±0.20
1.20±0.20
1.10±0.30 0.20
(0.138±0.012) (0.106±0.012) (0.039±0.008) (0.031±0.008) (0.047±0.008) (0.043±0.012) (0.008)
Terminal Strength
*D dimension only for reference
L
W
H
Resin
Solder electrode
Solder electrode
(D)
A
B
C
Single-side electrodes (Both electrodes at bottom side only)
HOW TO ORDER
F95
0G
337
Type
Rated
Voltage
Capacitance
Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
K = ±10%
M = ±20%
A
Case
Size
See
table
above
Packaging
See page
168 for
details
AQ2
Single
Face
Electrode
JANUARY 2014
■
23
