CERAMIC CAPACITORS
Medium-high Voltage Multilayer Ceramic Capacitors
HMK432BJ474KM-T
Features
Item Summary
100V, X5R, 0.47μF, ±10%, 1812
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 500pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
1812/4532
100V
0.47μF
±10%
100 MΩ・μF min.
3.5%MAX
X5R/B
-55 to +85℃/-25 to +85℃
±15/±10%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
4.5mm ±0.40
3.2mm ±0.30
2.5mm ±0.20
0.9mm ±0.6
2015.01.12
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

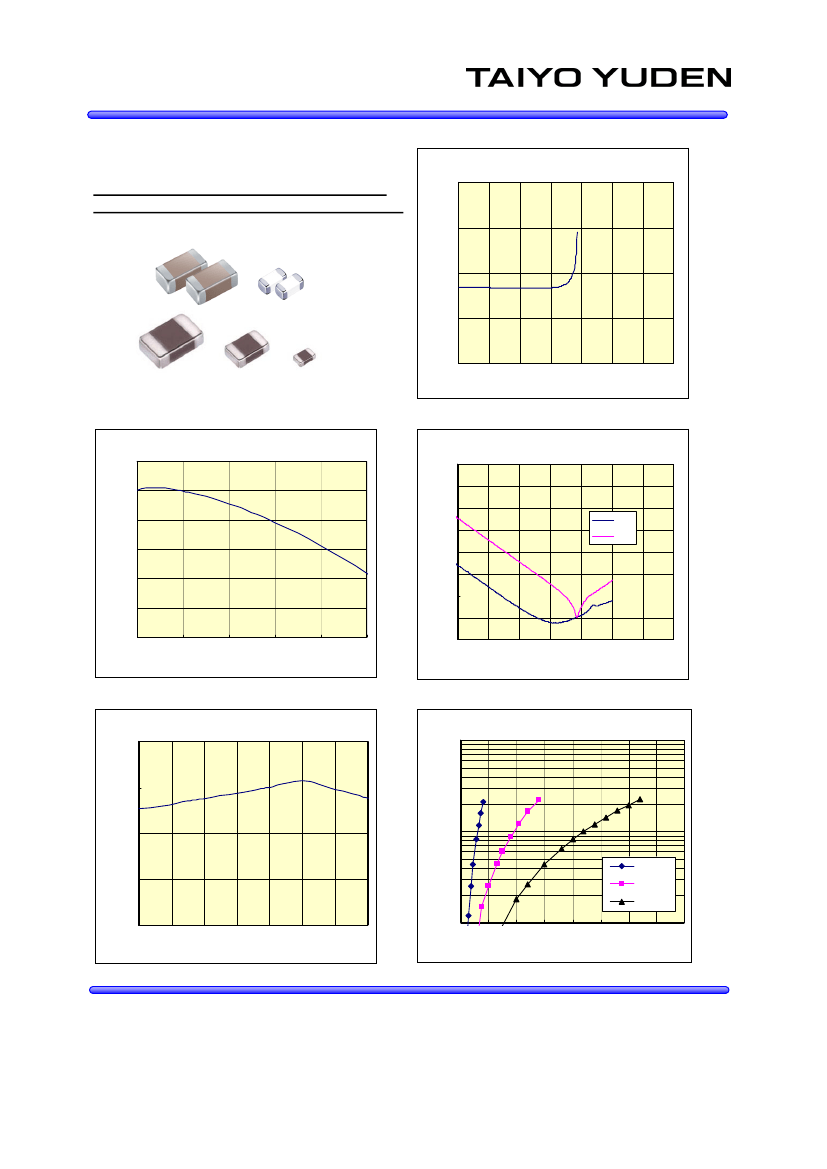

Multi Layer Ceramic Capacitor
○HMK432BJ474KM
100V 4532 B/X5R 0.47uF +/-10% t=2.7mmMAX
100V 1812 B/X5R 0.47uF +/-10% t=0.106inchMAX
Capacitance[uF] .
100
-Electrical Characteristics Data-
Jan-2011
RoHS compliance product
HMK432BJ474KM
Capacitance Freq.
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
1000 10000
Frequency[MHz]
10
0
-10
HMK432BJ474KM
DC Bias Char.
100000
10000
HMK432BJ474KM
Impedance,ESR Freq.
Z,ESR[OHM] .
1000
100
10
1
0.1
ESR
Z
dC/C[%] .
-20
-30
-40
-50
0
20
40
60
80
100
0.01
0.001
0.001
0.01
0.1
1
10
100
1000 10000
DC Bias Voltage[V]
Frequency[MHz]
10
HMK432BJ474KM
Capacitance Temp.
100
HMK432BJ474KM
Ripple Current
0
dTemp.[degreeC] .
dC/C[%]
-10
10
10kHz
100kHz
1M Hz
-20
-30
-55
-35
-15
5
25
45
65
85
1
0
0.5
1
1.5
2
2.5
3
3.5
4
Temperature[degreeC]
Ripple Current[Arms]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
