TECHNICAL DATA SHEET
1/5

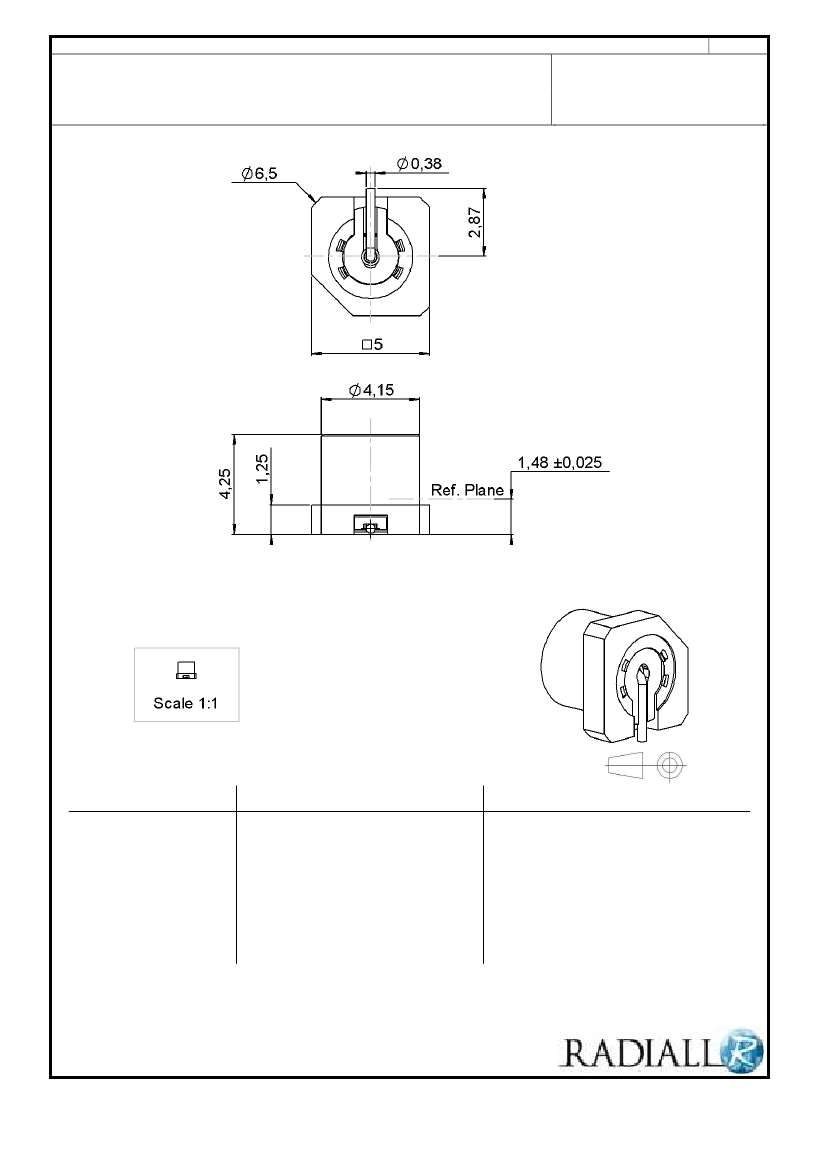

STRAIGHT MALE RECEPTACLE SMT
LIMITED DETENT-TAPE AND REEL BY 500
R222.941.300
Series :
SMP-COM
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
BRASS
BRASS
-
PEEK
-
-
-
-
MATERIALS
NPGR
NPGR
-
PLATING (
µm
)
-
-
-
Issue :
1121 C
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/5
STRAIGHT MALE RECEPTACLE SMT
LIMITED DETENT-TAPE AND REEL BY 500

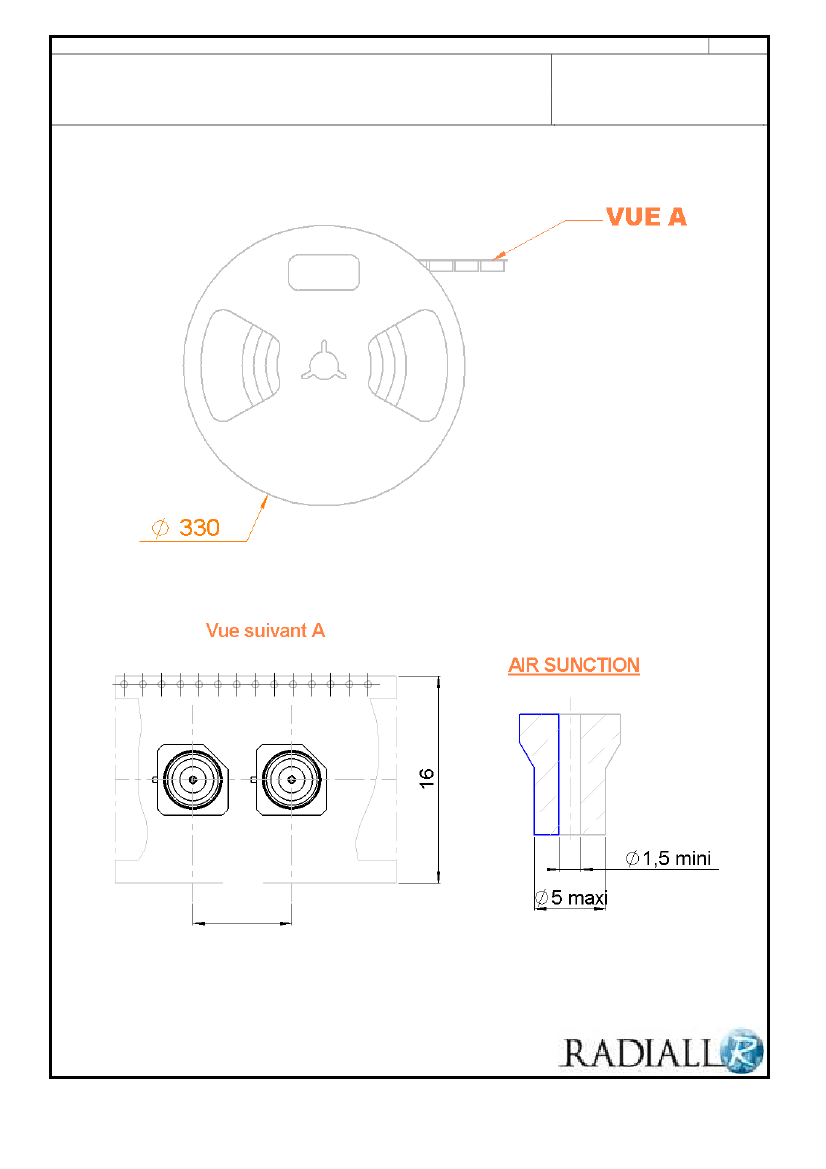

PACKAGING
Standard
500
Unit
Other
Contact us
R222.941.300
Series :
SMP-COM
SPECIFICATION
ELECTRICAL CHARACTERISTICS
ENVIRONMENTAL
Impedance
Operating temperature
-55/+125
° C
50
Ω
Frequency
Hermetic seal
0-12.4*
GHz
NA
Atm.cm3/s
VSWR
Panel leakage
1.10**
+
0,0000
x F(GHz) Maxi
NA
Insertion loss
0.12
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
335
Veff Maxi
Dielectric withstanding voltage
500
Veff mini
Insulation resistance
5000
MΩ mini
OTHER CHARACTERISTICS
Assembly instruction
Others :
NA
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
Recommended torque
Mating
Panel nut
6.8
N mini
6.8
N mini
NA
N.cm mini
* ROS 1.35 at 12.4GHz
**ROS at 6GHz
NA
N.cm
NA
N.cm
Mating life
Weight
100
Cycles mini
0,3310
g
Issue :
1121 C
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
3/5
STRAIGHT MALE RECEPTACLE SMT
LIMITED DETENT-TAPE AND REEL BY 500
SOLDER PROCEDURE
R222.941.300
Series :
SMP-COM
1. Deposit solder paste ‘SnAg4Cu0.5’ on mounting zone by screen printing application. We
recommend a low residue flux.
We advise a thickness of 150 micromm ( 5.850 microinch ). Verify that the edges of the
zone are clean.
2. Placement of the receptacle on the mounting zone with an automatic machine of ‘pick and
place’ type. A video camera is recommended for positioning of the component . Adhesive
agents must not be used on the receptacle.
3. This process of soldering has been tested with convection oven .Below please find ,the
typical profile to use.
4. The cleaning of printed circuit boards is not obliged .
5. Verification of solder joints and position of the component by visual inspection.

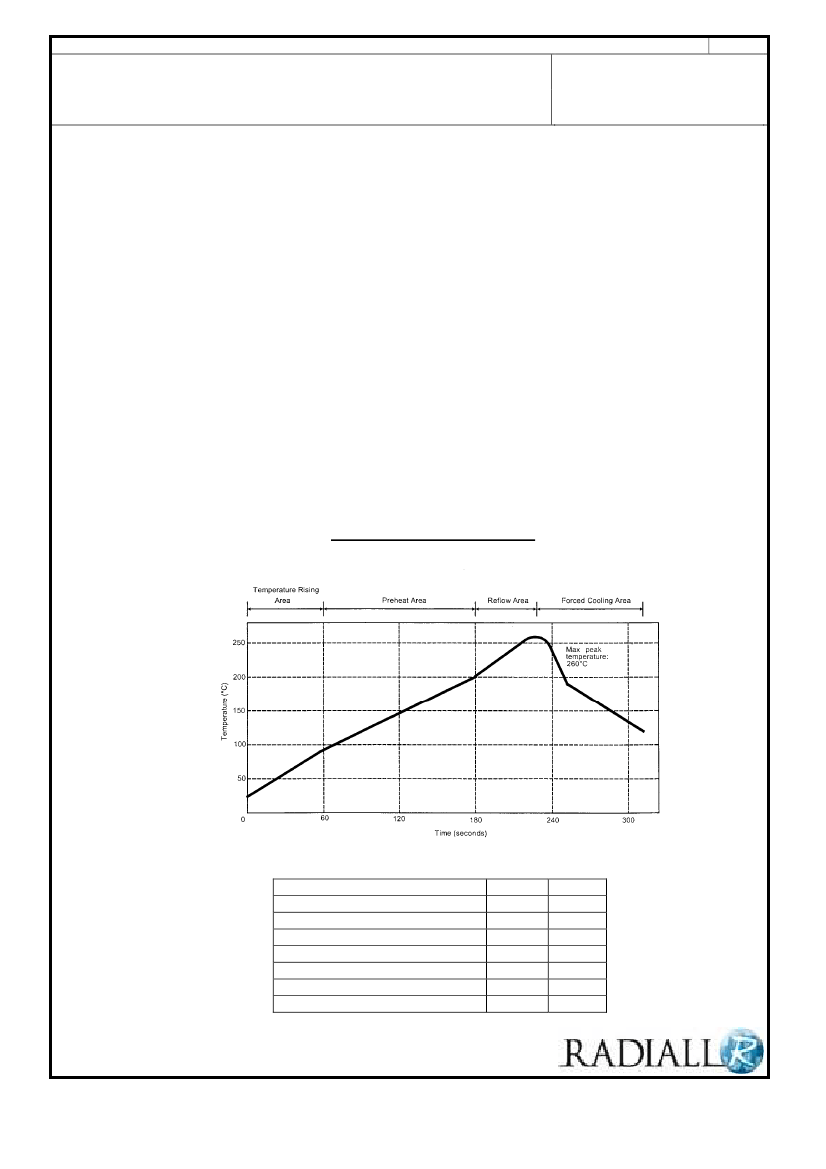

TEMPERATURE PROFILE
Parameter
Temperature rising Area
Max Peak Temperature
Max dwell time @260°C
Min dwell time @235°C
Max dwell time @235°C
Temperature drop in cooling Area
Max dwell time above 100°C
Value
1 -4
260
10
20
60
-1 to - 4
420
Unit
°C/sec
°C
sec
sec
sec
°C/sec
sec
Issue :
1121 C
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
4/5
STRAIGHT MALE RECEPTACLE SMT
LIMITED DETENT-TAPE AND REEL BY 500
R222.941.300
Series :
SMP-COM

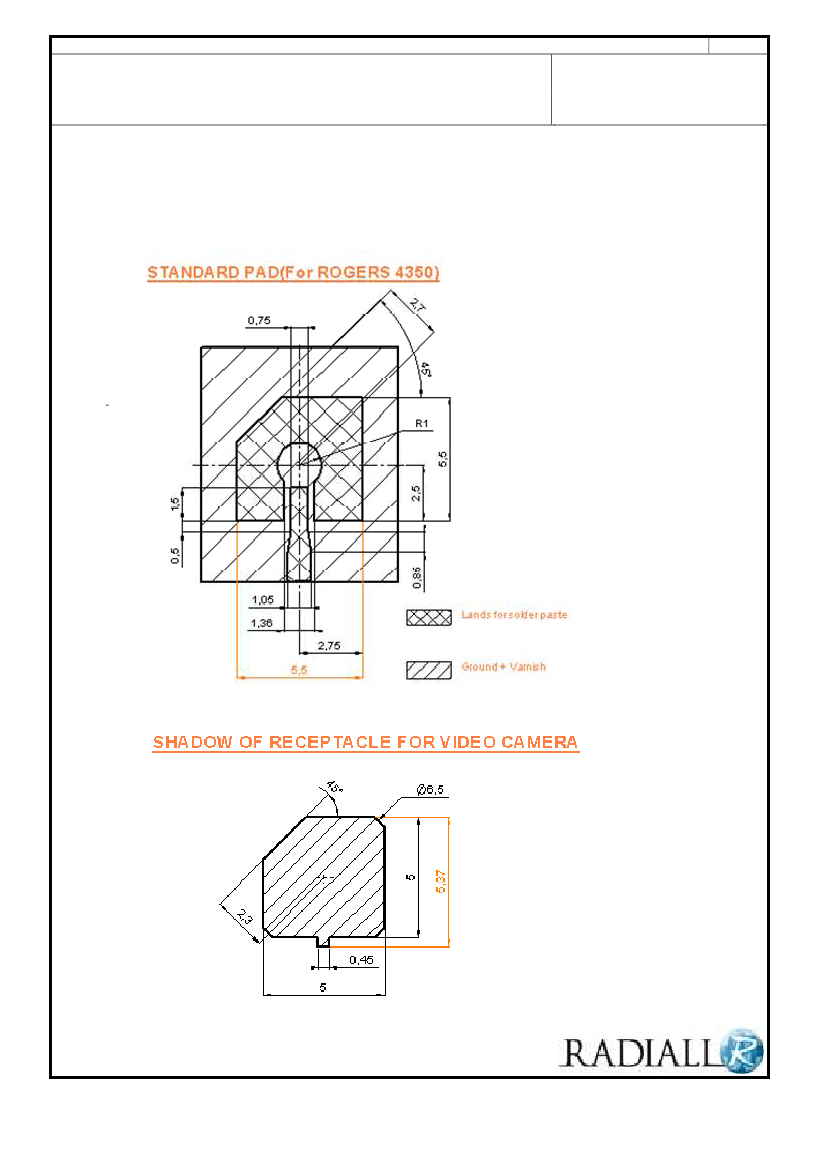

COPLANAR LINE
Pattern and signal are on the same side.
Thickness of PCB : 1.6mm
The material of PCB is the epoxy resin of glass fabrics bacs (ER:4.8).
The solder resist should be printed exept for the land pattern on the PCB.
Issue :
1121 C
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
5/5
STRAIGHT MALE RECEPTACLE SMT
LIMITED DETENT-TAPE AND REEL BY 500
R222.941.300
Series :
SMP-COM
8
Issue :
1121 C
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
