High Temperature MnO
2
Tantalum Surface Mount Capacitors
T498 150°C Rated MnO
2
Series
Overview

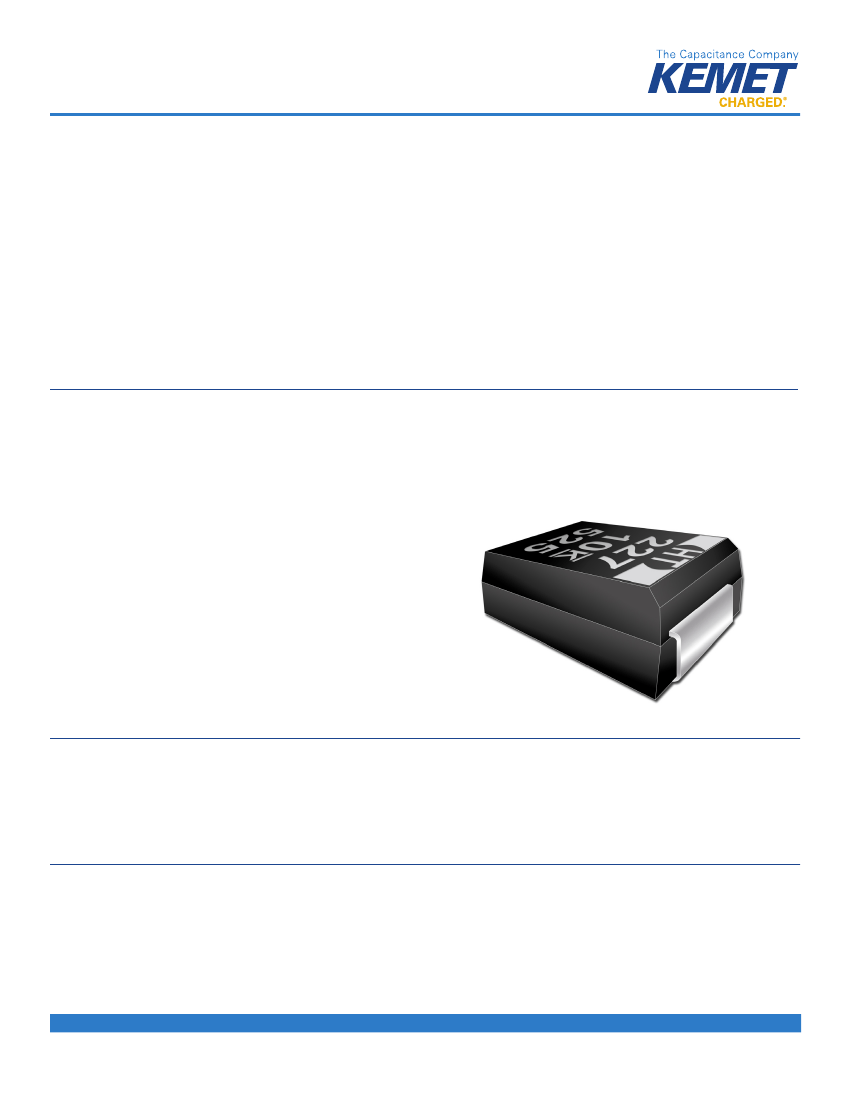

The KEMET T498 Series is a high temperature product that
offers optimum performance characteristics in applications
with operating temperatures up to 150°C. Advanced materials
and testing allow this series to perform with a reliability level of
0.5%/1000 hours at rated voltage and temperature. The T498
Series is available in five standard EIA case sizes with ROHS
compliant terminations as standard.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Meets or exceeds EIA standard 535BAAC
Taped and reeled per EIA 481-1
Symmetrical, compliant terminations
Optional gold-plated terminations
Laser-marked case
100% surge current testing
Complies with AEC-Q200
Capacitance values of 0.47μF to 220μF
Tolerances of ±10% and ±20%
Voltage rating of 6-50 VDC
100% steady-state accelerated aging
Temperature/voltage derating is 2/3 at 150°C
RoHS compliance and lead-free terminations standard
Operating temperature range of -55˚C to +150˚C
Applications
Typical applications include decoupling and filtering in industrial
and automotive end applications such as DC/DC converters,
portable electronics, telecommunications, and control units
operating at temperatures up to 150°C.
Environmental Compliance
*When ordered with 100% Sn Solder
RoHS Compliant (6/6)* according to Directive 2002/95/EC
SPICE
For a detailed analysis of specific part numbers, please visit kemet.com for a free download of KEMET's SPICE software. The KEMET
SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over frequency,
temperature, ripple, and DC bias conditions.
One WORLD
One Brand
One Strategy
One Focus
One Team
One KEMET
T2012-1 • 10/15/2010
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
High Temperature MnO
2
Tantalum Surface Mount Capacitors – T498 150°C Rated MnO
2
Series
Ordering Information
T
Capacitor
Class
T=
Tantalum
498
Series
High
Temperature
150ºC
X
Case Size
A = 3216-18
B = 3258-19
C = 6032-25
D = 7343-31
X = 7343-43
227
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
M
Capacitance
Tolerance
K = ±10%
M = ±20%
010
Voltage
006 = 6.3V
010 = 10V
015 = 15V
020 = 20V
025 = 25V
035 = 35V
050 = 50V
A
Failure Rate/
Design
A = N/A
Z = N/A
T
Lead Material
T = 100% Matte
Tin (Sn) Plated*
G = Gold Plated
E500
ESR Code
E = ESR
Last three
digits specify
ESR in
mOhms.
(500 =
500mOhms)
Packaging
(C-Spec)
Blank = 7"
Reel 7280 =
13" Reel
*See www.kemet.com for Pb Free transition.
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF(120Hz)
ESR (100kHz)
Leakage Current
-55°C to 150°C
0.33 μF - 220 μF @ 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
6V - 50V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2012-1 • 10/15/2010
2
High Temperature MnO
2
Tantalum Surface Mount Capacitors – T498 150°C Rated MnO
2
Series
Qualification
Test
Endurance
Condition
ΔC/C
150°C @ 2/3 Rated Voltage, 2000 Hrs.
DF
DCL
ESR
ΔC/C
DF
DCL
ESR
ΔC/C
MIL-STD-202, Method 107, Condition B, mounted, -55°C to
150°C, 1000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
-55ºC, +25ºC, +85ºC, +150ºC, +25ºC.
+25°C
ΔC/C
DF
DCL
IL*
IL
IL
ΔC/C
DF
DCL
ESR
ΔC/C
DF
DCL
Characteristics
Within ± 10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ± 10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ± 5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
± 10%
IL
n/a
+85°C
± 10%
1.5 x IL
10 x IL
+150°C
± 20%
1.5 x IL
12 x IL
Storage Life
150°C @ 0 Volts, 2000 Hrs.
Thermal Shock
Temperature Stability
Within ± 5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10 of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x Rated Voltage 1000 cycles (150°C,
1.2 x Rated Voltage)
Mechanical Shock/Vibration
*IL = Initial Limit
Mil-Std-202, Meth. 213, Cond. I, 100G Peak
Mil-Std-202, Meth. 204, Cond. D, 10Hz to 2000Hz, 20G
Peak
Certification
AEC-Q200
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2012-1 • 10/15/2010
3
High Temperature MnO
2
Tantalum Surface Mount Capacitors – T498 150°C Rated MnO
2
Series

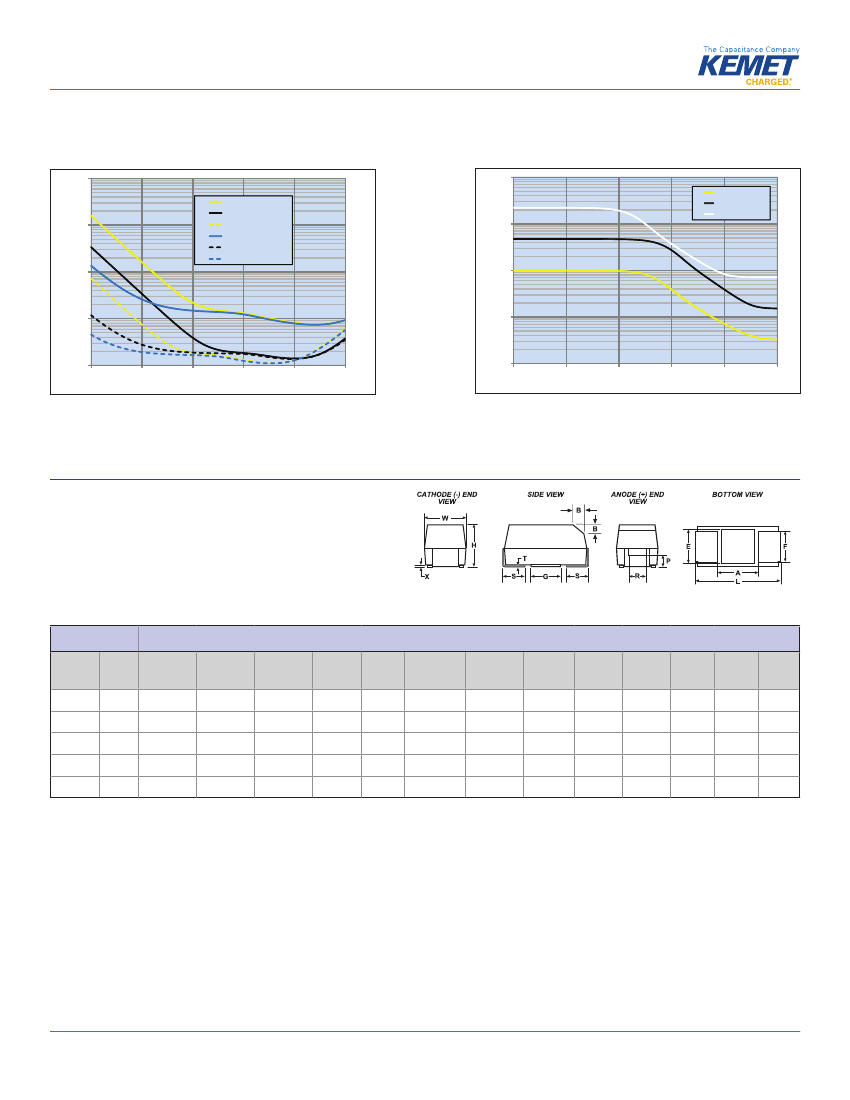

Electrical Characteristics
ESR vs. Frequency
1000
T498B106M010ATE1K8_IMP
T498D476M010ATE600_IMP
Capacitance vs. Frequency
1000
T498B106M010ATE1K8
T498D476M010ATE600
Impedance, ESR (Ohms)
100
T498B106M010ATE1K8_ESR
T498X227M010ATE500_IMP
T498D476M010ATE600_ESR
T498X227M010ATE500_ESR
100
T498X227M010ATE500
Capacitance (µF)
10
10
1
1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
Termination
cutout at
KEMET’s
Option,
either end
Case Size
KEMET
A
B
C
D
X
EIA
3216-18
3528-21
6032-28
7343-31
7343-43
Component
L*
3.2 ± 0.2
(.126 ± .008)
3.5 ± 02
(138 ± .008)
6.0 ± 0.3
(.236 ± .03)
7.3 ± 0.3
(287 ± .012)
7.3 ± 0.3
(.287 ± .012)
W*
1.6 ± 0.2
(.063 ± .008)
2.8 ± 0.2
(.110 ± .008)
3.2 ± 0.3
(.126 ± .012)
4.3 ± 0.3
(.169 ± .012)
4.3 ± 0.3
(.169 ± .012)
H*
1.6 ± 0.2
(.063 ± .008)
1.9 ± 0.2
(.075 ± .008)
2.5 ± 0.3
(.098 ± .012)
2.8 ± 0.3
(098 ± .012)
4.0 ± 0.3
(.157 ± .012)
F* ±0.1 S* ±0.3 B* ±0.15
±(.004) ±(.012) (Ref) ±.006
1.2 (.047)
2.2 (.087)
2.2 (.087)
2.4 (.094)
2.4 (.094)
0.8 (.031)
0.8 (.031)
1.3 (.051)
1.3 (.051)
1.3 (.051)
0.4 (.016)
0.4 (.016)
0.5 (.020)
0.5 (.020)
0.5 (.020)
X (Ref)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
P (Ref)
0.4 (.016)
0.5 (.020)
0.9 (.035)
0.9 (.035)
1.7 (.067)
R (Ref)
0.4 (.016)
1.0 (.039)
1.0 (.039)
1.0 (.039)
1.0 (.039)
T (Ref)
A (Min) G (Ref) E (Ref)
1.1 (.043) 1.3 (.051)
1.8 (.071) 2.2 (.087)
0.13 (.005) 1.4 (.055)
0.13 (.005) 2.1 (.083)
0.13 (.005) 3.1 ( (.122) 2.8 (.110) 2.4 (.094)
0.13 (.005)
0.13 (.005)
3.8 (.150)
3.8 (.150)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
Notes: (Ref) – Dimensions provided for reference only. No dimensions provided for B, P or R because low profile cases do not have a bevel or a notch.
* MIL-C-55365/8 specified dimensions
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2012-1 • 10/15/2010
4
High Temperature MnO
2
Tantalum Surface Mount Capacitors – T498 150°C Rated MnO
2
Series
Table 1 – Ratings & Part Number Reference
Rated
Voltage
85ºC
VDC
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
20
20
25
25
25
25
25
25
Rated
Cap
120Hz
µF
10
15
22
33
47
100
2.2
3.3
4.7
4.7
10
15
15
22
22
47
100
220
1
3.3
4.7
6.8
6.8
10
10
15
22
33
47
68
100
1
10
0.47
2.2
10
15
22
33
Case
Code/
Case Size
KEMET/EIA
B/3528-20
B/3528-20
C/6032-28
B/3528-20
C/6032-28
D/7343-31
A/3216-18
A/3216-18
A/3216-18
B/3528-20
B/3528-20
B/3528-20
C/6032-28
B/3528-20
C/6032-28
D/7343-31
D/7343-31
X/7343-43
A/3216-18
A/3216-18
B/3528-20
A/3216-18
B/3528-20
B/3528-20
C/6032-28
C/6032-28
C/6032-28
D/7343-31
D/7343-31
D/7343-31
X/7343-43
A/3216-18
C/6032-28
A/3216-18
B/3528-20
C/6032-28
D/7343-31
D/7343-31
D/7343-31
KEMET Part
Number
(See below for
part options)
T498B106(1)006A(2)E2K1
T498B156(1)006A(2)E1K8
T498C226(1)006A(2)E1K3
T498B336(1)006A(2)E1K7
T498C476(1)006A(2)E800
T498D107(1)006A(2)E600
T498A225(1)010A(2)E4K6
T498A335(1)010A(2)E3K6
T498A475(1)010A(2)E2K9
T498B475(1)010A(2)E2K7
T498B106(1)010A(2)E1K8
T498B156(1)010A(2)E1K5
T498C156(1)010A(2)E1K8
T498B226(1)010A(2)E1K5
T498C226(1)010A(2)E1K1
T498D476(1)010A(2)E600
T498D107(1)010A(2)E600
T498X227(1)010A(2)E500
T498A105(1)016A(2)E6K5
T498A335(1)016A(2)E3K4
T498B475(1)016A(2)E2K1
T498A685(1)016A(2)E2K6
T498B685(1)016A(2)E1K8
T498B106(1)016A(2)E2K8
T498C106(1)016A(2)E1K4
T498C156(1)016A(2)E1K1
T498C226(1)016A(2)E1K0
T498D336(1)016A(2)E600
T498D476(1)016A(2)E600
T498D686(1)016A(2)E600
T498X107(1)016A(2)E100
T498A105(1)020A(2)E5K9
T498C106(1)020A(2)E1K1
T498A474(1)025A(2)E8K5
T498B225(1)025A(2)E3K0
T498C106(1)025A(2)E1K1
T498D156(1)025A(2)E700
T498D226(1)025A(2)E600
T498D336(1)025A(2)E600
DC
Leakage
+25ºC
µAmps
0.6
0.9
1.4
2.1
3.0
6.3
0.2
0.3
0.5
0.5
1.0
1.5
1.5
2.2
2.2
4.7
10.0
22.0
0.2
0.5
0.8
1.1
1.1
1.6
1.6
2.4
3.5
5.3
7.5
10.9
16.0
0.2
2.0
0.1
0.6
2.5
3.8
5.5
8.3
0.1
0.4
0.5
1.2
M
2.4
3.5
Capacitance
7.7
Tolerance
µAmps
K
+25ºC
= ±10%
DF
ESR
Maximum Allowable
Ripple Current
Moisture
Sensitivity
Temp≤260ºC
J-STD-020D
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
+25ºC 120Hz +25ºC 100kHz +25ºC 100kHz +85ºC 100kHz +125ºC 100kHz
% Max
mOhms
mAmps
mAmps
mAmps
6.0
2100
201
181
80
6.0
1800
217
195
87
6.0
1300
291
262
116
6.0
1700
224
202
90
6.0
800
371
334
148
8.0
600
500
450
200
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
8.0
8.0
4.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
8.0
0.5
2.0
4.0
6.0
6.0
6.0
6.0
6.0
4600
3600
2900
2700
1800
1500
1800
1500
1100
600
600
500
6500
3400
2100
2600
1800
2800
1400
1100
1000
600
600
600
100
5900
1100
8500
3000
1100
700
600
600
128
144
161
177
217
238
247
238
316
500
500
574
107
149
201
170
217
174
280
316
332
500
500
500
1285
113
316
94
168
316
463
500
500
115
130
145
159
195
214
222
214
284
450
450
517
96
134
181
153
195
157
252
284
299
450
450
450
1157
102
284
85
151
284
417
450
450
51
58
64
71
87
95
99
95
126
200
200
230
43
60
80
68
87
70
112
126
133
200
200
200
514
45
126
38
67
126
185
200
200
High
A = 3216-18
First two digits
Rated
Tantalum Temperature
Code/
3258-19
Rated
Case
KEMET Part
B=
represent
M
DC
= ±20% 010 = 10V
DF
Voltage
Cap
150ºC
Case Size
6032-25
Number
cant
Leakage
C=
signifi
015 = 15V
D = 7343-31
figures. Third
020 = 20V
X = 7343-43
digit specifies
025 = 25V
Other part number options:
number of zeros.
035 = 35V
Where the 10th character equal to K (10% tolerance) is also available in M (20% tolerance).
050 = 50V
35
0.33
35
1
35
1.5
35
3.3
T
6.8
35
35
10
35
Capacitor
22
Class
µF
VDC
85ºC
T =
120Hz
A/3216-18
T498A334(1)035A(2)E11K
A/3216-18
T498A105(1)035A(2)E10K
C/6032-28
T498C155(1)035A(2)E3K3
C/6032-28
T498C335(1)035A(2)E1K7
498
D/7343-31
X
T498D685(1)035A(2)E900
227
D/7343-31
T498D106(1)035A(20E700
Capacitance
X/7343-43
Case Size
T498X226(1)035A(2)E500
Series
Code (pF)
(See below for
KEMET/EIA
part options)
4.0
11000
83
75
33
1.0
4.0
10000
87
78
35
1.0
6.0
3300
183
165
73
1.0
6.0
1700
254
229
102
1.0
010
A
E500
163
6.0
900
408
T
367
1.0
6.0
700
463
417
185
1.0
Failure Rate/
Packaging
1.0
6.0
500
574
Material
517
ESR Code
230
Voltage
Lead
Design
% Max
mOhms
mAmps
mAmps
mAmps
(C-Spec)
J-STD-020A
+25ºC
+25ºC
= N/A
+45ºC
100% Matte
100kHz +105ºC 100kHz
100kHz
T =
100kHz +85ºC
E = ESR
Temp≤260ºC
006 = 6.3V
A
Blank = 7"
Z = N/A
ESR
Where the 10th character equal to M (20% tolerance) is only available in M (20% tolerance).
Standard with tin terminations (14th character = T). Tin/lead terminations is also available (14th character = H)
Also available on large (13 inch) reels. Add 7280 to the end of the part number.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Maximum
Last three
Tin (Sn) Plated*
allowable
ripple
digits
G = Gold Plated
current
specify
ESR in
mOhms.
(500 =
500mOhms)
Moisture
Reel 7280 =
13"
Sensitivity
Reel
T2012-1 • 10/15/2010
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
