28,95
8,95
1,5
Montagehaube
6,75
4,6
Verpackt in Gurtverpackung
hood
Tape on Reel Packaging
Verpackungseinheit: 400 Stück
Packaging unit: 400 pcs
6,3
0,65
2,9
0,5 x 0,8
26
27,55
b25
0,6
4,8
4,125
330
b1
Abspulrichtung -
Reel off Direction
a1
1,5
a25
1
24 x 1 = 24
25,45
a1
1.)
0,9
±0,03
Leiterplatten-Layout Vorschlag /
PCB-layout proposal
26
±0,03
8 x 3 = 24
0,85
3
0,35
1,5
56
1.)
0,7
±0,03
Anforderungsstufe 1
0,65
16
Performance Level 1
0,8
Kontaktbereich vergoldet
Mating Area gold plating
3,8
Anschlussbereich verzinnt 4-6 µm
1,5
Terminal Area 4-6 µm tin plating
0,7
Koplanarität der Anschlüsse
≤
0,1 mm
Coplanarity Area of Termination
≤
0,1 mm
1,15
1
1
24 x 1 = 24
Für weitere Layout Details
bitte Applikations Schrift
MicroSpeed beachten.
0,5
0,85
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
5:1
1.) Durchmesser des Bohrers /
Drill tool
For further layout details
please consider
MicroSpeed application note.
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
d
Index
06.08.2012
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

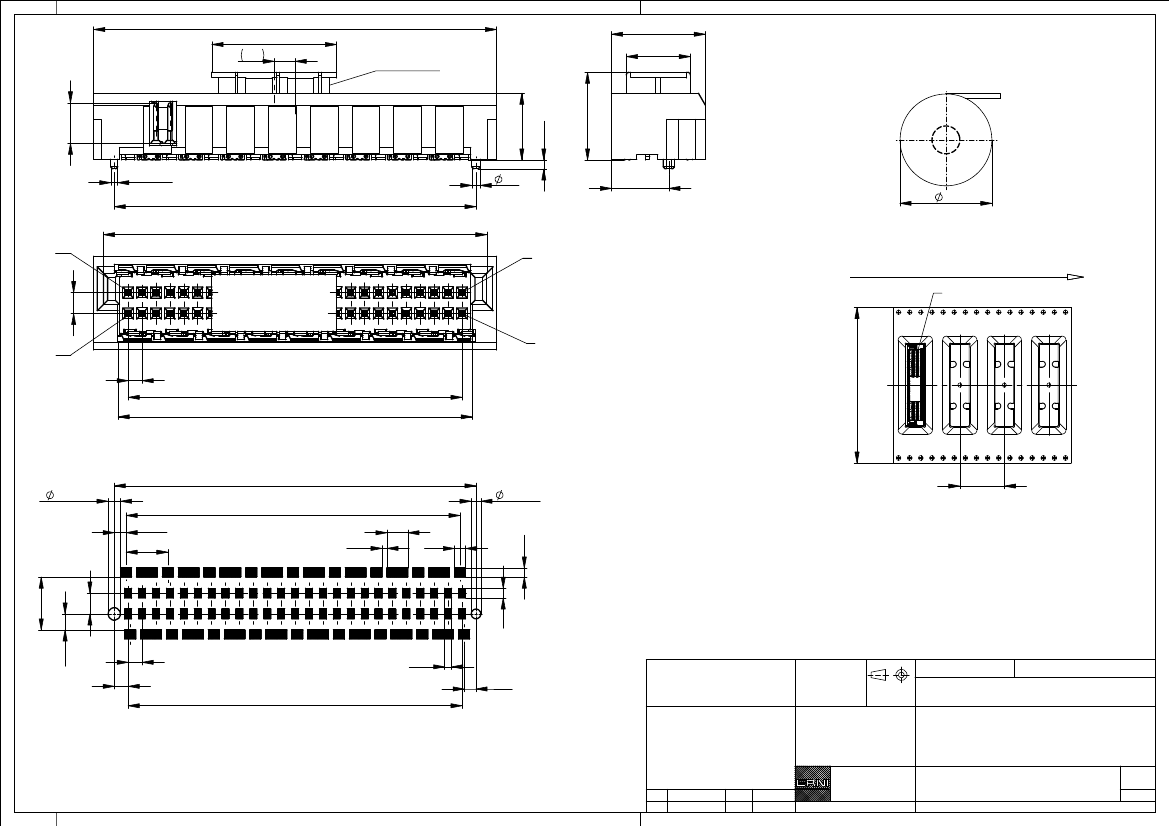

Messerl. 1mm SMD 50pol. BM EMV
Male 1mm SMD 50 cont. BM EMV
www.ERNI.com
Class
374723
MSPEED
I
A3
