HTC10051E3R3J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> HTC10051E3R3J

HTC10051E3R3J: DescriptionFilm Capacitor, 25V, 0.0000033uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size33KB，1 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric View All

HTC10051E3R3J Overview

Film Capacitor, 25V, 0.0000033uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

HTC10051E3R3J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Thin Film Technology Corp (TFT)
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000033 µF
Capacitor type	FILM CAPACITOR
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Rated (DC) voltage (URdc)	25 V
size code	0402
surface mount	YES
Terminal shape	WRAPAROUND

HTC10051E3R3J Preview

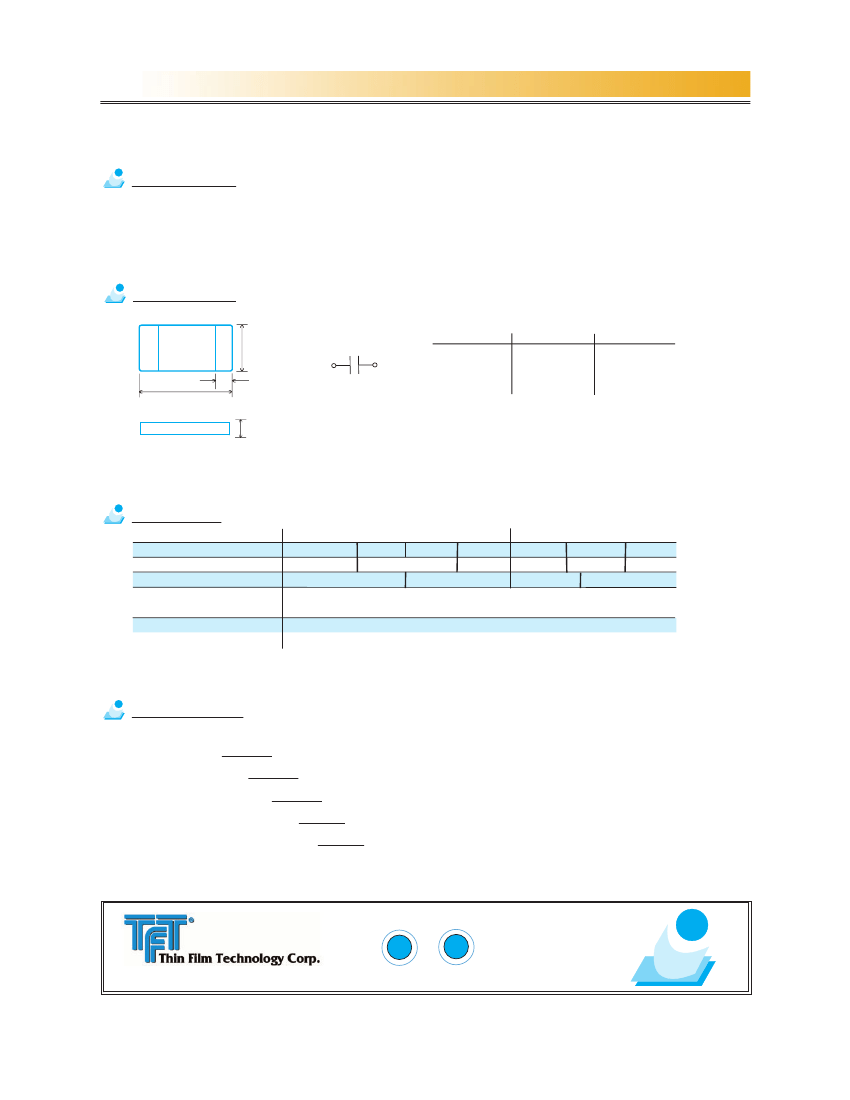

Thin Film High Precision Chip Capacitor

HTC Series

RoHS Compliant & Lead Free

1.0 Description

With tight tolerance of capacitance as fine ±0.035 pF, these low equivalent series resistance (150 milliohms at

1GHz for 3 pF capacitance) chip capacitors are available in 0402 and 0201 packages. These small case sizes

provide for space savings, and lead free construction is environmentally safe.

2.0 Mechanical

Dimension mm

HTC0603

(0201)

0.60 ±0.05

0.03 ±0.05

0.06 ±0.05

0.28 ±0.03

HTC1005

(0402)

1.00 ±0.05

0.50 ±0.05

0.15 ±0.10

0.40 ±0.05

schematic

dimension mm

3.0 Electrical

Type

HTC0603 (0201)

HTC1005 (0402)

Capacitance range

0.1~0.45

0.5~0.7 0.8~1.0 1.2~1.8 0.1~0.45 0.5 ~1.0 1.2~10

Capacitance increment

0.05 pF step 0.1 pF step

E-12

0.05 pF

0.1 pF

E-12

Capacitance tolerance

±0.035 pF

±5%

±0.035 pF

±5%

Temperature coefficient of

0 ±60 ppm/°C

capacitance

Rated voltage

25 Vdc

Operating temperature

-40°C~85°C

4.0 Part Number

HTC

0603

Part code

Dimensions

R30

Rated voltage: 1E = (25V)

Capacitance: R30 = (0.30 pF)

Tolerance of capacitance: J = ±5%, T35 = ±0.035 pF

TERE

ISO9001 ISO14001

303

Manufacturer(s) of the products described on this page are indicated by their respective logos.

561

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
