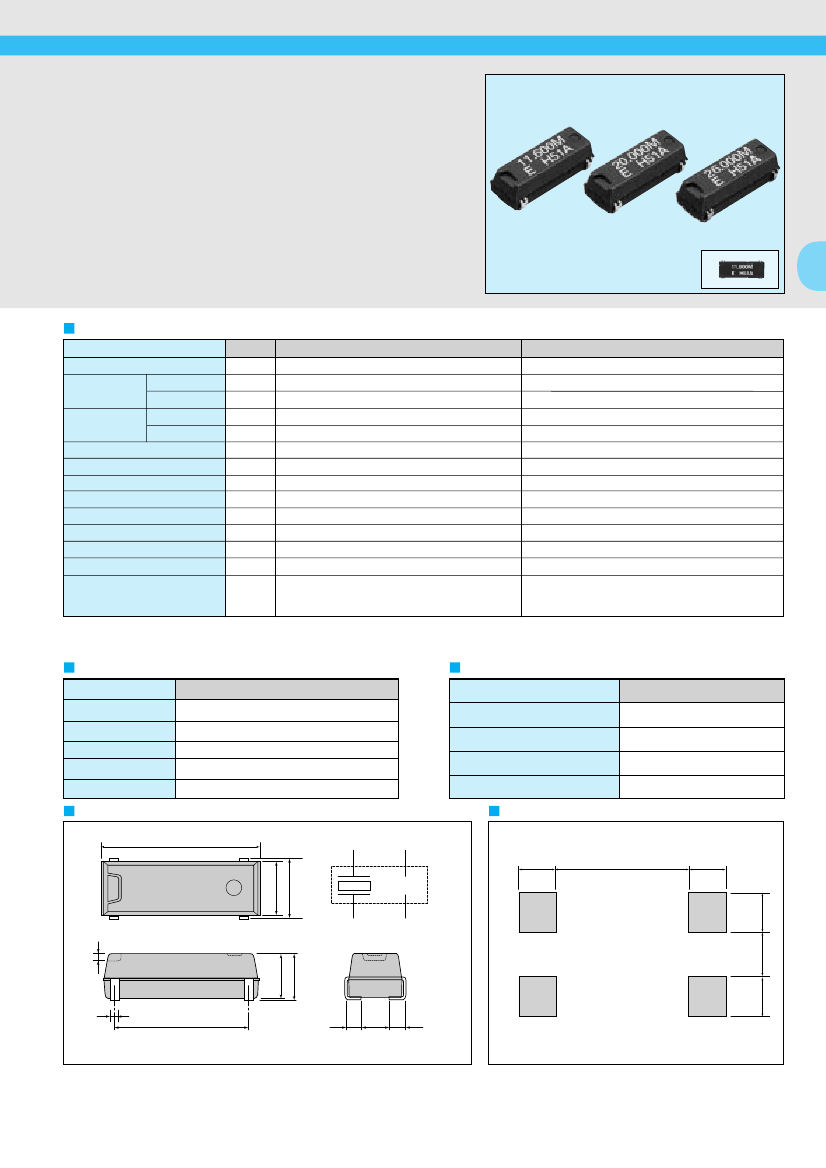

Crystal unit
SMD HIGH-STABILITY CRYSTAL UNIT
MA-406H
• High-density mounting-type SMD.
• Excellent heat-resistance and environment capability.
• 9.6 MHz to 27.0 MHz available.
Actual size
Specifications (characteristics)
Item
Symbol
f
T
STG
T
OPR
GL
DL
T
SOL
∆
f/f
C
L
R
1
C
0
IR
fa
S. R.
Specifications
9.600 MHz to 27.000 MHz
-55˚C to +125˚C
-40˚C to 85˚C
2mW max.
10µW to 100µW
Only crystal oscillation is guaranteed
Remarks
Fundamental mode
Stored as bare product after unpacking
Nominal frequency range
Storage temperature
Temperature
range
Operable temperature
Drive level
Maximum drive level
Recommended drive level
Soldering condition (reflow)
Frequency tolerance (standard)
Frequency temperature characteristics
Load capacitance
Series resistance
Shunt capacitance
Insulation resistance
Aging
Shock resistance
240˚C max. within 10 sec. and under 200˚C within 40 sec.
±10ppm
As per below table
10pF to
∞
As per below table
5.0pF max.
500 MΩ min.
±1ppm/year max.
±1ppm max.
Ta=25˚C ±1˚C, DL=100µW
Please specify
Operable temperature range, DL=100µW
Ta=25˚C±3˚C,DL=100µW
Three drops on a hard wooden board from 75 cm or
excitation test with 3000G x 0.3ms x 1/2 sine wave x 3
directions
Measured values for frequency tolerance and temperature characteristics need to be brought into mutual correlation prior to the start of production.
Metal may be exposed on the top of this product. This won't affect any quality, reliability or electrical spec.
Frequency temperature characteristics
Temperature range
0˚C to +50˚C
-10˚C to +60˚C
-20˚C to +70˚C
-30˚C to +80˚C
-40˚C to +85˚C
Series resistance
Frequency (MHz)
9.6
≤
f < 10.0
10.0
≤
f < 12.0
12.0
≤
f < 16.0
16.0
≤
f
≤
27.0
(Unit: mm)
Min. frequency specifications
± 3ppm min.
± 5ppm min.
± 7ppm min.
±10ppm min.
±15ppm min.
Series resistance (Ω)
50
Ω
max.
40
Ω
max.
30
Ω
max.
25
Ω
max.
(Unit: mm)
External dimensions
11.7 max.
#4
#3
Recommended soldering pattern
Internal connection
#4
4.8 max.
#3
1.8
7.8
1.8
#1
0.5
#2
3.7 max.
3.5
0.7
9.6
(1.2)
2.1
(1.2)
Do not connect #2 and #3 external device.
1.9
1.7
1.9
20.000M
E H51A
4.0
#1
#2
26
