UPW1C221MPD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UPW1C221MPD

UPW1C221MPD: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 220 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size82KB，5 Pages; ManufacturerMCC; Websitehttp://www.mccsemi.com

Download Datasheet Parametric View All

UPW1C221MPD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPW1C221MPD	-	-	View	Buy Now

UPW1C221MPD Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 220 uF, THROUGH HOLE MOUNT

UPW1C221MPD Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	16 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN (472) OVER COPPER
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	PW
capacitance	220 uF
packaging shape	CYLINDRICAL PACKAGE
Capacitor type	NON SOLID
Terminal shape	WIRE
polarity	POLARIZED
tangent angle	0.16
ripple current	360.75mA
leakage current	105.6uA

Preview

Download Datasheet

View All

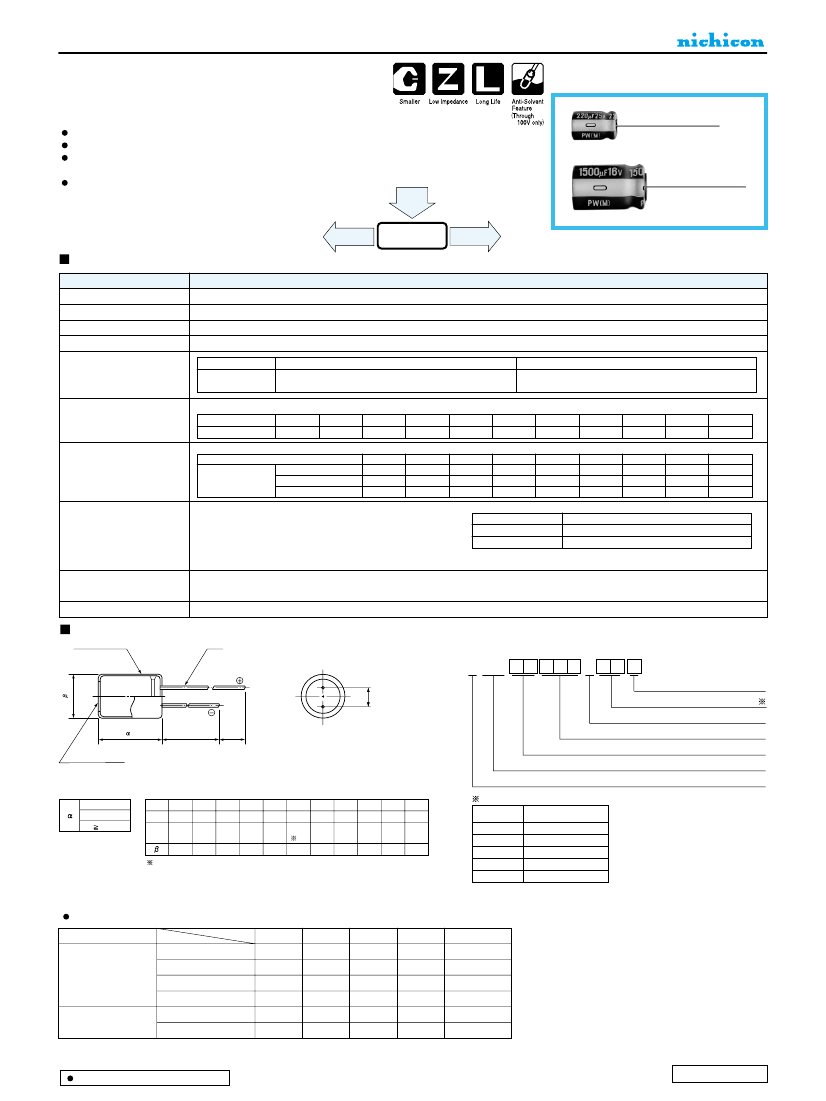

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low lmpedance,

High Reliability For Switching Power Supplies

series

Smaller case size and lower impedance than PM series.

Low impedance and high reliability withstanding 2000 hours to 8000 hours.

Capacitance ranges available based on the numerical values in E12 series

under JIS.

Compliant to the RoHS directive (2011/65/EU).

Smaller

Low

Impedance

Long Life

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 to +105˚C (6.3 to 100V), – 40 to + 105˚C (160 to 400V), – 25 to +105˚C (450V)

6.3 to 450V

0.47 to 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

6.3 to 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

160 to 450

CV < 1000 :

I =

0.1CV+40 (µA) max. (1 minute's)

CV > 1000 :

I =

0.04CV+100 (µA) max. (1 minute's)

Measurement frequency : 120Hz at 20˚C

Leakage Current

Leakage current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Tangent of loss angle (tan

δ)

Rated voltage (V

)

tan

(

MAX.

)

6.3

0.22

0.19

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

0.09

100

0.08

250

—

160 to 250 315 · 350 400 · 450

0.15

0.20

0.25

120Hz

Stability at Low Temperature

Rated voltage (V)

–

25˚C / Z+20˚C

Impedance ratio

–

40˚C / Z+20˚C

(MAX.)

–

55˚C / Z+20˚C

63 · 100 160 · 200

—

315 · 350

—

400

—

450

—

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated

ripple current is applied for 8000 hours (2000 hours for

φD=4,

5 and 6.3, 3000 hours for

φD=8,

5000 hours for

φD=10,

7000

hours for

φD=12.5)

at 105 ˚ C, the peak voltage shall not

exceed the rated voltage.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 680µF)

9 10 11

U PW 1 A 6 8 1 MP D

MAX.

0.5

Size code

Configuration

Capacitance tolerance (±20%)

L+

MAX.

Pressure relief vent

MIN

Rated capacitance (680µF)

Rated voltage (10V)

6.3up (No pressure relief vent for 7mmL products)

(mm)

Series name

Type

(L = 7) 1.0

(L < 20) 1.5

(L 20) 2.0

1.5

0.45

0.5

2.0

6.3

2.5

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.8

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

Configuration

4·5

6.3

8 · 10

12.5 to 18

20 to 25

Pb-free leadwire

Pb-free PET sleeve

0.5

(0.45) (0.45)

0.5

: Applied to L>25 products

( ): Applied to 7mmL products

ED (7mm L : DD)

•

Please refer to page 20 about the end seal configuration.

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

50Hz

0.20

0.55

0.70

0.80

0.90

120Hz

0.30

0.65

0.75

0.85

1.00

300Hz

0.50

0.75

0.80

0.90

1.25

1.10

1kHz

0.80

0.85

0.90

0.95

1.40

1.13

10kHz or more

1.00

1.60

1.15

0.47 to 56000

6.3 to 100

68 to 330.

390 to 1000.

.1200

to 150000

160 to 450

0.47 to 22000

330 to 4700.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100C
