2043-2-22-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2043-2-22-0

2043-2-22-0: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2043-2-22-0 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

2043-2-22-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.157 inch
subject depth	0.205 inch
body length	1.031 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2043
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

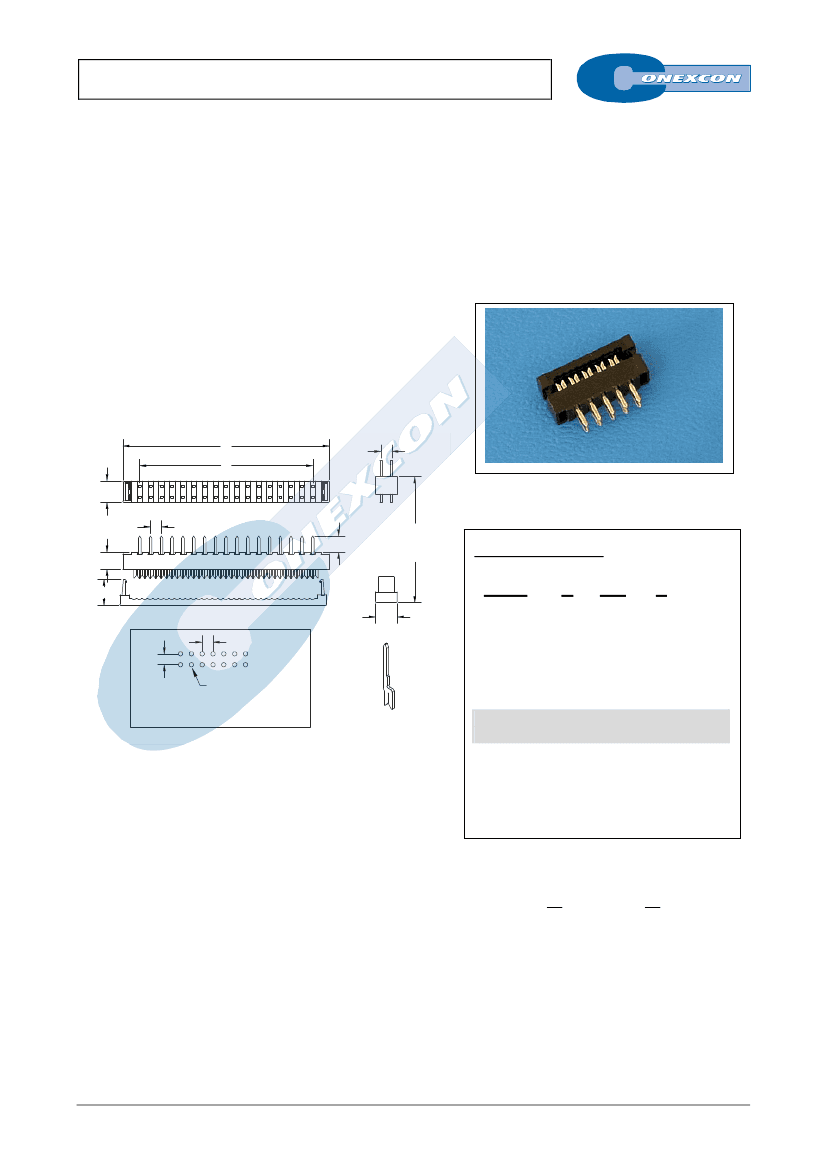

FLAT CABLE IDC DIP PLUG

2043 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 8, 10, 12, 14, 16, 20, 22, 26, 30, 34, 40, 44,

50 and 68 circuits

Allows to solder the flat cable to the PCB

Use flat cable 1.00 mm pitch 9100 series



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials



Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

4.0

2.0

3.0

3.2

4.9

4.0

2.0

ø0.81±0.05

RECOMMENDED HOLE PATTERN

2.0

(5.2)

Terminated

Height

Ordering Information:

2043 -

T-

XX-

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3. (XX) Number of circuits

Available in 8 through 68 circuits

Dimensions:

(In mm.)







2.00











(XX) = Number of circuits







2.00



 

4.20





A-XX

FULL LINE CATALOGUE
