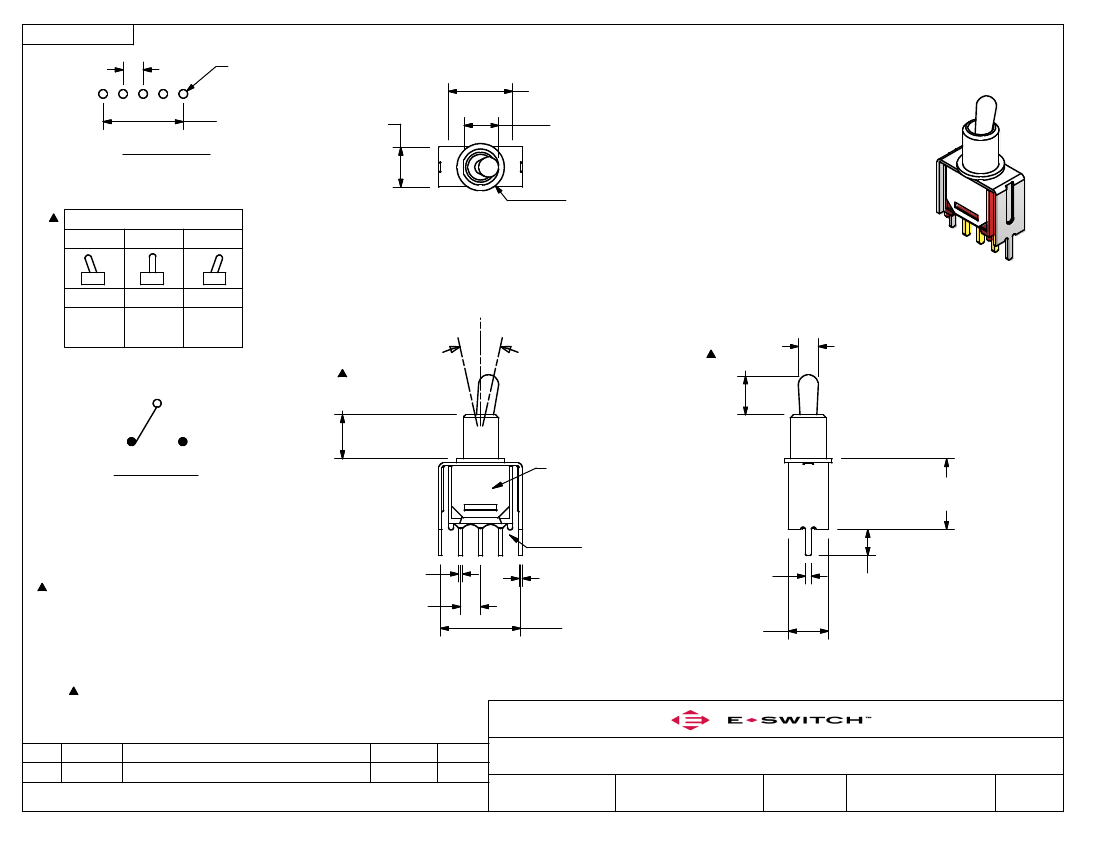

SHEET 1 OF 1
2.54
[.100 in]
n
1.09
[.043 in]
(5)
8.13
[.320 in]
10.16
[.400 in]
P.C. MOUNTING
5.08
[.200 in]
4.39
[.173 in] FLAT
n
6.00
[.236 in]
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
ISOMETRIC
ON
2-3
OFF
OPEN
ON
2-1
POS. 1
25
~
5.59
[.220 in]
POS. 2
POS. 3
4.93
[.194 in]
n
[.100 in]
2.54
2
1
3
RATING
(E-SWITCH LOGO
ON OPPOSITE
SIDE)
9.02
[.355 in]
CIRCUIT: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: GOLD
5. RATING: 0.4VA MAX. @20V MAX. AC OR DC
6. CONTACT RESISTANCE: 20 Mille-Ohms Max.
7. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
10. OPERATING TEMP.: -30°C to 85°C
11.
DENOTES CRITICAL PARAMETER.
12. 2002/95/EC (ROHS) COMPLIANT.
1
.51
[.020 in]
2.54
[.100 in]
2
3
EPOXY
SEAL
.41
[.016 in]
.76
[.030 in]
3.30
[.130 in]
10.16
[.400 in]
5.08
[.200 in]
A
REV
18075
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
5/2/08
DATE
BLR
BY
TITLE
200MSP3T2B2VS2RE
DATE
DR
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
2:1
DWG
REV
5/2/2008
BLR
T212030
A
