FC0BSCECM24.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FC0BSCECM24.0

FC0BSCECM24.0: DescriptionParallel - Fundamental Quartz Crystal, 24MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size426KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FC0BSCECM24.0 Overview

Parallel - Fundamental Quartz Crystal, 24MHz Nom, SMD, 4 PIN

FC0BSCECM24.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	4 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	24 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	150 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

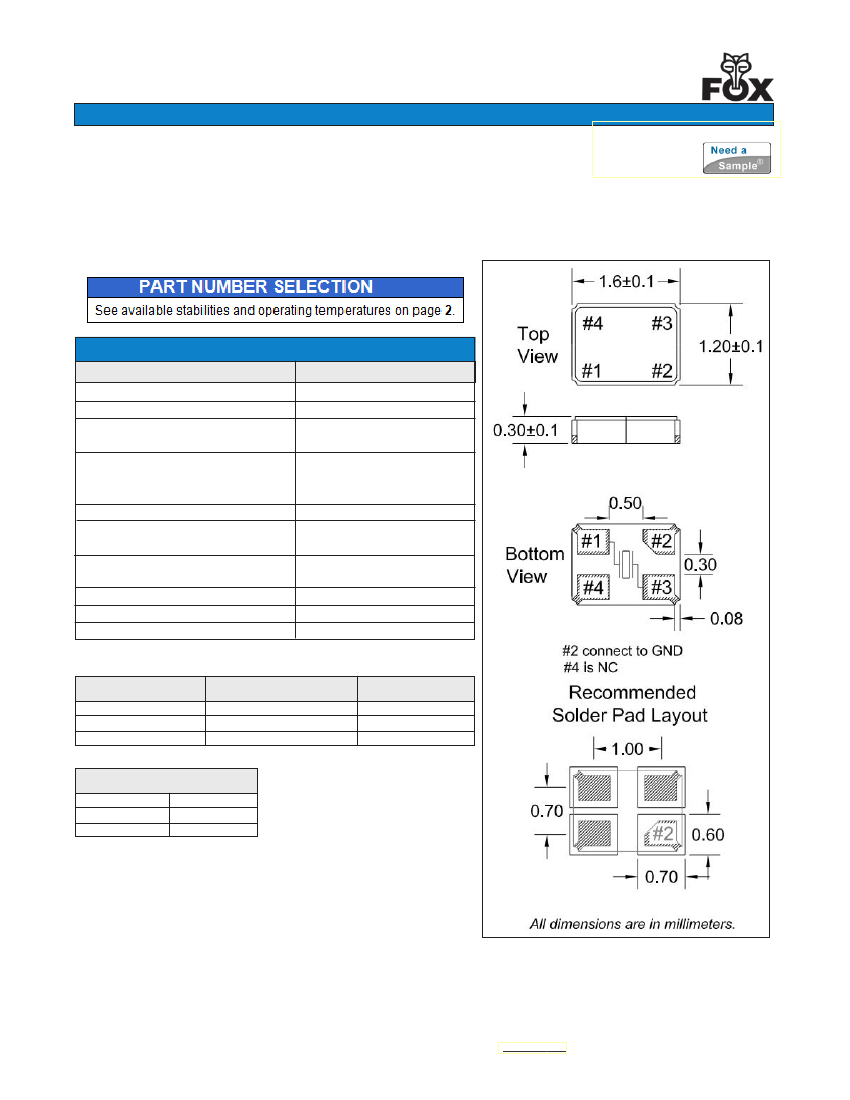

Ceramic SMD Crystal

Page 1 of

Model:

C0BS

Formerly FX1612B Series

RoHS/REACH Compliant / Pb Free

Rev.

07/03/2018

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Low Cost

• Fundamental to 80 MHz

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

24.000 ~ 80.000 MHz

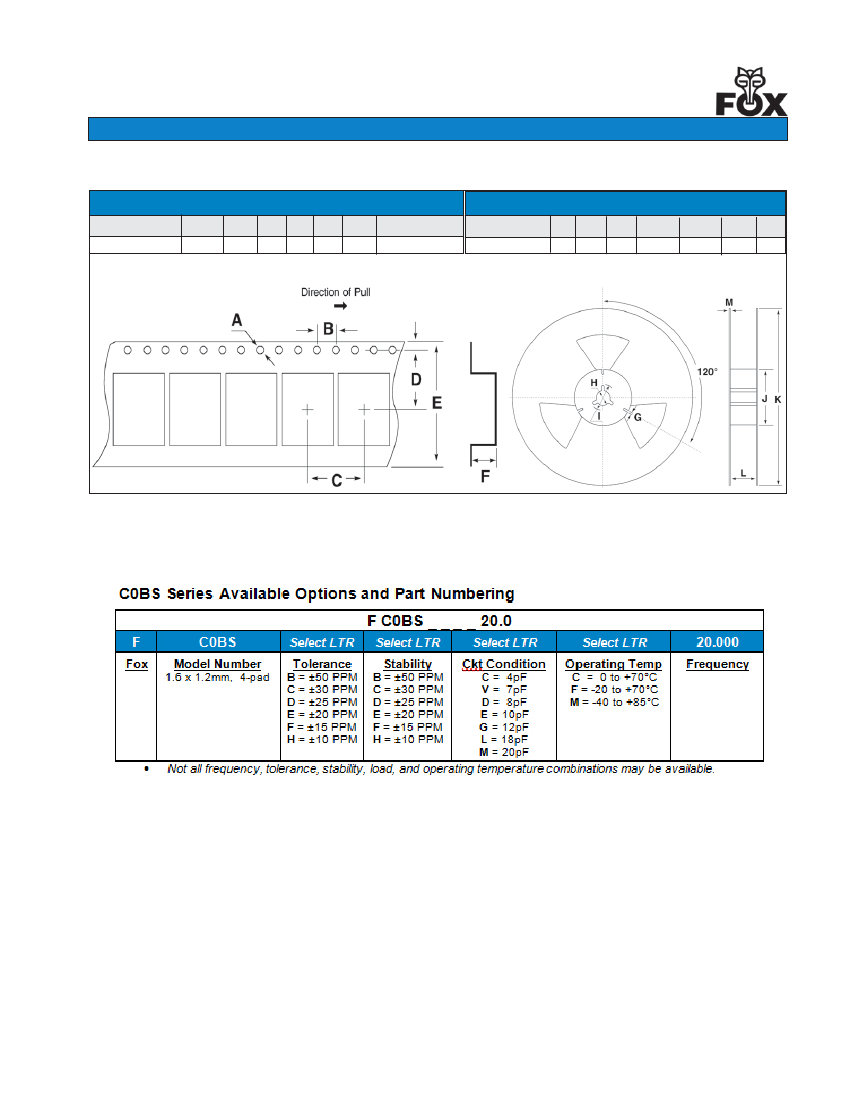

See options on page 2

-40ºC ~ +85ºC

3.0 pF

See options on page 2

(Customer Specified)

100uW

±3 PPM

260ºC / 10 Seconds

Au over Ni

Tolerances and stabilities to ±10PPM, operating temps to -40ºC ~ +85ºC available.

Frequency Range

(MHz)

24.000 ~ 29.999999

30.000 ~ 31.999999

32.000 ~ 80.000

Operating Mode

Fundamental

Max ESR

Ω

150

120

100

Developed Frequencies (MHz)

24.000

27.000

38.400

26.000

32.000

40.000

Does not imply a stocked part.

Note: Dimensional drawing is for reference to critical specifications defined by size measure-

ments. Certain non-critical visual attributes, such as side castellations, reference pin shape,

reference pin location, etc. may vary.

The above specifications, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies. All specifications subject to change without notice.

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554
