Spec Sheet
Medium-High Voltage Multilayer Ceramic Capacitors
HMK105CG120JV-F
Features
Item Summary
12pF±5%, 100V,
C0G/CG, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
12 pF ± 5 %
0402/1005
100 V
640 at 1MHz
C0G
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.10.03
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

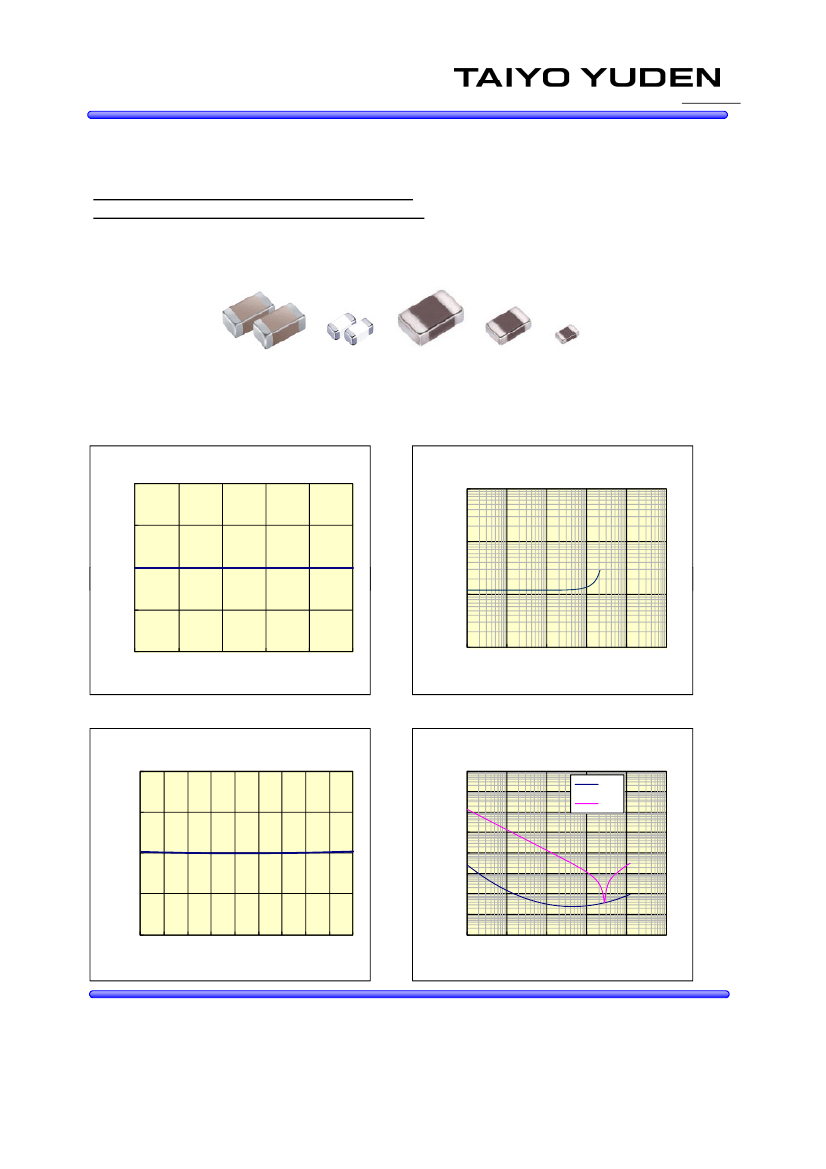

Multi Layer Ceramic Capacitor
○HMK105CG120JV
100V 1005 CG/C0G 12pF +/- 5% t=0.55mmMAX
100V 0402 CG/C0G 12pF +/- 5% t=0.022inchMAX
-Electrical Characteristics Data-
16CDD06
RoHS compliance product
10
HMK105CG120JV
DC Bias Char.
1000
HMK105CG120JV
Capa citance Freq.
5
Capa cita nce[pF]
apa
n
100
dC/C
dC/C[%]
0
10
-5
-10
0
20
40
60
80
DC Bias Voltage[V]
100
1
1
10
100
1000
10000 100000
Frequency[MHz]
HMK105CG120JV
Capacitance Temp.
10
1000000
100000
5
10000
HMK105CG120JV
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-5
-10
0.01
1
10
100
1000 10000 100000
Frequency[MHz]
