Spec Sheet
CERAMIC CAPACITORS
Medium-high Voltage Multilayer Ceramic Capacitors
HMK107B7153MA-T
Features
Item Summary
100V, X7R, 0.015μF, ±20%, 0603
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0603/1608
100V
0.015μF
±20%
100 MΩ・μF min.
3.5%MAX
X7R/-
-55 to +125℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
1.6mm ±0.10
0.8mm ±0.10
0.8mm ±0.10
0.35mm ±0.25
2015.01.05
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

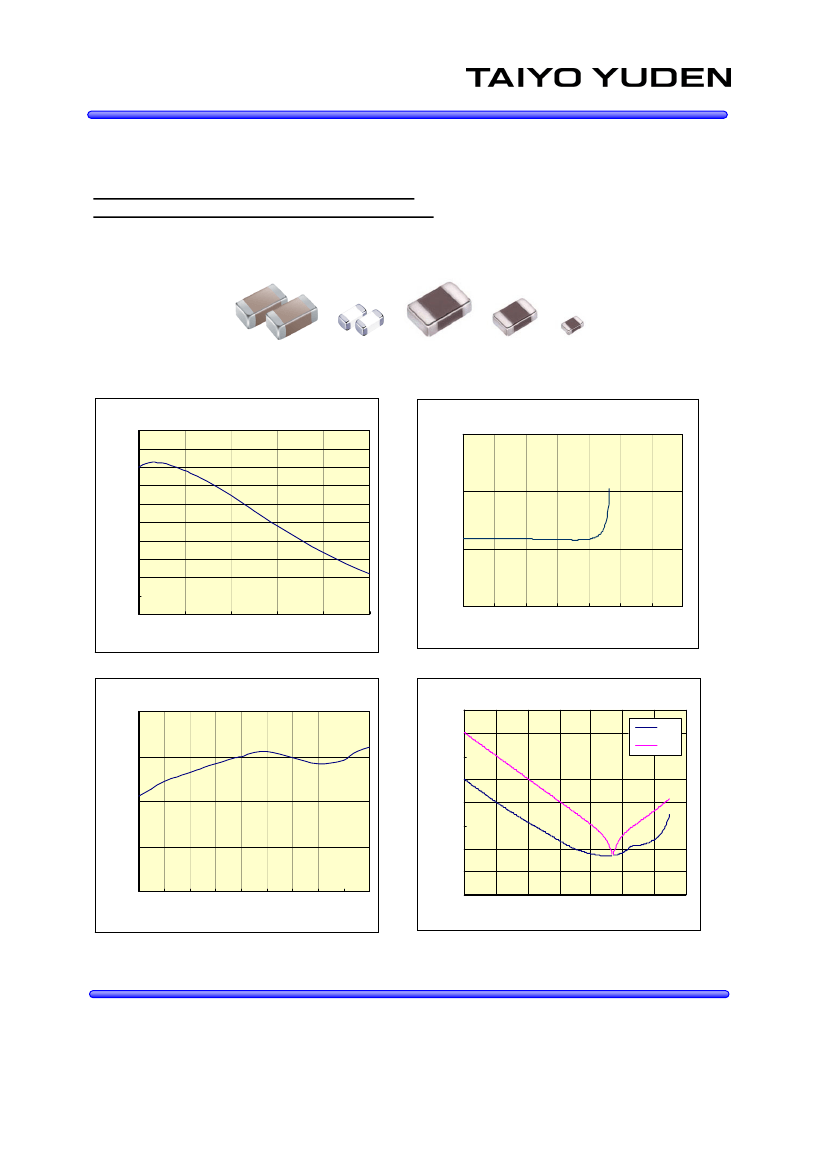

Multi Layer Ceramic Capacitor
○HMK107B7153MA
100V 1608 X7R 0.015uF +/-20% t=0.9mmMAX
100V 0603 X7R 0.015uF +/-20% t=0.035inchMAX
-Electrical Characteristics Data-
Jan-2011
RoHS compliance product
20
10
0
-10
HMK107B7153MA
DC Bias Char.
1
HMK107B7153MA
Capacitance Freq.
Capacitance[uF] .
0.1
dC/C[%]
-20
-30
-40
-50
-60
-70
-80
0
20
40
60
80
100
0.01
0.001
0.001
0.01
0.1
1
10
100
1000 10000
DC Bias Voltage[V]
Frequency[MHz]
10
HMK107B7153MA
Capacitance Temp.
100000
10000
HMK107B7153MA
Impedance,ESR Freq.
ESR
Z
0
1000
Z,ESR[OHM] .
-55
-35
-15
5
25
45
65
85
105
125
dC/C[%]
100
10
1
0.1
0.01
-10
-20
-30
0.001
0.001
0.01
0.1
1
10
100
1000 10000
Temperature[degreeC]
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
