2SC4980_2015: DescriptionSilicon NPN Power Transistors; File Size36KB，3 Pages; ManufacturerJinmei; Websitehttp://www.jmnic.com/

Download Datasheet Compare View All

2SC4980_2015 Overview

Silicon NPN Power Transistors

Preview

Download Datasheet

View All

JMnic

Product Specification

Silicon NPN Power Transistors

2SC4980

DESCRIPTION

・With

ITO-220 package

・Switching

power transistor

・Low

collector saturation voltage

PINNING

Base

Collector

Emitter

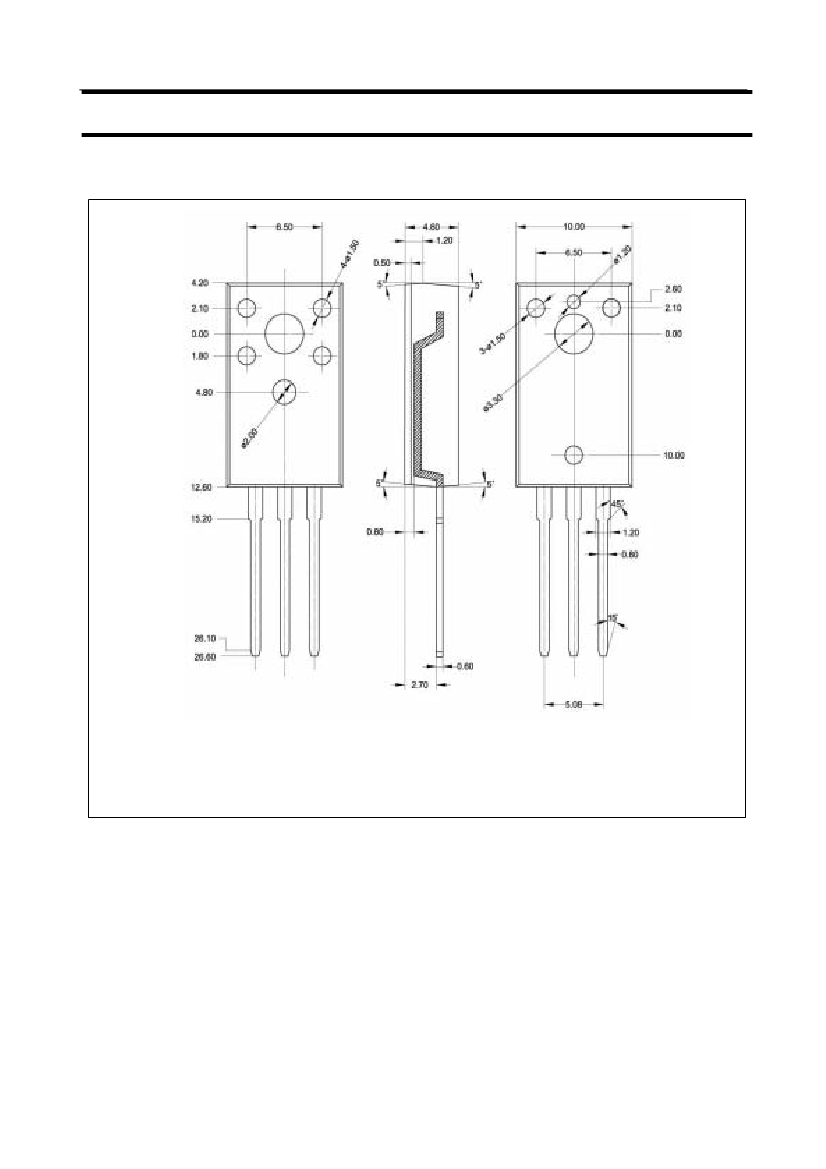

Fig.1 simplified outline (ITO-220) and symbol

DESCRIPTION

Absolute maximum ratings(Ta=25

℃)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector current-Peak

Base current

Base current-peak

Total power dissipation

Junction temperature

Storage temperature

=25℃

Open emitter

Open base

Open collector

CONDITIONS

VALUE

100

1.5

150

-55~150

UNIT

℃

THERMAL CHARACTERISTICS

SYMBOL

th j-C

PARAMETER

Thermal resistance junction case

MAX

5.0

UNIT

℃/W
