SHEET 1 OF 1
1.53
[.060 in]

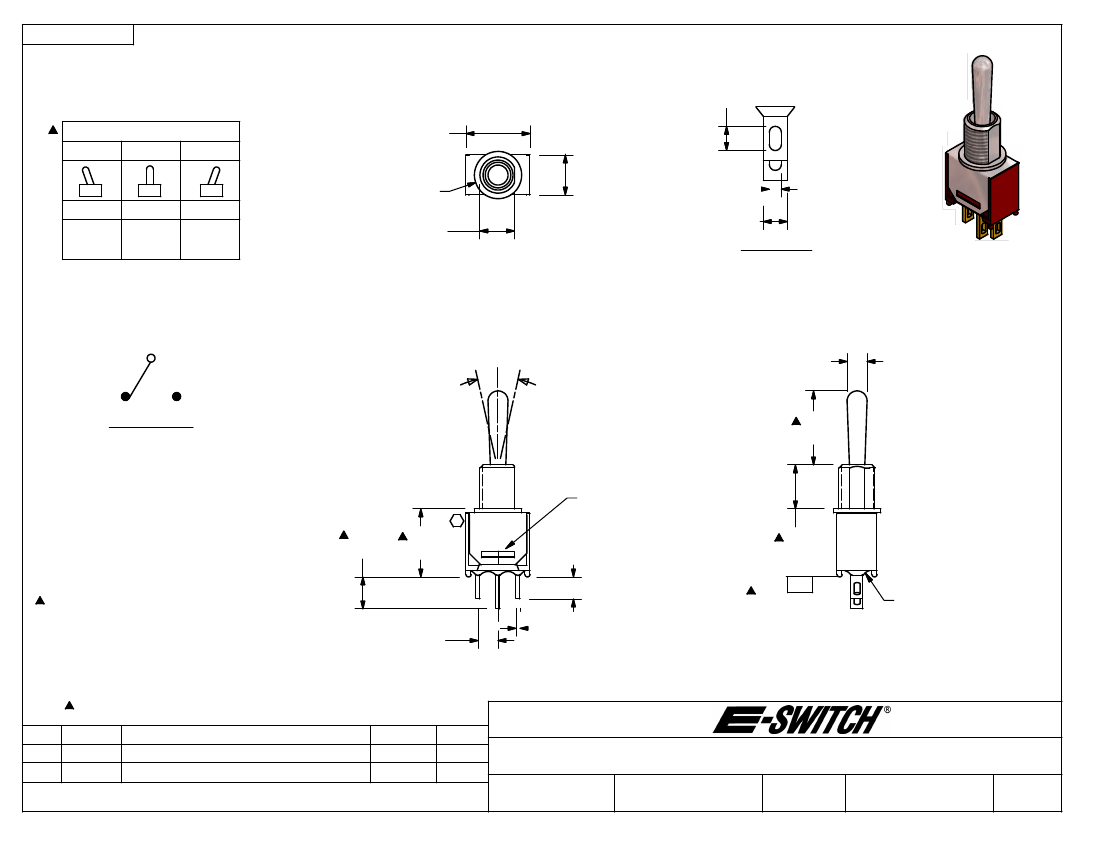

SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
8.13
[.320 in]
5.08
[.200 in]
(ON)
2-3
OFF
OPEN
(ON)
2-1
[.236 in]
4.39 FLAT
[.173 in]
6.00
.76
[.030 in]
1.52
[.060 in]
SOLDER LUG
2
POS. 1
25
1
3
CIRCUIT: SPDT
POS. 2
POS. 3
2.54
[.100 in]
9.40
[.370 in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
4.06
8.64
3. TERMINAL NUMBERS FOR REF ONLY
[.160 in] [.340 in]
4. CONTACT MATERIAL: SILVER
5. RATING: 1A @ 250 VAC
3A @ 120 VAC OR 28 VDC
6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
2.54
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
[.100 in]
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
E-SWITCH MARKING
ON OPPOSITE SIDE
D
2.80
[.110 in]
5.59
[.220 in]
-C-
NO EPOXY ON TERMINALS
BELOW THIS SURFACE
1
2
3
.51
[.020 in]
EPOXY SEAL
D
C
REV
21628
16455
PCR NO
REMOVED (ON) OFF (ON) FROM DRAWING
REDRAWN IN INVENTOR FORMAT
DESCRIPTION
10/15/14
9/13/06
DATE
AS
BO
BY
TITLE
SCALE
200MSP4T1B1M1QE
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
9/13/2006
DR
BO
DWG
T211047
REV
D
