SHEET 1 OF 1
B
5.08
[.200 in]
2.54
[.100 in]
n
1.09
[.043 in]

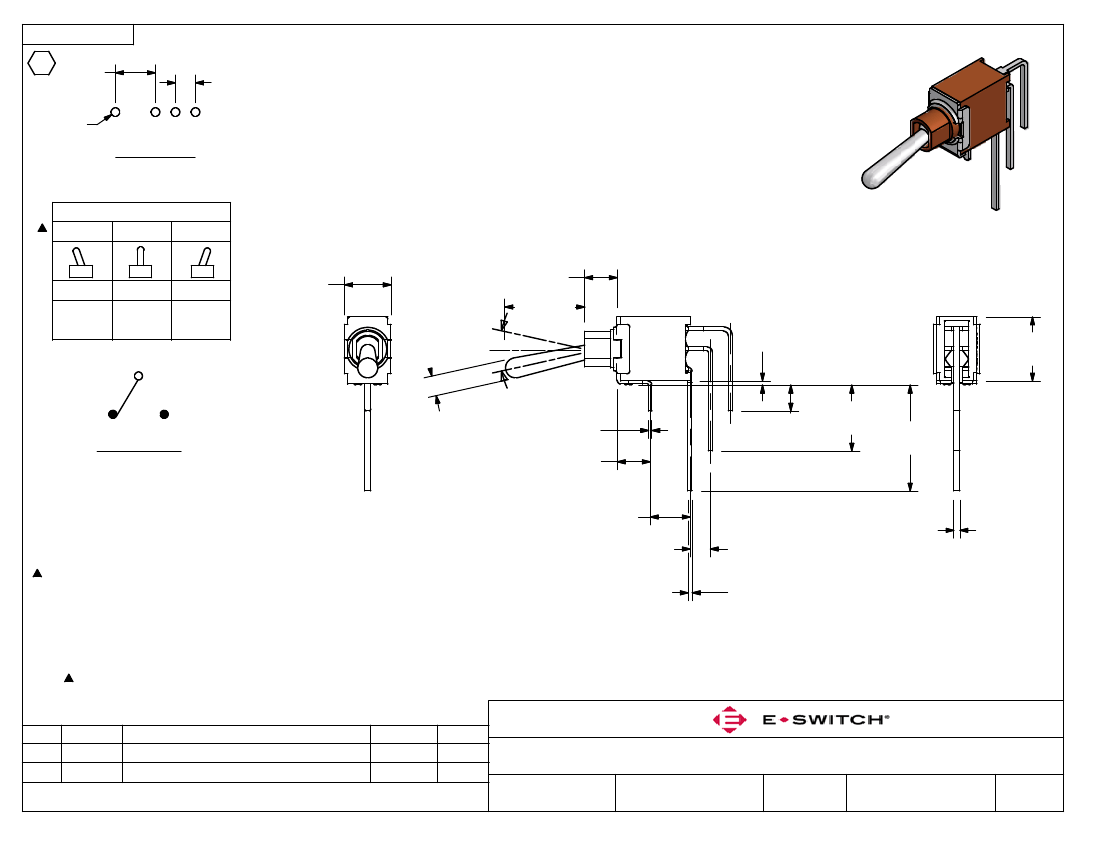

PC MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
ON
2-3
NONE
OPEN
ON
2-1
5.90
[.232 in]
POS. 3
n
2.54
4.11
[.162 in]
10.14
[.399 in]
.51
[.020 in]
8.13
[.320 in]
2
[.100 in]
POS. 1
25
~
3
8.38
[.330 in]
1
3
.41
[.016 in]
4.19
[.165 in]
1
2
3.30
[.130 in]
CIRCUIT: SPDT
13.46
[.530 in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 3 AMPS @120VAC OR 28VDC
1 AMP @250VAC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
5.08
[.200 in]
2.54
[.100 in]
.51
[.020 in]
.76
[.030 in]
B
A
REV
21449
14703
PCR NO
CORRECT PC MOUNTING
RELEASED FOR PRODUCTION
DESCRIPTION
4/30/14
2/18/05
DATE
EBP
AR
BY
TITLE
200AWMSP1T1A1M7QE
2:1
DATE
DR
DWG
REV
