ATC 800 R Series
NPO Ceramic, High RF Power
Lowest ESR
Multilayer Capacitors
• Case R Size
(.070" x .090")
• Rugged, reliable
NPO dielectric
• Optimized for highest
self resonant frequency
• Capacitance Range
1 pF to 100 pF
• Optimized for lowest ESR
and superior heat transfer
• Capable of highest
RF Power
• RoHS Compliant / Lead-Free
ATC’s 800 R Series offers superb performance in demanding high RF
power applications requiring consistent and reliable operation. The
combination of optimized case geometry, highly conductive electrode
formulations and proprietary dielectrics, yields the lowest ESR and
superior heat transfer. ATC’s new NPO low loss rugged dielectrics are
designed to provide superior heat transfer in high RF power applications.
Ultra-low ESR and superior thermal performance ensure that the 800 R
Series products are your best choice for high RF power applications from
UHF through microwave frequencies.
Typical applications: WiMAX / LTE*, Homeland Security / Public Safety
Radio (APCO-25), Satellite Systems, Avionics, Digital HD FM Transmitters,
Digital HDTV Transmitters, Microwave Communications and Medical
Electronics.
Typical circuit applications: High RF Power Filter Networks, Combiners,
Couplers, Matching Networks, Output Coupling, Antenna Coupling, and
DC Blocking and Bypassing.
* Long term evolution
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
2,000 @ 1 MHz
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
1 pF to 100 pF:
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
WORKING VOLTAGE (WVDC):
500 WVDC
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
Case R: 250% of rated WVDC for 5 secs
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLES:
RoHS Compliant and Solder Plate
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 5
lbs. min., 15 lbs. typical, for 5 seconds in direction perpendicular to the
termination surface of the capacitor. Test per MIL-STD-202, Method 211.
ENVIRONMENTAL TESTS
ATC 800 R Series Capacitors are designed and manufactured to meet and
exceed the requirements of EIA-198, MIL-PRF-55681 and MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while
subjected to an environment of 85°C with 85% relative humidity for 240
hours min.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C
200% WVDC applied
ATC # 001-1029 Rev. G; 10/10
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors
ATC 800 R Capacitance Values
CAP.
CODE
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
CAP.
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
TOL.
RATED
WVDC
CAP.
CODE
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
CAP.
(pF)
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
TOL.
RATED
WVDC
CAP.
CODE
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
CAP.
(pF)
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
TOL.
RATED
WVDC
B, C, D
B, C, D
500
B, C, J,
K, M
500
G, J
K, M
500
G, J
K, M
VRMS = 0.707 X WVDC
SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
ATC PART NUMBER CODE
ATC800 R 10 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
J T
500 T
Packaging
T - Tape and Reel, 500 and 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
WVDC
Termination Code
CAPACITANCE TOLERANCE
Code
Tol.
B
C
D
G
J
K
M
±0.1 pF ±0.25 pF ±0.5 pF ±2% ±5% ±10% ±20%
The above part number refers to a 800 R Series (case size R) 10 pF capacitor, J tolerance (±5%), 500 WVDC, with T termination (Tin Plated over Nickel Barrier,
RoHS Compliant), and tape and reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the “ATC”
prefix. Both methods of defining the part number are equivalent, i.e., part numbers
referenced with the “ATC” prefix are interchangeable to parts referenced without the
“ATC” prefix. Customers are free to use either in specifying or procuring parts from
American Technical Ceramics.
For additional information and catalogs contact your ATC representative
or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
+1-631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
2
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors
ATC 800 R Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
T
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
.115
(2.92)
max.
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
MATERIALS
800R
T
R
Solderable Nickel
Barrier
Y
L
W
.070 ±.015 .090 ±.010
(1.78 ±0.38) (2.29 ±0.25)
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
800R
W
R
Solder Plate
L
T
W
.070 ±.015 .090 ±.010
(1.78 ±0.38) (2.29 ±0.25)
.115
(2.92)
max.
Tin /Lead, Solder Plated over
Nickel Barrier Termination
ATC 800 R Non-Magnetic Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
T
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
.115
(2.92)
max.
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
MATERIALS
800R
TN
R
Non-Mag
Solderable Barrier
L
W
.070 ±.015 .090 ±.010
(1.78 ±0.38) (2.29 ±0.25)
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier Termination

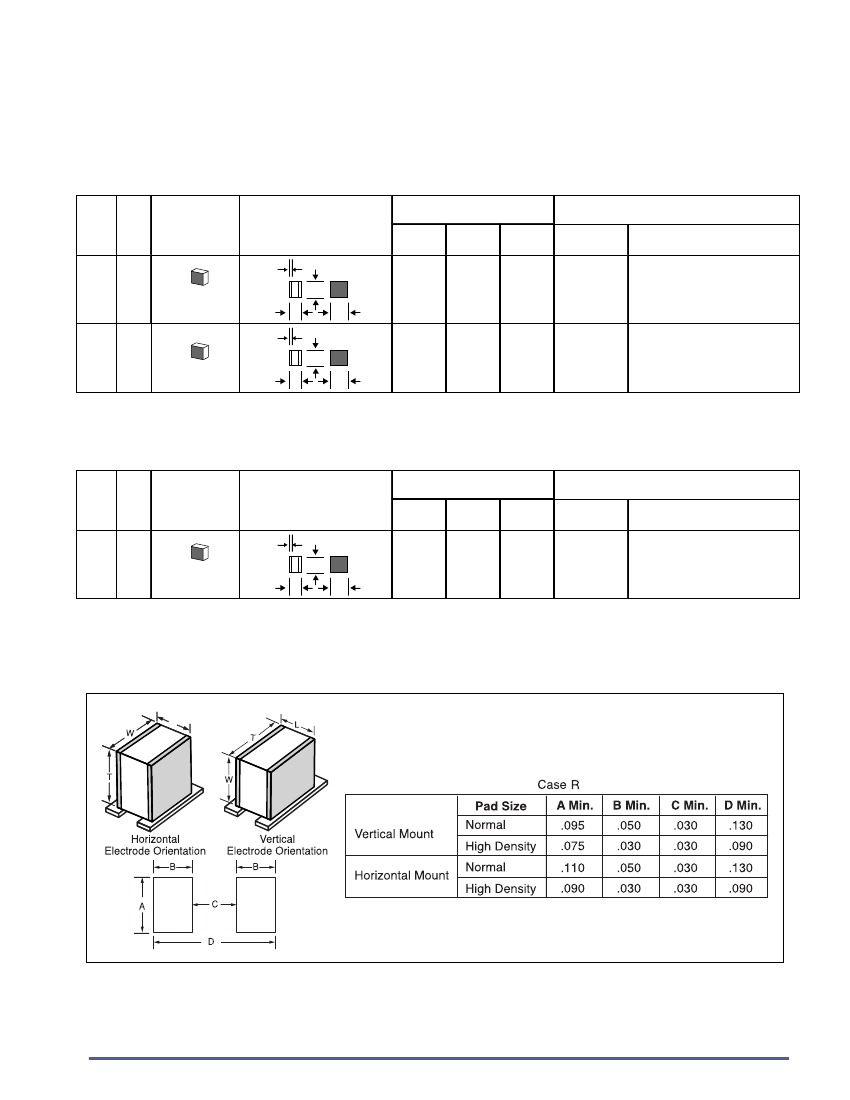

Suggested Mounting Pad Dimensions
W
L
T
A M E R I C A N
ATC North America
+1-631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
3
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors
1.00
800 R

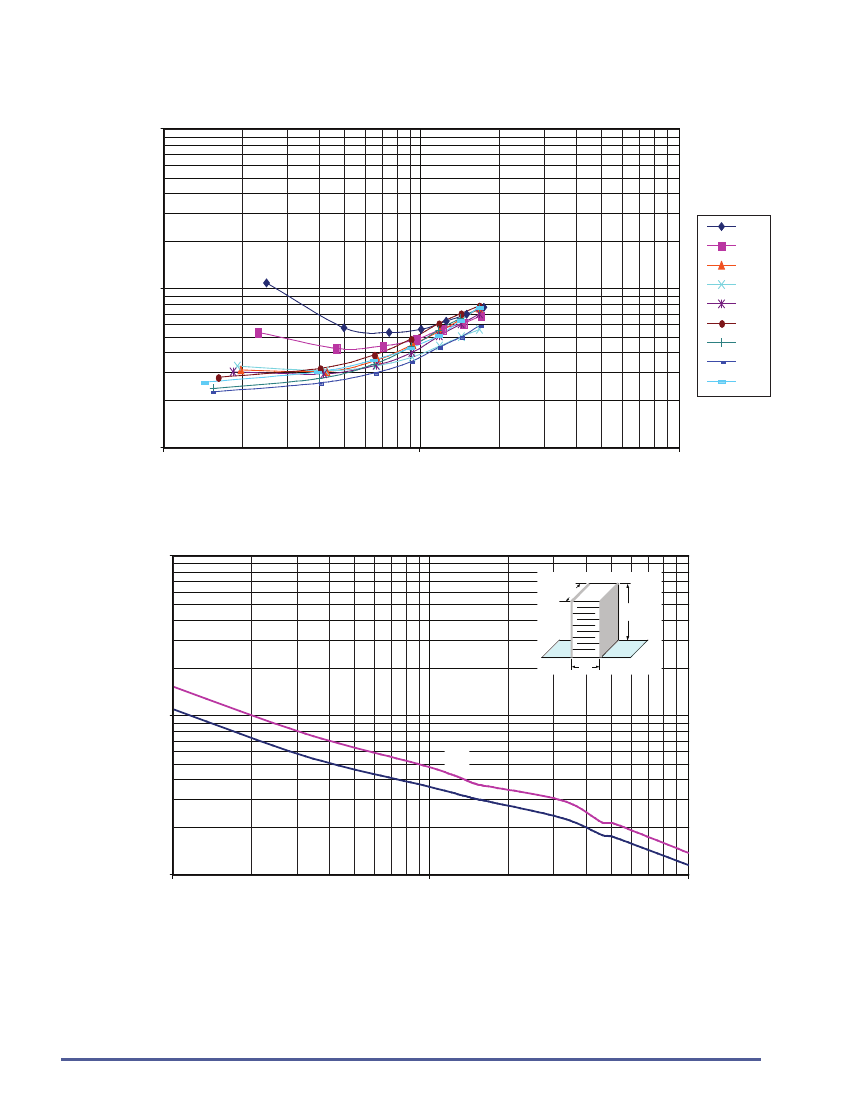

ESR vs. Frequency
1.0 pF
3.3 pF
10 pF
ESR (Ohms)
0.10
12 pF
15 pF
33 pF
47 pF
51 pF
100 pF
0.01
100
1000
10000
Frequency (MHz)
100
800 R Resonance
Horizontal Orientation
W
T
L
Frequency (GHz)
10
Fpr
Fsr
1
1.0
10.0
100.0
Capacitance (pF)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. A 10/03).
Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for
Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties
which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
© 2005 American Technical Ceramics Corp. All Rights Reserved
ATC # 001-1029 Rev. G 10/10
A M E R I C A N
ATC North America
+1-631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
4
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
