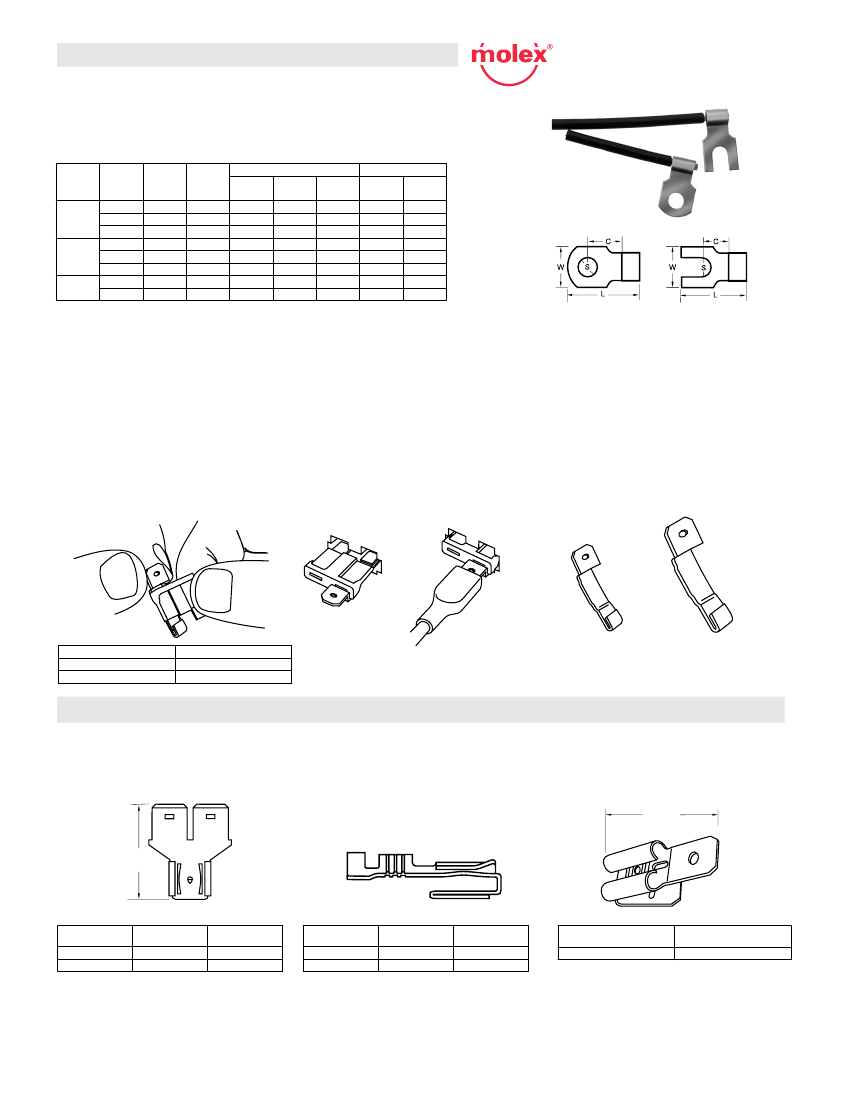

FEATURES AND SPECIFICATIONS

The barrel a of the ﬂag terminal is at right angles to the

tongue, rather than being “in line”. Therefore, a ﬂag terminal

ﬁts on its wire like a ﬂag on a ﬂagpole.

Material: Copper

Flag Terminals -

Ring and Spade

Wire

Range

AWG/mm

22-16

(0.3-1.2)

16-14

(1.2-2.0)

12-10

(3.0-6.0)

Stud

Size

5-6 (3-3.5)

8(4)

10-(-)

5-6 (3-3.5)

8(4)

10-(-)

8(4)

10-(-)

Max.

Width

.380 (9.7)

Min.

Clearance

.295 (7.5)

Krimptite® Ring

Mylar Tape Length

Order No.

19041-0001 19041-0002 .635 (16.1)

19041-0003 19041-0004 .635 (16.1)

19041-0005

.635 (16.1)

19041-0007

.666 (16.9)

19041-0009

.666 (16.9)

19041-0012

.666 (16.9)

19041-0014

.725 (18.4)

19041-0015

.725 (18.4)

Krimptite® Spade

Length

Order No.

19042-0006 .666 (16.9)

19042-0008 .666 (16.9)

19042-0013 .718 (18.2)

Now you can tap the hot side of ﬂat automotive fuseblocks to

add an additional circuit quickly and easily. Radios and other

add-on accessories can be connected with little trouble or

expense. Simply slip the bent end of the Fuse Tap Adapter

over one leg (Fig. 1) of an ATC fuse and insert the fuse into

the hot side of the fuseblock. After insertion, the male tab will

protrude from the fuseblock (Fig. 2). To tap into the block for

a new circuit, simply slip a crimped fully insulated .250

female quick disconnect onto the tab (Fig. 3).

Fuse Tap Adapter and

Mini Fuse Tap Adapter

19043-0007

Fig. 1

Description

Fuse Tap Adapter

Mini-Fuse Tap Adapter

Order No.

19043-0011

19043-0007

19043-0011

Fig. 2

Fig. 3

Tab Adapters

.735

(18,7)

.810

(20,6)

Tab Size

.250 x .032

.187 x .020

Unplated

Order No.

19043-0001

19043-0009

Plated

Order No.

19043-0020

Tab Size

.250 x .032

Wire

Range

22-16 AWG

18-12 AWG

Order

No.

19043-0002

19043-0012

Tab Size

.250 x .032

Order

No.

19043-0010

Make two tabs from one when an add-on circuit is needed

Material: .032 Brass

For Power Block 1/4” tab. Bent back is for extra connection.

Two male blade angles: 10” bend-up; 120° bend-back; 1/4”

blade width converts one Power Block 1/4” tab to two tabs.
