3191BA822M020BJS1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3191BA822M020BJS1

3191BA822M020BJS1: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 20V, 8200uF, STUD MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size77KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

3191BA822M020BJS1 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 20V, 8200uF, STUD MOUNT, CAN, ROHS COMPLIANT

3191BA822M020BJS1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	8200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	18.2 mΩ
Manufacturer's serial number	3191
Installation features	STUD MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	20 V
ripple current	7800 mA
surface mount	NO
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

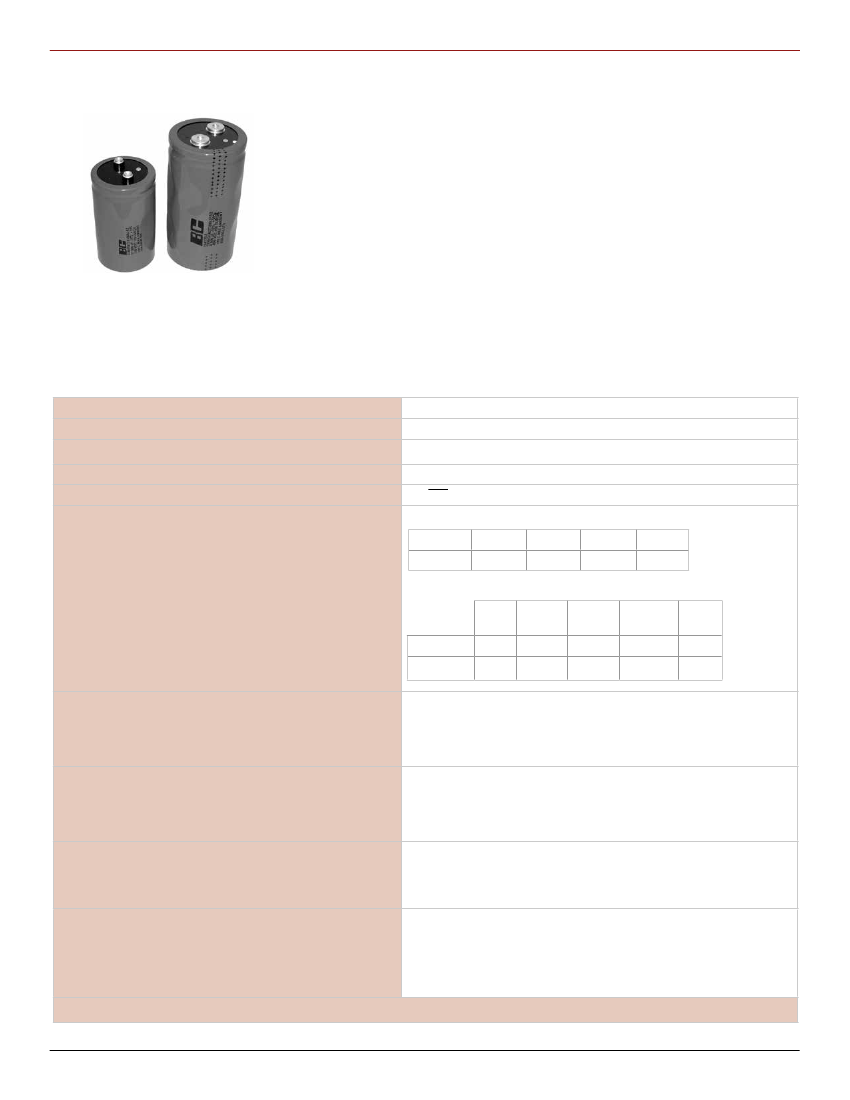

Type 3191, Aluminum Electrolytic Screw Terminal

Screw Terminal Capacitors for Power Output Filtering

The low ESR of Type 3191 capacitors makes them a great choice for

output filtering in switching and audio power supplies. It’s available

with the capacitor element potted in place for lowest cost or secured

by rill, spoon shaped dimples in the side of the can. Rilled construction

offers high vibration and shock withstanding and excellent heat

transfer for higher ripple current.

Highlights

- Stud mount available

- High current application

- Industrial applications

- Smoothing and filtering

- Audio power supplies

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

–40 ºC to +85 ºC

7.5 Vdc to 55 Vdc

2700 µF to 150000 µF

–10 to + 30%; –10 to +50%; ±20%

≤6√CV µA (6 mA max.) at 5 minutes

Ambient Temperature

45 °C

2.24

Frequency

60 Hz 120 Hz

16 – 100 V

0.90

1.00

200 – 500 V

0.90

300 Hz

1.15

1.25

1000 Hz

1.25

1.40

≥10

kHz

1.30

1.50

55 °C

2.00

65 °C

1.73

75 °C

1.41

85 °C

1.00

Low Temperature Characteristics

Impedance ratio: Z

–20 ⁰C

∕ Z

+25 ⁰C

≤ 8 (16–50 Vdc)

≤ 4 (63–100 Vdc)

≤ 3 (150–500 Vdc)

1,500 h @ full load at 85 °C

∆Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

500 h @ 85 °C

∆Capacitance ±10%

ESR 175% of limit

DCL 100% of limit

10 to 500 Hz, 0.75 mm or 10 g* if less,

3 directions, 2 h ea

Δ Capacitance: ±5%

no visible damage or leakage

*15 g if rilled construction

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration
