S2303
THRU
S2336
Technical Data
Data Sheet N0291, Rev. A
S2303 THRU S2336 TVS ARRAY SERIES
Description
The S23XX series of TVS array have been
designed to provide unidirectional or bidirectional
protection for sensitive electronics from damage
due to voltage transients caused by electrostatic
discharge (ESD), electrical fast transients (EFT),
secondary lightning and other voltage-induced
transient events. The device can be used to
protect 2 unidirectional or 1 bidirectional data line
or interface line.
SOT-23

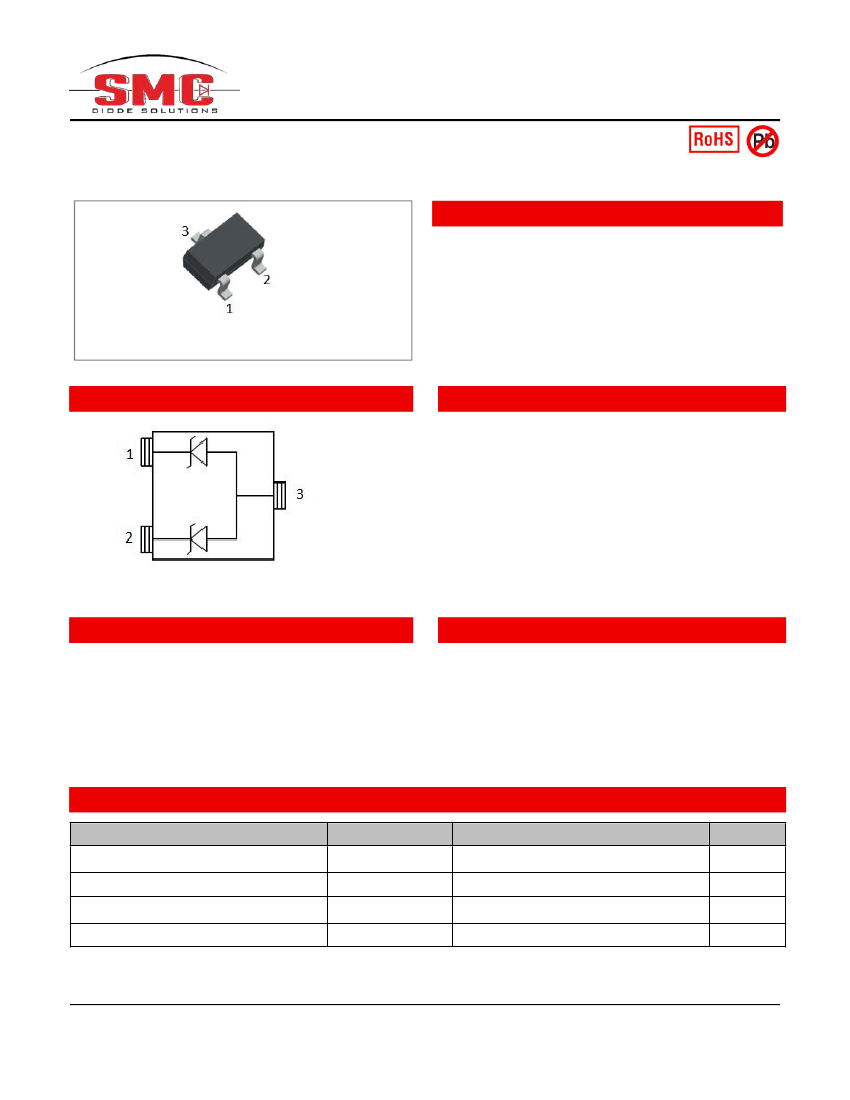

Schematic & Pin Configuration
Features
Protects 3.3, 5, 12, 15, 24 , 36V Components
Unidirectional or Bidirectional
Low Leakage
Provides Electrically Isolated Protection
300 W @ 8/20 us
Protects 1 or 2 Lines
SOT-23 Packaging
“-A” is an AEC-Q101 qualified device
This is a Pb - Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Characteristics
SOT-23 Surface Mount Package
Approximate Weight: 0.015 grams
PIN #1 Indicator: DOT on top of package
Packaging: Tape and Reel Per EIA 481
Application
RS-232, RS-422 & RS-423
Cellular Handsets & Accessories
Universal Serial Bus (USB) Port Protection
Portable Electronics
LAN/WAN Equipment
Wireless Bus Protection
Absolute Maximum Ratings:
Parameter
Peak Pulse Power, 8/20 μs Wave shape
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Symbol
P
T
J
T
stg
T
L
Value
300
-55 to +125
-55 to +150
260 (10 Sec.)
Units
W
C
C
C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
S2303
THRU
S2336
Technical Data
Data Sheet N0291, Rev. A
Electrical Characteristics
@25°C
Stand-off
Voltage
Vwm
(V)
Max
3.3
5.0
12.0
15.0
24.0
36.0
Breakdow
n
Voltage
V
BR
@1mA
(V)
Min
4
6
13.3
16.7
26.7
40.0
Clamping
Voltage
Vc
@1A
(V)
Max
8
10.8
19
25
44
60
Leakage
Current
I
R
@ Vwm
(uA)
Max
200
20
0.1
0.1
0.1
0.1
Capacitance
(f = 1MHz)
C@ 0V
(pF)
Pin 1-3
or 2-3
Max
600
400
160
130
80
50
Capacitance
(f = 1MHz)
C@ 0V
(pF)
Pin 1- 2
Max
300
200
80
65
40
28
Part Number
S2303
S2305
S2312
S2315
S2324
S2336

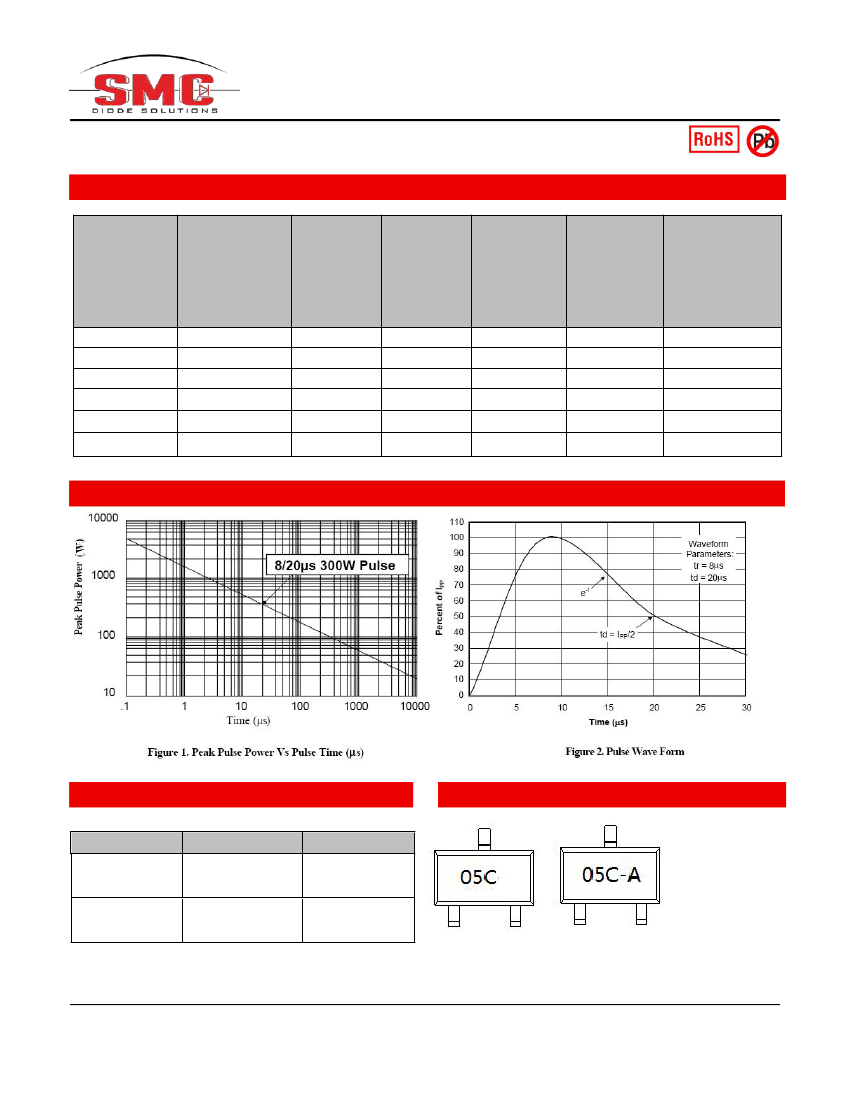

Ratings and Characteristics Curves
Ordering Information
Device
S2303
THRU
S2336
S2303TR
THRU
S2336TR
Marking Diagram
Shipping
3000pcs / reel
3000pcs / reel
05C
A
Where 05C is S2305
= Part Number
= AEC-Q101
Package
SOT-23
(Pb-Free)
SOT-23
(Pb-Free)
Cautions：Molding
resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
S2303
THRU
S2336
Technical Data
Data Sheet N0291, Rev. A

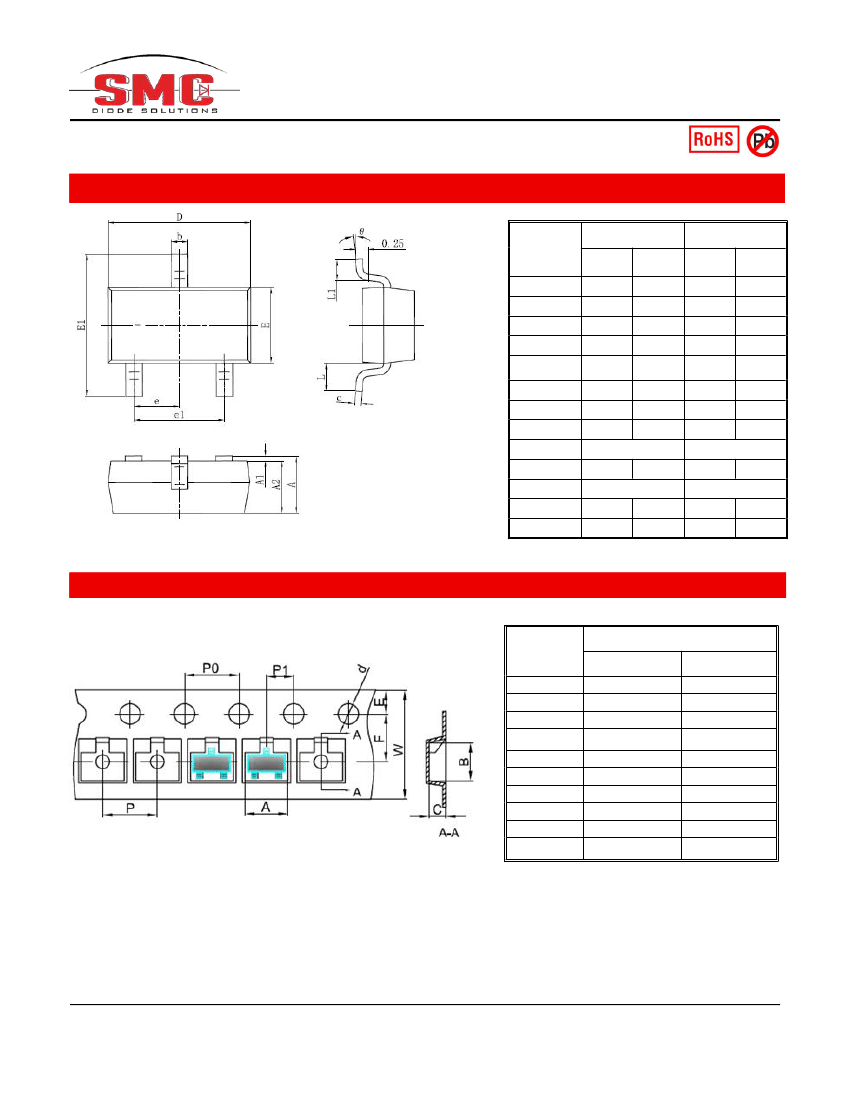

Mechanical Dimensions SOT-23
SYMBOL
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Millimeters
MIN.
0.900
0.000
0.900
0.300
0.080
2.800
1.200
2.250
1.800
0.300
0°
MAX.
1.150
0.100
1.050
0.500
0.150
3.000
1.400
2.550
2.000
0.500
8°
Inches
MIN.
0.035
0.000
0.035
0.012
0.003
0.110
0.047
0.089
0.071
0.012
0°
MAX.
0.045
0.004
0.041
0.020
0.006
0.118
0.055
0.100
0.079
0.020
8°
0.950 TYP.
0.550 REF.
0.037 TYP.
0.022 REF.
Carrier Tape Specification SOT-23
Millimeters
Min.
3.05
2.67
1.12
1.40
1.65
3.40
3.90
3.90
1.90
7.90
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
Max.
3.25
2.87
1.32
1.60
1.85
3.60
4.10
4.10
2.10
8.30
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
S2303
THRU
S2336
Technical Data
Data Sheet N0291, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
