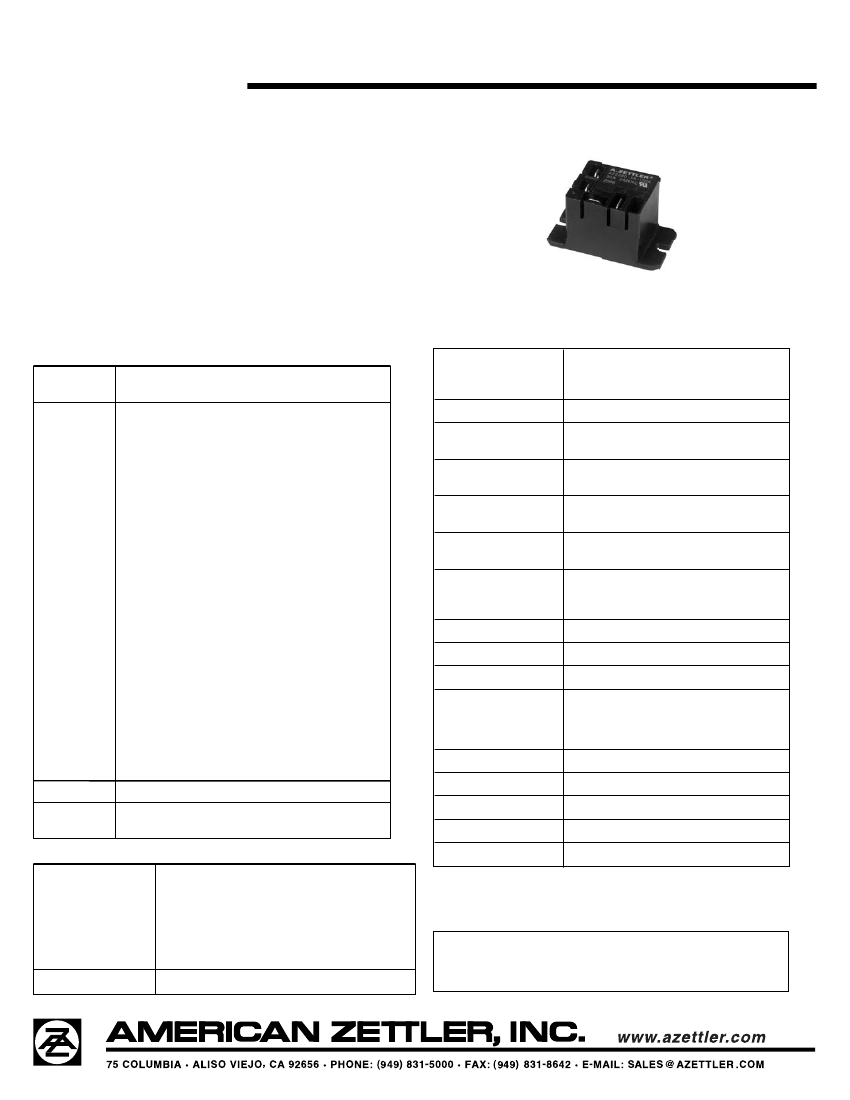

AZ2280
30 AMP MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
Quick-connect leads for contacts and coil
1 Form A, B and C contacts available
AC and DC coils available
Epoxy sealed versions available
UL Class F (155°C) standard
UL, CUR file E44211
VDE 40027037 ( DC coil only )
GENERAL DATA
CONTACTS
Arrangement
Ratings
SPST (1 Form A, or B)
SPDT (1 Form C)
Resistive load:
Max. switched power: 840 W or 8310 VA
Max. switched current: 30 A (Form A)
15 A (Form B)
Max. switched voltage: 277 VAC, 28 VDC
UL, CUR
1 Form A
30 A at 277 VAC, General Use [1][2]
28 A at 277 VAC, General Use, 100k cycles [1]
2 Hp at 250 VAC [1][2]
1 HP at 125 VAC [1][2]
30 A at 28 VDC [1]
20/60 (FLA/LRA) at 277 VAC 30k cycles [1]
1 Form B
15 A at 277 VAC, General Use [1]
10 A at 28 VDC [1]
0.5 HP at 250 VAC [1]
0.25 HP at 125 VAC [1]
10/33 (FLA/LRA) at 277 VAC 30k cycles [1]
1 Form C
30/20 A (N.O./N.C.) at 277 VAC, General Use [1][2]
20/10 A (N.O./N.C.) at 28 VDC[1]
2/0.5 HP (N.O./N.C.) at 250 VAC[1][2]
1/0.25 HP (N.O./N.C.) at 125 VAC[1][2]
20/60 (FLA/LRA) at 277 VAC 30k cycles N.O. [1]
10/33 (FLA/LRA) at 277 VAC 30k cycles N.C. [1]
VDE
Material
Resistance
Contact factory for ratings
Silver cadmium oxide [1], silver tin oxide [2]
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
5 seconds
80°C (176°F)
30 seconds
36 grams
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Minimum operations
1 x 10
7
1 x 10
5
at 30 A 120 VAC Res. N.O.
15 ms at nominal coil voltage
10 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
1500 Vrms contact to contact
(at sea level for 1 min.)
2500 Vrms contact to coil
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
1000 megohms min. at 500 VDC, 20°C
50% RH
DC: Greater than 10% of nominal coil voltage
AC: Greater than 20% of nominal coil voltage
At nominal coil voltage
-55°C (-67°F) to 85°C (185°F)
-55°C (-67°F) to 155°C (311°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, Quick Connects
Note: Allow suitable slack on leads when wiring,
and do not subject the terminals to excessive
force.
Max. Solder Temp.
270°C (518°F)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
DC: 500 mW
AC: 1.4 VA
DC: 1.7 W at 20°C (68°F)
AC: 2.7 VA at 20°C (68°F)
38°C (68°F)
Max. 155°C (311°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
9/3/10
AZ2280
RELAY ORDERING DATA
COIL SPECIFICATIONS – DC Coil
Nominal Coil
VDC
5
6
9
12
15
18
24
48
110
Nominal Coil
VAC
12
24
120
208
220/240
277
Must Operate
VDC
3.75
4.50
6.75
9.00
11.25
13.5
18.00
36.00
82.5
Must Operate
VAC
10.2
20.4
102.0
176.8
187.0
235.4
Max. Continuous
VDC
6.4
7.8
12.2
15.4
19.8
24.1
32.0
62.6
146.6
Max. Continuous
VAC
13.8
27.6
138.0
239.0
276.0
318.5
Nominal Current
mA ± 10%
185
150
93
77
59
47
36
19
8.2
Nominal Coil
Power VA
2.3
2.1
2.3
2.2
2.2/2.6
2.2
Coil Resistance
± 10%
27
40
97
155
256
380
660
2560
13450
Coil Resistance
± 10%
25
100
2,500
11,000
13,490
15,000
ORDER NUMBER*
AZ2280–1A–5DF
AZ2280–1A–6DF
AZ2280–1A–9DF
AZ2280–1A–12DF
AZ2280–1A–15DF
AZ2280–1A–18DF
AZ2280–1A–24DF
AZ2280–1A–48DF
AZ2280-1A-110DF
COIL SPECIFICATIONS – AC Coil 50/60 Hz
ORDER NUMBER*
AZ2280–1A–12AF
AZ2280–1A–24AF
AZ2280–1A–120AF
AZ2280–1A–208AF
AZ2280–1A–240AF
AZ2280–1A–277AF
*Substitute “-1B” or “-1C” in place of “-1A” for 1 Form B or 1 Form C respectively. For silver tin oxide contacts substitute “-1AE” or “-1CE” in place of “-1A” or “-
1C.” Add “T” to “-1A”, “-1AE”, “-1B”, “-1C” or “-1CE” for extended life contacts. Substitute “DEF” or “AEF” in place of “DF” or “AF” for epoxy sealed version. For
0.110 coil terminals change “F” to “KF.”

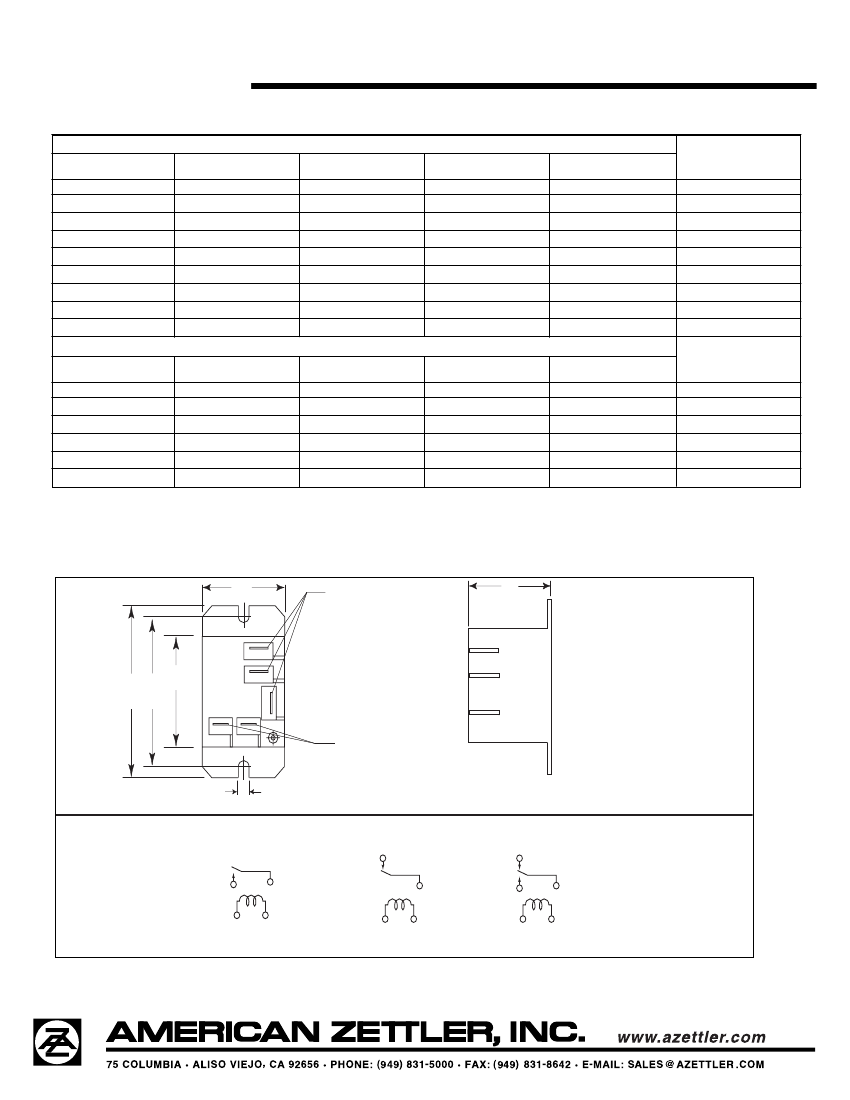

MECHANICAL DATA
1.08
(27.5)
0.25 x 0.032
±0.003
3 places
1.09
(27.8)
1.98 1.71
(50.2) (43.5)
1.27
(32.4)
0.187 x 0.02*
±0.003
2 places
0.14
(3.5)
* "K" = 0.110 x .02
WIRING DIAGRAM (Top View)
3
2
4
2
3
2
4
1
5
1
5
1
5
1 FORM A
1 FORM B
1 FORM C
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
