GRF23N2CWMLN: DescriptionRocker Switch, SPDT, Latched, Quick Connect Terminal, Curved Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size184KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

GRF23N2CWMLN Overview

Rocker Switch, SPDT, Latched, Quick Connect Terminal, Curved Type Actuator, Panel Mount, ROHS COMPLIANT

GRF23N2CWMLN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	CURVED TYPE
body width	12.4 mm
body height	22.3 mm
Body length or diameter	22.81 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	125 V
Electrical life	6000 Cycle(s)
illumination	YELLOW LAMP
JESD-609 code	e3
Manufacturer's serial number	GR
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	SPLASH PROOF
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	Tin (Sn)
Termination type	QUICK CONNECT

GRF23N2CWMLN Preview

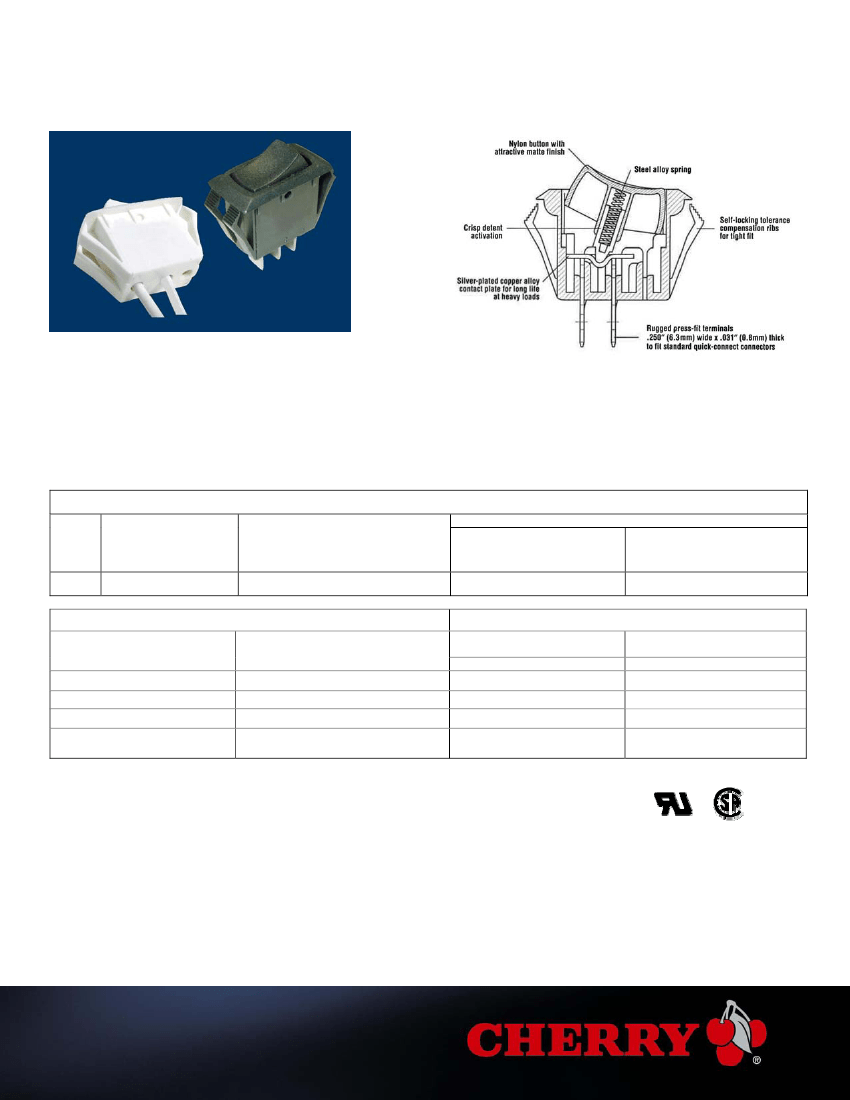

Single-Pole Rocker Switch

GR Series

Features



Optional wire leads available

Available in a variety of colors

Single and double throw options

Mechanical life: min. 50,000 operations

Electrical Ratings

Electrical Life at Rated Load

Switch

Series

EN61058 Rating

UL1054 Rating

According to VDE

(Min. Operations)

N/A

Material Specifications

15A, 125VAC; 10A, 250VAC (UL, CSA)

1000VAC for 1 minute

100M ohms min at 500VDC

.020 ohms max

-20°C to + 85°C (UL)

Actuator (non-lighted):

(lighted):

Housing:

Spring:

Contact Plate:

Terminals:

Nylon 66 94V-2

Polycarbonate

Nylon 66 94V-2

Steel Wire

Copper Alloy

Tin-Plated Copper Alloy

According to UL

(Min. Operations)

6,000

N/A

15A, 125VAC; 10A, 250VAC

Electrical Specifications

Ratings:

Dielectric Strength:

Insulation Resistance:

Initial Contact Resistance:

Temperature Range:

RoHS Compliant

UL File No: E23301

Specifications subject to change without notice.

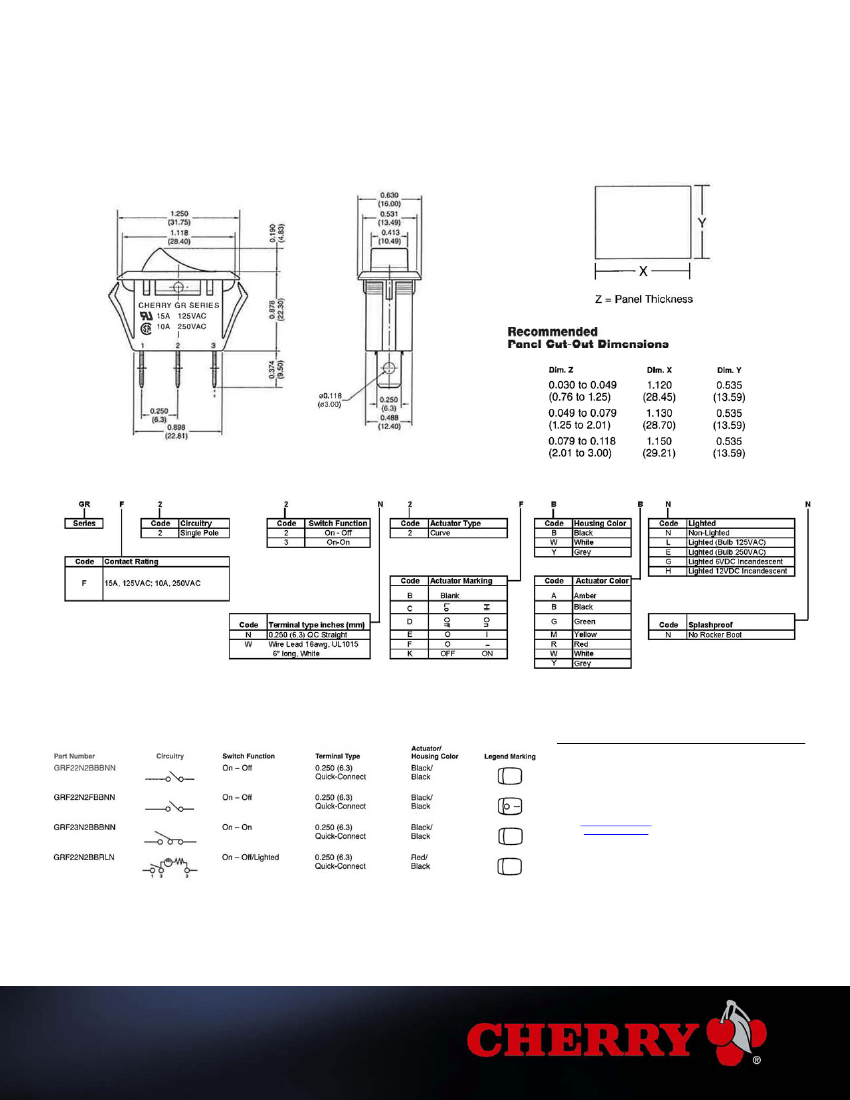

Single-Pole Rocker Switch

GR Series

Examples of Common Part Numbers and Descriptions

inches (mm)

Contact

Call, fax or visit our

Website for more information.

ZF Electronics Corporation

11200 88th Avenue

Pleasant Prairie, WI 53158

Phone: 262.942.6500

Web:

www.cherrycorp.com

Email:

cep_sales@zf.com

Fax: 262.942.6566

The manufacturer accepts no

liability for errors or non-availability,

and reserves the right to change

specifications without prior notice.

Technical data relates to product

specifications only. Features may

differ from those described. Only

drawings combined with product

specifications shall be deemed

binding.

Last Updated: 1/20/11
