T112062 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > T112062

Preview

T112062: DescriptionALL DIMENSIONS IN MM [INCH]; File Size195KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T112062 Overview

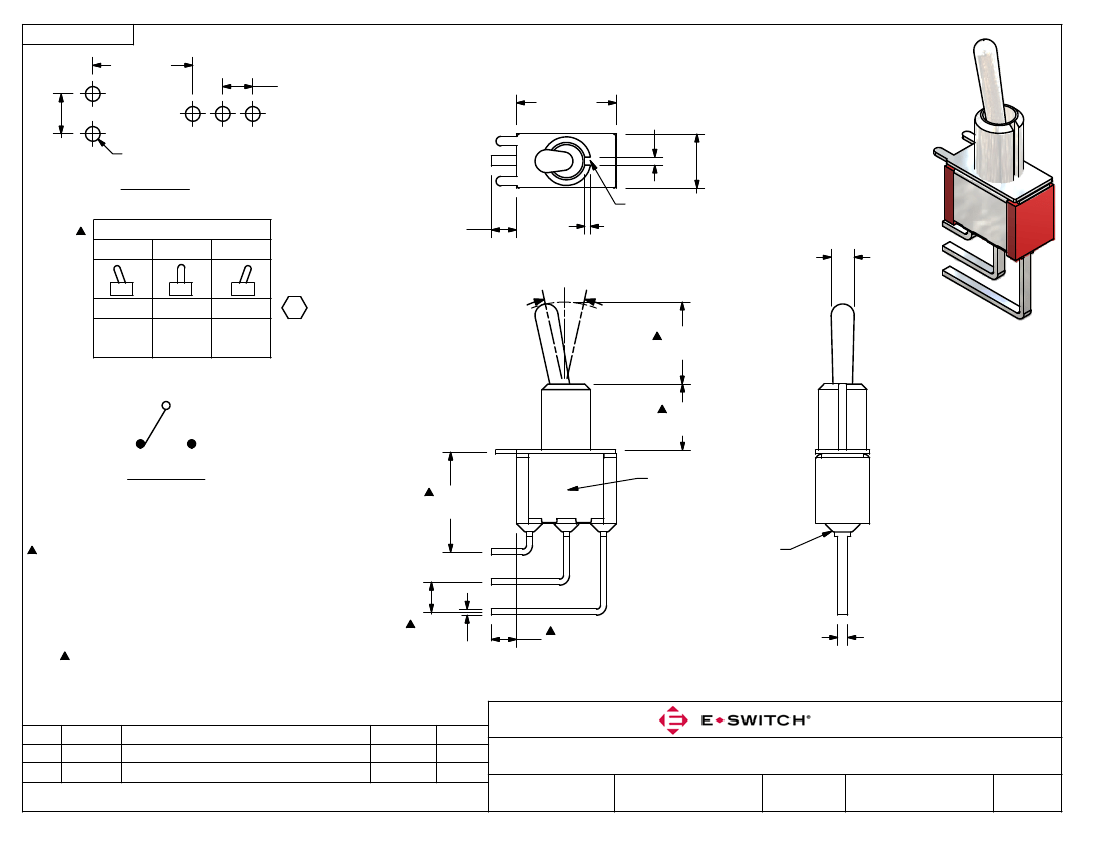

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

12.70

[.500 in]

3.81

[.150 in]

5.08

[.200 in]

12.70

[.500 in]

1.02

[.040 in]

[.073 in]

PCB LAYOUT

KEYWAY 6.86

[.270 in]

.71

[.028 in]

2.92

[.115 in]

1.85

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

3.18

[.125 in]

POS. 1

(ON)

2-3

OFF

OPEN

(ON)

2-1

POS. 2

POS. 3

10.41

[.410 in]

ISOMETRIC

8.40

[.331 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4 VA @ 20 VAC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. CONTACT RESISTANCE: 10 mΩ MAX. @ 2-4VDC

8. INSULATION RESISTANCE: 1,000 MΩ MIN.

9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

CIRCUI: SPDT

12.70

[.500 in]

3.81

[.150 in]

.76

[.030 in]

3.18

[.125 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

EPOXY SEAL

1.27

[.050 in]

REV

20279

20268

PCR NO

CORRECT FUNCTION TABLE

RELEASED FOR PRODUCTION

DESCRIPTION

11/14/11

11/11/11

DATE

BMA

TITLE

SCALE

100SP4T1B2M7RE

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

11/11/2011

BMA

DWG

T112062

REV
